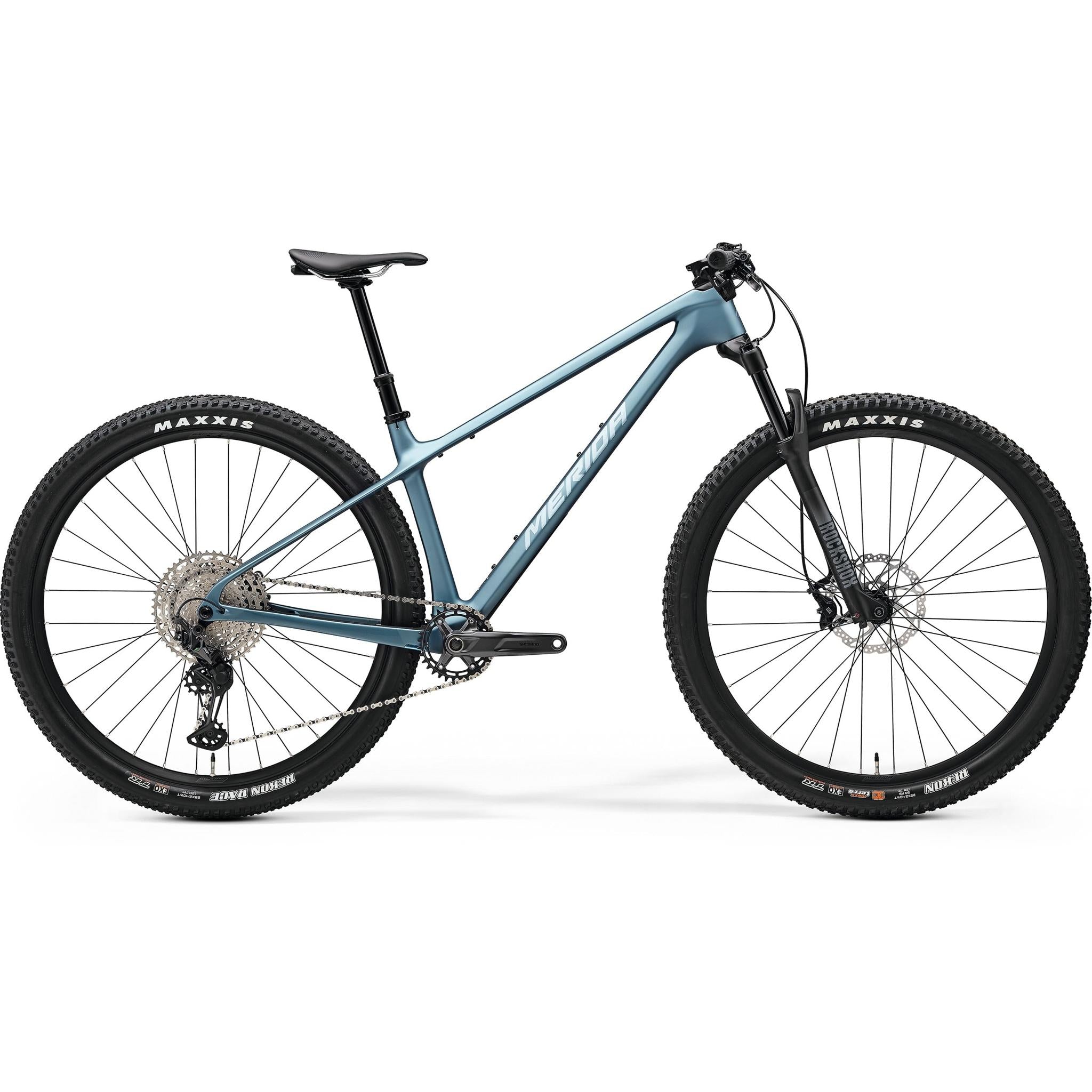

Merida Big.Nine TR 5000 Cross-Country Bike Silk Steel Blue

Brand: Merida

SKU: Select a size

Size: Select a size

MD LG

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Carbon Frame/ RockShox Fork

120mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano XT Groupset

1 x 11 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Merida Big.Nine TR 5000 Cross-Country Bike is engineered for high-performance riding on rugged trails. Featuring a lightweight BIGNINE TR CF3 III carbon frame and a 120mm Rock Shox Judy fork with remote lockout, it delivers exceptional agility and control. The Shimano XT rear derailleur ensures precise gear changes, while the Shimano RT54 disc brakes provide reliable stopping power. With tubeless-ready rims and a sleek design, this bike is perfect for avid cross-country riders seeking both speed and durability.

Key Features

Lightweight carbon frame for agility
120mm Rock Shox Judy fork with remote lockout
Shimano XT rear derailleur for precise shifting
Powerful Shimano RT54 disc brakes
Tubeless-ready rims for reduced rolling resistance

Specifications

Product Overview

Product

Merida Big.Nine TR 5000 Cross-Country Bike Silk Steel Blue

Brand

Merida

Parent SKU

143DAP2U

Size SKUs

MD: MEHA2500832
LG: MEHA2500833

Matrix Barcodes

MD: 2500832
LG: 2500833

Year Model

2025

Product Features

Frame Material

Carbon

Colour

Blue

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Front Travel

120mm

Build

Frame

BIGNINE TR CF3 III MAT carbon 29x24 max WHS 148x12 AST BSA BBR

Fork

Rock Shox Judy Gold; Air; 120 STR; Tapered; Remote lockout; 51 mm fork offset

Handlebars

MERIDA EXPERT CC; MAT aluminium; 760 WHB; flat

Grips

MERIDA EXPERT EC

Stem

MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD; incl. MERIDA SMART MOUNT

Bottom Bracket

Shimano BB-MT-501; 24mm

Saddle

MERIDA EXPERT SL; V-mount; incl. MERIDA minitool

Seat Post

MERIDA TEAM TR SL; 30.9 DSP; 0 SSB; S/M: 150 SPT - L/XL/XXL: 170 SPT

Wheels

Wheel Size

29"

Rims

MERIDA EXPERT CC II; 25 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)

Groupset

Crankset

170 mm-S, 175 mm-M up

Chain

KMC X12

Front Rotor

Shimano RT54; 180mm

Rear Rotor

Shimano RT54; 160mm

Rear Derailleur

Shimano XT; SGS

Cassette

11 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big.Nine TR 5000 Cross-Country Bike Silk Steel Blue we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Big.Nine TR 5000 Cross-Country Bike Silk Steel Blue geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

614

624

Reach

440

460

Top Tube Length

614

637

Seat Tube Length

410

440

Seat Tube Angle

74.2

Fork Length

530

Head Tube Length

105

Head Tube Angle

95.0

105.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

711

717

Minimum Seat Height

Maximum Seat Height
