Marin Lombard E1 Electric Gravel Bike Blue Tan

Marin Lombard E1 Electric Gravel Bike Blue Tan

Brand: Marin

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$6,499.00 Full price

$6,499.00

Club price

$7,299.00 Full price

Club Price is automatic when shopping online.
Join club 99 for $5 and unlock benefits for life! Learn more.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Moderately Steep Hills / 55 Nm Torque

Up to 137 km Range

Bosch Performance Line SX Motor

Alloy Frame/ Carbon Fork

400Wh Battery

700c Wheel Size

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

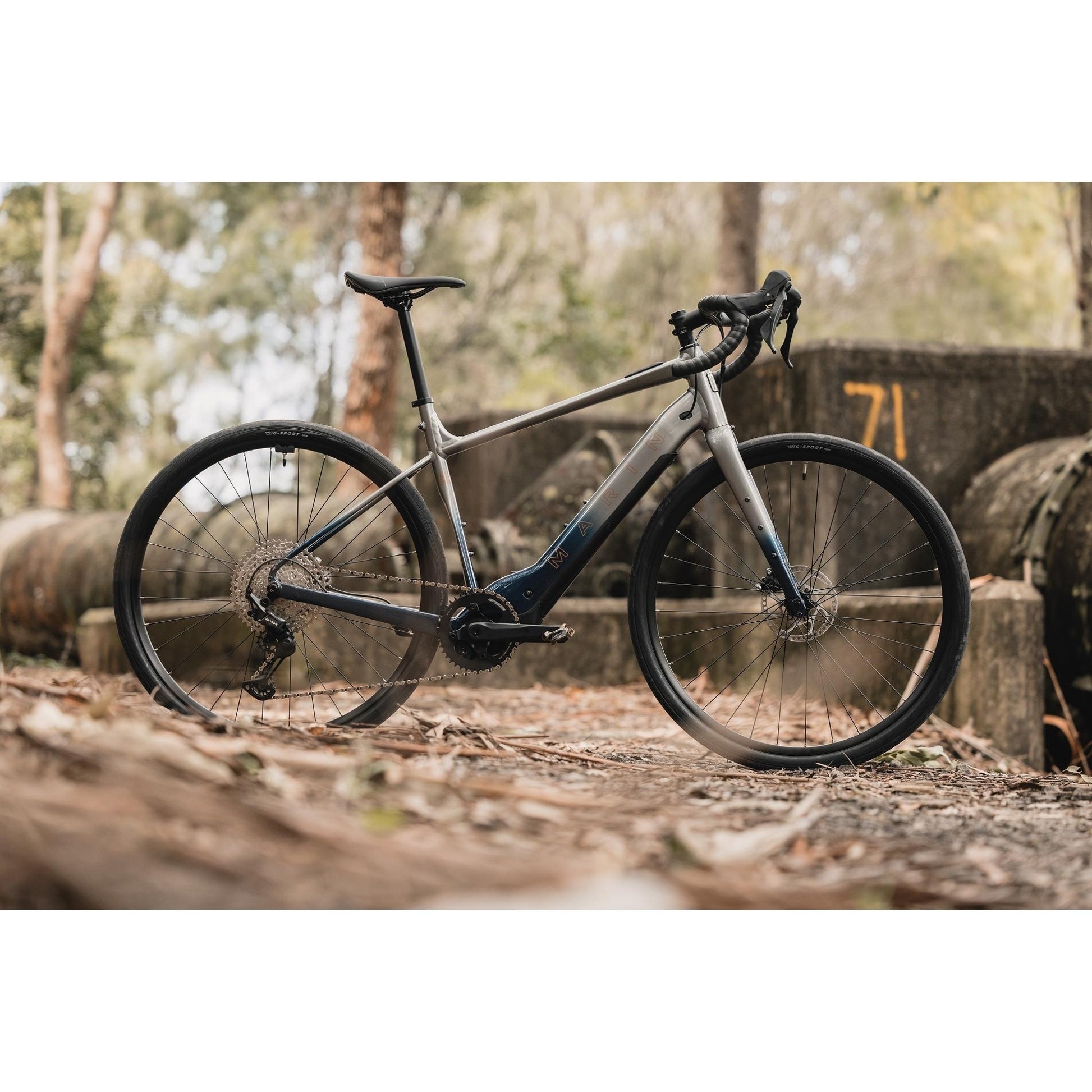

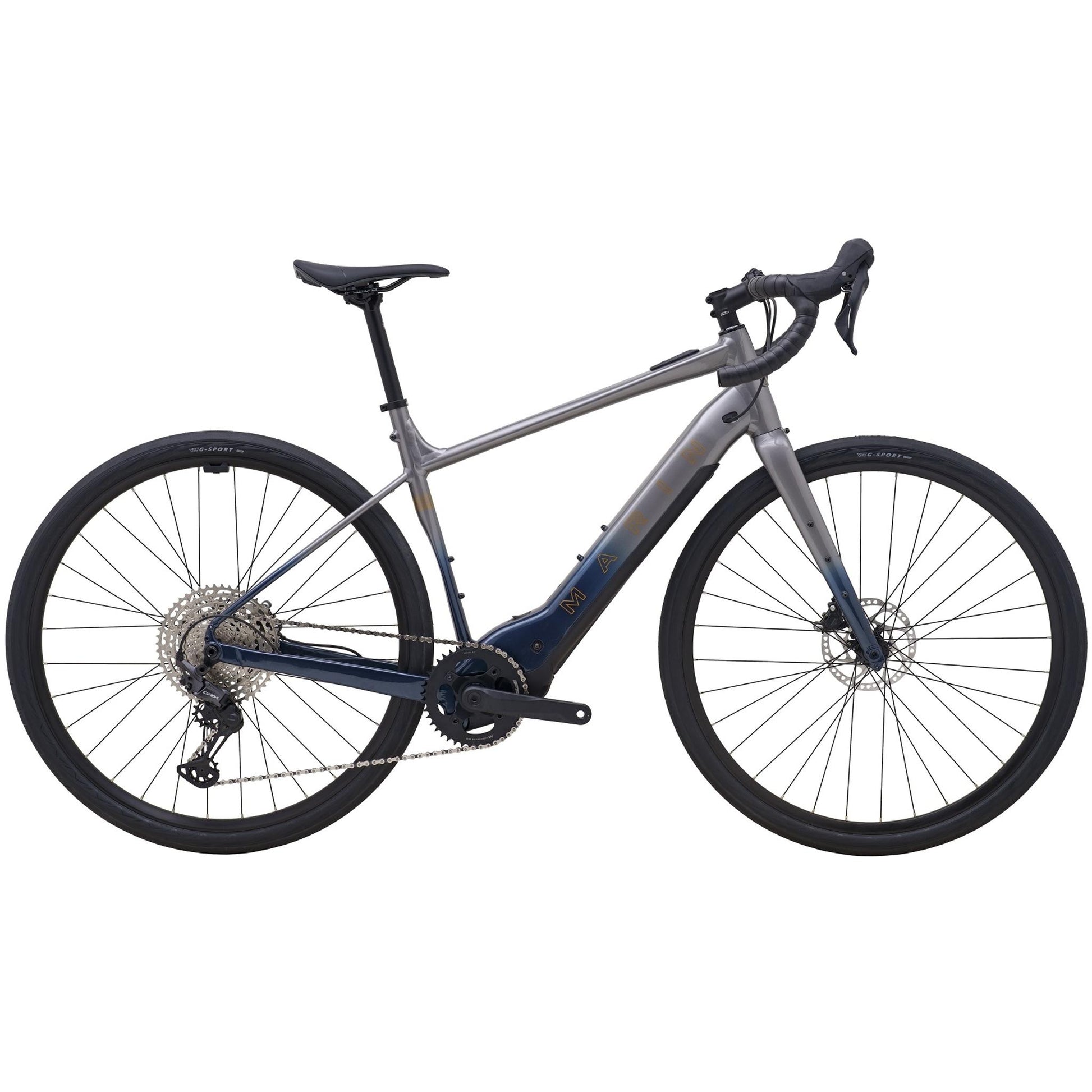

The Marin Lombard E1 Electric Gravel Bike blends robust electric assist with gravel-capable geometry, pairing a torquey mid-drive motor and a 400Wh integrated battery for extended rides and confident climbs. Built on a durable alloy frame with internal routing, rack and mudguard mounts, hydraulic disc brakes and a carbon fork, it’s equipped for mixed-surface adventure, commuting, and fast gravel outings with dependable Shimano GRX 12-speed shifting and tubeless-ready wheels.

Key Features

Lightweight aluminum frame construction
Powerful electric assist for easy rides
Versatile tyres for various terrains
Integrated lights for safety and visibility
Comfortable geometry for long-distance rides

Specifications

Product Overview

Product

Marin Lombard E1 Electric Gravel Bike Blue Tan

Brand

Marin

Parent SKU

WH2Y9MJG

Size SKUs

SM: MAEB2539090001
MD: MAEB2539090002
LG: MAEB2539090003
XL: MAEB2539090004

Year Model

2025

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Blue

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Fork Material

Carbon

Charge Time

3.5

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Bosch

Motor

Bosch SX Sprint, 250W, 55Nm, Class 3 45Km/h

Torque (Nm)

Motor Climbing Ability

Moderately Steep Hills

Battery Size (Watt-Hours)

400

Battery

Bosch Compact Power Tube 400, 400Wh

Max. Range (KMs)

137

Charge Time (Hours)

3.5

Build

Frame

All-New Series 4 Beyond Road E, 6061 Aluminum, One-Piece Hydroformed Downtube & Motor Mount, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

Fork

Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

Handlebars

Marin Butted Alloy, Compact 16Âş Flared Drop

Headset

FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8â€ť x 1 1/2â€ť

Grips

Marin Shock Absorbing Perforated Tape

Stem

Marin 3D Forged Alloy

Pedals

Flats

Saddle

Marin Beyond Road Concept Elite

Seat Post

Marin Alloy, 27.2

Accessories

Removable kickstand mount; Bosch MiniRemote HMI, Bluetoth

Wheels

Wheel Size

700c

Rims

Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible

Hubs

F: Forged Aluminum Alloy, 100x12mm, Disc, 32H | R: Forged Aluminum Alloy, 142x12mm, Disc, 32H

Tyres

Vee Tire Co., G-Sport, 700x44, Tubeless Compatible

Spokes

14g Black Stainless Steel

Groupset

Crankset

Forged Alloy, 42T Steel Chainring

Chain

KMC E12S

Brakes

Shimano GRX RX400, Flat-Mount Hydraulic Disc, 160mm Rotor

Front Rotor

160mm

Rear Rotor

160mm

Shifters

Shimano GRX STRX610, 12-speed

Rear Derailleur

Shimano GRX RD-RX822, 12-speed, Clutch

Cassette

12 Speed

Frequently Asked Questions

What is the Marin Lombard E1 Electric Gravel Bike used for?

The Marin Lombard E1 Electric Gravel Bike is used for mixed-surface riding—gravel adventures, fast training rides, and practical commuting or bikepacking thanks to its electric assist, durable frame, and accessory mounts.

Why choose the Marin Lombard E1 Electric Gravel Bike?

Choose the Marin Lombard E1 Electric Gravel Bike for its combination of a torquey Bosch mid-drive, long-range 400Wh battery, gravel-specific components, and practical features like integrated lights and rack/fender mounts.

Who is the Marin Lombard E1 Electric Gravel Bike designed for?

The Marin Lombard E1 Electric Gravel Bike is designed for riders who want a capable, comfortable e-gravel bike—commuters, weekend adventurers, and athletes seeking extra assist on long rides or hilly terrain.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Marin Lombard E1 Electric Gravel Bike Blue Tan we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Lightweight alloy chassis with confident support

Built on a hydroformed 6061 aluminum frame with internal routing and a carbon fork for responsive handling. Rack and mudguard mounts make it ready for loaded adventures or daily commuting.

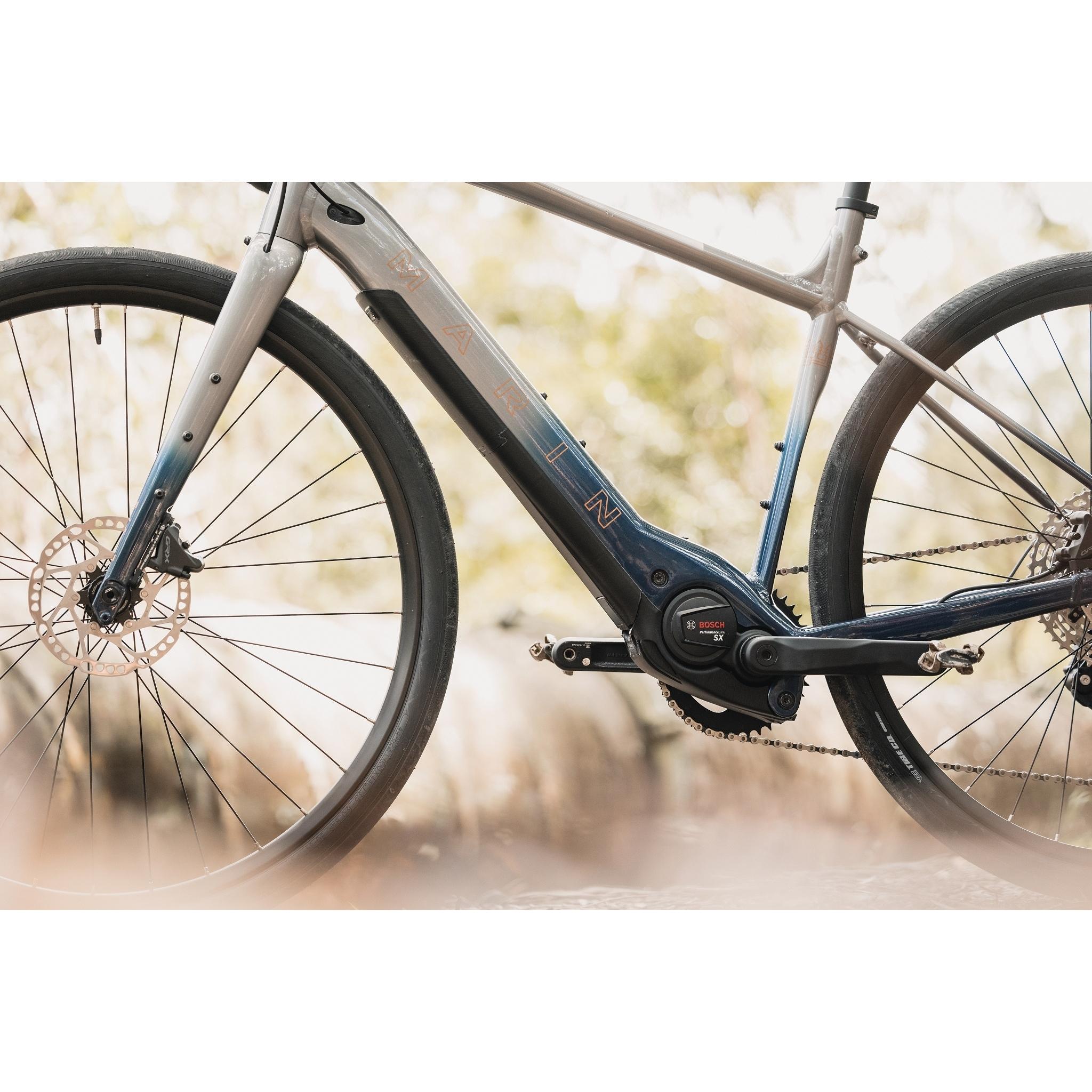

Powerful Bosch mid-drive and long-range battery

Bosch Performance Line SX (250W, 55Nm) paired with a 400Wh CompactTube delivers strong assist for climbs and up to ~137 km of range. Fast 4-hour charge keeps you riding sooner.

Gravel-ready components for mixed surfaces

Shimano GRX 12-speed drivetrain, hydraulic disc brakes, tubeless-ready 700x44 tyres, and comfortable beyond-road geometry handle everything from fast gravel to rough backroads. Integrated lights and mounts boost safety and practicality.
