- Full carbon CF frame with dropped chainstay for 700x45 mm clearance
- Relaxed head angle and MTB-style geometry for off-road stability
- SRAM AXS 12-speed wide-range wireless 1x drivetrain with power meter
- Sram Red AXS hydraulic disc brakes
- WIRE PORT internal cable routing for clean looks and scuff free bag fitting
- Multiple mounting points for cages, bags and fenders
- Reynolds carbon wheelset and wireless Reverb XPLR dropper post

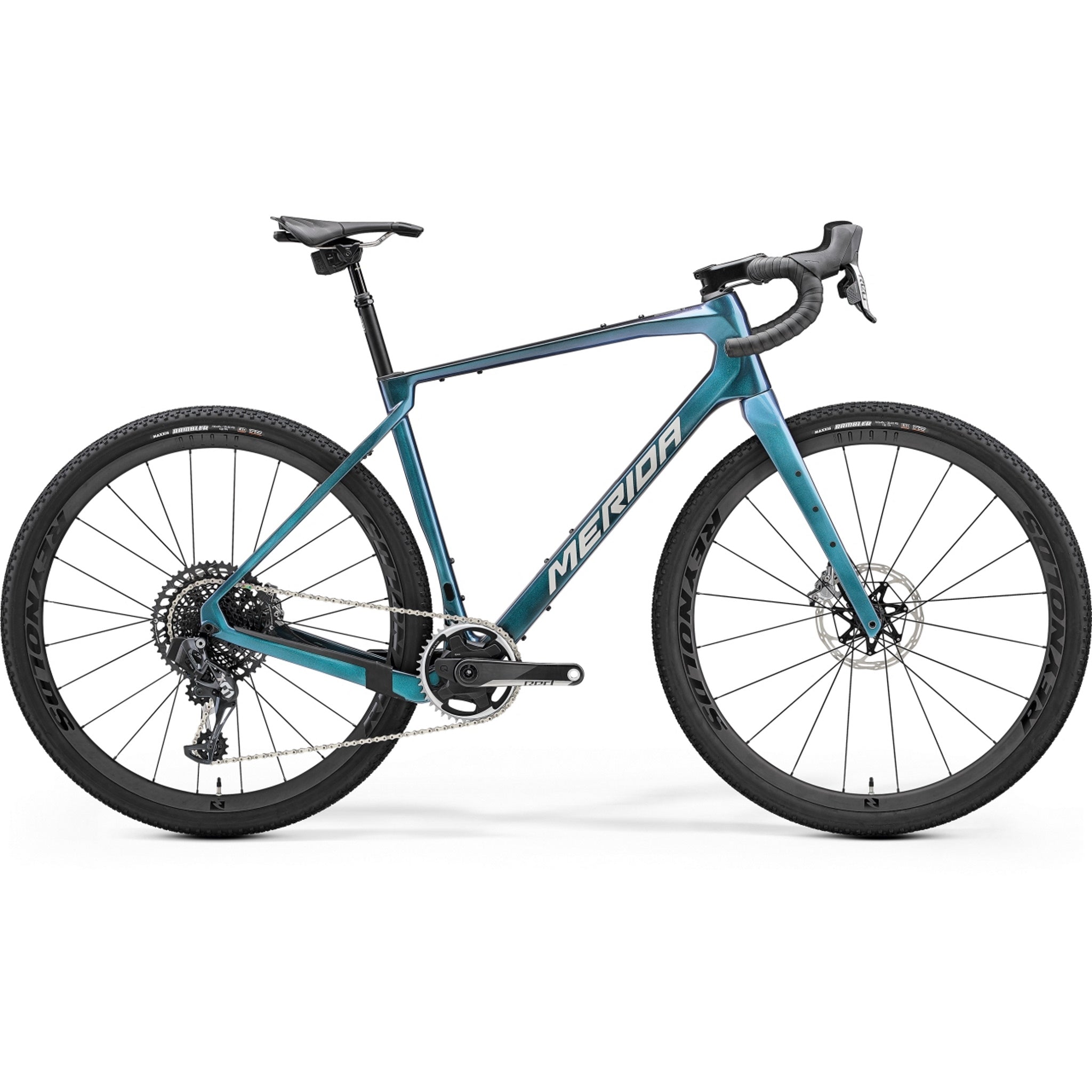

Going on an adventure doesn’t mean you should deny every luxury, right? The Silex 10K is the ultimate expression of Merida’s gravel adventure bike, with our carbon fibre frame and fork paired to a dream-build-worthy kit list. The transmission mixes top-end mountain bike kit with the finest road parts to create a wireless SRAM AXS Red / X01 mix with a huge gear range and power meter equipped cranks, plus there’s a wireless Reverb XPLR dropper post for when the going gets rough. Reynolds carbon wheels and Industry Nine hubs are the final piece of the performance puzzle.
The Silex turns any ride into an adventure, whether you’re on a multi-day gravel bikepacking mission or just taking the fun route to work. The latest version builds on the test-winning pedigree of the original Silex but adds even more off-road capability, thanks to a slacker head angle and boosted tyre clearance of up to 700x45 mm or even 42 mm with fenders. Merida combined that confident mountain bike-inspired handling with all-surface versatility so that it is utterly stable when loaded up with luggage but still fast and fun when you put the hammer down. Merida added their sleek WIRE PORT cable routing for improved looks – and fewer cables to catch on with a handlebar bag – and the carbon fibre fork now has more cargo mounts plus internal routing for a dynamo hub. With the ability to use 1x or 2x drivetrains, you can pick your gearing to suit the task at hand or your own personal preference, opening up a world of opportunity for you and your Silex.
Axles: | MERIDA EXPERT TR including removable lever 6/4 mm allen key |
---|---|
Bottom bracket: | Sram DUB BSA 68 Road Wide |
Brakes: | Sram Red AXS hydraulic disc |
Cassette: | Sram XG 1295 10-52 teeth 12 speed |
Chain: | Sram X01 Eagle |
Colour: | SPACE TEAL (SILVER/CHAMELEON) |
Colour (text): | SPACE TEAL (SILVER/CHAMELEON) |
Crankset: | Sram Red 1 AXS Wide Power Meter 42 teeth 170 mm-XS/S, 172,5 mm-M, 175 mm-L/XL |
Derailleur rear: | Sram X01 Eagle AXS |
Fork: | MERIDA SILEX II CF2 Tapered material: carbon 700x47C max. wheelsize |
Frame: | SILEX CF2 II material: carbon 700x45C max. wheelsize 100x12/142x12 mm axle standard BSA bottom bracket standard |
Grip: | MERIDA ROAD Expert |
Handlebar: | Easton EC70 AX material: carbon 400 mm (XS-S) , 420 mm (M) , 440 mm (L/XL) |
Handlebar stem: | MERIDA TEAM CC III material: aluminium 31.8 mm diameter -6° stem angle incl. MERIDA SMART MOUNT 80 mm all sizes |
Headset: | MERIDA 8158 |
Rim: | Wheelset: Reynolds Black Lable G700 Pro 100x12 mm width front hub 142x12 mm width rear hub 25 mm inner width 26 mm height Centerlock material: carbon |
Rotor front: | Sram Centerline X 180 mm |
Rotor rear: | Sram Centerline X 180 mm |
Saddle: | Prologo Scratch M5 AGX V-mount adapter incl. MERIDA minitool |
Seat clamp: | MERIDA EXPERT |
Seat post: | Sram Reverb XPLR AXS |
Tyre front: | Maxxis Rambler 700x45C fold TR EXO |
Tyre rear: | Maxxis Rambler 700x45C fold TR EXO |
Weight: | 8.4 kg weighed at frame size M / Max Weight: 120 kg Total weight of bike, rider and luggage |
Wheel size: | 700c |
Frame Size | XS | S | M | L | XL |
Tyre Sizes | 28" | 28" | 28" | 28" | 28" |
ST seat tube [mm] | 440 | 470 | 500 | 530 | 560 |
TT top tube [mm] | 550 | 565 | 580 | 600 | 620 |
CS chain stay length [mm] | 430 | 430 | 430 | 430 | 430 |
HTA head tube angle [°] | 69.5 | 69.5 | 69.5 | 69.5 | 69.5 |
STA seat tube angle [°] | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 |
BD bottom bracked drop [mm] | 75 | 75 | 75 | 75 | 75 |
HT head tube [mm] | 130 | 150 | 170 | 190 | 210 |
FL fork length [mm] | 415 | 415 | 415 | 415 | 415 |
R reach [mm] | 392 | 402 | 412 | 426 | 441 |
S stack [mm] | 570 | 588 | 607 | 626 | 645 |
WB wheel base [mm] | 1048 | 1065 | 1082 | 1104 | 1126 |
SH stand over height [mm] | 744 | 771 | 798 | 825 | 852 |
Merida Silex Bike Sizing Chart
