$900 Off Full Price

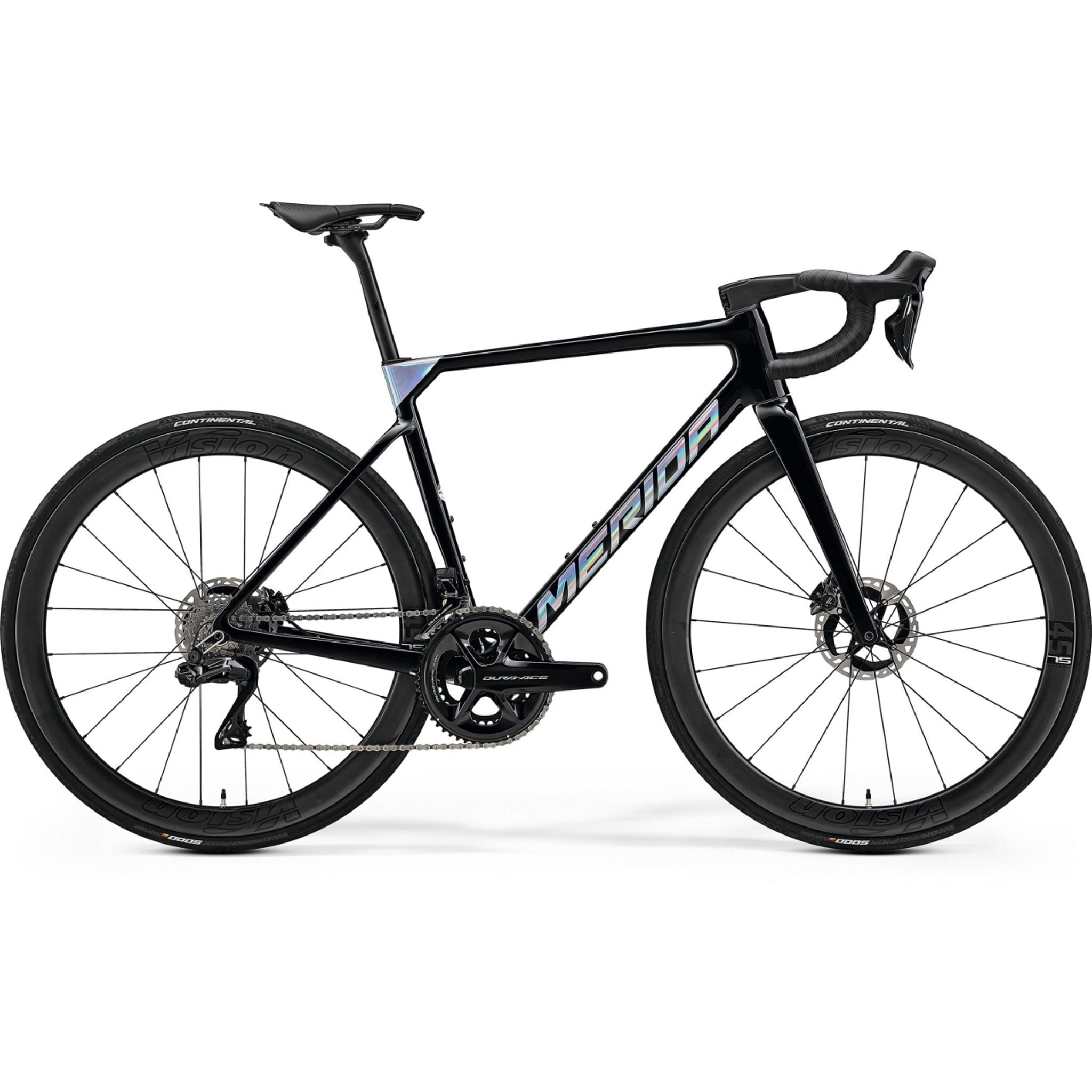

Merida Scultura Team Road Race Bike Metallic Black (Flash BCP)

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Carbon Frame/ Merida Carbon Fork

Rigid Front Travel

700c Wheel Size

Hydraulic Disc Brake

Shimano Dura-Ace Di2 Groupset

2 x 12 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Team level Scultura road race bike featuring an award-winning frame and the same race proven geometry as the Reacto aero bike. The Team provides low weight, gunshot acceleration, air slicing frame features and class-leading frame compliance. Raced and put through its paces by Team Bahrain Victorious, the Scultura Team is the comfort-focused alternative to the Reacto aero bike. While the latest Scultura has learned a lot from the Reacto in terms of aerodynamics, extra effort has been put into reducing the weight even further and making it the most comfortable pure road race bike in Merida’s range. Equipped with top-end components such as Shimano’s Dura-Ace 12-speed Di2 electric groupset, Shimano Dura Ace Hydraulic disc brakes, Vision Metron 45 SL wheelset and Continental 5000S TR 28mm tyres, the Team is the perfect bike when comfort, weight and lightning-fast acceleration are essential for your next road session.

The fifth generation of Merida’s lightweight racer marries outstanding handling with improved comfort and an even more aerodynamic chassis. Thanks to incorporating selected aero details from our test and award-winning Reacto aero bike, the Scultura is the most aerodynamic version ever. Yet, it remains true to its lightweight, agility and rider comfort focus; in fact it takes these factors to the next level. The Scultura demonstrates outstanding compliance, providing the rider with class-leading riding comfort that will help to keep the body fresh for the final sprint or ascent. The CF5 carbon frame shares it’s geometry with the Reacto, given the rider Team Bahrain Victorious race-proven handling.

Key Features

Lightweight carbon frame for enhanced performance
Aerodynamic design for improved speed
High-quality Shimano components for reliability
Comfortable geometry for long rides
Sleek metallic black finish for style

Specifications

Product Overview

Product

Merida Scultura Team Road Race Bike Metallic Black (Flash BCP)

Brand

Merida

Parent SKU

IA5N8GH4

Size SKUs

SM: MERR242400175
MD: MERR242400176
LG: MERR242400177
XL: MERR242400178

Product Features

Frame Material

Carbon

Colour

Black

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

2 x 12

Fork Material

Carbon

Build

Frame

SCULTURA CF5 V material: carbon 700x30C max. wheelsize 100x12/ 142x12 mm axle standard Pressfit 86,5

Fork

SCULTURA CF5 disc material: carbon 700x30C max. wheelsize

Handlebars

TEAM SL 1P INTEGRATED material: carbon 400 mm (XXS-XS), 420 mm (S-M-L), 440 (XL)

Headset

MERIDA custom

Grips

Prologo One-Touch

Stem

TEAM ONE-PIECE INTEGRATED material: carbon 90 mm-XXS/XS, 100 mm-S, 110 mm-M, 120 mm-L/XL

Bottom Bracket

Shimano SM-BB92-41B Pressfit 86.5 mm

Saddle

Prologo Scratch M5 V-mount adapter incl. MERIDA minitool

Seat Post

MERIDA TEAM SL 27.2 mm diameter 15 mm setback Carbon S-Flex

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

700c

Rims

Vision Metron 45 SL Clincher TL Disc 100x12 mm width front hub 142x12 mm width rear hub 21 mm inner width 45 mm height Centerlock material: carbon Tubeless ready (tubeless tape and valves included)

Groupset

Crankset

Shimano Dura Ace 52-36 teeth Power Meter 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M, 175 mm-L/XL

Chain

Shimano CN-M9100-12

Brakes

Shimano Dura Ace Hydraulic disc

Front Rotor

Shimano CL900 160 mm

Rear Rotor

Shimano CL900 140 mm

Shifters

Shimano Dura Ace disc Di2

Rear Derailleur

Shimano Dura Ace Di2

Cassette

12 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Scultura Team Road Race Bike Metallic Black (Flash BCP) we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Scultura Team Road Race Bike Metallic Black (Flash BCP) geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

542

557

571

593

Reach

390

395

400

409

Top Tube Length

545

560

575

590

Seat Tube Length

481

501

521

550

Seat Tube Angle

74.0

73.5

73.0

Fork Length

385

Head Tube Length

128

140

155

176

Head Tube Angle

128.0

140.0

155.0

176.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

765

782

800

823

Minimum Seat Height

Maximum Seat Height
