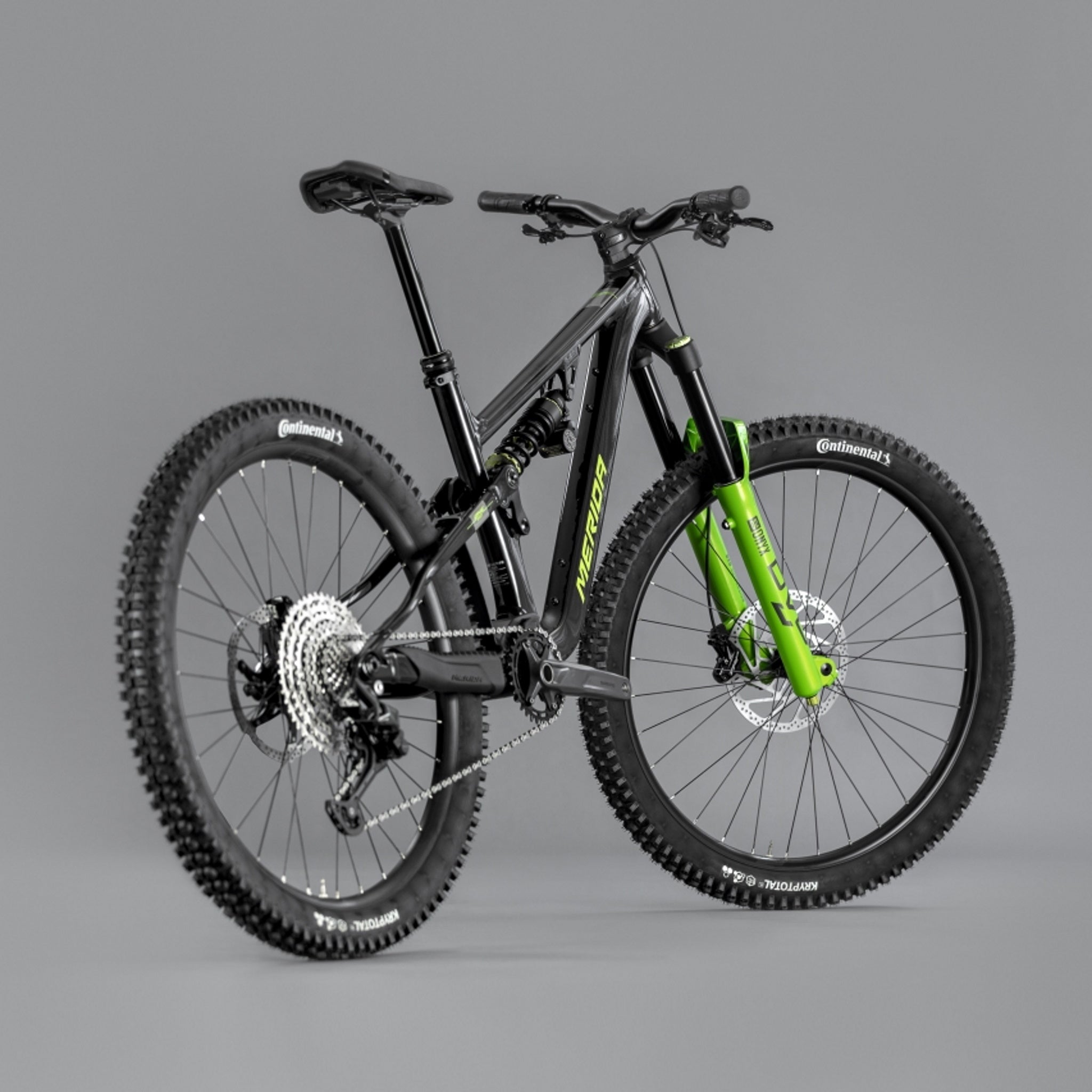

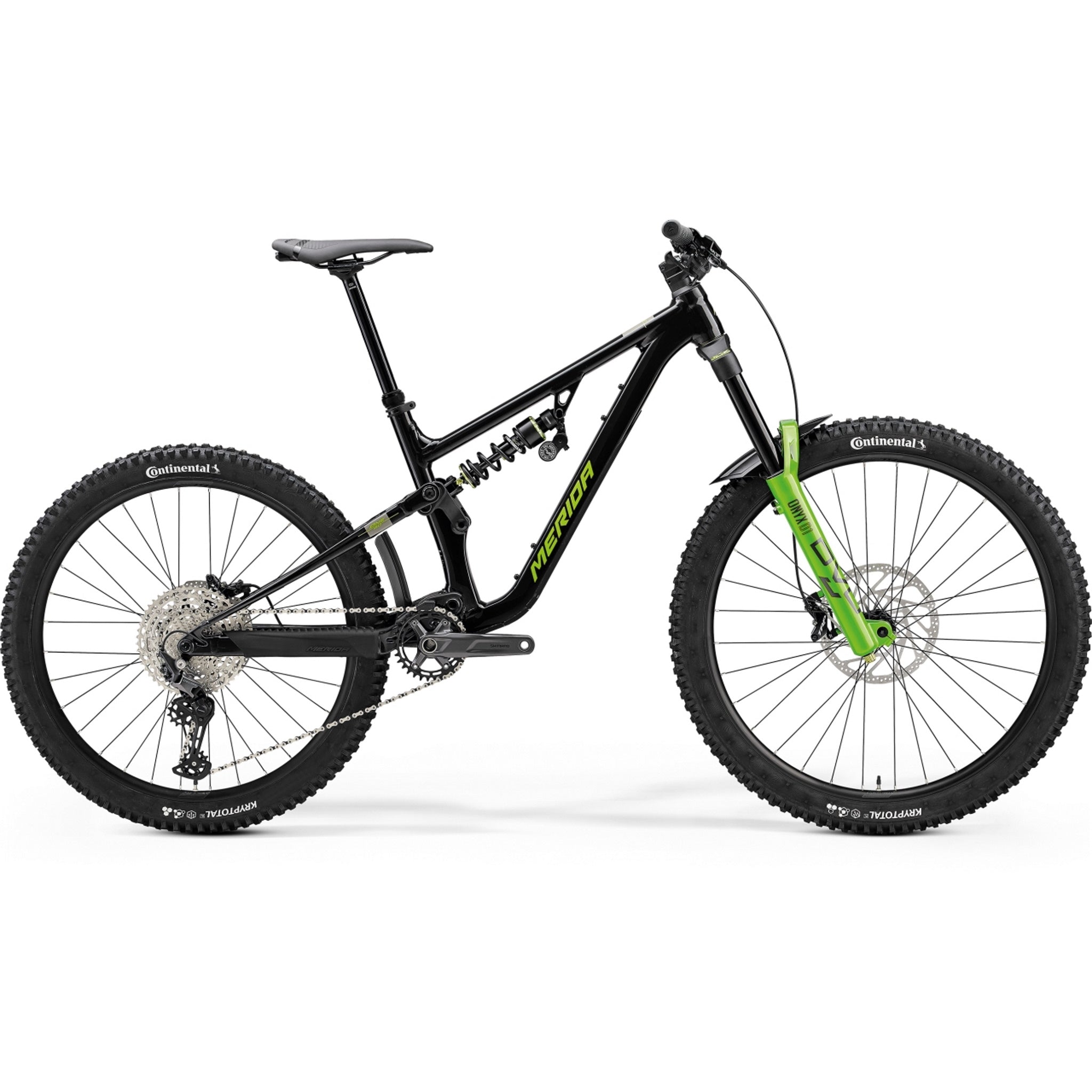

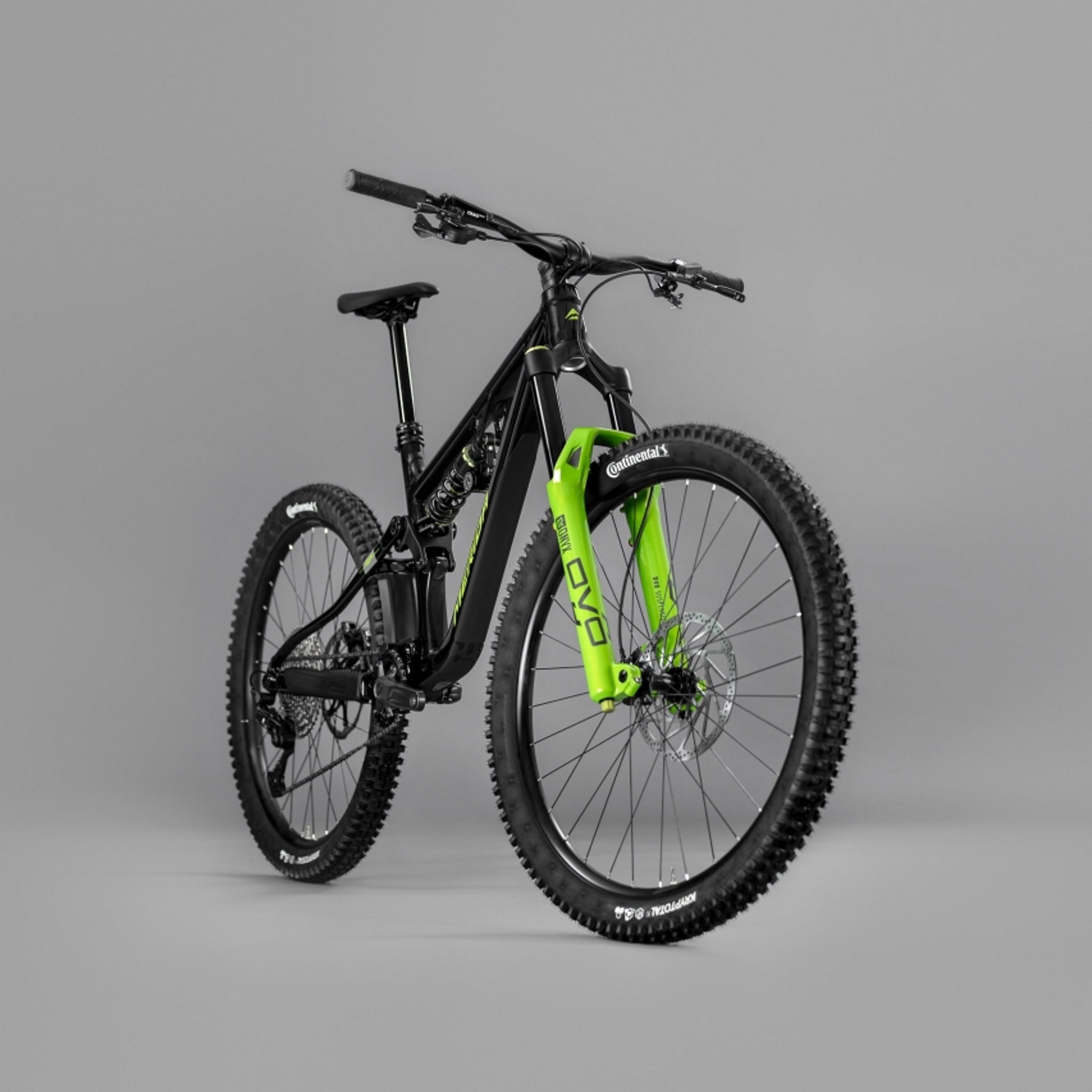

Merida One Sixty FR 600 Enduro Bike Metallic Black (Grey/Green)

Merida One Sixty FR 600 Enduro Bike Metallic Black (Grey/Green)

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ DVO Alloy Fork

180mm Front Travel / 170mm Rear

29" / 27.5" (Mullet Bike) Wheel Size

Hydraulic Disc Brake

Shimano Deore Groupset

1 x 12 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Hard-hitting and bike park proof. The One Sixty FR 600 takes Merida’s award-winning aluminium enduro frame and pumps up the attitude to make it ideal for hard riders and bike park heavy hitters. Mixed wheels for fun handling, plus there's a tough 180 mm travel DVO Onyx fork with 38 mm legs paired with a plush DVO Jade coil shock at the rear, all controlled by Merida’s FAST kinematic suspension so you can consistently hit lines, run after run. Quality suspension needs quality brakes, so they’ve gone big with those, while Shimano's dependable Deore does drivetrain duties.

The One Sixty FR builds on the solid platform of Merida’s award-winning One Sixty, but cranks the volume up. It's built tough so that you can hit the bike park all day long, or just rip the toughest tracks and trails time after time, safe in the knowledge that the bike won't let you down. To boost the capability, they've added in longer travel forks pushing out 180 mm travel paired with coil shocks delivering 171 mm of rear wheel travel, mounted on their tough aluminium chassis. Running a mixed 29" front and 27.5" rear wheel size for maximum manoeuvrability, whether you're ripping turns or sending it hard. However, you can switch to a full 29er setup without impacting the geometry, thanks to Merida’s flip-chip system. AGILOMETER sizing allows riders to run a longer or shorter reach frame independently of their height. At the same time, the suspension becomes more progressive as you size up, and all bikes are fitted with long-travel dropper posts.

Key Features

Lightweight aluminum frame construction
160mm front and rear suspension travel
High-performance Shimano drivetrain system
Aggressive geometry for enhanced stability
Tubeless-ready wheels for improved traction

Specifications

Product Overview

Product

Merida One Sixty FR 600 Enduro Bike Metallic Black (Grey/Green)

Brand

Merida

Parent SKU

V359II89

Size SKUs

XS: MEDE242402696
SM: MEDE242402697
MD: MEDE242402698
LG: MEDE242402699
XL: MEDE242402700

Product Features

Frame Material

Alloy

Colour

Black

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Fork Material

Alloy

Front Travel

180mm

Rear Travel

170mm

Build

Frame

ONE-SIXTY FR LITE III 171 mm suspension travel mullet material: aluminium 29x2.5" max. wheelsize 148x12 mm axle standard BSA bottom bracket standard

Fork

DVO Onyx 38 D2 Air 180 mm suspension travel tapered 44 mm Offset 29"

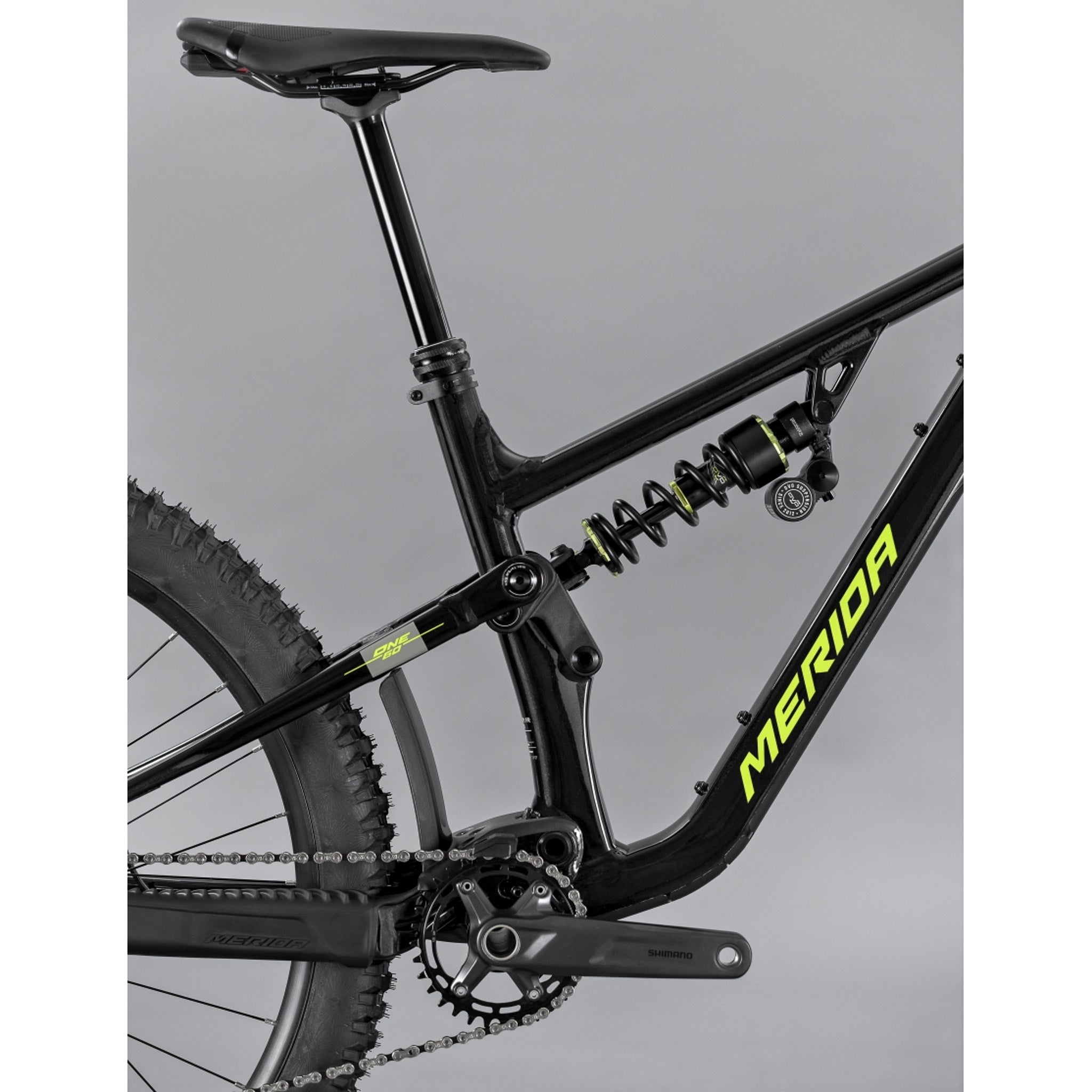

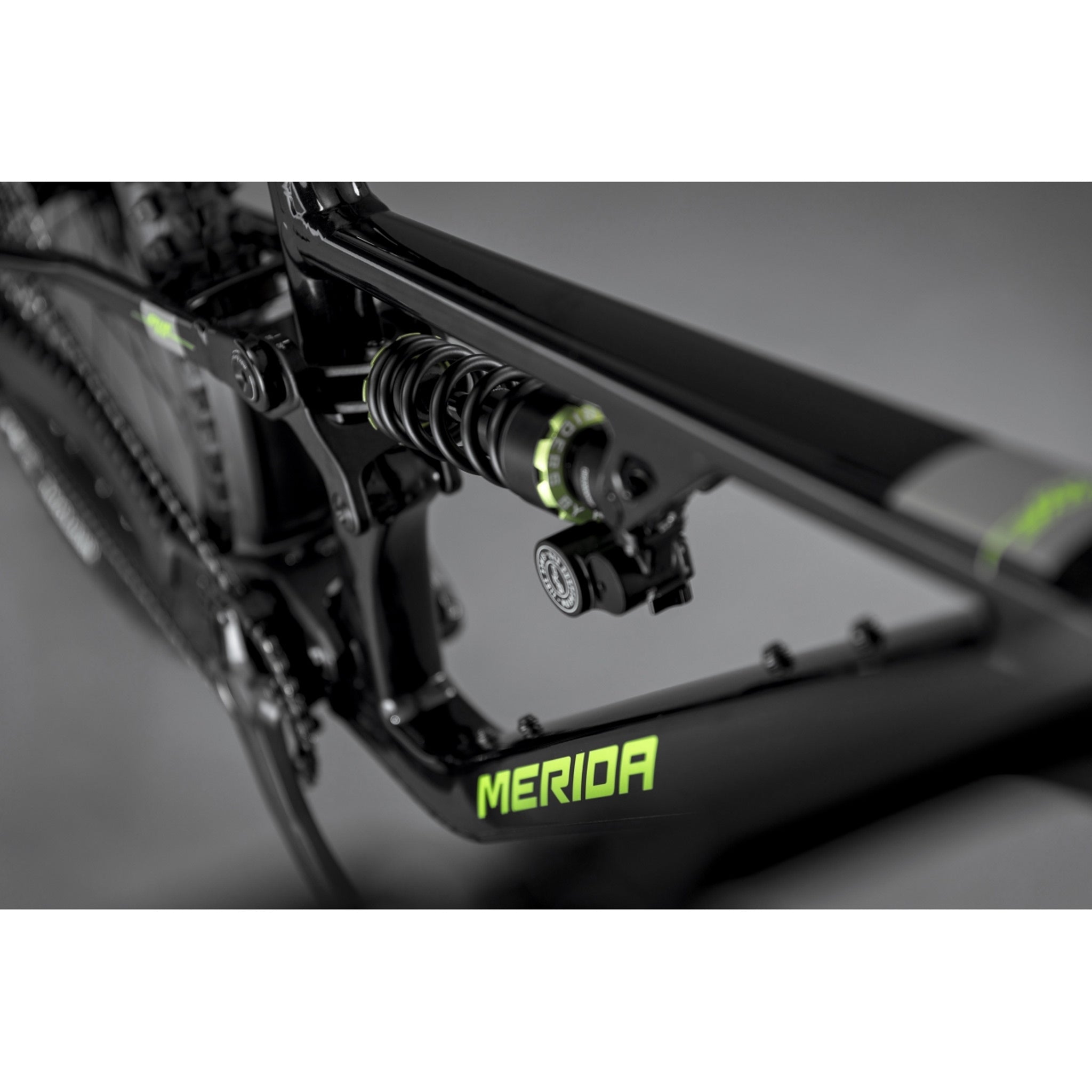

Shock

DVO Jade X D2 coil spring rate per size XSHORT and SHORT 300 lbs, MID: 350 lbs, LONG: 400 lbs, XLONG: 450 lbs

Handlebars

MERIDA EXPERT TR II material: aluminium 780 mm width XS/S 18 mm rise M/L/XL 30 mm rise

Headset

Acros ICR MERIDA EXTERNAL neck Upper and lower IPS sealing

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTRII material: aluminium 35 mm diameter 0° stem angle 40 mm

Bottom Bracket

Shimano BB-MT-501 24 mm

Saddle

MERIDA COMP SL V-mount incl. MERIDA minitool

Seat Post

MERIDA TEAM TR II 34.9 mm diameter 0 mm setback all sizes 30-230 mm travel seatpost

Seat Clamp

MERIDA EXPERT

Accessories

Chain Guard: MERIDA EXPERT TR ISCG05

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

MERIDA EXPERT TR II 110x15 mm width front hub 148x12 mm width rear hub 28 mm inner width material: aluminium Tubeless ready (tubeless tape and valves not included) front 29" rear 27.5"

Hubs

FRONT l Shimano TC500-B 110x15 mm width front hub 32 spoke holes Centerlock / REAR: Shimano TC500-MS-B 148x12 mm width rear hub 32 spoke holes Centerlock

Spokes

Double Butted Black stainless

Groupset

Crankset

Shimano Deore MT512 32 teeth 170 mm for all sizes

Chain

KMC X12

Brakes

TRP Trail Evo HD-M843 4 piston

Front Rotor

TRP RS01E 220 mm

Rear Rotor

TRP RC01E 203 mm

Shifters

Shimano Deore M6100

Rear Derailleur

Shimano Deore M6100 SGS

Cassette

12 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida One Sixty FR 600 Enduro Bike Metallic Black (Grey/Green) we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida One Sixty FR 600 Enduro Bike Metallic Black (Grey/Green) geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Mullet Bike)

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
