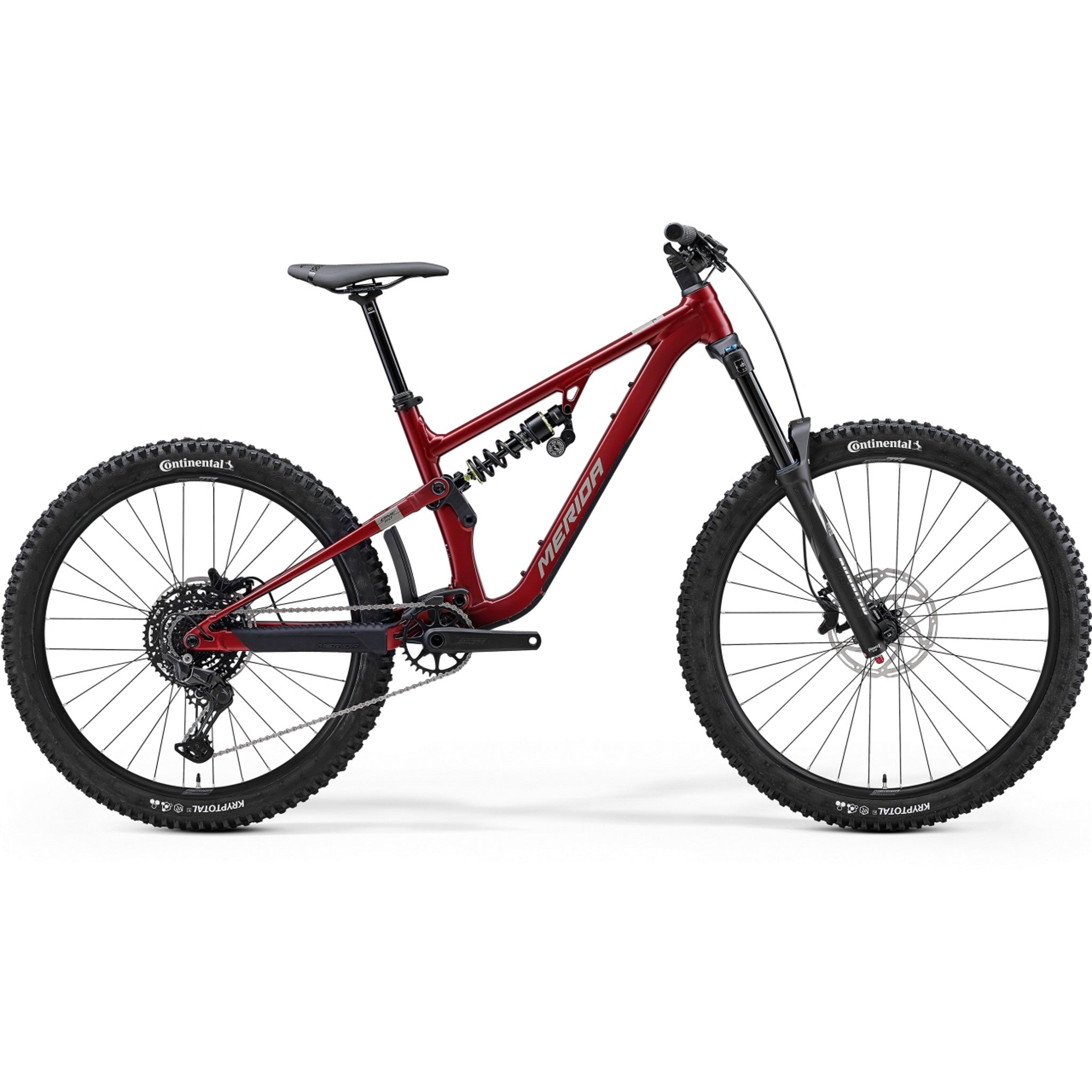

Merida One Sixty FR 400 Enduro Bike Silk Dark Strawberry (Grey/Black)

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Alloy Fork

180mm Front Travel / 170mm Rear

29" / 27.5" (Mullet Bike) Wheel Size

Hydraulic Disc Brake

Shimano Mixed Groupset

1 x 10 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Built for progression, built tough. The One Sixty FR 400 builds on the proven performance of Merida’s aluminium enduro frame and cranks the volume up. Thanks to a DVO Jade X D3 coil sprung back end plus longer travel SR Suntour Durolux 38 180mm fork, mixed wheel size handling, this is a ride that's ready to get rad. Merida prioritized suspension performance and durability then kitted the ride out with a reliable but economical Shimano CUES 10 speed drivetrain and Tektro 4 piston hydraulic disc brakes to create a bike that's ideal for rippers on a budget that go hard every time they hit the bike park.

The One Sixty FR builds on the solid platform of Merida’s award-winning ONE-SIXTY, but cranks the volume up. It's built tough so that you can hit the bike park all day long, or just rip the toughest tracks and trails time after time, safe in the knowledge that the bike won't let you down. To boost the capability, they've added in longer travel forks pushing out 180 mm travel paired with coil shocks delivering 171 mm of rear wheel travel, mounted on their tough aluminium chassis. Running a mixed 29" front and 27.5" rear wheel size for maximum manoeuvrability, whether you're ripping turns or sending it hard. However, you can switch to a full 29er setup without impacting the geometry, thanks to Merida’s flip-chip system. AGILOMETER sizing allows riders to run a longer or shorter reach frame independently of their height. At the same time, the suspension becomes more progressive as you size up, and all bikes are fitted with long-travel dropper posts.

Key Features

Lightweight aluminum frame construction
160mm front and rear suspension travel
High-performance Shimano drivetrain system
Aggressive geometry for enhanced stability
Versatile tyre clearance for varied terrain

Specifications

Product Overview

Product

Merida One Sixty FR 400 Enduro Bike Silk Dark Strawberry (Grey/Black)

Brand

Merida

Parent SKU

DXV6903S

Size SKUs

XS: MEDE242402706
SM: MEDE242402707
MD: MEDE242402708
LG: MEDE242402709
XL: MEDE242402710

Product Features

Frame Material

Alloy

Colour

Red

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Fork Material

Alloy

Front Travel

180mm

Rear Travel

170mm

Weight

Max Weight: 135 kg Total weight of bike, rider and luggage

Build

Frame

ONE-SIXTY FR LITE III 171 mm suspension travel mullet material: aluminium 29x2.5" max. wheelsize 148x12 mm axle standard BSA bottom bracket standard

Fork

SR Suntour Durolux 38 RC Air 180 mm suspension travel Tapered xx mm fork offset 29x2.60" max. wheelsize

Shock

DVO Jade X D3 coil spring rate per size XSHORT and SHORT 300 lbs, MID: 350 lbs, LONG: 400 lbs, XLONG: 450 lbs

Handlebars

MERIDA EXPERT TR II material: aluminium 780 mm width XS/S 18 mm rise M/L/XL 30 mm rise

Headset

Acros ICR MERIDA EXTERNAL neck Upper and lower IPS sealing

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTRII material: aluminium 35 mm diameter 0° stem angle 40 mm

Saddle

MERIDA COMP SL V-mount

Seat Post

MERIDA EXPERT TR II 34.9 mm diameter 0 mm setback XS/S: 150 mm travel seatpost - M: 170 mm travel seatpost - L/XL: 200 mm travel seatpost

Seat Clamp

MERIDA EXPERT

Accessories

Chainguard: MERIDA EXPERT TR ISCG05

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

MERIDA COMP TR II 110x15 mm width front hub 148x12 mm width rear hub 28 mm inner width material: aluminium Tubeless ready (tubeless tape and valves not included) front 29" rear 27.5"

Hubs

Shimano TC500-B / Shimano TC500-HM-B 110x15 mm width front hub 32 spoke holes Centerlock 148x12 mm width rear hub 32 spoke holes Centerlock

Spokes

Double Butted Black stainless

Groupset

Crankset

MERIDA Expert TR 32 teeth 170 mm for all sizes

Chain

Shimano LG500

Brakes

Tektro Gemini HD-M535 4 piston

Front Rotor

Tektro TR203-45 203 mm

Rear Rotor

Tektro TR203-45 203 mm

Shifters

Shimano CUES U6000

Rear Derailleur

Shimano CUES U6000 GS

Cassette

10 Speed

Frequently Asked Questions

What is the Merida One Sixty FR 400 Enduro Bike used for?

The Merida One Sixty FR 400 Enduro Bike is used for aggressive enduro riding and bike-park laps, tackling steep descents, technical trails, and big hits with confidence.

Why choose the Merida One Sixty FR 400 Enduro Bike?

Choose the Merida One Sixty FR 400 Enduro Bike for its tough alloy frame, long-travel suspension (180/171 mm), mixed-wheel agility, and a component set that delivers strong performance without breaking the bank.

Who is the Merida One Sixty FR 400 Enduro Bike designed for?

The Merida One Sixty FR 400 Enduro Bike is designed for progressing riders and park-focused shredders who want a durable, capable enduro bike that’s ready to be ridden hard.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida One Sixty FR 400 Enduro Bike Silk Dark Strawberry (Grey/Black) we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Built for Heavy-Duty Enduro

A tough aluminium chassis with 171 mm rear and 180 mm front travel stands up to bike-park abuse and steep, technical lines. Coil rear shock and burly construction mean it’s made to be pushed hard day after day.

Long-Travel Mixed-Wheel Agility

Mullet setup (29" front, 27.5" rear) and aggressive geometry deliver stability at speed and nimble handling in tight turns. Flip-chip sizing lets you tweak reach and suspension progression for different trail styles.

Reliable, Value-Focused Components

Durable Shimano CUES 10-speed drivetrain and Tektro 4-piston brakes balance performance and affordability. Tubeless-ready rims and a proven parts spec keep maintenance simple while maximizing fun.
