$2816 Off Full Price Clearance

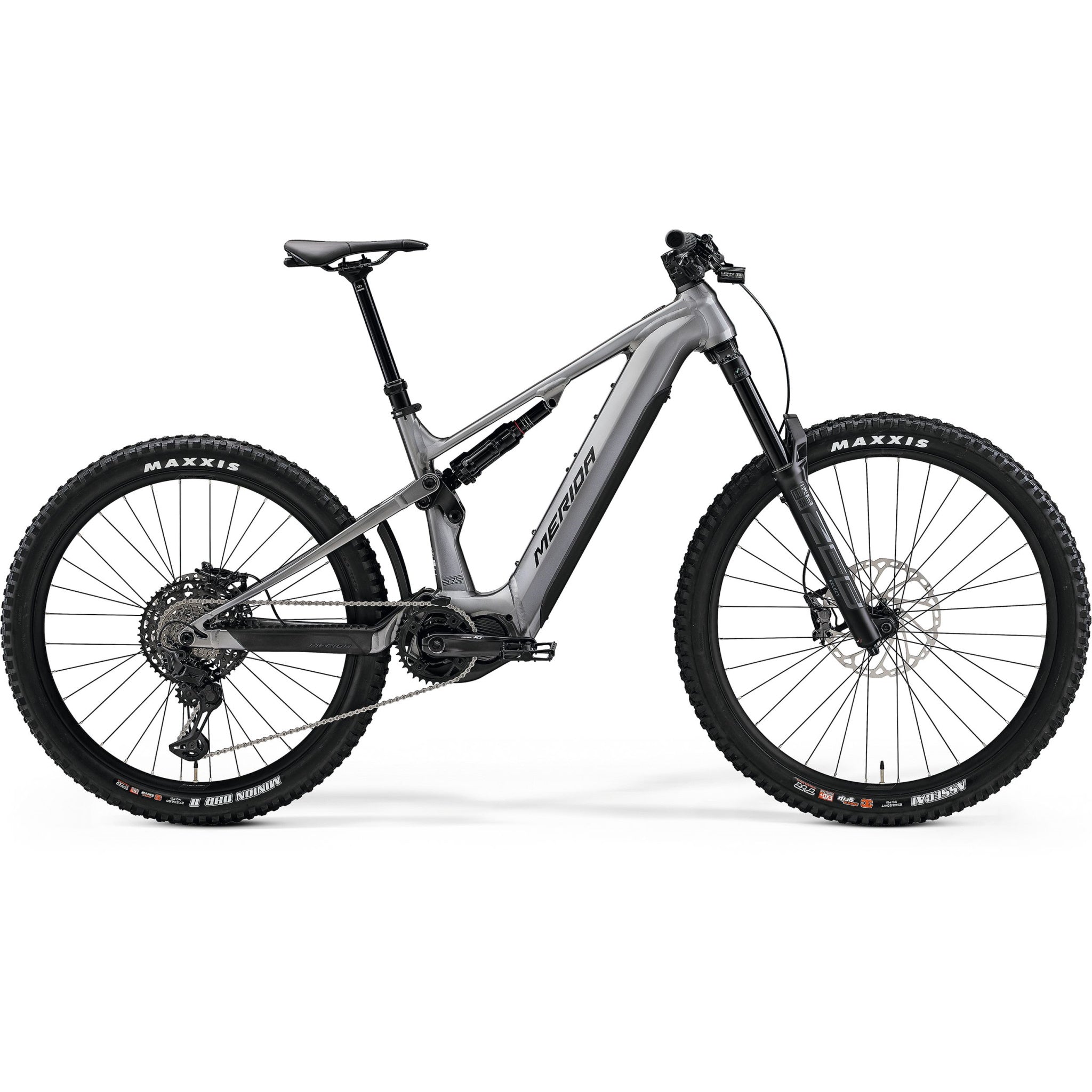

Merida eOne Sixty 875 Electric Enduro Bike 750Wh Battery Gunmetal Grey/Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Steep Hills & Heavy Loads / 85 Nm Torque

Up to 87 km Range

Shimano STePS EP8 Motor

Alloy Frame/ RockShox Alloy Fork

170mm Front Travel / 170mm Rear

750Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Goodbye range anxiety, hello horizon. The eONE-SIXTY 875 marries a full-power drive unit with a user-removable 750 Wh battery and optional 360 Wh range extender, all wrapped up in our durable aluminium frame. With Merida’s proven, low-maintenance FAST suspension platform, you can run mixed wheel sizes as standard or switch to full 29" without compromise, while they’ve combined the no-compromise suspension performance of a RockShox Zeb fork and Super Deluxe shock with Shimano's durable XT Linkglide drivetrain.

With the new eONE-SIXTY, the next descent is always about to start. With an all-aluminium frame, it offers maximum value and maximum battery range, thanks to a powerful drive unit paired with a removable 750 Wh battery and optional 360 Wh range extender. The only reason to stop will be because you have to. With Merida’s incredibly capable geometry derived from the award-winning ONE-SIXTY enduro range, it’s got handling that'll help you conquer the toughest climbs as well as the most grin-inducing descents, while their proven FAST kinematic suspension will take care of anything the trail throws at it. This low-maintenance flexstay design offers 174 mm of rear wheel travel to go with 170 mm at the front, with size-tuned progression to maximise performance for all sizes of riders. You can run it with the latest coil shocks without any worries too. With mixed size 29" front and 27.5" rear wheels as standard for playful handling, you can switch to a focussed full 29er setup without messing up the geometry, thanks to Merida’s flip chip design. With low standover heights across all sizes, you can choose between a longer frame for more stable handling or a shorter one for an agile feel, while some models feature our ground-breaking 30-230 mm travel-adjustable dropper post.

Key Features

Powerful 750Wh battery for extended rides
Robust enduro geometry for stability
High-performance suspension for smooth handling
Lightweight aluminum frame for agility
Versatile tyre clearance for various terrains

Specifications

Product Overview

Product

Merida eOne Sixty 875 Electric Enduro Bike 750Wh Battery Gunmetal Grey/Black

Brand

Merida

Parent SKU

739XMUG0

Size SKUs

XS: MEEB242402886
SM: MEEB242402887
MD: MEEB242402888
LG: MEEB242402889
XL: MEEB242402890

Product Features

Frame Material

Alloy

Colour

Grey

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Fork Material

Alloy

Front Travel

170mm

Rear Travel

170mm

Weight

26.10 kg weighed at frame size M / Max Weight: 140 kg Total weight of bike, rider and luggage

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Torque (Nm)

Motor Climbing Ability

Steep Hills & Heavy Loads

Battery Size (Watt-Hours)

750

Battery

Trendpower Internal Battery 750Wh

Max. Range (KMs)

Display

Shimano SC-EM800

Build

Frame

eONE-SIXTY LITE IV material: aluminium 174 mm suspension travel 29x2.6" max. wheelsize 148x12 mm axle standard intube

Fork

Rock Shox ZEB Select Air 170 mm suspension travel Tapered 44 mm fork offset 29x2.8" max. wheelsize

Shock

Rock Shox Super Deluxe Select

Handlebars

MERIDA EXPERT eTR 780 mm width 20 mm rise

Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTR II material: aluminium 35 mm diameter 0° stem angle Supernova mount 40 mm all sizes

Pedals

VP VPE-527

Saddle

PROXIM W400 STN V-mount adapter incl. MERIDA minitool

Seat Post

MERIDA TEAM TR II 34.9 mm diameter 0 mm setback all sizes 30-230 mm travel seatpost

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

MERIDA EXPERT TR II 110x15 mm width front hub 148x12 mm width rear hub 28 mm inner width material: aluminium Tubeless ready (tubeless tape and valves not included) front 29" rear 27.5"

Hubs

FRONT: Shimano XT 110x15 mm width front hub 32 spoke holes Centerlock / REAR: Shimano XT 148x12 mm width rear hub 32 spoke holes Centerlock

Spokes

Black stainless

Groupset

Crankset

Shimano FC-E8150 165 mm

Chain

Shimano LG500

Brakes

Shimano XT 4 piston

Front Rotor

Shimano RT64 / 220 mm

Rear Rotor

Shimano RT-EM600 / 203 mm

Shifters

Shimano SL -MT500-IL

Rear Derailleur

Shimano XT M8130 LinkGlide 11

Cassette

11 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.
