$2601 Off Full Price Clearance

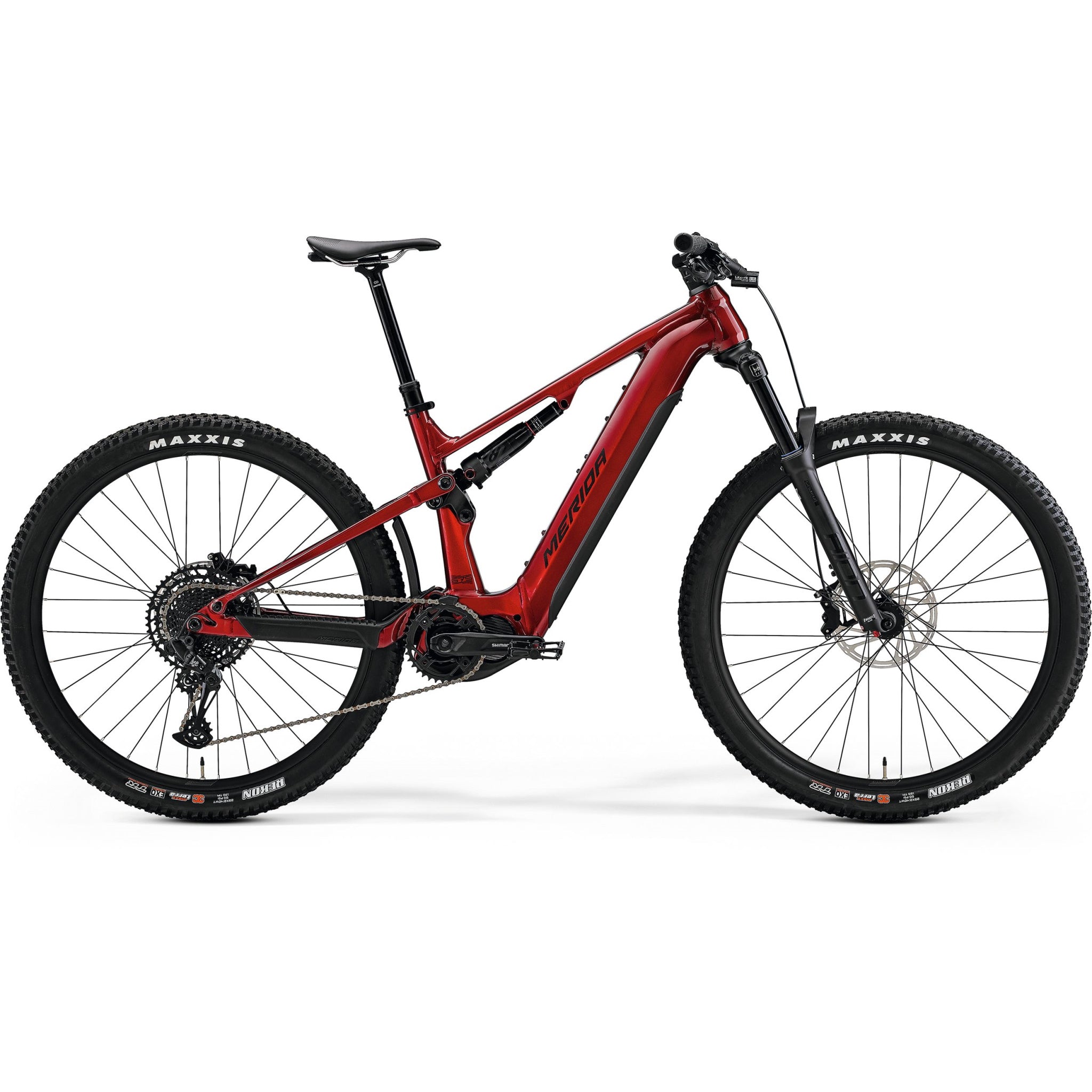

Merida eOne Forty 675 Electric Enduro Bike 750Wh Battery Dark Strawberry (Black)

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Steep Hills & Heavy Loads / 85 Nm Torque

Up to 87 km Range

Shimano STePS EP8 Motor

Alloy Frame/ Suntour Alloy Fork

150mm Front Travel / 140mm Rear

750Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Merida’s long-range trail machine. The eONE-FORTY 675 combines Merida’s tough aluminium frame with a 750Wh user removable battery to give you a huge assisted range, which can be boosted further with our optional 360Wh range extender. Thanks to the combination of Merida’s award-winning, low-maintenance suspension platform and the smooth Suntour Aion fork and RockShox rear shock, it's ready to slice through singletrack on repeat, while the 12-speed SRAM NX Eagle drivetrain and powerful drive unit can turn mountains into molehills.

The new eONE-FORTY has a big range. That's not just because of the 750 Wh battery that can be boosted with a 360 Wh range extender - it's because it's an incredibly versatile machine that can tackle rugged mountain bike trails one day and be your city-ready SUV partner the next. With a suspension platform and geometry derived from our award-winning trail and enduro bike range, it's got peerless off-road performance and handling that's confident and capable wherever you take it. With Merida’s proven suspension design giving 143 mm of rear wheel travel and 150 mm up front, it also features our simplified AGILOMETER sizing system that allows you to choose the handling you want thanks to super low standover heights. Go long for more off-road stability, go shorter for more agility.

Key Features

Powerful 750Wh battery for extended rides
Advanced suspension for smooth handling
Lightweight aluminum frame for durability
High-performance components for optimal control
Stylish dark strawberry and black design

Specifications

Product Overview

Product

Merida eOne Forty 675 Electric Enduro Bike 750Wh Battery Dark Strawberry (Black)

Brand

Merida

Parent SKU

QQOOU4P8

Size SKUs

XS: MEEB242403259
SM: MEEB242403260
MD: MEEB242403261
LG: MEEB242403262
XL: MEEB242403263

Product Features

Frame Material

Alloy

Colour

Red

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Fork Material

Alloy

Front Travel

150mm

Rear Travel

140mm

Weight

26 kg weighed at frame size M / Max Weight: 140 kg Total weight of bike, rider and luggage

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Torque (Nm)

Motor Climbing Ability

Steep Hills & Heavy Loads

Battery Size (Watt-Hours)

750

Battery

Trendpower Internal Battery 750Wh

Max. Range (KMs)

Display

Shimano SC-EN600

Build

Frame

eONE-FORTY LITE IV material: aluminium 143 mm suspension travel 27.5x2.8" max. wheelsize 148x12 mm axle standard intube

Fork

SR Suntour AION X 36 Boost Air 150 mm suspension travel Tapered 44 mm fork offset 29x2.5" max. wheelsize

Shock

Rock Shox Super Deluxe Select

Handlebars

MERIDA EXPERT eTR 780 mm width 20 mm rise

Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTR II material: aluminium 35 mm diameter 0° stem angle Supernova mount 40 mm all sizes

Pedals

VP VPE-527

Saddle

MERIDA EXPERT SL V-mount incl. MERIDA minitool

Seat Post

MERIDA EXPERT TR II 34.9 mm diameter 0 mm setback XS: 125 mm travel seatpost - S: 150 mm travel seatpost - M/L/XL: 200 mm travel seatpost

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

29"

Rims

MERIDA EXPERT TR II 110x15 mm width front hub 148x12 mm width rear hub 28 mm inner width material: aluminium Tubeless ready (tubeless tape and valves not included) 29"

Hubs

Novatec SL-TEAM D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S 110x15 mm width front hub 32 spoke holes 6 bolt 148x12 mm width rear hub 32 spoke holes 6 bolt

Spokes

Black stainless

Groupset

Crankset

Shimano FC-EN600 165 mm

Chain

Sram SX Eagle

Brakes

Sram DB8 4 piston

Front Rotor

Sram CenterLine 200 mm

Rear Rotor

Sram CenterLine 200 mm

Shifters

Limotec RM10 (For Sram mmX) / Sram NX Eagle 12

Rear Derailleur

Sram NX Eagle

Cassette

12 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.
