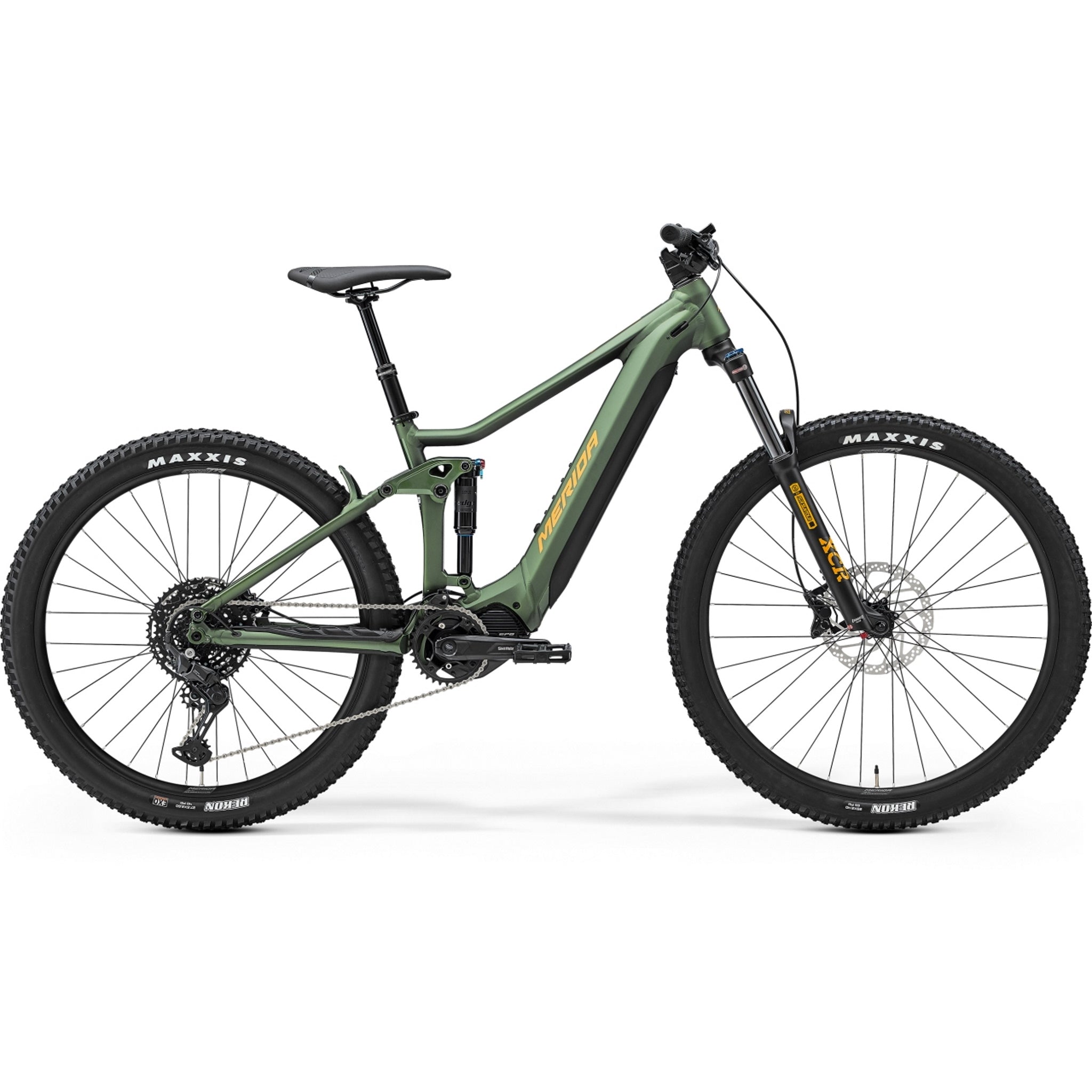

Merida eOne Forty 400 SE Enduro Electric Bike Matt Fog Green (Orange)

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL XXL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Steep Hills & Heavy Loads / 85 Nm Torque

Up to 73 km Range

Shimano STePS EP6 Motor

Alloy Frame/ Suntour Alloy Fork

140mm Front Travel / 130mm Rear

630Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The eONE-FORTY might be the little sibling to Merida’s multiple award and test winning eONE-SIXTY, but when it comes to providing agile trail handling with superb flow and fun, it plays second fiddle to no-one. The trail-specific, balanced geometry is paired to a mixed 29er/27.5” mullet wheel size setup that delivers flow and fun for riders of all abilities, while a steeper seat angle boosts climbing capability, something ideal for an all-day e-bike mission. The low bottom bracket and lower standover height mean extra confidence while the 140mm front and 130mm rear travel offer up control, comfort and real rough terrain capability.

The eONE-FORTY 400 SE model proves you don't need to spend a fortune to get a rugged trail eMTB that can power your adventures, with the new Shimano EP6 drive unit which shares all of the EP8’s advanced features to provide exceptional value without loosing torque or performance. The tough aluminium frame sleekly integrates the large capacity 630Wh battery (504Wh on size XS). The SR Suntour suspension with a 140mm fork and 130mm shock, as well as the mixed wheel size setup with 29er front and 27.5” rear means real off-road ability paired with grin-inducing agility. Quality components such as the wide range Shimano 1 x 10 speed drivetrain and powerful Shimano hydraulic brakes with burly 203mm rotors mean you'll always be in control.

Key Features

Powerful electric motor for steep climbs
Long-lasting battery for extended rides
Durable frame for rugged terrain
Advanced suspension for smooth handling
Lightweight design for easy maneuverability

Specifications

Product Overview

Product

Merida eOne Forty 400 SE Enduro Electric Bike Matt Fog Green (Orange)

Brand

Merida

Parent SKU

BYOY7S3G

Size SKUs

SM: MEEB2400851
MD: MEEB2400852
LG: MEEB2400853
XL: MEEB2400854
XXL: MEEB242400855

Product Features

Frame Material

Alloy

Colour

Green

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Fork Material

Alloy

Front Travel

140mm

Rear Travel

130mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Torque (Nm)

Motor Climbing Ability

Steep Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Battery

Shimano EN806 630Wh Shimano EN805 504Wh for XS only

Max. Range (KMs)

Display

Shimano SC-EN600

Build

Frame

eONE-FORTY LITE III material: aluminium 133 mm suspension travel 27.5x2.8" max. wheelsize 148x12 mm axle standard intube

Fork

SR Suntour XCR34 LOR DS Air Boost 140 mm Tapered 51 mm fork offset 29x2.4" max. wheelsize

Shock

SR Suntour Edge platform

Handlebars

MERIDA EXPERT eTR 780 mm width 20 mm rise

Headset

MERIDA 8152

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTR II material: aluminium 35 mm diameter 0° stem angle GoPro & Supernova mount 40 mm all sizes

Pedals

VP VPE-537

Saddle

MERIDA COMP SL V-mount

Seat Post

MERIDA COMP TR 30.9 mm diameter 0 mm setback M 100 mm travel seatpost - L/XL 125 mm travel seatpost - XXL 150 mm travel seatpost

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

MERIDA COMP TR II 28 mm inner width material: aluminium Tubeless ready (tubeless tape and valves not included)

Hubs

Shimano TC500-B 110x15 mm width front hub 32 spoke holes Centerlock / Shimano TC500-HM-B 148x12 mm width rear hub 32 spoke holes Centerlock

Spokes

Black stainless

Groupset

Crankset

Shimano FC-EN600 165 mm

Chain

Shimano LG500

Brakes

Shimano MT420 4 piston / Shimano M4100 2 piston

Front Rotor

Shimano RT30 203 mm

Rear Rotor

Tektro TR203-45 203 mm

Shifters

Shimano SL -MT500-IL / Shimano CUES U6000

Rear Derailleur

Shimano CUES U6000 GS

Cassette

10 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.
