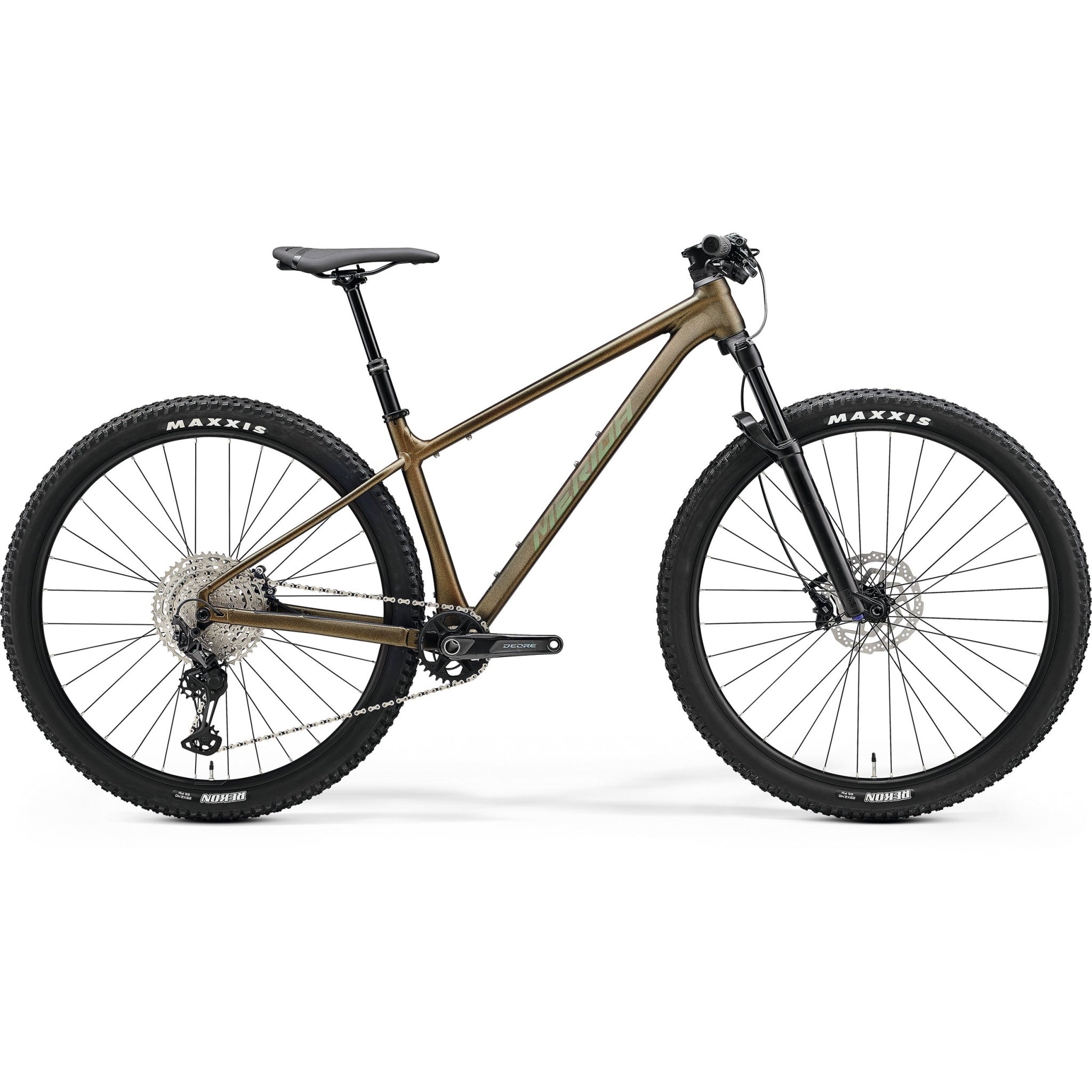

Merida Big Nine TR Limited Cross-Country/Trail Bike Silk Sparkle Gold (Green/Black)

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL XXL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Manitou Alloy Fork

120mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano Mixed Groupset

1 x 12 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Big Nine TR Limited blurs the line between cross-country and trail, with a high-value, high-performance aluminium frame that's as capable on the descents as it is on the climbs. Alongside Merida’s progressive geometry, AGILOMETER sizing and clearance for 2.4" tyres, they’ve added more aggressive rubber, a dropper seatpost and 120mm travel Manitou fork to boost descending confidence while keeping it lightning-fast on singletrack. Shimano's SLX hydraulic brakes and 12-speed drivetrain round the package out.

The Big Nine TR lite frame offers up truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today. The HFS hydroforming system allows for sleeker tube profiles as well as integrated mounting points for rear racks and fenders, making fitting accessories fast, simple and reliable. Internal cable routing, including wireport cable technology enables all control cables from the handlebar to enter the frame through the headset cover, creating a clean and uncluttered look, allowing for a lighter, stronger and more aerodynamic frame structure than with conventional cable ports. While a downtube exit means cables are easily accessible for routine maintenance or replacement, but it prevents excessive movement and noise that can cause wear and distraction.

Key Features

Lightweight aluminum frame construction
Advanced suspension for smooth rides
High-performance tyres for varied terrain
Sleek Silk Sparkle Gold finish
Precision gear shifting for efficiency

Specifications

Product Overview

Product

Merida Big Nine TR Limited Cross-Country/Trail Bike Silk Sparkle Gold (Green/Black)

Brand

Merida

Parent SKU

8Y75J8RQ

Size SKUs

SM: MEHA242402826
MD: MEHA242402827
LG: MEHA242402828
XL: MEHA242402829
XXL: MEHA242402830

Product Features

Frame Material

Alloy

Colour

Gold

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Fork Material

Alloy

Front Travel

120mm

Weight

13.46 kg weighed at frame size M / Max Weight: 135 kg Total weight of bike, rider and luggage

Build

Frame

BIG.NINE TR LITE III material: aluminium 29x2.4" max. wheelsize 148x12 mm axle standard BSA bottom bracket standard

Fork

Manitou Machete Comp Air 120 mm suspension travel Tapered 44 mm fork offset

Handlebars

MERIDA EXPERT CC material: aluminium 760 mm width flat

Headset

Acros ICR MERIDA EXTERNAL Upper and lower IPS sealing

Grips

MERIDA COMP EC

Stem

MERIDA TEAM CC III material: aluminium 31.8 mm diameter -6° stem angle S, M, L: 60 mm, XL, XXL 70 mm

Bottom Bracket

Shimano BB-MT-501 24 mm

Saddle

MERIDA COMP SL V-mount incl. MERIDA minitool

Seat Post

MERIDA EXPERT TR 30.9 mm diameter 0 mm setback XS 100 mm travel seatpost - S 125 mm travel seatpost - M 150 mm travel seatpost - L/XL 170 mm travel seatpost

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

29"

Rims

MERIDA COMP CC II 25 mm inner width material: aluminium tubeless ready

Hubs

Shimano TC500-B / Shimano TC500-MS-B 110x15 mm width front hub 32 spoke holes Centerlock 148x12 mm width rear hub 32 spoke holes Centerlock

Spokes

Double Butted Black stainless

Groupset

Crankset

Shimano Deore M6100 32 teeth 170 mm-S, 175 mm-M up

Chain

KMC X12

Brakes

Shimano SLX M7100 / Shimano SLX M7110 2 piston

Front Rotor

Shimano RT10 180 mm

Rear Rotor

Shimano RT10 180 mm

Shifters

Shimano SL-MT500-L / Shimano Deore M6100

Rear Derailleur

Shimano XT SGS

Cassette

12 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big Nine TR Limited Cross-Country/Trail Bike Silk Sparkle Gold (Green/Black) we suggest the following size.

More comfort More speed

XXL

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

XXL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Big Nine TR Limited Cross-Country/Trail Bike Silk Sparkle Gold (Green/Black) geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

614

624

633

643

Reach

420

440

460

480

500

Top Tube Length

594

614

637

659

681

Seat Tube Length

380

410

440

470

500

Seat Tube Angle

74.2

Fork Length

530

Head Tube Length

105

115

125

Head Tube Angle

95.0

105.0

115.0

125.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

712

713

715

723

758

Minimum Seat Height

Maximum Seat Height
