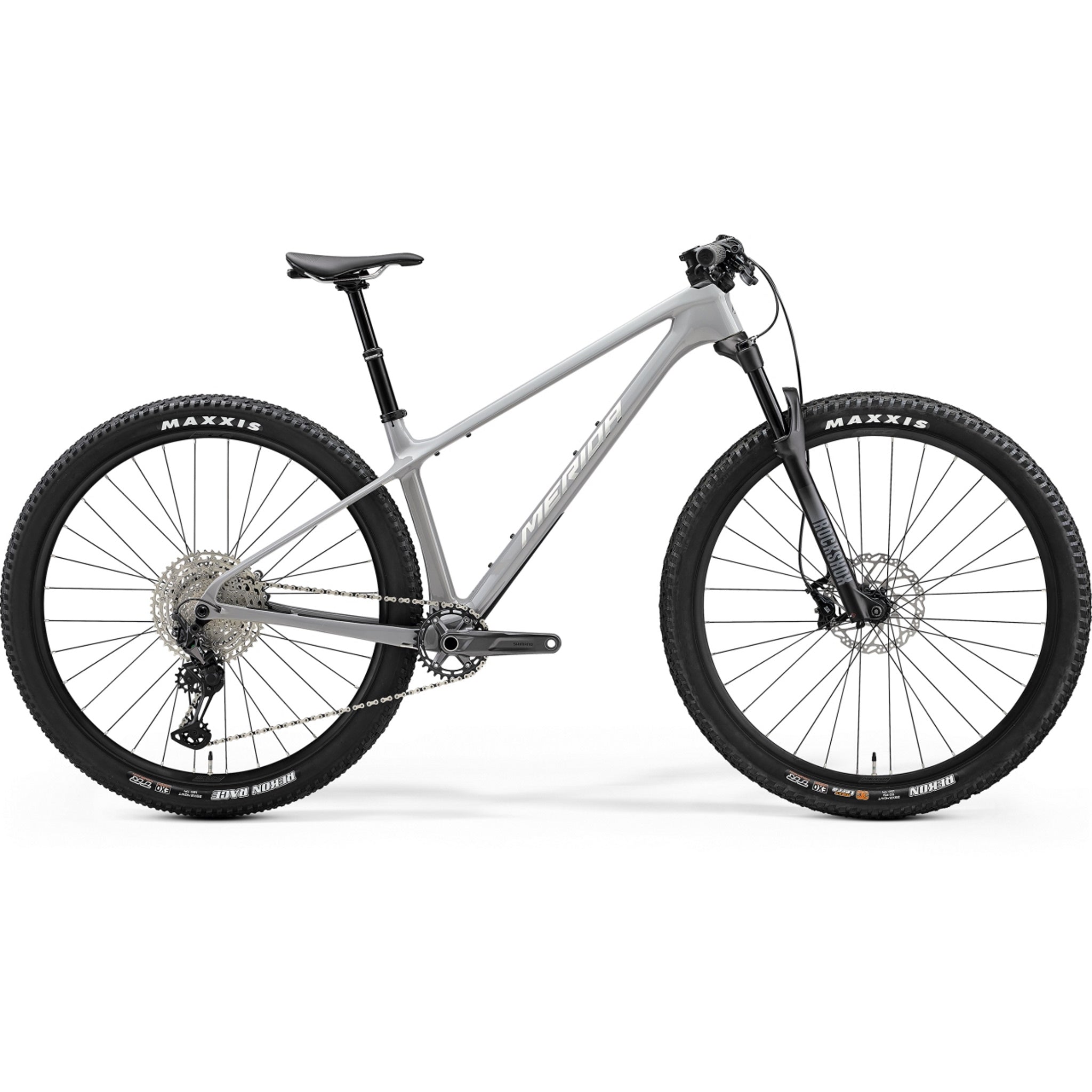

Merida Big Nine TR 5000 Cross-Country Mountain Bike Cool Grey (Silver/Black)

Brand: Merida

SKU: SG69NARO

Size: LG

MD LG XL XXL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Carbon Frame/ RockShox Alloy Fork

120mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano SLX / Deore Groupset

1 x 12 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Relentless speed and low weight uphill, paired with trail-hardtail swagger on the descents. Add a 120 mm fork, aggressive tyres and a dropper post to a lightweight carbon frame and you've got a recipe for fun. The Big Nine TR 5000 is ready to push beyond what cross-country hardtails should do. Merida added a longer travel 120mm travel RockShox Jude Gold fork, more aggressive high-volume tyres and their own lightweight dropper post to a CF3 carbon frame that features progressive geometry and patented AGILOMETER sizing. The updated CF carbon frame offers truly modern geometry with increased standover clearance and handling stability to better deal with the tough racetracks of today, the down-country ready TR option offers boosted fork travel, aggressive tyres and long travel dropper posts. Add in the precision and benchmark reliability of Shimano's XT 12-speed and you're good to go.

Key Features

Lightweight carbon frame for agility
120mm RockShox Jude Gold fork
Aggressive high-volume tyres
Integrated dropper post for versatility
Modern geometry for enhanced stability

Specifications

Product Overview

Product

Merida Big Nine TR 5000 Cross-Country Mountain Bike Cool Grey (Silver/Black)

Brand

Merida

Parent SKU

0AEZ92KZ

Size SKUs

MD: MEHA242402792
LG: MEHA242402793
XL: MEHA242402794
XXL: MEHA242402795

Product Features

Frame Material

Carbon

Colour

Grey

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Fork Material

Alloy

Front Travel

120mm

Weight

12.4 kg weighed at frame size M

Build

Frame

BIG.NINE TR CF3 III material: carbon 29x2.4" max. wheelsize 148x12 mm axle standard BSA bottom bracket standard

Fork

Rock Shox Judy Gold Air 120 mm suspension travel Tapered Remote lockout 51 mm fork offset

Handlebars

MERIDA EXPERT CC material: aluminium 760 mm width flat

Headset

Acros ICR MERIDA INTEGRATED Upper and lower IPS sealing

Grips

MERIDA EXPERT EC

Stem

MERIDA TEAM CC III material: aluminium 31.8 mm diameter -6° stem angle incl. MERIDA SMART MOUNT S, M, L: 60 mm, XL, XXL 70 mm

Bottom Bracket

Shimano BB-MT-501 24 mm

Saddle

MERIDA EXPERT SL V-mount incl. MERIDA minitool

Seat Post

MERIDA EXPERT TR LIGHT 30.9 mm diameter 0 mm setback S/M/L/XL/XXL: 100 mm travel seatpost

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

29"

Rims

MERIDA EXPERT CC II 25 mm inner width material: aluminium Tubeless ready (tubeless tape and valves not included)

Hubs

FRONT: Shimano TC500-B 110x15 mm width front hub 32 spoke holes Centerlock / REAR: Shimano TC500-MS-B 148x12 mm width rear hub 32 spoke holes Centerlock

Spokes

Double Butted Black stainless

Groupset

Crankset

Shimano Deore MT512 32 teeth 170 mm-S, 175 mm-M up

Chain

KMC X12

Brakes

Shimano SLX M7100 2 piston

Front Rotor

Shimano RT54 180 mm

Rear Rotor

Shimano RT54 160 mm

Shifters

Trans-X JD-FL remote / Shimano Deore M6100

Rear Derailleur

Shimano XT SGS

Cassette

12 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big Nine TR 5000 Cross-Country Mountain Bike Cool Grey (Silver/Black) we suggest the following size.

More comfort More speed

XXL

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

XXL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: LG

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Big Nine TR 5000 Cross-Country Mountain Bike Cool Grey (Silver/Black) geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
