15% Off Full Price

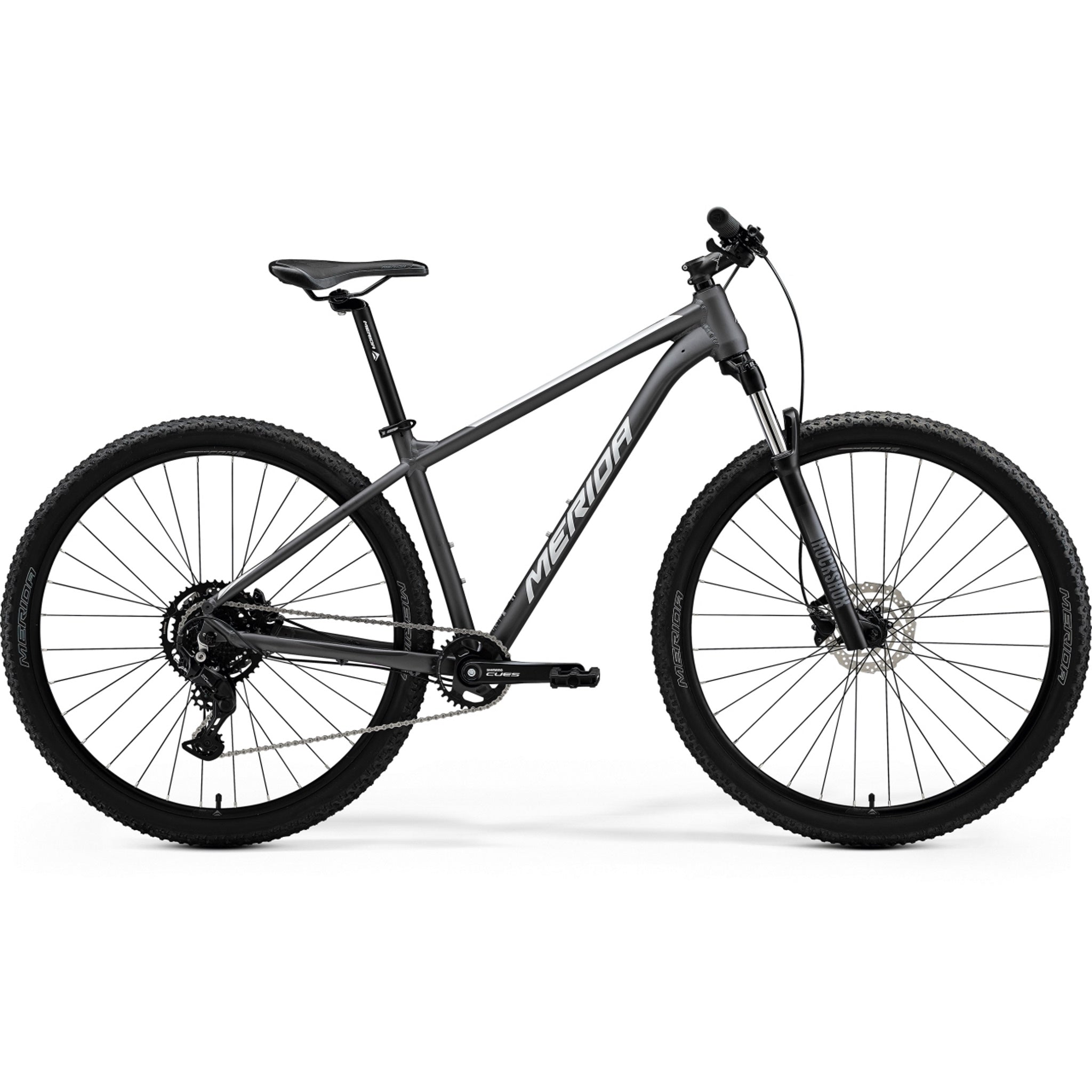

Merida Big Nine 80 Hardtail Mountain Bike Matt Dark Silver

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ RockShox Alloy Fork

100mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano Cues Groupset

1 x 9 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

This dependable do-it-all hardtail is the perfect partner for mountain bike adventures as well as a rugged day-to-day companion, the Big Nine 80 uses a quality double-butted aluminium frame with comfortable geometry and smooth rolling 29er wheels to tame the bumps. Add in the control of a 100mm RockShox Judy suspension fork, plus the dependable performance of a Shimano 9-speed drivetrain and powerful hydraulic disc brakes and it's ready to adventure at the weekend or be a utilitarian partner in the week. The frame of the Big Nine 80 offers up trickle down technology, the alloy frame uses a techno forming system for sleeker tube profiles and minimal weight without compromising on durability, while the smooth welding and internal cable routing results in a clean aesthetic and a rattle free ride. Integrated mounting points for a kickstand, fender and rear rack make this versatile rig easy to swap between bikepacking, daily commuting and trail riding.

Key Features

Quality double-butted aluminium frame
100mm RockShox Judy suspension fork
Shimano 9-speed drivetrain for smooth shifting
Powerful hydraulic disc brakes for safety
Versatile design for various riding styles

Specifications

Product Overview

Product

Merida Big Nine 80 Hardtail Mountain Bike Matt Dark Silver

Brand

Merida

Parent SKU

WQF9UENS

Size SKUs

SM: MEHA242400905
MD: MEHA242400906
LG: MEHA242400907
XL: MEHA242400908

Product Features

Frame Material

Alloy

Colour

Silver

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 9

Fork Material

Alloy

Front Travel

100mm

Build

Frame

BIG.NINE TFS IV 100 mm suspension travel material: aluminum 29x2.25" max. wheelsize 135x9 mm axle standard BSA bottom bracket standard

Fork

Rock Shox Judy TK Coil 100 mm suspension travel Lockout 46 mm fork offset 29x2.25" max. wheelsize

Handlebars

MERIDA CC material: aluminium 690 mm width 15 mm rise

Headset

MERIDA M2345

Grips

MERIDA EC

Stem

MERIDA CC material: aluminium 31.8 mm diameter 6° stem angle 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL

Bottom Bracket

Shimano BB-UN101 73-123

Pedals

VP VPE-891

Saddle

MERIDA Sport comfort

Seat Post

MERIDA CC 30.9 mm diameter 15 mm setback material: aluminium

Seat Clamp

MERIDA COMP QR

Wheels

Wheel Size

29"

Rims

MERIDA CC 17 mm inner width material: aluminium

Hubs

FRONT: Shimano HB-QC300 100x9 mm width front hub 32 spoke holes Centerlock / REAR: Shimano FH-QC300 135x9 mm width rear hub 32 spoke holes Centerlock

Spokes

Black steel

Groupset

Crankset

Shimano CUES U4000 32 teeth MAT Aluminium 170 mm-S, 175 mm-M up

Chain

Shimano CN-LG500

Brakes

Shimano BR-MT200 hydraulic brake

Front Rotor

Shimano RT10 160 mm

Rear Rotor

Shimano RT10 160 mm

Shifters

REAR: Shimano CUES U4000-9R

Rear Derailleur

Shimano CUES U4000-9 GS

Cassette

9 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big Nine 80 Hardtail Mountain Bike Matt Dark Silver we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Big Nine 80 Hardtail Mountain Bike Matt Dark Silver geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

614

628

642

656

Reach

382

398

414

429

Top Tube Length

570

590

610

630

Seat Tube Length

370

430

470

510

Seat Tube Angle

73.0

Fork Length

506

Head Tube Length

100

115

130

145

Head Tube Angle

100.0

115.0

130.0

145.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

679

727

763

800

Minimum Seat Height

Maximum Seat Height
