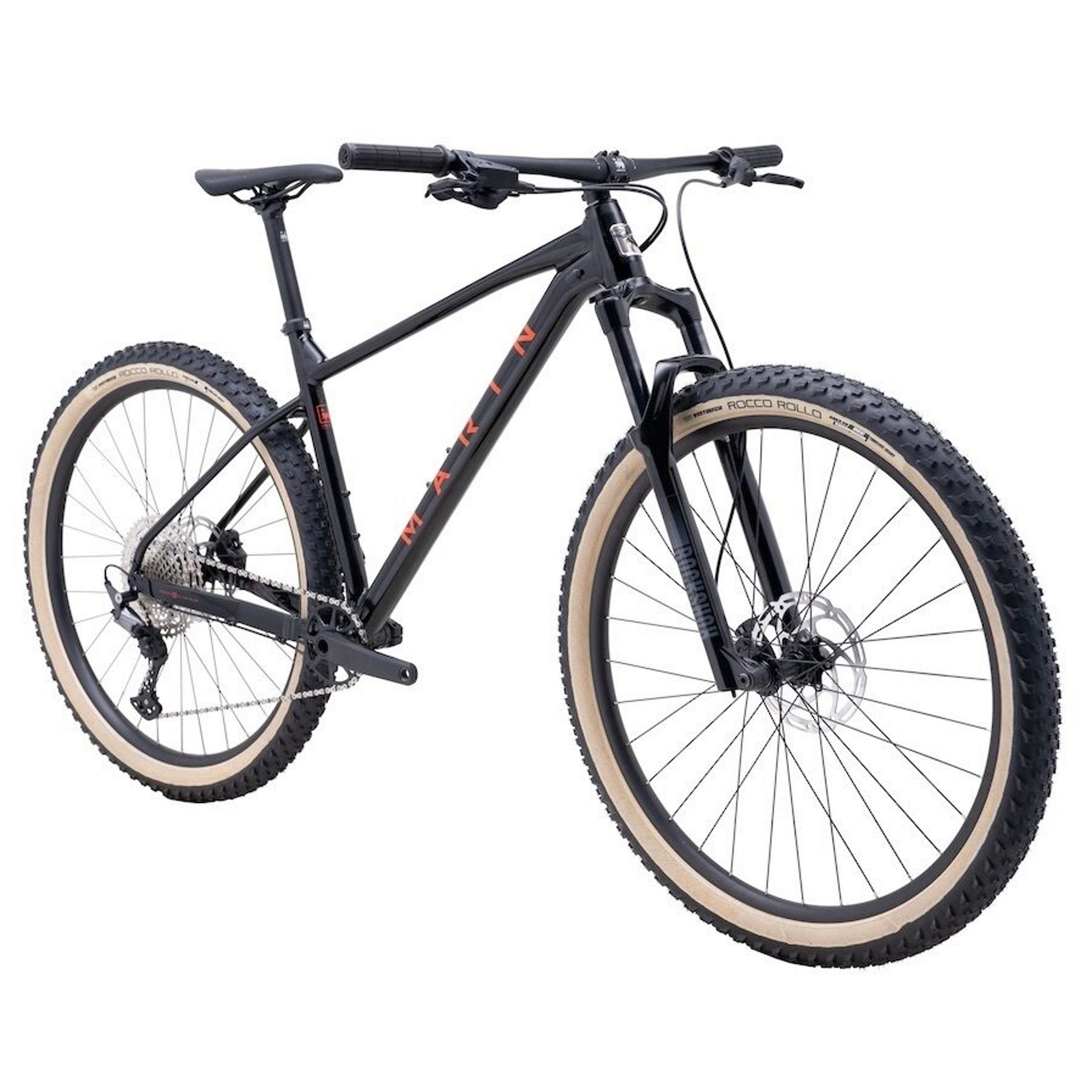

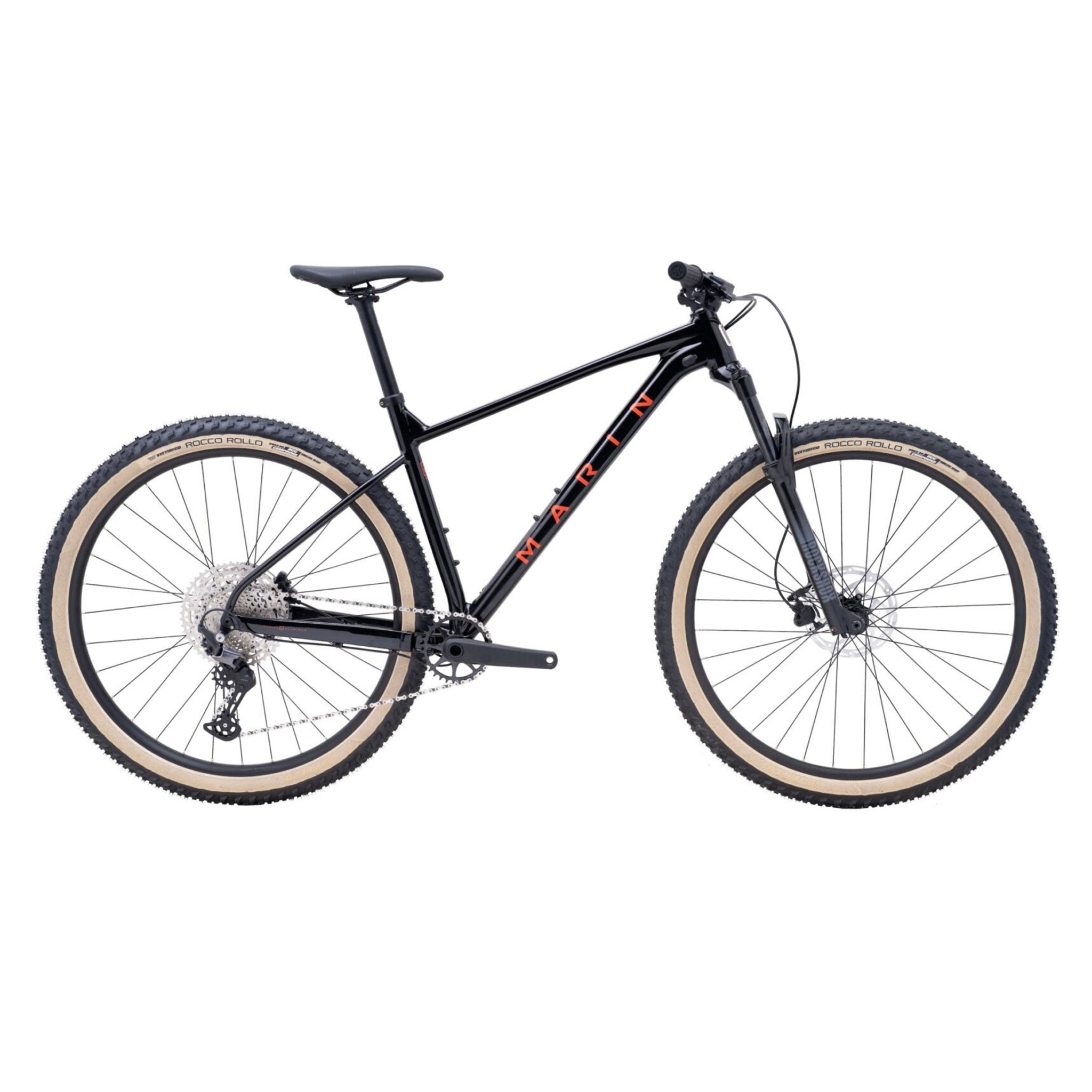

Marin Team Marin 1 XC/Trail Bike Black

Brand: Marin

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ RockShox Alloy Fork

120mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano Deore Groupset

1 x 12 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

From XC racing to singletrack shredding, epic adventures to local laps. The modern XC bike has evolved into a super-capable, super-versatile hard-charging rocketship that embodies everything to love about MTB. Marin made the Team Marin to be lightning-fast, super composed in the rough-and-tumble of spicy singletrack and perfectly in control up, along and down. It packs all the roll-up-your-sleeves tough of a trail bike and the zip you’d expect from an XC racer to perfectly blend speed with fun.

The Team Marin 1 brings XC-racer performance to a privateer price-point, all whilst staying super fun and super capable in the singletrack. Starting with a high-end Series 4 aluminum frame with advanced tube forming for minimal weight, 3D forged dropouts, flat-mount disc tabs, full internal cable routing, and a boost 148mm thru axle. Then fitted with a capable RockShox Judy Silver 120mm fork, 12-speed Shimano/mixed drivetrain and Tektro hydraulic brakes. 29” wheels and 2.35” Vee Tire rubber ensures maximum grip and float over obstacles to maintain speed so you can pick up those personal records and keep ahead of the pack. The Team Marin frame also includes internal routing in the front triangle for a clean, fast appearance, and allowing for Team Marin 1 owners to upgrade to an internal dropper post if they desire.

Key Features

Lightweight aluminum frame for agility
29-inch wheels for smooth rolling
Front suspension for enhanced comfort
Shimano drivetrain for reliable shifting
Hydraulic disc brakes for superior stopping power

Specifications

Product Overview

Product

Marin Team Marin 1 XC/Trail Bike Black

Brand

Marin

Parent SKU

SWE1XYH7

Size SKUs

SM: MAHA737628001
MD: MAHA737628002
LG: MAHA737628003
XL: MAHA737628004

Year Model

2024

Product Features

Frame Material

Alloy

Colour

Black

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Fork Material

Alloy

Front Travel

120mm

Build

Frame

Series 4 6061 Aluminum, 29" Wheels, Superlight Aluminum, Post-Mount Rear Brake, Internal Shifter and Dropper Post Routing, 148x12mm Boost Thru-Axle

Fork

RockShox Judy Silver TK, 120mm Travel, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset

Handlebars

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 4º Up, 9º Back

Headset

FSA No 42ACB, 1 1/8" x 1 1/2”

Grips

Marin Single Clamp Locking

Stem

Marin 3D Forged Alloy, 35mm

Bottom Bracket

External Sealed Cartridge Bearings

Pedals

Marin Oso OEM Nylon Platform

Saddle

Marin Speed Concept

Seat Post

Marin Alloy, 30.9mm

Wheels

Wheel Size

29"

Rims

Marin Aluminum Double Wall, 29mm Inner, Sleeve Joint, Disc Specific, Tubeless Compatible

Hubs

FRONT: Forged Aluminum, 110x15mm, Disc, 32H / REAR: Forged Aluminum, 148x12mm, Disc Specific, 32H

Tyres

Vee Tire, Rail Rocco XC, 29x2.3", Dual Control Compound, Folding Bead, Tubeless Ready

Spokes

14g Black Stainless Steel

Groupset

Crankset

Forged Alloy 1x12, Hollow Spindle, Steel Narrow Wide 32T Chainring

Chain

KMC X12

Brakes

Tektro HDT280, Hydraulic

Front Rotor

180mm Rotor

Rear Rotor

180mm Rotor

Shifters

Shimano Deore, SLM6100, 12-Speed

Rear Derailleur

Shimano Deore, RDM6100, 12-Speed

Cassette

12 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Marin Team Marin 1 XC/Trail Bike Black we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Marin Team Marin 1 XC/Trail Bike Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
