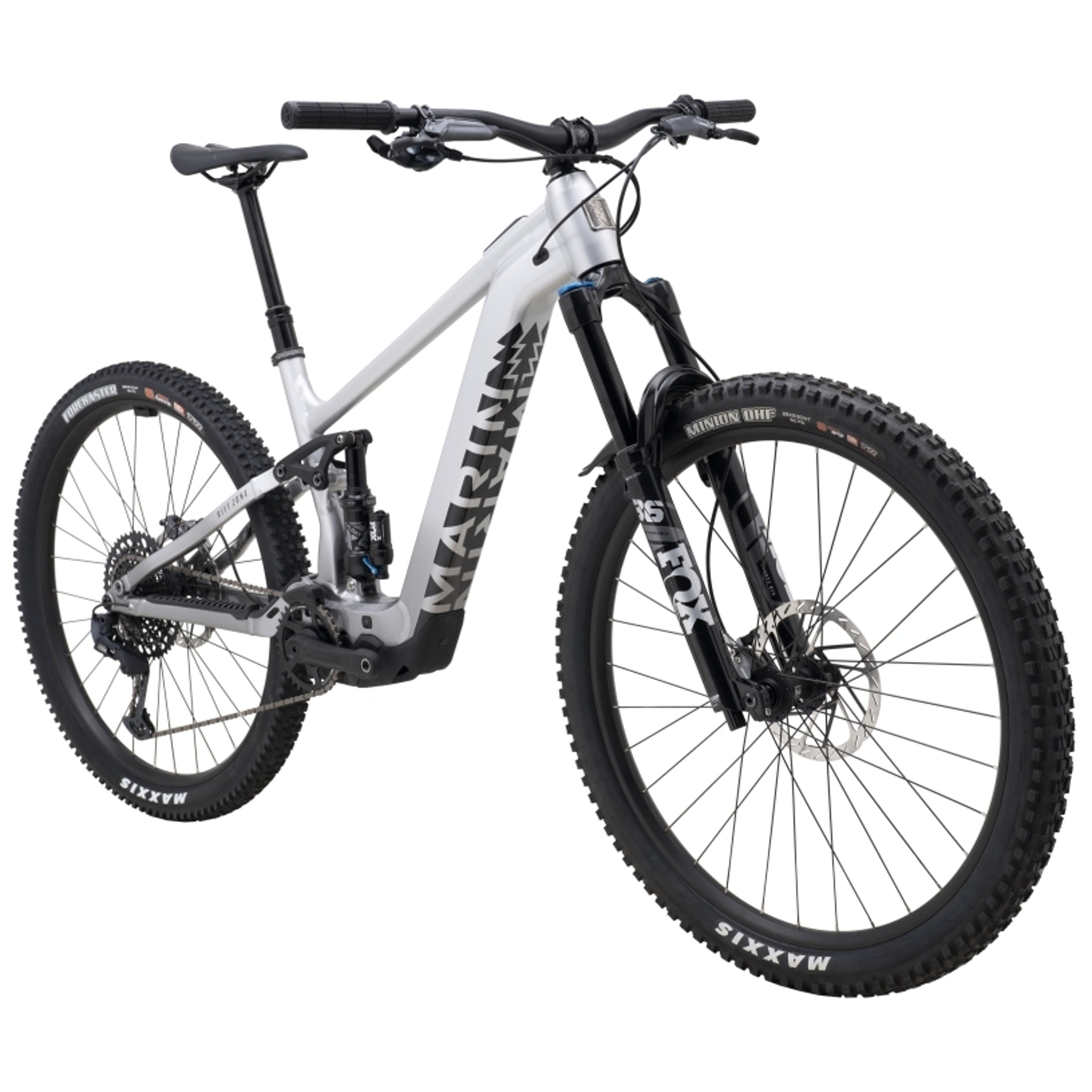

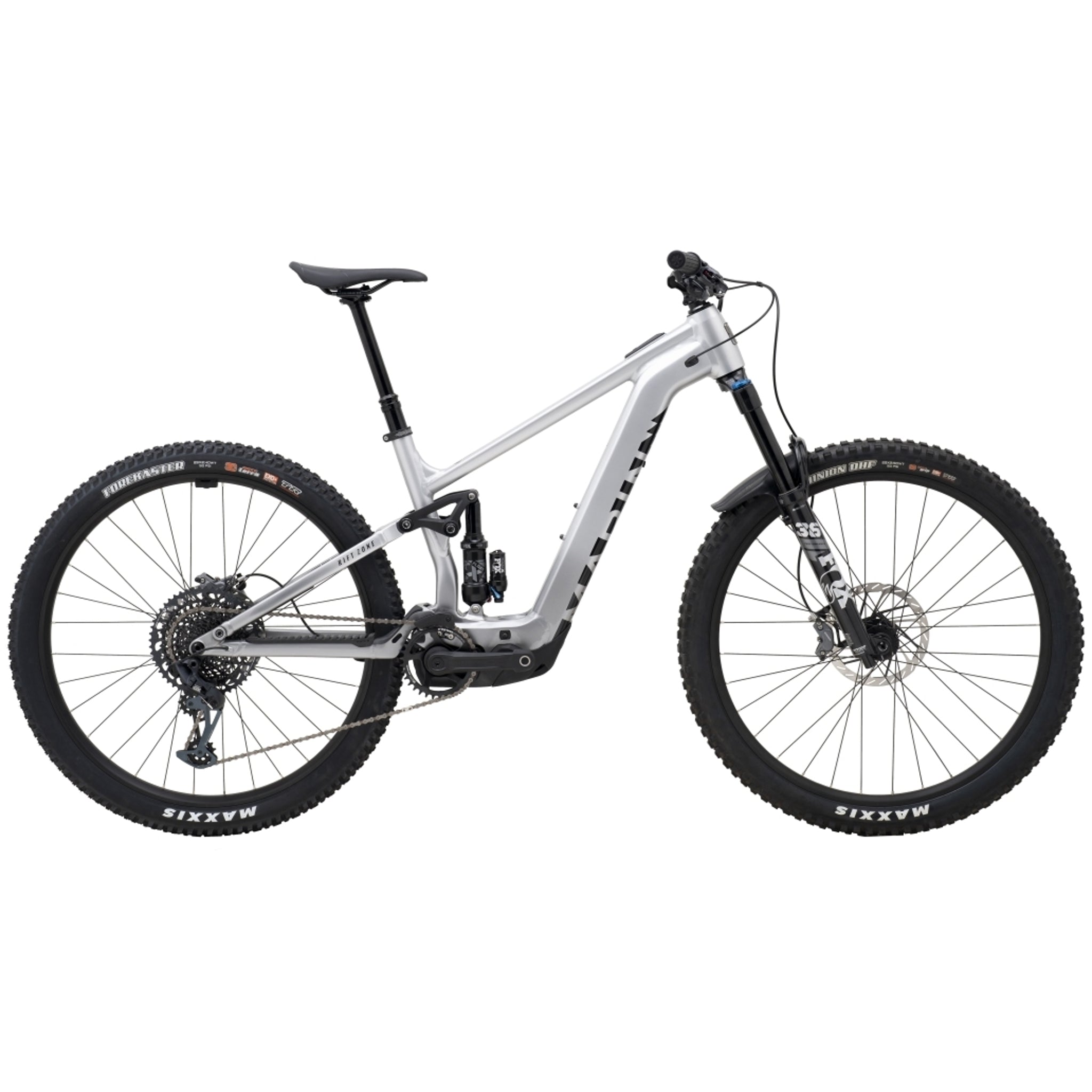

Marin Rift Zone EL 2 Electric Trail Bike 400Wh Battery Silver/Charcoal Fade

Marin Rift Zone EL 2 Electric Trail Bike 400Wh Battery Silver/Charcoal Fade

Brand: Marin

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Moderately Steep Hills / 55 Nm Torque

Up to 61 km Range

Bosch Performance Line SX Motor

Alloy Frame/ Fox Alloy Fork

150mm Front Travel / 140mm Rear

400Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Marin Rift Zone EL 2 Electric Trail Bike is engineered for trail enthusiasts who crave both power and performance. With its lightweight alloy frame, advanced suspension, and Bosch motor, this bike is perfect for tackling challenging terrains while providing a smooth and responsive riding experience.

Key Features

Lightweight alloy frame with integrated battery
140mm MultiTrac suspension for smooth rides
Powerful Bosch Performance Line SX motor
Maxxis tires for excellent traction and control
Hydraulic disc brakes for reliable stopping power

Specifications

Product Overview

Product

Marin Rift Zone EL 2 Electric Trail Bike 400Wh Battery Silver/Charcoal Fade

Brand

Marin

Parent SKU

JTZ6HVPX

Size SKUs

SM: MAEB24737596001
MD: MAEB24737596002
LG: MAEB24737596003
XL: MAEB24737596004

Year Model

2024

Product Features

Frame Material

Alloy

Colour

Silver

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Fork Material

Alloy

Front Travel

150mm

Rear Travel

140mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Bosch

Motor

Bosch Performance Line SX, 600W, 55Nm torque

Torque (Nm)

Motor Climbing Ability

Moderately Steep Hills

Battery Size (Watt-Hours)

400

Battery

Bosch 400Wh Internal

Max. Range (KMs)

Display

Bosch BRC3100 Systems Controller / Switch: Bosch BRC3300 Bluetooth Remote 22.2mm Clamp

Build

Frame

All New Series 4 Alloy Lightweight E Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle

Fork

Fox 36 Performance, 150mm Travel, 29", 11Oxl 5 Kabolt, 42mm Offset

Shock

Fox Float X, Performance Elite Series, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 21Ox55mm, 25xM8 Upper Mount, No Lower DU or Hardware

Handlebars

Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

Headset

FSA Custom Headset, Adjustable HTA Design

Grips

Marin Grizzly Lock On

Stem

Marin CNC, 35mm Length, 35mm Bar Bore

Pedals

Marin MTB Plastic

Saddle

Marin Speed Concept

Seat Post

TranzX, YSP39 1 x Remote, 34.9 Seatpost Diameter, Travel S = 1 50mm, M/L = 170mm, XL = 200mm

Accessories

e*thirteen e*Spec Chainguide, Bolt-On 12mm Thru-Axle, 17 4mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

Wheels

Wheel Size

29"

Rims

Front: 29" Diameter, 32mm Inner Rim Width; Rear: 27.5" Diameter, 32mm Inner Rim Width, Tubeless Compatible

Hubs

FRONT: Formula DCL-3482, 4 Sealed Bearings, 148x12, XO Driver, 6- Bolt, 32H / REAR: Formula DC-711, 11Ox15, 6-Bolt, 32H

Tyres

Front: Maxxis Minion DHF, 29x2.4" MAXXGRIP, Tubeless ready, EXO+, Rear: Maxxis Forecaster 29x2.4", Tubeless Ready MAXX TERRA EXO+

Spokes

14g Black Stainless Steel

Groupset

Crankset

e*thirteen e*spec Plus, 160mm Length, 34T

Chain

SRAM NX Eagle

Brakes

SRAM Code Bronze, 4-Piston Hydraulic Disc, 200mm HS2 Rotor

Shifters

SRAM GX Eagle Lunar MMX Mount

Rear Derailleur

SRAM GX Eagle Lunar

Cassette

12 Speed

Frequently Asked Questions

What is the Marin Rift Zone EL 2 Electric Trail Bike used for?

The Marin Rift Zone EL 2 Electric Trail Bike is used for all‑mountain and trail riding, tackling technical singletrack, steep climbs, and fast descents with electric assist. It’s built to handle varied terrain while keeping rides smoother and more manageable.

Why choose the Marin Rift Zone EL 2 Electric Trail Bike?

Choose the Marin Rift Zone EL 2 Electric Trail Bike for its lightweight alloy frame with integrated battery, Bosch Performance Line SX motor, and capable suspension package that balance performance, range, and agility. It combines high‑end components like SRAM GX Eagle and Fox suspension for dependable, confidence‑inspiring rides.

Who is the Marin Rift Zone EL 2 Electric Trail Bike designed for?

The Marin Rift Zone EL 2 Electric Trail Bike is designed for trail enthusiasts and adventurous riders who want more range and power without sacrificing handling. It suits riders seeking a capable e‑MTB for technical trails, longer rides, and steeper terrain.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Marin Rift Zone EL 2 Electric Trail Bike 400Wh Battery Silver/Charcoal Fade we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Trail‑Taming Suspension

140mm MultiTrac rear travel and a 150mm Fox 36 fork smooth out rough lines for confident descending and precise handling. Tuned Fox Float X shock keeps traction and control on technical climbs and drops.

Powerful, Efficient Bosch Drive

Bosch Performance Line SX motor delivers 600W peak and 55Nm torque for punchy assist when you need it most. The integrated Bosch PowerTube 400Wh battery balances range and weight for long rides without bulk.

Confident Stopping & Grip

SRAM Code 4‑piston hydraulic brakes and 200mm rotors provide strong, reliable stopping power in all conditions. Maxxis tires and tubeless‑ready rims offer exceptional traction and cornering control.

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Marin Rift Zone EL 2 Electric Trail Bike 400Wh Battery Silver/Charcoal Fade geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

607

614

625

634

Reach

445

465

485

515

Top Tube Length

585

607

629

661

Seat Tube Length

390

400

425

435

Seat Tube Angle

77.0

Fork Length

Head Tube Length

100

110

120

130

Head Tube Angle

100.0

110.0

120.0

130.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

694

696

710

720

Minimum Seat Height

Maximum Seat Height
