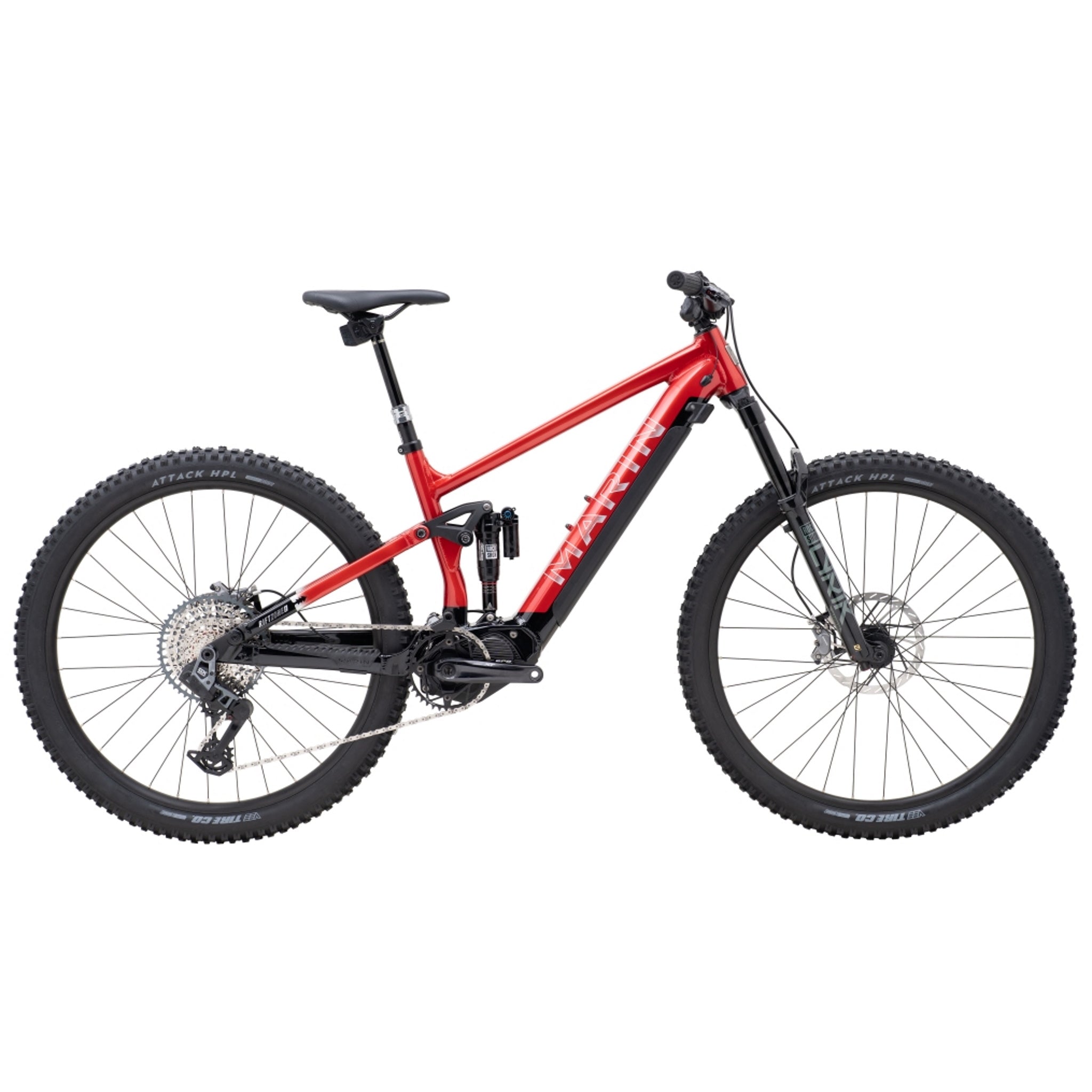

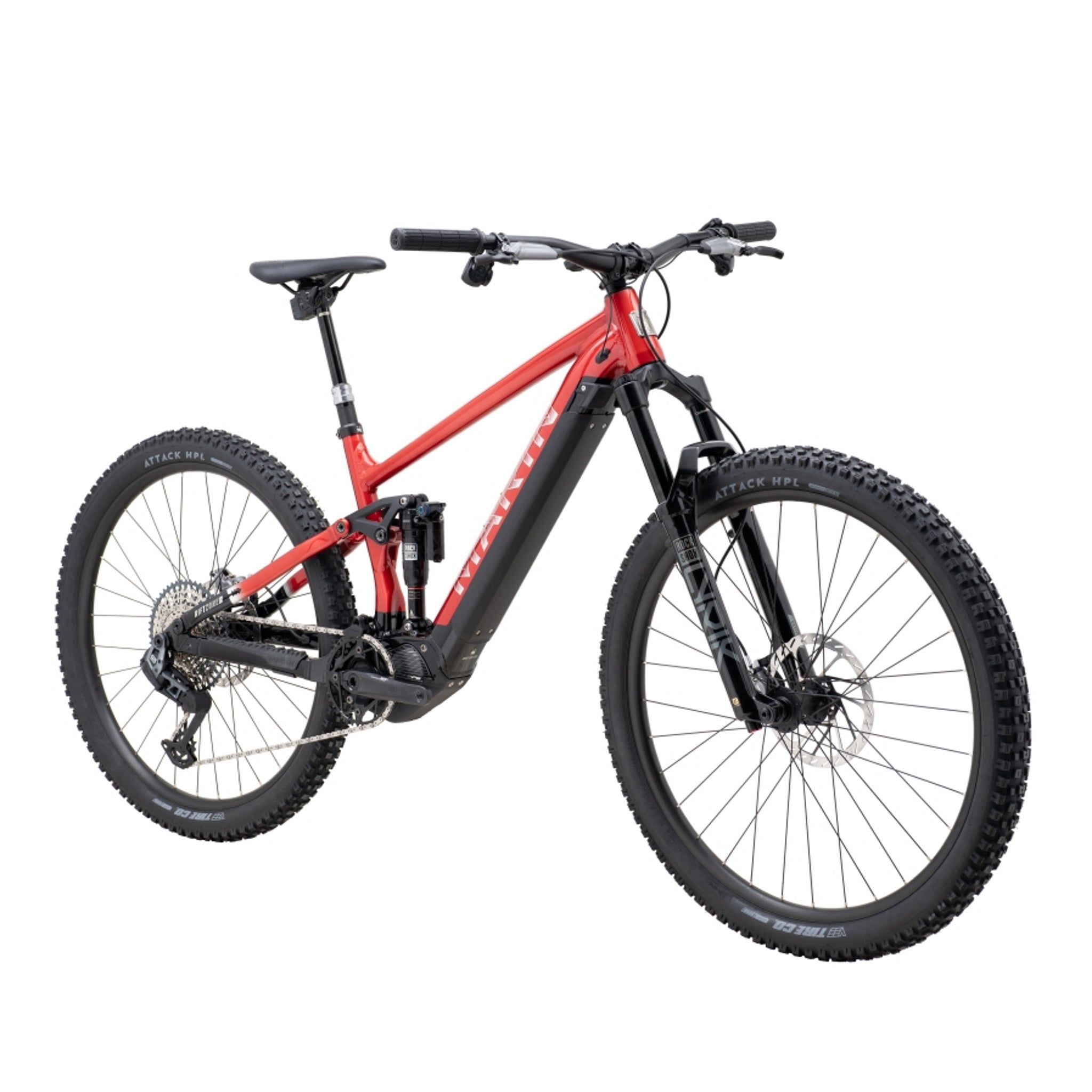

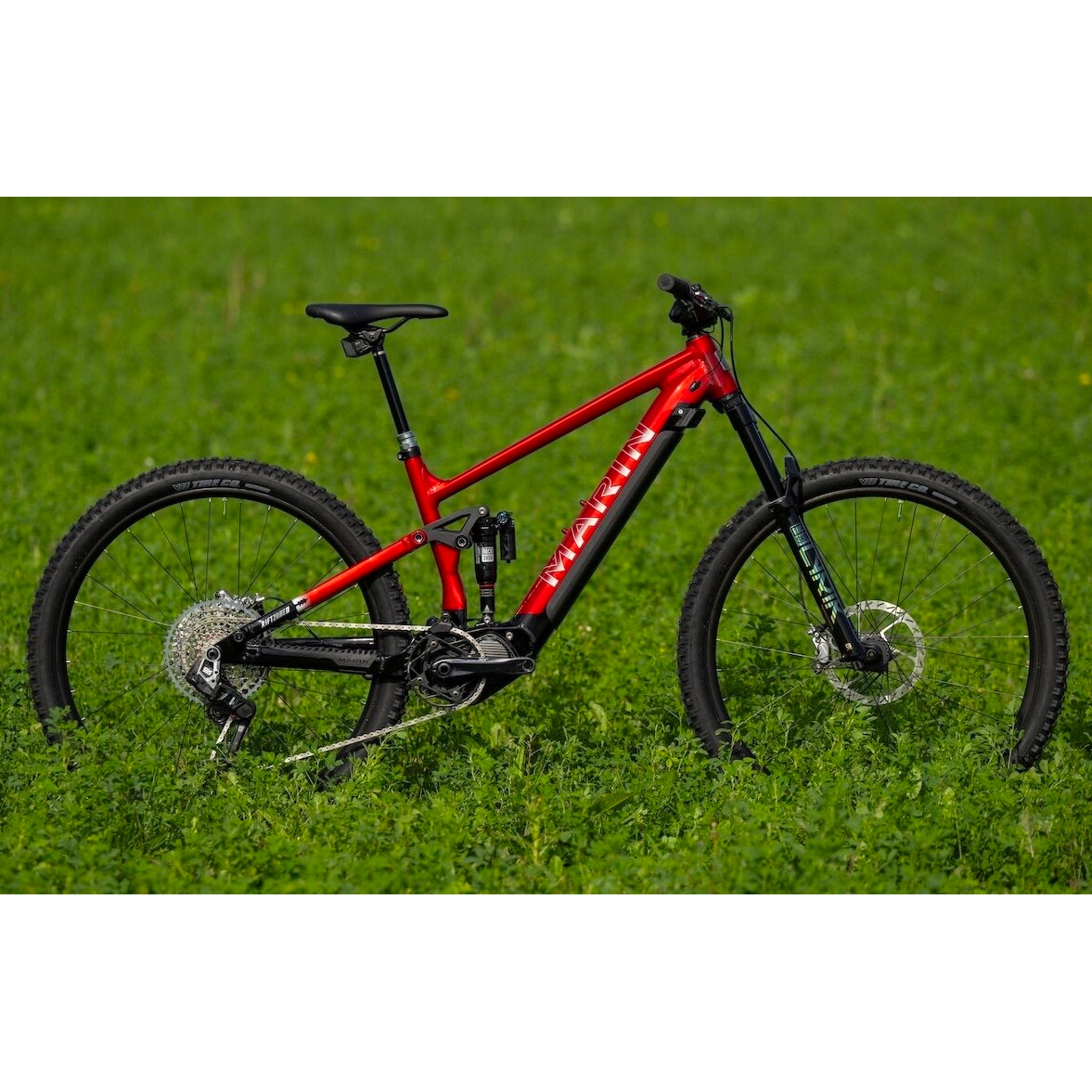

Marin Rift Zone E XR Electric Trail Bike 29” Wheels Red/Grey

Marin Rift Zone E XR Electric Trail Bike 29” Wheels Red/Grey

Brand: Marin

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Steep Hills & Heavy Loads / 85 Nm Torque

Up to 73 km Range

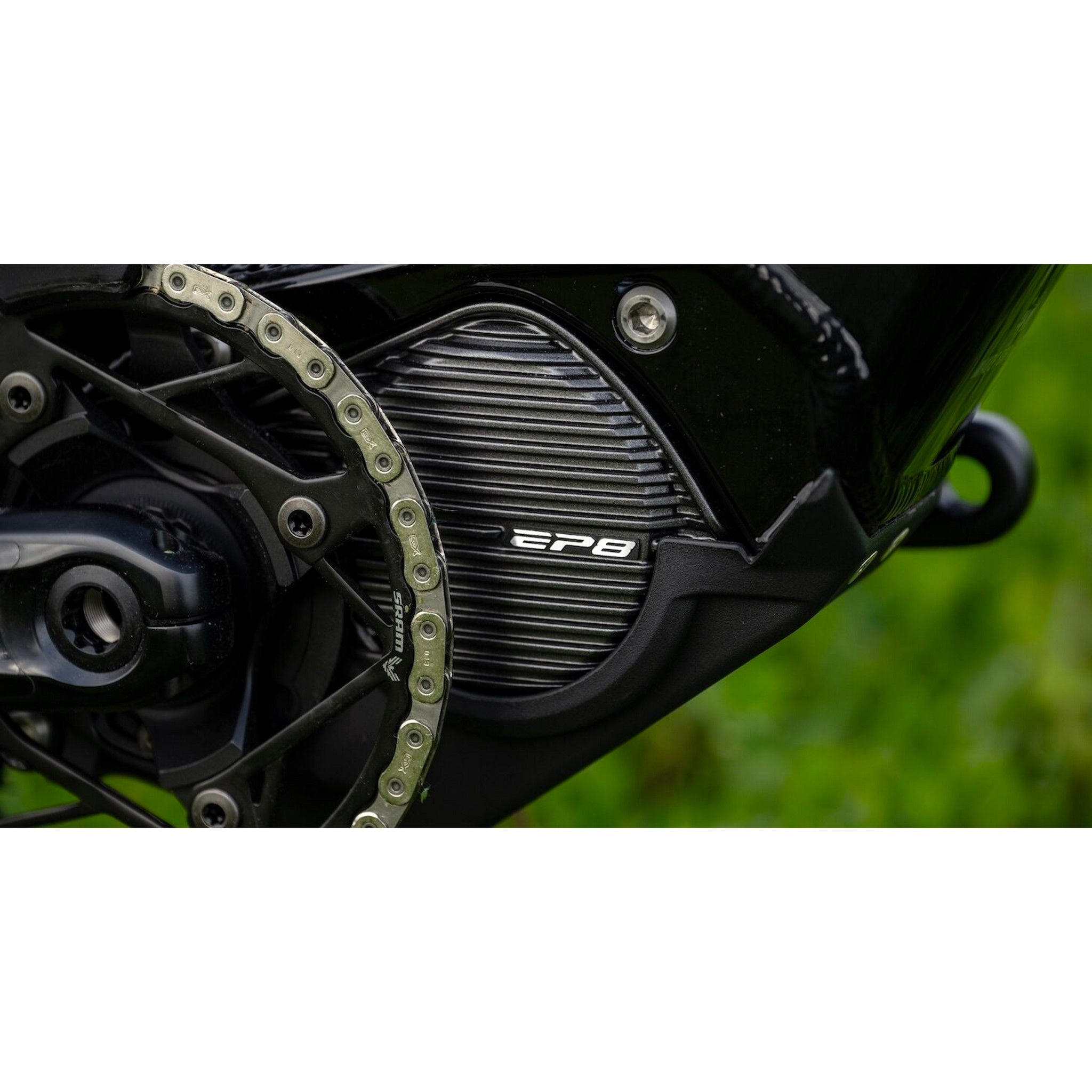

Shimano STePS EP8 Motor

Alloy Frame/ RockShox Alloy Fork

140mm Front Travel / 130mm Rear

630Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Marin took everything they know from their award-winning Rift Zone and made Rifty Love electric. Further, faster and even more fun. MTB with a boost. A perfectly optimized 140mm of travel means snappy handling, heaps of agile and responsive feel and a bike that’s easy to manhandle. Shimano EP801 drive unit takes care of the power, creating effortless, all-day fun with tough and reliable tech and 630Wh internal battery big enough for epic adventures. Just enough trail-taming squish to be mountains of fun, without turning your favorite gnar butter-smooth.

XR stands for Extra Ras. Marin turned the Rifty E up another notch with this one – Built upon Marin’s Series 4 aluminum frame, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers, compatible with modern coil or air shocks. The Alpine Trail E features the same great, proven MultiTrac suspension technology, but optimized for the Shimano STEPS system and kitted out with a RockShox Lyrik Ultimate fork and Super Deluxe Ultimate Shock. Rounding off the high spec kit is Vee Tire Co rubber, Shimano XT drivetrain, next-gen Shimano EP801 motor, SRAM Code 4-piston brakes. And the cherry on top? SRAM AXS wireless shifting and a wireless RockShox Reverb dropper post. Resulting in Marin’s highest spec, highest tech Rifty E ever.

Key Features

Powerful electric motor for enhanced performance
29" wheels for superior traction and stability
Lightweight aluminum frame for easy handling
Advanced suspension for smooth rides
Integrated battery for long-lasting adventures

Specifications

Product Overview

Product

Marin Rift Zone E XR Electric Trail Bike 29” Wheels Red/Grey

Brand

Marin

Parent SKU

1J9AHGID

Size SKUs

SM: MAEB24737591001
MD: MAEB24737591002
LG: MAEB24737591003
XL: MAEB24737591004

Year Model

2024

Product Features

Frame Material

Alloy

Colour

Red

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Fork Material

Alloy

Front Travel

140mm

Rear Travel

130mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP801, 250W, 85Nm

Torque (Nm)

Motor Climbing Ability

Steep Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Battery

BT-8036, Internal 630Wh

Max. Range (KMs)

Display

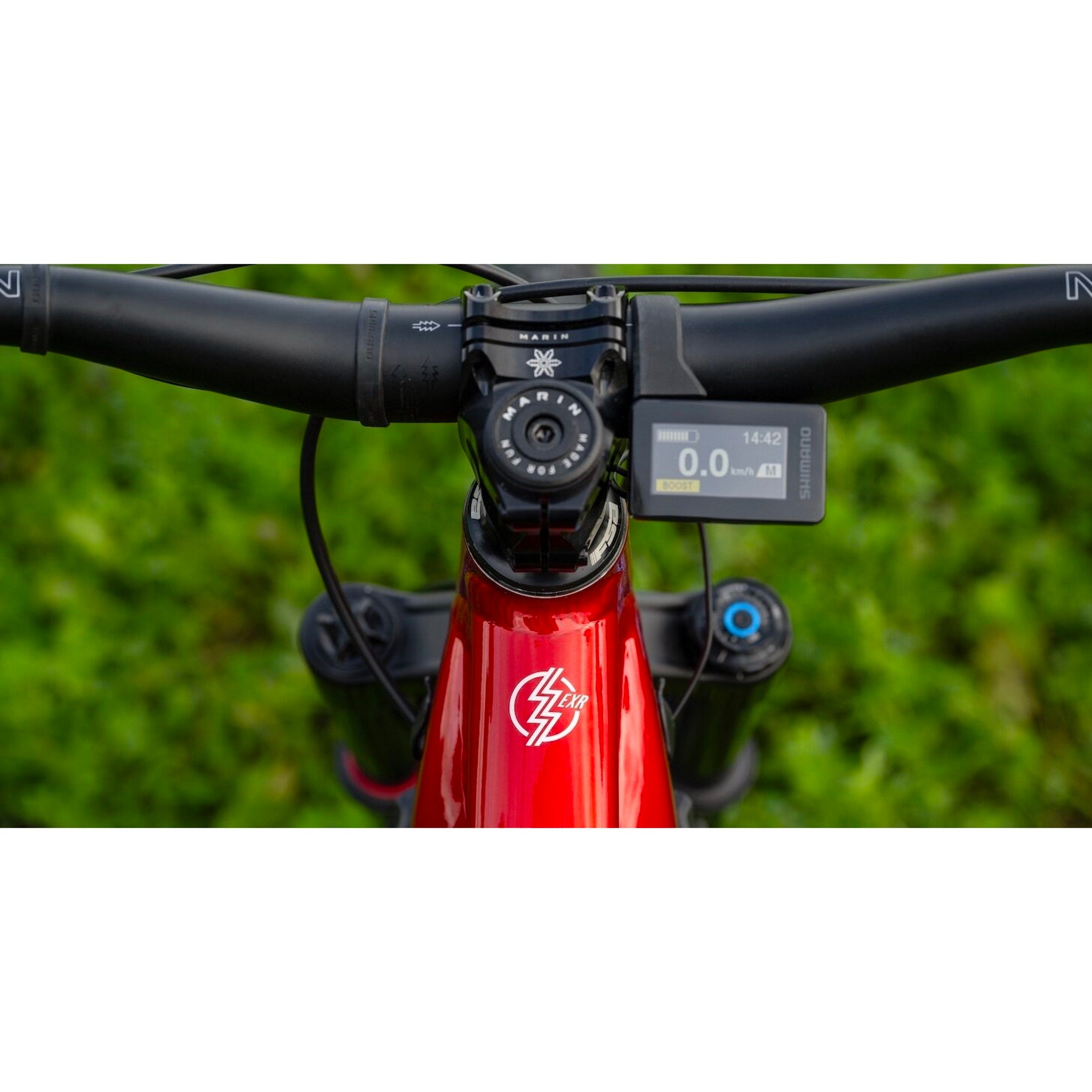

Shimano SC-E600 / Switch: SW-EN600L Left Hand Switch for Assist Mode Change

Build

Frame

Series 4 Alloy, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

Fork

RockShox Lyrik Ultimate, 150mm Travel, 29", 110x15 Maxle Stealth, 42mm Offset

Shock

RockShox Super Deluxe Ultimate, 210x55, 25mm x M8 Hardware, Custom Tune

Handlebars

Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

Headset

FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Grips

Marin Grizzly Lock On

Stem

Marin CNC, 35mm Length, 35mm Bar Bore

Pedals

Marin MTB Plastic

Saddle

Marin eMTB

Seat Post

Rock Shox Reverb AXS with POD remote, Size S: 125mm, Size M: 150mm, Size L/XL: 170mm

Accessories

Extras: Shimano CS-EM800 Chain Guide, Shimano Battery Charger EC-E6002, Cush Core Pro Tire Inserts, Marin Tire Sealant 300ml Bottle

Wheels

Wheel Size

29"

Rims

Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible

Hubs

FRONT: Formula DCL-3482, 4 Sealed Bearings, 148x12, XD Driver, 6-Bolt, 32H / REAR: Formula DC-711, 110x15, 6-Bolt, 32H

Spokes

14g Black Stainless Steel

Groupset

Crankset

Shimano XT M8150, 160mm Length, 38T Steel SRAM Chainring

Chain

SRAM GX

Brakes

FRONT: SRAM Code Bronze, 4-Piston Hydraulic Disc, 203mm HS2 Rotor / REAR: SRAM Code Bronze, 4-Piston Hydraulic Disc, 180mm HS2 Rotor w/ Bolt on Speed Sensor

Front Rotor

203mm HS2 Rotor

Rear Rotor

180mm HS2 Rotor

Shifters

SRAM AXS POD

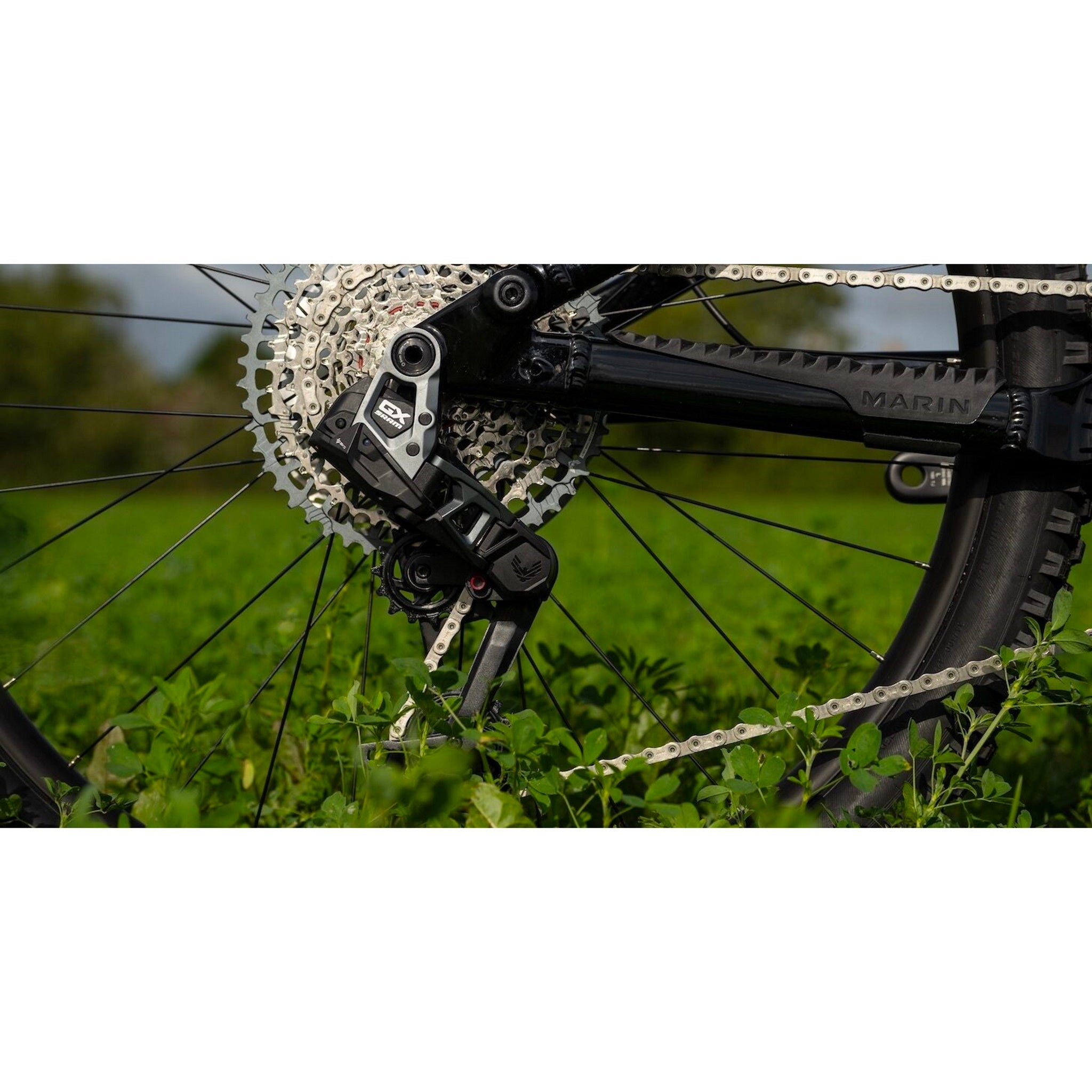

Rear Derailleur

SRAM GX AXS

Cassette

12 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.
