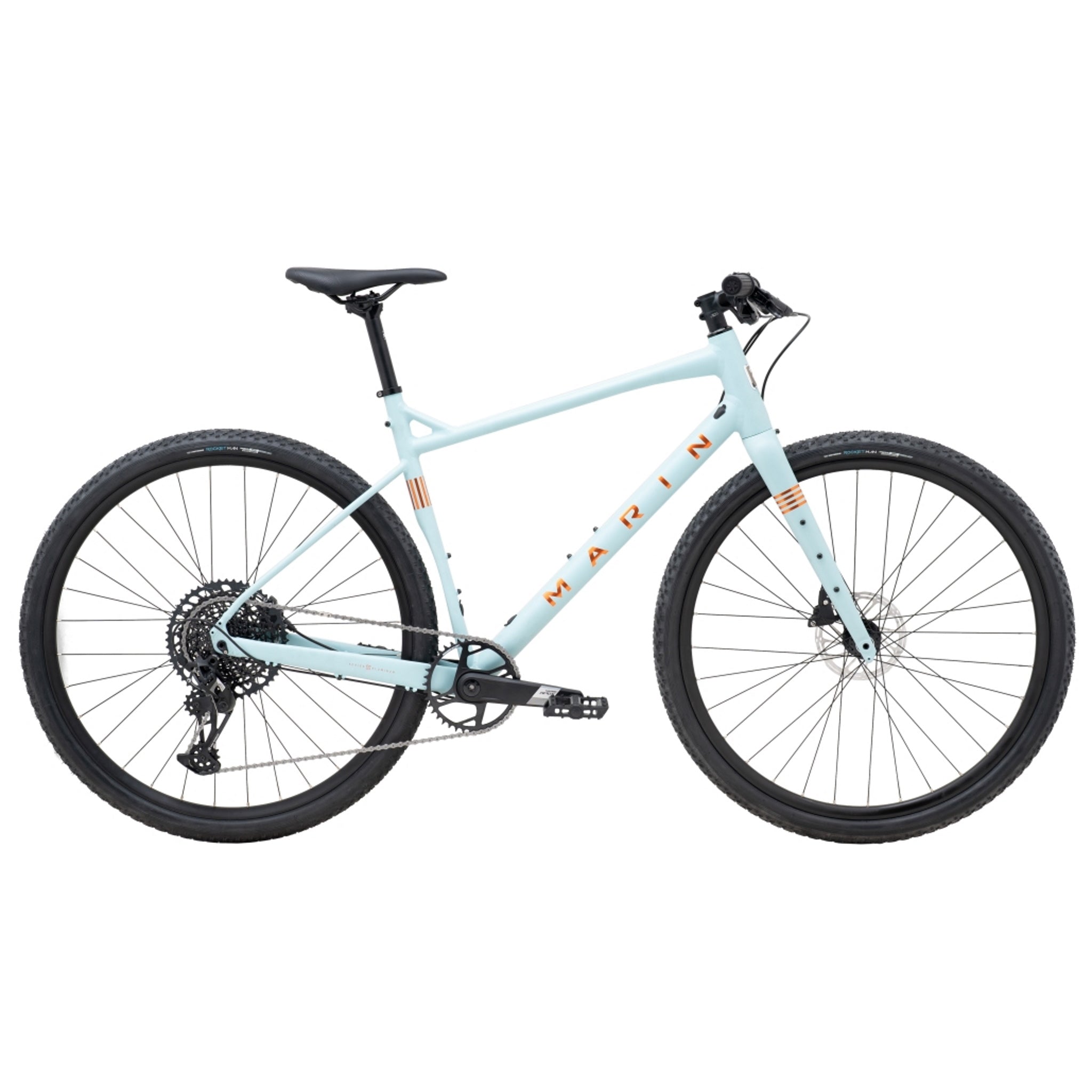

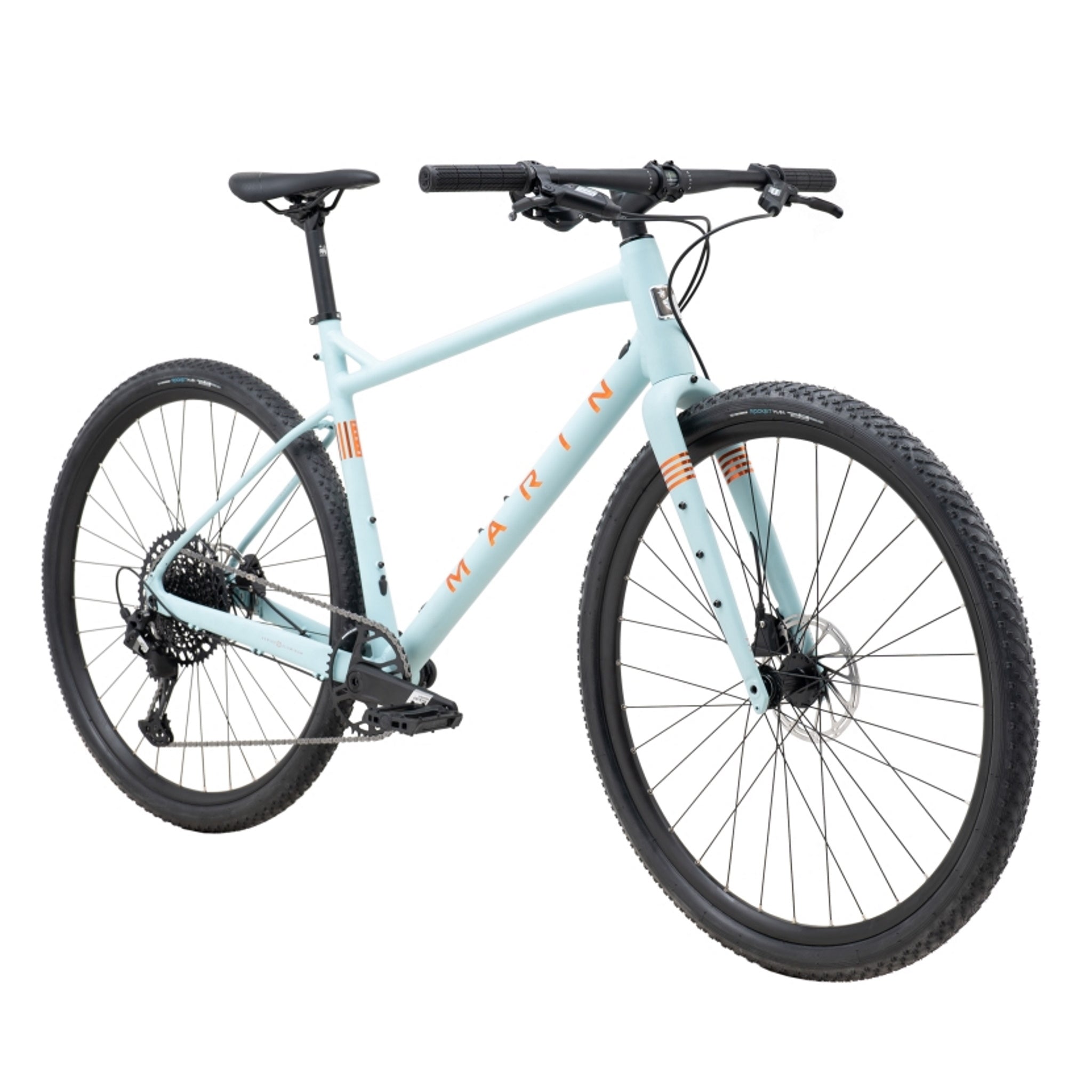

Marin DSX 3 Gravel/Beyond Road Bike Blue

Marin DSX 3 Gravel/Beyond Road Bike Blue

Brand: Marin

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Marin Carbon Fork

700c Wheel Size

Hydraulic Disc Brake

SRAM Apex Groupset

1 x 12 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Marin DSX is everything you want from a modern, flat-bar gravel bike. Zippy aluminum frame, compliant fork, heaps of tire clearance, low standover, dropper post compatibility and a whole load of options for bags and fenders. Taking inspiration from the Gestalt X drop bar line, Marin made the DSX to feel like an MTB but still cut it on all of those adventures that would normally demand curly bars. Perfect for racking up road miles, daily grinds to work, multi-day epics and flowy singletrack, the DSX is the perfect modern gravel bike for riders that prefer their bars flat.

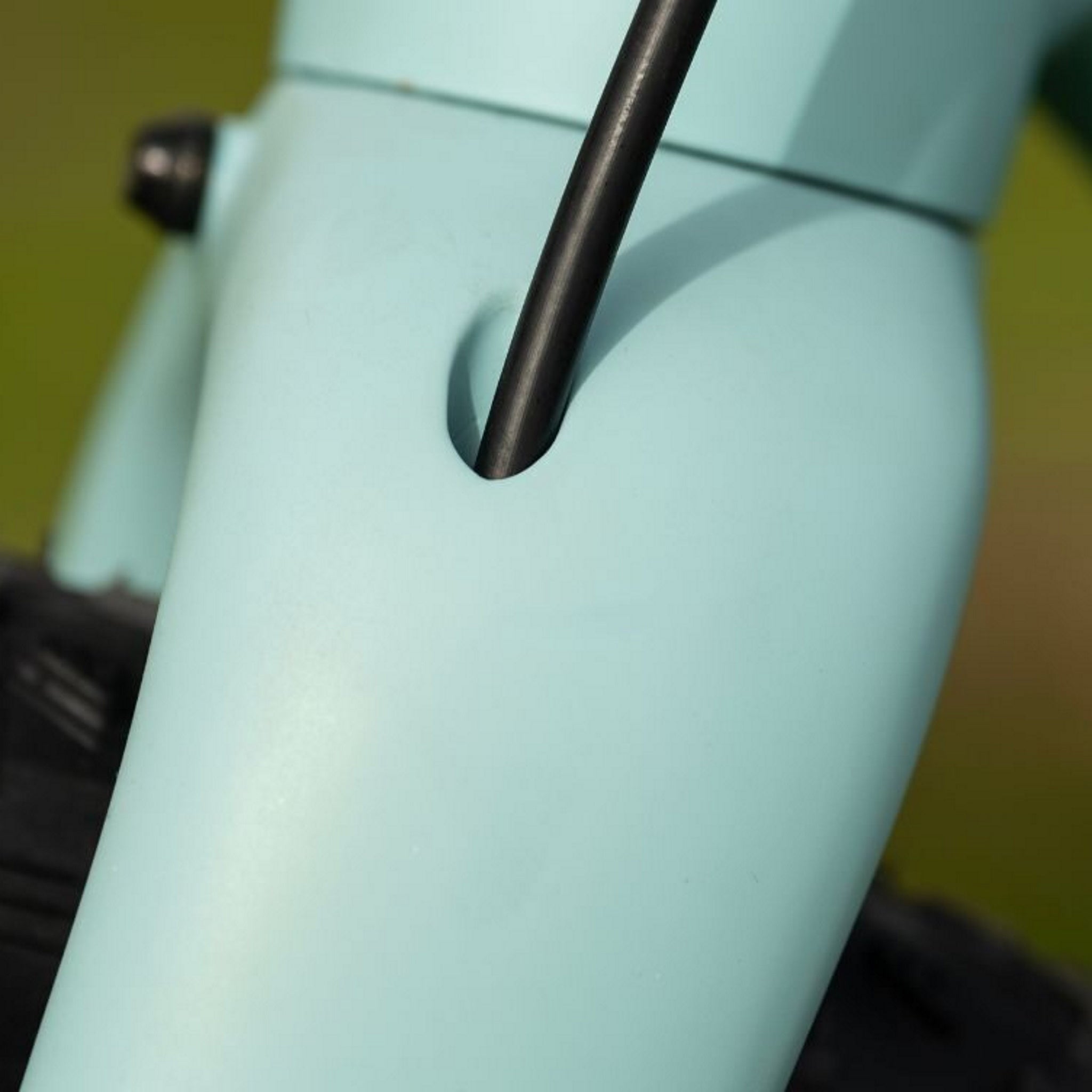

The Marin DSX 2 is built around a Series 3 aluminum frame with internal cable routing, and rack and fender eyelets for mounting accessories. The lightweight, carbon fork is also packed with mounting points for bikepacking gear. There’s also a 1 x 12-speed SRAM Apex drivetrain, Vee Tire Co, Rocket Man 700c x 44mm tires with clearance up to 29” x 2.1”. SRAM hydraulic brakes with the latest flat mount disc brake standard ensure smooth, controlled stopping in all conditions with minimal maintenance. Dropper posts are quickly becoming standard fare for gravel racers and riders that spend significant time on rough surfaces, and the DSX features internal dropper post routing for easy upgrades.

Key Features

Lightweight aluminum frame for agility
Versatile tyre clearance for varied terrain
Shimano 105 drivetrain for smooth shifting
Hydraulic disc brakes for reliable stopping
Multiple mounting points for accessories

Specifications

Product Overview

Product

Marin DSX 3 Gravel/Beyond Road Bike Blue

Brand

Marin

Parent SKU

UFXD584Q

Size SKUs

SM: MAFB24737554001
MD: MAFB24737554002
LG: MAFB24737554003
XL: MAFB24737554004

Year Model

2024

Product Features

Frame Material

Alloy

Colour

Blue

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Fork Material

Carbon

Build

Frame

Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

Fork

Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

Handlebars

Marin MiniRiser

Headset

FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Grips

Marin MTB

Stem

Marin 3D Forged Alloy

Bottom Bracket

SRAM DUB BSA

Pedals

Marin Oso OE Flat

Saddle

Marin DSX

Seat Post

Marin Alloy

Wheels

Wheel Size

700c

Rims

Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible

Hubs

FRONT: Forged Aluminum, 100x12mm, Disc, 32H / REAR: Shimano Forged Aluminum, 142x12mm, XDR, Disc, 32H

Tyres

Vee Tire Co. Rocket Man, 700Cx44mm

Spokes

14g Black Stainless Steel

Groupset

Crankset

SRAM Apex 1, 40T

Chain

SRAM NX Eagle

Brakes

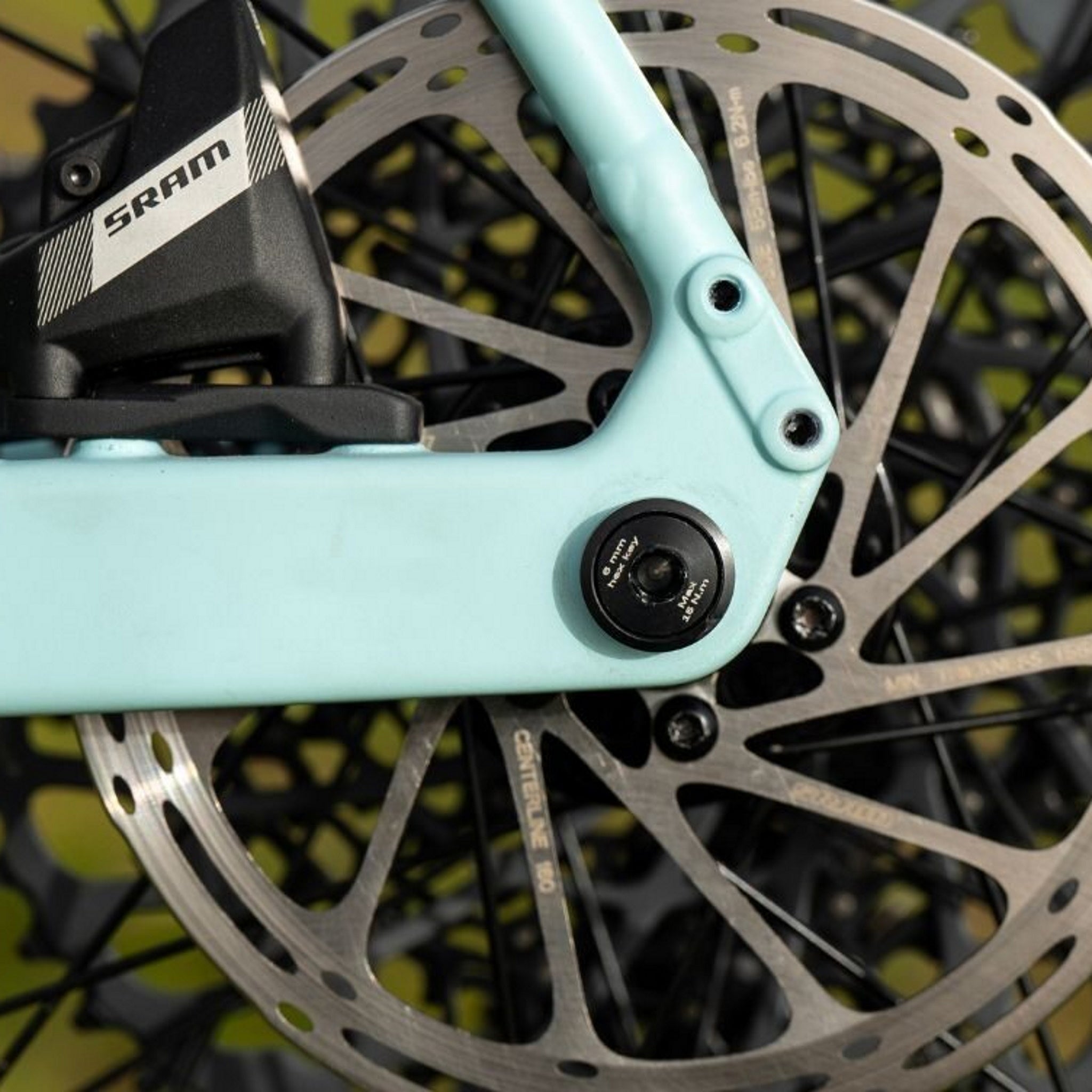

SRAM DB-S300 Flat Mount Hydraulic Disc

Front Rotor

160mm Rotor

Rear Rotor

160mm Rotor

Shifters

SRAM NX 12-Speed

Rear Derailleur

SRAM Apex 1, 12-Speed

Cassette

12 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Marin DSX 3 Gravel/Beyond Road Bike Blue we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Marin DSX 3 Gravel/Beyond Road Bike Blue geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
