39% Off Full Price

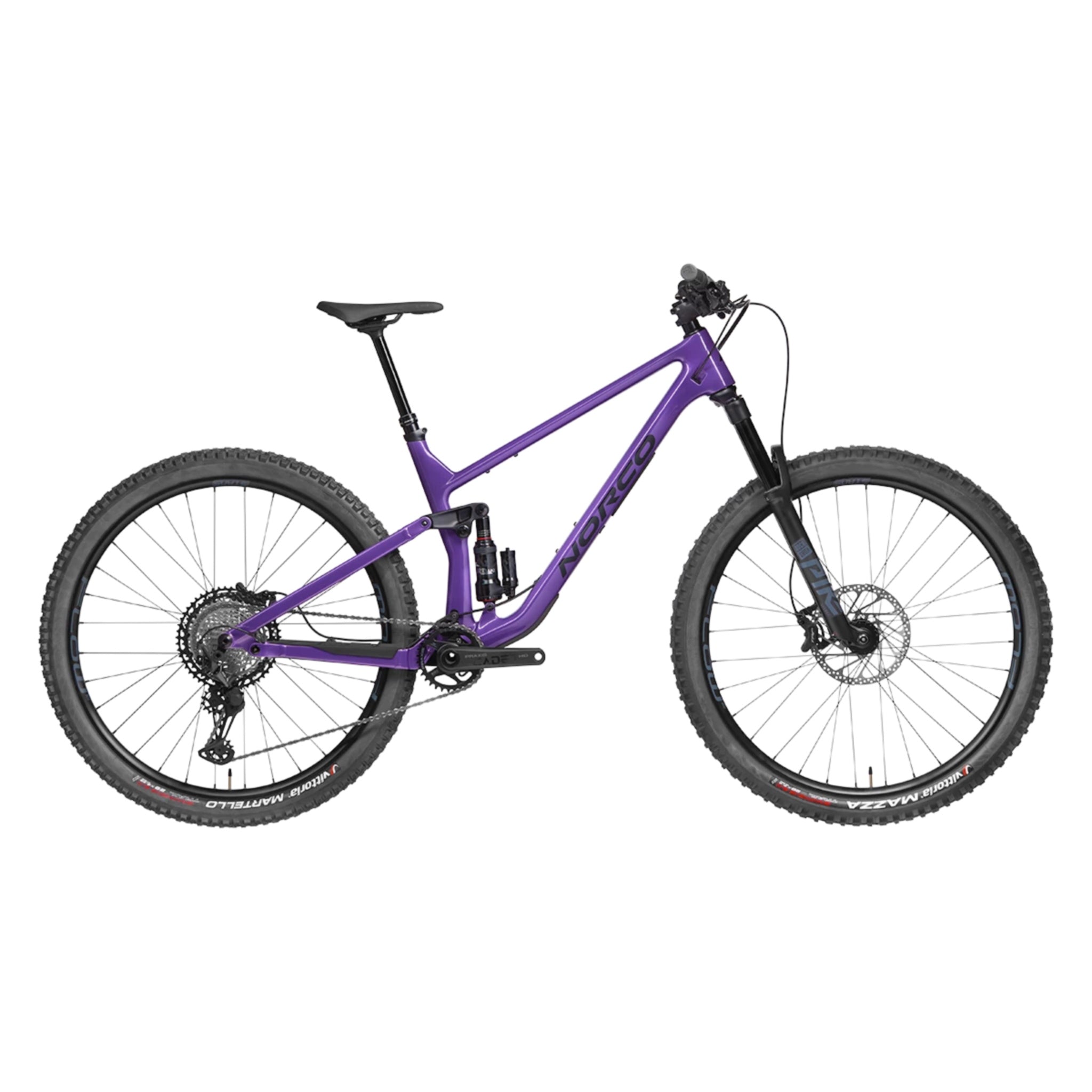

Norco Optic C3 Trail Bike Purple/Black

Brand: Norco

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Carbon/Alloy Frame/ RockShox Alloy Fork

140mm Front Travel / 120mm Rear

29" Wheel Size

Hydraulic Disc Brake

Shimano XT / SLX Groupset

1 x 12 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Optic is an aggressive short-travel sled that rips on descents and can get back to the top without a gondola. With components selected with speed on the brain, designed to work so you can play, fast has never felt this fun. Norco’s legendary Ride Aligned™ Design System optimizes performance using individual rider metrics, precise suspension kinematics, and proprietary app technology resulting in a tailored fit for each rider’s height. The Optic C3’s evolved suspension design is complimented by a custom tuned RockShox Pike Select RC 140mm fork, paired with a RockShox Super Deluxe Ultimate DH Custom RC 125mm shock. Four-piston hydraulic disc brakes with 180mm rotors, short seat tubes, long-stroke dropper post and aggressive knobby tires tame the wildest descents and attack every turn. The Shimano XT/SLX 12-speed drivetrain provides smooth, precise shifting, while the durable and lightweight 29er wheels will have your rolling faster quicker, with better control over rough terrain.

Key Features

Carbon Front Triangle, Aluminum Rear, Ride Aligned
RockShox Pike Select RC, DebonAir, 140mm Travel Fork
RockShox Super Deluxe Ultimate DH Custom RC 125mm Shock
Shimano SLX/XT 1x12 Speed Drivetrain
Shimano BR-MT420/TRP Slate EVO, 4 Piston Disc Brakes
X-Fusion Manic Dropper Seatpost
Stan's Flow S1 29" Rims, Vittoria Mazza/Martello 2.4”/2.35” Tyres

Specifications

Product Overview

Product

Norco Optic C3 Trail Bike Purple/Black

Brand

Norco

Parent SKU

YOUIDFPJ

Size SKUs

SM: NODT2240422924
MD: NODT2240422925
LG: NODT2240422926
XL: NODT2240422927

Matrix Barcodes

SM: 640422924
MD: 640422925
LG: 640422926
XL: 640422927

Year Model

2023

Product Features

Frame Material

Carbon/Alloy

Colour

Purple

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Fork Material

Alloy

Front Travel

140mm

Rear Travel

120mm

Build

Frame

Carbon Front Triangle, Aluminum Rear, 125mm Travel, Ride Aligned™

Fork

RockShox Pike Select RC, DebonAir, 140mm Travel, 42mm Offset

Shock

RockShox Super Deluxe Ultimate DH Custom RC, 190x45mm

Handlebars

Butted 6061 Alloy, 780mm, 20mm Rise

Headset

FSA Internal Sealed Bearing

Grips

DMR Deathgrip

Stem

6061 Alloy, 45mm Length, 35mm Clamp

Bottom Bracket

Praxis M30 PF92

Saddle

Fizik Alpaca Terra, Wingflex

Seat Post

X-Fusion Manic Dropper, 31.6mm, 125mm (S), 150mm (M,L), 170mm (XL)

Accessories

Chain Tensioner: GW 1x Flip Guide

Wheels

Wheel Size

29"

Rims

Stan's Flow S1 29", 32H

Hubs

FRONT: Bear Pawls Sealed Bearing, 15x110mm Boost, 6 Bolt / REAR: Bear Pawls Sealed Bearing, 12x148mm Boost, Micro Spline, 6 Bolt

Spokes

Sapim Sprint DB Stainless

Groupset

Crankset

Praxis Cadet M30, 32T, 170mm

Chain

Shimano Deore

Brakes

TRP Slate EVO, 4 Piston

Front Rotor

TRP 180mm

Rear Rotor

TRP 180mm

Shifters

Shimano SLX SL-M7100-IR I-Spec EV

Rear Derailleur

Shimano XT RD-M8100

Cassette

12 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Norco Optic C3 Trail Bike Purple/Black we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Norco Optic C3 Trail Bike Purple/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
