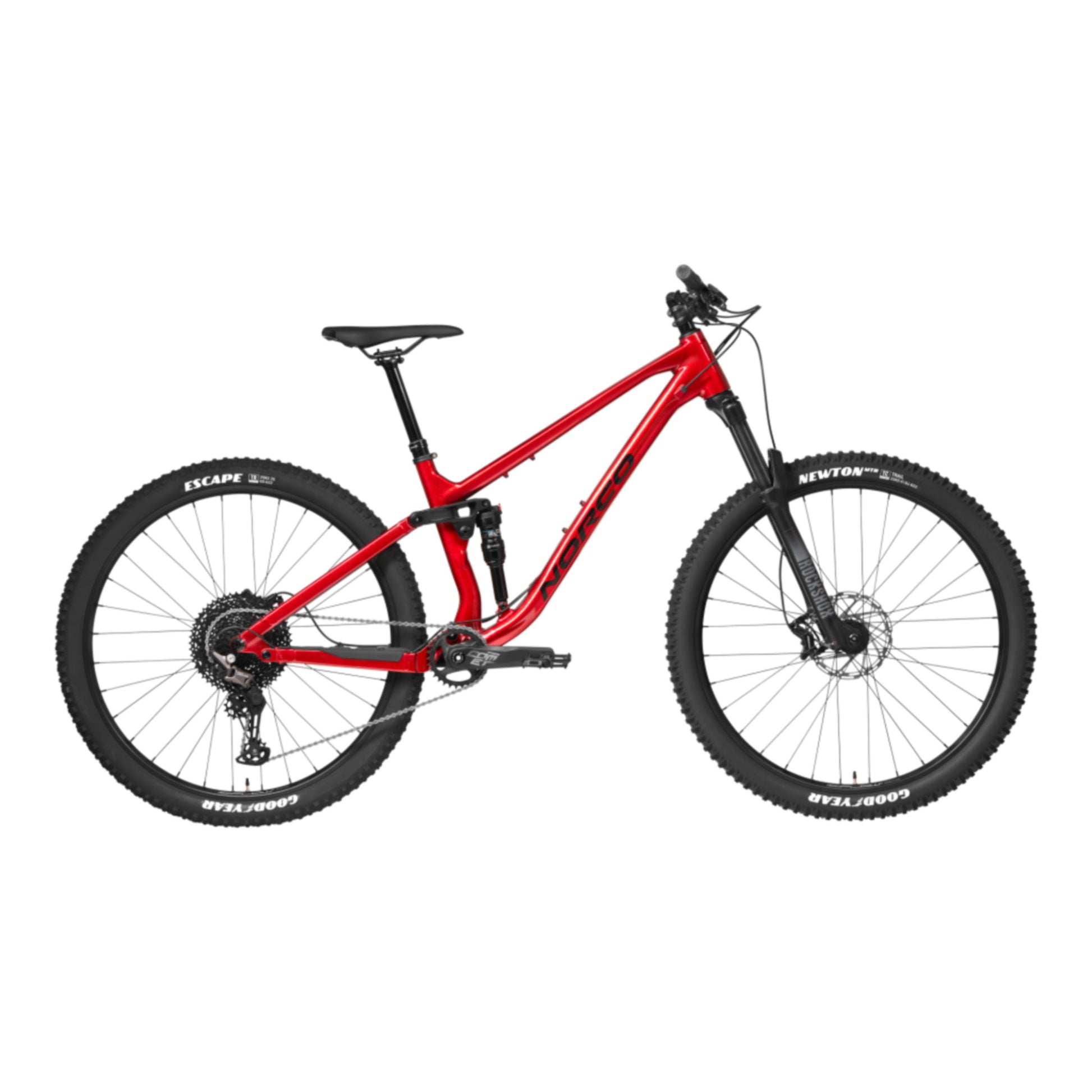

Norco Fluid FS A4 Full Suspension Trail Bike Red/Black

$2,499
?

You automatically get Club Price when buying online. But there are extra benefits if you join Club 99.

$3,699.99
Buy now, pay later
SKU: M9JPJUYK Low stock

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Key Features
  • 6061 Alloy High performance frame, tunable suspension
  • RockShox Recon Silver RL, 140mm travel fork
  • X-Fusion 02 Pro R, Custom Tune shock
  • Shimano Deore 1x11 speed drivetrain
  • Tektro HD-M535, 4 Piston hydraulic disc brakes
  • Long-travel dropper and generous standover
  • Ride Aligned Design System, expanded size range

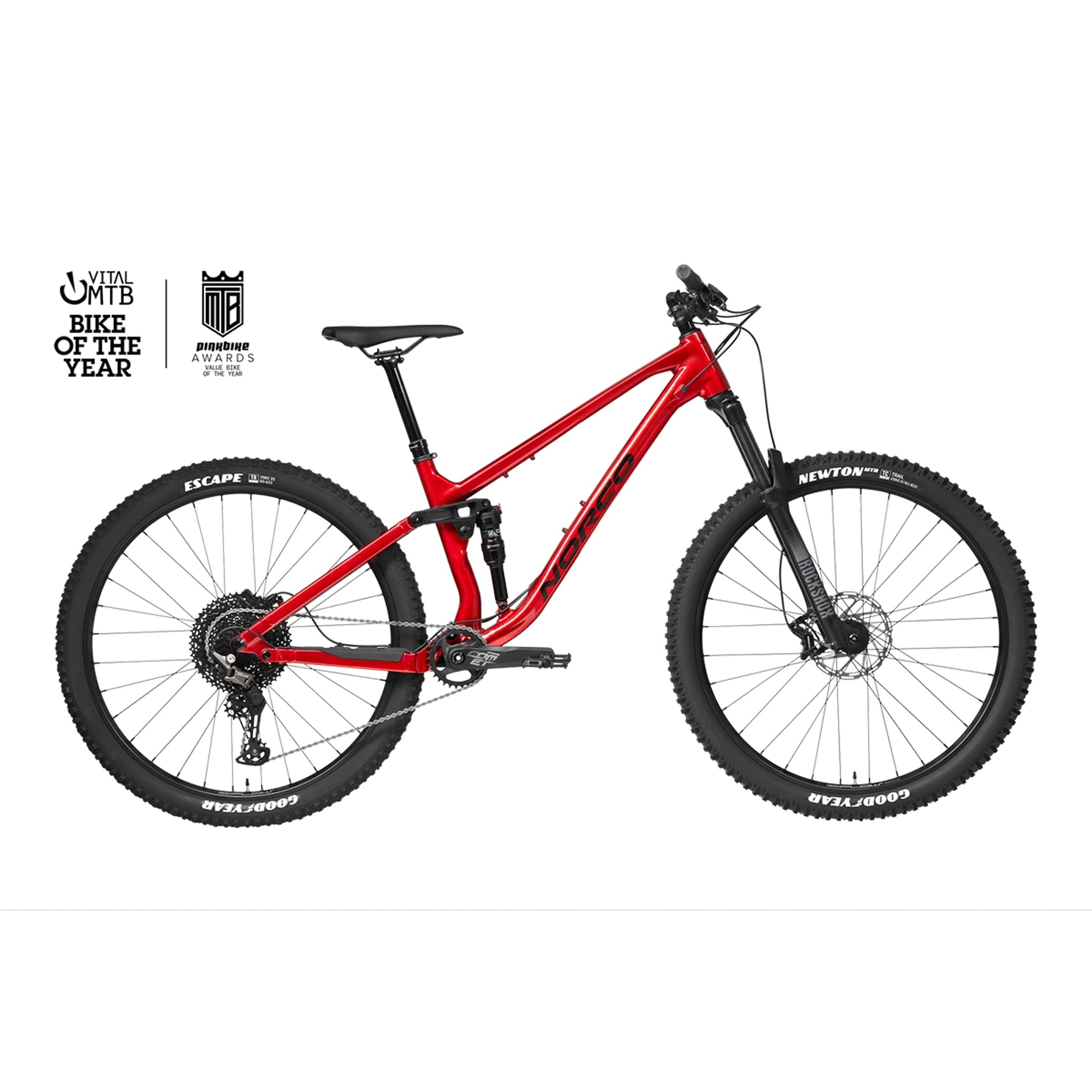

The new Norco Fluid FS has been named Pinkbike’s Value Bike of the Year and Vital MTB’s Bike of the Year. The Fluid FS A4 model is built to be the gateway into evolving singletrack skills, a perfect ratio of performance and value. The top-tier frame design and features, with components selected specifically for trail riding and custom tuned suspension gives riders what they need to ride their best. The lightweight 6061 aluminum frame is paired with a RockShox Recon Silver RL 140m fork and X-Fusion 02 Pro R, custom tuned shock letting you roll confidently through challenging terrain and push your limits. The Shimano Deore 1x11 speed drivetrain offers smooth shifting performance, while the long-travel, 34.9mm dropper post and low-slung top tube creates lots of room to move whether you’re on steep, techy or fast trails. Boutique-level fit and finish is available in 5 frame sizes, catering to riders between 5’1” and 6’7”, delivering a ride to take your skills to the next level.

Bottom bracket: FSA MegaExo, BSA Threaded
Brakes: Tektro HD-M535, 4 Piston, Organic Pads
Chain: KMC X11
Crankset: FSA Comet 1X DM, 30T, 170mm (S), 175mm (M - XXL)
Derailleur rear: Shimano Deore RD-M5100
Fork: RockShox Recon Silver RL, 140mm Travel , 42mm Offset
Frame: 6061 Alloy, 130mm Travel
Freewheel: SunRace CSMS8, 11/51T, 11 Speed
Grip: WTB Waffle, Lock-On
Handlebar: e*thirteen 800mm, 20mm Rise
Handlebar stem: 6061 Alloy, 40mm Length, 35mm Clamp
Headset: Sealed Bearing, Tapered, 2x10mm & 1x5mm- Black
Hubs: FRONT: Bear Pawls Sealed Bearing, 15x110mm Boost, 6 Bolt / REAR: Bear Pawls Sealed Bearing, 12x148mm Boost, HG, 6 Bolt
Pedals: VP Nylon Flat
Rim: Stan's Flow D, 29", 32H
Rotor front: Tektro TR180-22, 180mm
Rotor rear: Tektro TR180-22, 180mm
Saddle: Norco Trail
Season: 2023
Seat clamp: Norco Alloy Nutted Clamp
Seat post: SDG Tellis Dropper, 34.9mm, 150mm (S), 170mm (M, L), 200mm (XL, XXL) SDG Dropper Lever
Shock: X-Fusion 02 Pro R, Custom Tune, 210x50mm
Spokes: Stainless, Black
Tyre front: Goodyear Newton 29" x 2.4", Folding, Stan's Rim Tape 55m x 30mm (Fits Flow rims)
Tyre rear: Goodyear Escape 29 x 2.35", Folding, Stan's Rim Tape 55m x 30mm (Fits Flow rims)
Wheel size: 29"

SMLXLXXL
Wheel Size29"29"29"29"29"
Travel (mm front)
140/130
Travel (mm front/mm rear)
2.4" – 2.6"
Reach420450480510540
Stack617626635644653
Head Tube Angle
65
Fork Offset
44
Seat Tube Length360390410460510
Effective Seat Tube Angle7676.376.77777.3
Rear Centre Length425430435440445
Bottom Bracket Drop
30
Bottom Bracket Height
348
Horizontal Top Tube574602630659687
Wheelbase11661205124512841323
Standover678690699736767
Head Tube Length110120130140150
Trail
128
Recommended Seatpost Drop150170
200
Maximum Post Insertion250270
300
Stem Length
40
Crank Length
175
Water Bottle Compatible
1 x 750 mL
1 x 750 mL and 1 x 620 mL


Norco Enduro/All Mountain/Trail Bike Sizing Chart

Norco Bikes Warranties

Norco Bicycles Warranty
Norco warrants that Norco frames will be free from manufacturer defects in materials and workmanship. This warranty applies to the original owner only and is non-transferable.

Ownership - Register Your Bike
The original owner must register his / her new bicycle within 90 days from the date of purchase with Norco Bicycles (www.norco.com/bike-registration) to complete a record of ownership and to participate in the applicable Warranty and Norco Crash Replacement Program. Upon successful completion of your online registration, you will receive an email confirmation for your records. Your Authorized Norco Bicycle Dealer is the best source of care and information for your bicycle. The more you ride, the more frequently you should have your bicycle professionally inspected and maintained. Be sure to read your owner’s manual and make yourself familiar with recommended service intervals and procedures. If you have any questions about the limitations of the intended use of your Norco bike, ask an Authorized Norco Bicycle Dealer.

Norco Bicycles New Purchase Limited Warranty
Your ride enjoyment is our priority, and if you have any issue with your Norco Bicycle contact the Authorized Norco Bicycle Dealer where you purchased your bicycle first. The Norco warranty applies to all new bicycle frames and framesets purchased from and assembled by, an Authorized Norco Bicycle Dealer. Any warranty claim must be made through an Authorized Norco Bicycle Dealer. Your Authorized Norco Bicycle Dealer is professionally equipped to assist you with your bicycle care, as well as any issue(s) or claim(s) made that are a result of a manufacturing defect. Please note that transportation charges are not covered by the Warranty.

Please note that transportation (shipping costs) and labor costs associated with warranty claims are not covered by the warranty and are the responsibility of the customer.

Complete Bicycles
Norco Bicycles warrants the replacement or repair at its sole option, of any original Norco branded part due to a defect in material and/or workmanship for 1 year from the original date of purchase. An original sales receipt or other proof of purchase is required at the time of claim.

Batteries
Norco will warranty proprietary VLT batteries for a period of 24 months from the date of purchase against manufacture defects.

VLT E-bikes using Shimano batteries will be subject to Shimano battery warranty policy.

Warranty Exclusions and/or Limitations
Components and suspension forks / rear shocks are not considered part of the frame and are not covered under the terms of the frame warranty. Suspension manufacturers, brand-name wheels sets, and other brand-name components designate their own specific warranty policy for their products. Visit the component manufacturer’s websites for further information. If you did not receive a Norco owners manual from your Authorized Norco Bicycle Dealer at the time of purchase, please go to www.norco.com/owners-manual

Colour fade as a result of harmful UV exposure or sunlight is not covered.

This warranty is void in its entirety by the modification of the frame, fork or components. Failure of any frame or component due to accident, abuse, neglect, normal wear, stunt riding, commercial use, rental use, improper assembly, improper fit, maintenance and/or assembly by/or purchased from another party besides an Authorized Norco Bicycle Dealer, or use of parts inconsistent with the use originally intended for the bicycle as sold, are not covered by this warranty.

Warranty claims made outside the country of purchase may be subject to fees and different terms or restrictions.

Rental/Demo Bicycle Change of Ownership: Bicycles purchased from an authorized Norco Rental or Resort Partner must be registered. Norco Bicycles warrants the replacement or repair at its sole option, of any Norco, branded part due to a defect in material and/or workmanship for 1 year from the original date of purchase. Original sales receipt, registration confirmation, or other proof of purchase is required at the time of claim.

Bicycle Lifecycle
Always purchase your new Norco bicycle or frame from an Authorized Norco Bicycle Dealer and be sure to maintain your bicycle and have it inspected regularly to guarantee the Norco ride quality and identify any potential issues. Norco Bicycles are designed for the intended use and rider enjoyment, however, bicycles are not indestructible; every frameset has a useful life cycle and may not last forever. The duration of the life cycle will depend upon the type of frame, riding conditions, and the care your bicycle receives.

Crash Replacement Program
Accidents can happen and you may need to replace your damaged frame. Norco provides a crash replacement program that is available only to the original registered owner or secondary owner of a bike purchased from an authorized Norco Bicycles Resort or Rental Partner. The Crash Replacement Program covers the frame only during the warranty period, providing the bicycle was registered within 90 days of purchase. For more information about registering your bike, see above under Ownership. For a frame damaged due to an accident, at its discretion, Norco will make a replacement available at a discount to the registered original owner – see your authorized Dealer for warranty requirements and complete details.

Disclaimer
Norco is not responsible for any damages to you or others arising from riding, transporting or other use of your bicycle. In the event that your frame breaks or malfunctions, Norco shall bear no liability or obligation beyond the repair or replacement of your frame pursuant to the terms outlined in the warranty. Warranty information published on current norco.com will be the prevailing policy.

Norco Bicycles was founded in 1964 with the idea of getting more people on bicycles. Over the past 50 years this philosophy has moved from it's Canadian beginnings and can now be found in more than 25 countries. Norco as a business has always focused on the people. Cycling is at the root of Norco and being passionate about the products that they design, and ride has made for continued innovation and world class products. 50 years and counting.
