- Award-winning Scultura CF3 Carbon frame
- Scultura CF3 V Carbon fork, disc cooler technology
- Shimano 105 Di2 electronic 2 x 12-speed groupset
- Shimano 105 hydraulic disc brakes
- FSA SMR ACR two-piece cockpit
- Merida Expert CC carbon seat post
- Continental Grand Sport Race 700 x 28c tyres

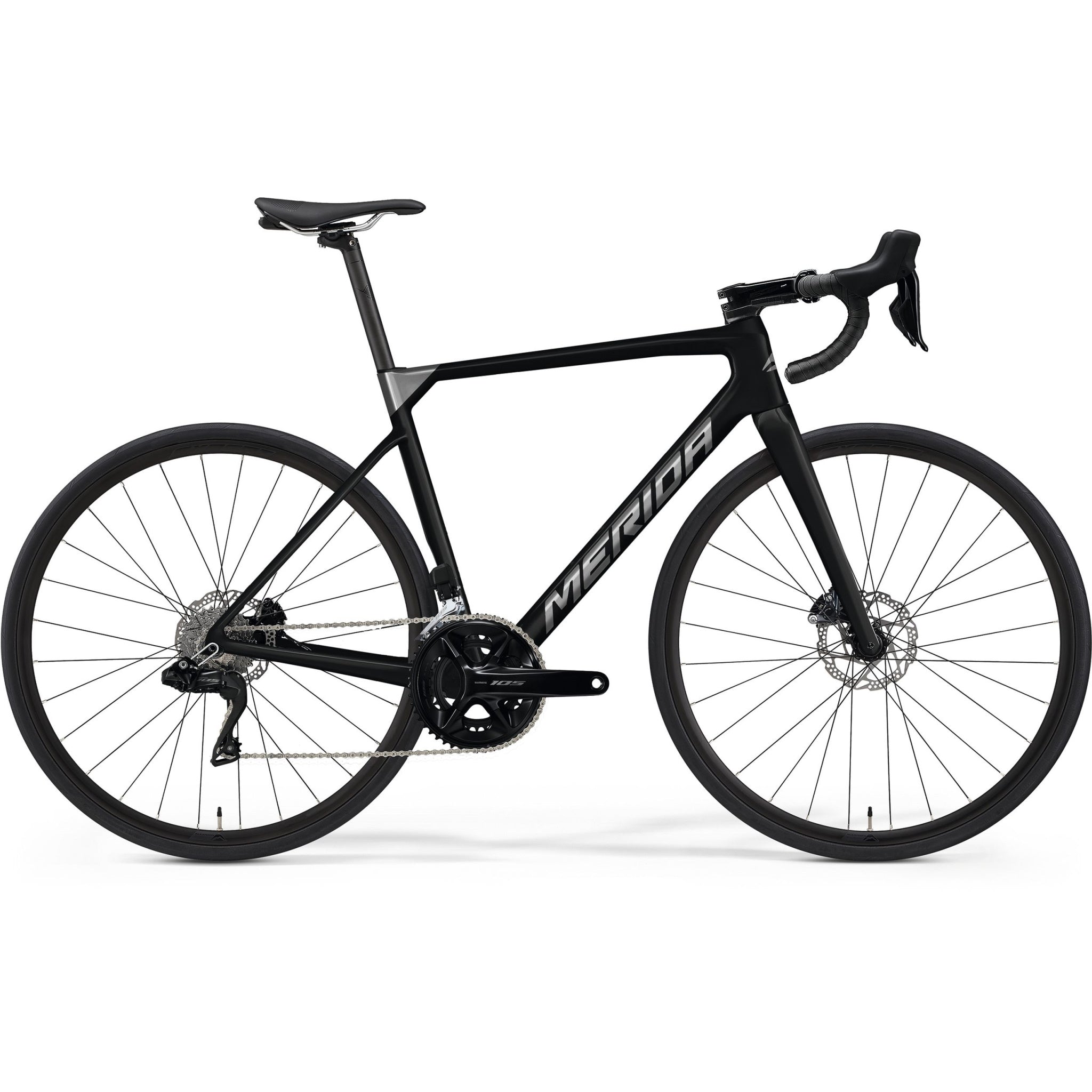

Shimano's latest 105 electronic Di2 groupset, is combined with other top quality components from Shimano 105 hydraulic disc brakes, FSA headset and stem to Merida’s premium components and Expert SL wheelset, rolling on Continental Grand Sport Race tyres. All fitted to Merida’s award-winning Scultura CF3 frame, which offers premium nano matrix carbon with high tech NACA fastback tube profiles and internal cable routing featuring wire port cable housing as well as Merida’s patented AWS anti wrinkle system. The Scultura 6000 is one of the most aerodynamic and comfortable classic high-end road bikes available.
Axles: | MERIDA EXPERT SL / MERIDA EXPERT SL, including removable lever, 6/4mm allen key |
---|---|
Bottom bracket: | SM-BB71-41B, Pressfit 86.5 |
Brakes: | Shimano 105 Hydraulic disc |
Cassette: | Shimano CS-R7100, 11-30 teeth, 12 speed |
Chain: | Shimano CN-M6100-12 |
Colour: | BLACK (GREY) |
Colour (text): | BLACK (GREY) |
Crankset: | Shimano Shimano 105, FCR7100 50-34 teeth, 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M, 175 mm-L/XL |
Derailleur rear: | Shimano 105 Di2 |
Fork: | SCULTURA CF3 Disc, 700x30C max. Wheelsize |
Frame: | SCULTURA CF3 V, material: carbon, 700x30C max. Wheelsize, 100x12/ 142x12mm axle standard, Pressfit 86,5 |
Grip: | MERIDA ROAD Expert |
Handlebar: | MERIDA EXPERT SL, material: aluminium, 380mm(XXS), 400mm (XS-S), 420mm (M),440mm (L-XL) |
Handlebar stem: | FSA SMR ACR, material: aluminium, -6° stem angle, 90 mm-XXS/XS, 100 mm-S, 110 mm-M, 120 mm-L/XL |
Headset: | FSA ACR |
Hubs: | FRONT: VP CLK170F, 100x12 mm width, 28 spoke holes, Centerlock / REAR: VP CLK270R, 142x12 mm width rear hub, 28 spoke holes, Centerlock |
Rim: | MERIDA EXPERT SL, 17mm inner width, 22mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included) |
Rotor front: | Shimano RT64 160mm |
Rotor rear: | Shimano RT64 160mm |
Saddle: | MERIDA EXPERT SL, V-mount, incl. MERIDA minitool |
Season: | 2023 |
Seat clamp: | MERIDA EXPERT |
Seat post: | MERIDA EXPERT CC, 27.2mm diameter, 15mm setback, Carbon |
Spokes: | Double Butted Black stainless |
Tyres: | Maxxis Highroad, 700x28C, fold *tubeless ready |
Weight: | 8.34kg (MD) / Max Weight: 120kg, Total weight of bike, rider and luggage |
Wheel size: | 700c |
S | M | L | |
---|---|---|---|
Stack | 602.8 | 616.8 | 635.4 |
Reach | 390 | 410 | 430 |
Head Tube Angle | 69° | 69° | 69° |
Head Tube Length | 190 | 205 | 225 |
Seat Tube Angle | 73.5° | 73.5° | 73.5° |
Seat Tube Length | 390 | 450 | 500 |
Top Tube Effective | 568.6 | 592.7 | 618.2 |
BB Height | 280 | 280 | 280 |
BB Drop | 75 | 75 | 75 |
Chain Stay | 440 | 440 | 440 |
Wheel Base | 1080 | 1105 | 1132.3 |
Stand Over Height | 550.35 | 562.35 | 576.35 |
Fork Offset | 50 | 50 | 50 |
SeatPost Diameter | 27.2 | 27.2 | 27.2 |
Handlebar Width | 700 | 700 | 700 |
Stem Length | 75 | 75 | 75 |
Crank Length | 170 | 175 | 175 |
All lengths in millimeters
Merida Scultura Bike Sizing Chart
