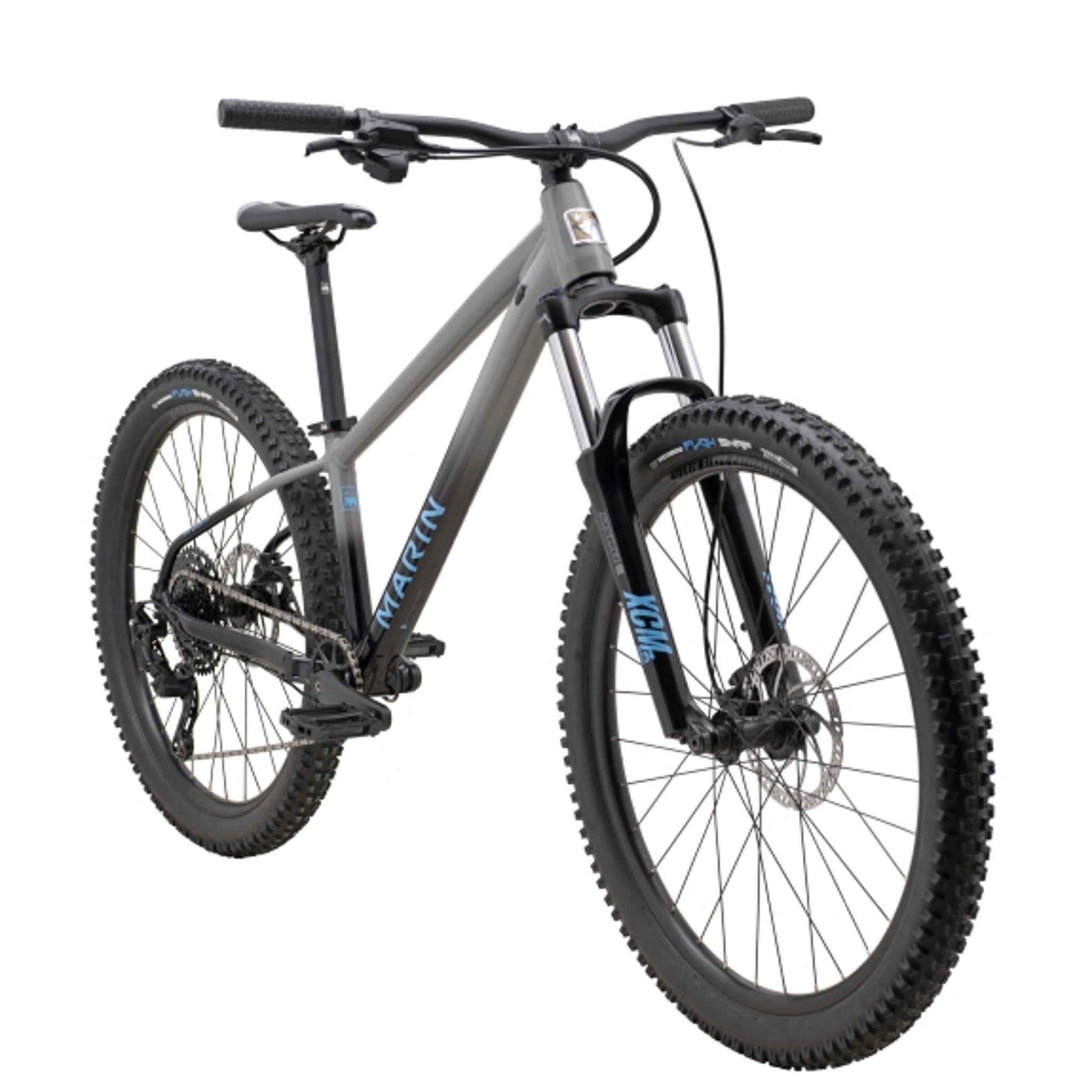

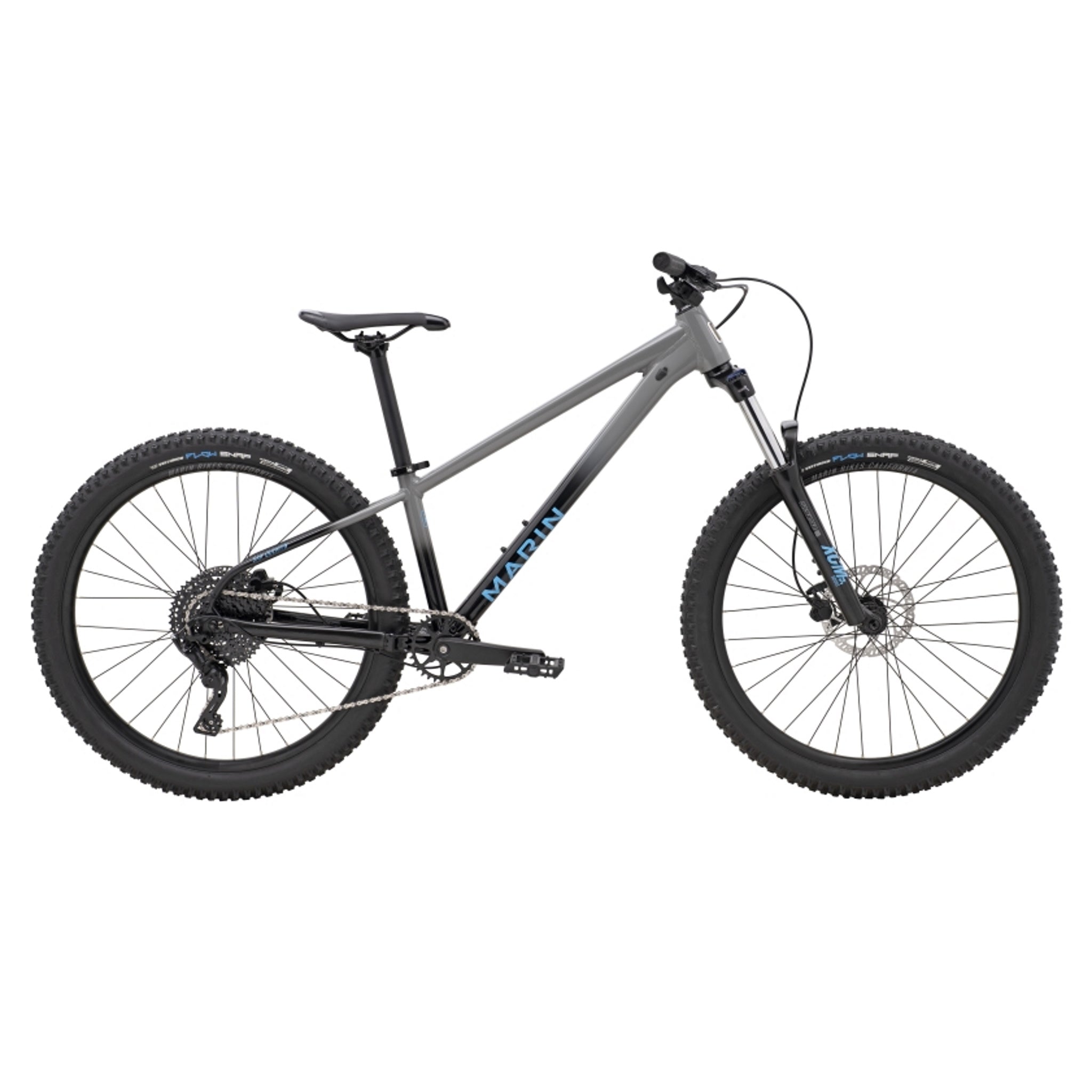

Marin San Quentin 1 Trail/Dirt Jump Bike Grey Black

$999
?

You automatically get Club Price when buying online. But there are extra benefits if you join Club 99.

$1,599
Buy now, pay later
SKU: B76NM8OO Low stock

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Key Features
  • All New Series 2 6061 Aluminum, Double Butted Frame, Internal Cable Routing
  • Balanced Geometry for Enduro Trail Riding and Dirt Jumping
  • SR Suntour XCM34 130mm Fork
  • Tektro M275 Hydraulic Disc Brakes, 180mm Rotors
  • Microshift/Sunrace 1 x 9 Speed Drivetrain
  • Vee Tire Co, Flow Snap, 27.5” x 2.6” Tyres
The San Quentin is for the aggressive hardtail trail rider looking for a blend between singletrack capabilities and extended air time. The San Quentin 1 features a Series 2 aluminum frame, with tapered head tubes, 3D forged drop outs, IS brake mounts, and semi-internal cable routing. Taking cues from the Alcatraz, the San Quentin provides all the benefits of the DJ style with massive stand over, slick frame tubes, and a sexy paint job. The slack head tube angle paired with a steep seat tube angle create a ride that will fly uphill with perfect front wheel precision but then descend like it’s on rails. The balanced rider position thanks to the steep seat tube puts your weight between the wheels for impressive climbing and handling on flats, while the slack front end and short rear center help to pull you through the rough descents and corners with an intuitive feel.
Axles: Bolt-On Thru-Axle
Bottom bracket: Sealed Cartridge Bearing, Square Taper
Brakes: Tektro M275 Hydraulic Disc, 180mm Rotor
Chain: KMC X-9
Crankset: Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
Derailleur rear: MicroShift RD-M9195M, 9 Speed, With Clutch
Fork: SR Suntour XCM34 Boost 15x110mm Spacing, 130mm Travel, Coil Spring, 27.5", Bolt-On Thru-Axle
Frame: All New Series 2 6061 Aluminum, Double Butted Frame, Internal Cable Routing, 141mm Open Dropout, 73mm Threaded BB
Freewheel: CASSETTE: Sunrace, 9 Speed, 11-46T
Grip: Marin MTN, Closed End
Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Handlebar stem: Marin 3D Forged Alloy, 45mm
Headset: FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Hubs: FRONT:Forged Alloy, Quad Sealed Cartridge Bearings, Alloy Axle, QR type, 141mm Width, Disc, 32H, Shimano Standard Freehub Body / REAR: Forged Alloy, 110x15mm, Sealed Cartridge Bearing, Disc, 32H
Pedals: Nylon Platform
Rim: Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible
Saddle: Marin Speed Concept
Season: 2023
Seat post: Marin Alloy, 30.9mm
Spokes: 14g Black Stainless Steel
Tyre front: Vee Tire Co, Flow Snap, 27.5x2.6", MPC Compound, Wire Bead
Tyre rear: Vee Tire Co, Flow Snap, 27.5x2.6", MPC Compound, Wire Bead
Wheel size: 27.5" (650b)

SMLXL
Stack623.4627.9636.9641.4
Reach422450470500
Headtube Angle64°64°64°64°
Headtube Length110115125130
Seattube Angle77°77°77°77°
Seattube Length310340375414
Toptube Effective565.9594.9617648.1
BB Height316316316316
BB Drop50505050
Chainstay425425425425
Wheelbase11761206.21230.61262.8
Standover Height628.1657665.4681.6
Fork Offset47474747
Seatpost Diameter30.930.930.930.9
Handlebar Width780780780780
Stem Length35353535
Crank Length170170170170

All lengths in millimeters

Marin San Quentin Bike Sizing Chart

Marin Bikes Warranties

LIMITED WARRANTY
Marin Mountain Bikes, Inc. ("Marin") warrants to the original retail purchaser ("you") that the Marin product for which you received this warranty is free from defects in material and workmanship for the periods set forth on the below warranty table.

FRAMES WARRANTY PERIOD
(From date of purchase)

Carbon Fiber Frames and Forks: 5 Years
Rigid Frames and Forks: Lifetime
Full Suspension Frames: 5 Years


COMPLETE BICYCLE
The complete bicycle is warranted for one year (from date of purchase), including all original parts on the bicycle except tires, tubes, chains and other wear & tear items. Paint and decals are covered under this warranty.

This warranty period starts from the date of original retail purchase, and is valid only in North America. For warranty periods in other countries, please contact the distributor in your country. The warranty is only valid if the bicycle is purchased from, and assembled by, an authorized Marin dealer.

WARRANTY LIMITATIONS
This warranty does NOT cover suspension forks, and rear shocks on full suspension bikes. These items are covered by the suspension component manufacturer’s warranty. Please contact the suspension component manufacturer for any warranty needs.

This warranty is only offered to the original retail purchaser of the product, and is not transferable to a subsequent purchaser. Marin's sole obligation under this warranty is to either, at its discretion:

Repair the claimed defect at no charge.
Exchange the product with a product that is new or which is at least functionally equivalent to the original product.
Offer a credit amount, determined by Marin, towards the purchase of a new product. Marin must be notified in writing of any claim under this warranty within 60 days of any claimed lack of conformity of the product.
You may be responsible for some labor charges at your local bike shop, or some shipping charges, including return shipping if your bike is determined not to be a warranty.


The duration of any implied warranty or condition, of merchantability, fitness for a particular purpose, or otherwise, on this product shall be limited to the duration of the express warranty set forth above. In no event shall Marin be liable for any loss, inconvenience or damage, whether direct, incidental, consequential or otherwise, resulting from breach of any express or implied warranty or condition, of merchantability, fitness for a particular purpose, or otherwise with respect to this product, except as set forth herein. Some states or countries do not allow limitation on how long an implied warranty lasts and some do not allow exclusions or limitations of incidental or consequential damages, so the above limitations or exclusions may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights, which may vary, from location to location. This warranty will be interpreted pursuant to the laws of the United States. The original English language version/meaning of this warranty controls over all translations and Marin is not responsible for any errors in translation of this warranty or any product instructions.

No company or persons (including employees or agents of Marin) are authorized to modify, enlarge or extend this warranty in any way or to make any other warranties, expressed or implied on behalf of Marin. This warranty is not intended to confer any additional legal, jurisdictional or warranty rights to you other that those set forth herein or required by law. If any portion of this warranty is held to be invalid or unenforceable for any reason, such finding will not invalidate any other provision.

USEFUL PRODUCT LIFE
Bicycles have an unquantifiable useful product life. The useful life span of a bicycle is affected by riding style, riding conditions, frame material and construction, and other factors. The warranty period offered by Marin does not guarantee that the bicycle will last forever, or for the life span of the original purchaser. Bicycles should be inspected regularly by an authorized Marin dealer, or qualified bicycle technician to identify any issues, which could lead to a failure. Whether a failed frame will be covered by this warranty, or not, will be determined solely by Marin Bikes, based on an evaluation of the failure, useful life, and any other relevant factors.

To Obtain Warranty Service: In order to exercise your rights under this limited warranty, the complete bicycle must be presented to an authorized Marin dealer for inspection, together with a receipt, bill of sale and other appropriate written proof of purchase, which identifies the bicycle by serial number. Any labor, postage, insurance, or shipping costs incurred in sending your product for service are the responsibility of the owner. Marin will not be responsible for products lost or damaged in shipping.

Warranty Determination: Once received by Marin or Authorized Marin Warranty Center, the product will be inspected to determine if it is covered by the Marin warranty. Only Marin or an Authorized Marin Warranty Center may determine if a product is warrantable. If the product is not covered under warranty, all replacement, repair, labor, and shipping costs are responsibility of the customer. Marin cannot return un-repairable unwarranted products to the consumer if they are unsafe to use in their unrepaired condition.

At no time may any retailer or distributor make representations of what is covered or not covered under this warranty without express written permission from Marin. Should a retailer or distributor replace product before consulting Marin, it is at the sole discretion of the retailer or distributor, and may not be reimbursed by Marin. When a product or part is exchanged, any replacement item becomes property of the customer and the returned product becomes the property of Marin, which may destroy it.

WARRANTY EXCLUSIONS
This warranty does not cover the following:

Products that have been modified, neglected or poorly maintained, used for commercial purposes, misused or abused or involved in accidents. It is your responsibility to regularly examine the product to determine the need for normal service or replacement.
Damage occurring during shipment of the products (such claims must be presented directly to the shipper).
Products sold or distributed by Marin, which are covered by another sellers’ warranty; this Marin warranty does not extend, modify or replace any other warranty.
Products whose serial number or other identifying marks (such as decals) have been altered, defaced or removed.
Products that are purchased used, or in not-new condition without original packaging.
Damage to products resulting from improper assembly or repair (or the techniques used), the use or installation of parts or accessories not compatible with the original intended use of the product, or the failure to follow the product warnings, installation and usage instructions.
This warranty does not apply if the original product decals are removed

Marin Bikes are Made For Fun. Since the first mountain bikes bearing the Marin name debuted in 1986, the brand has been dedicated to enriching the lives of riders by making fun, high caliber bicycles, which provide years of riding enjoyment. They operate their business based on hard work, fueled by passion, and fulfilled by the satisfaction of bringing the joy of cycling to riders across the world.
