25% Off Full Price

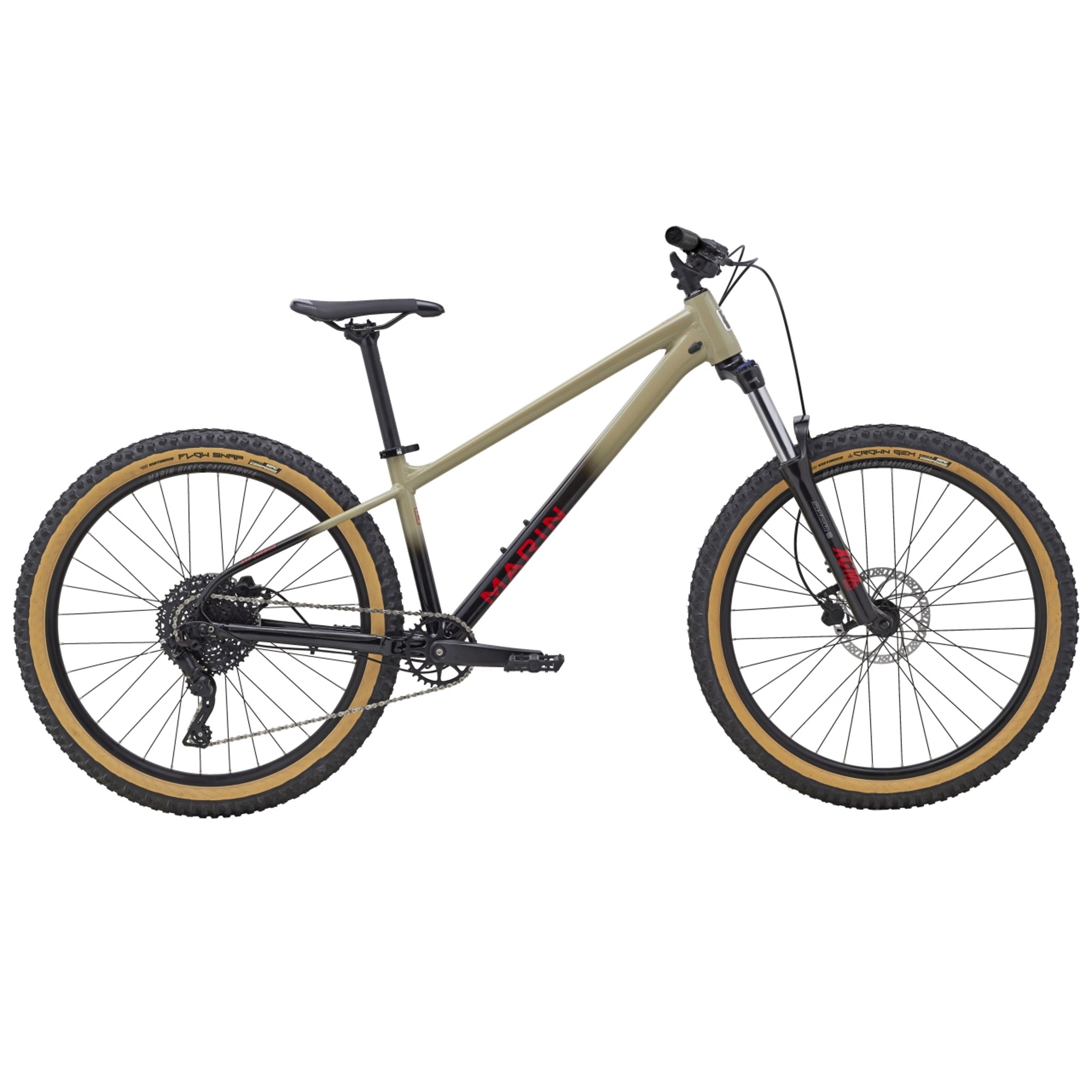

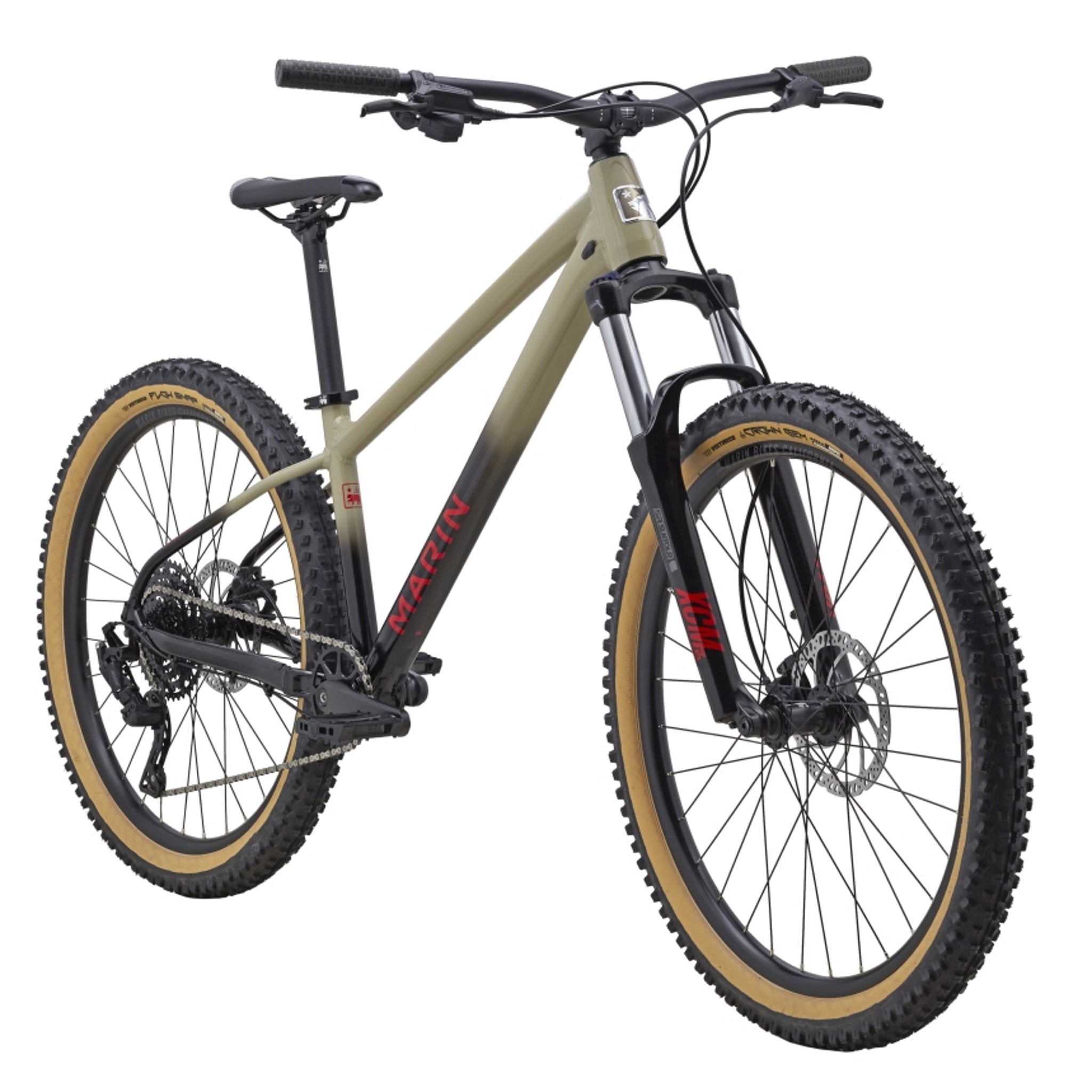

Marin San Quentin 1 Trail/Dirt Jump Bike Tan/Black

Marin San Quentin 1 Trail/Dirt Jump Bike Tan/Black

Brand: Marin

SKU: Select a size

Size: Select a size

SM MD

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Alloy Fork

130mm Front Travel

27.5" (650b) Wheel Size

Hydraulic Disc Brake

MICROshift Advent Groupset

1 x 9 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The San Quentin is for the aggressive hardtail trail rider looking for a blend between singletrack capabilities and extended air time. The San Quentin 1 features a Series 2 aluminum frame, with tapered head tubes, 3D forged drop outs, IS brake mounts, and semi-internal cable routing. Taking cues from the Alcatraz, the San Quentin provides all the benefits of the DJ style with massive stand over, slick frame tubes, and a sexy paint job. The slack head tube angle paired with a steep seat tube angle create a ride that will fly uphill with perfect front wheel precision but then descend like it’s on rails. The balanced rider position thanks to the steep seat tube puts your weight between the wheels for impressive climbing and handling on flats, while the slack front end and short rear center help to pull you through the rough descents and corners with an intuitive feel.

Key Features

Durable aluminum frame construction
Responsive hydraulic disc brakes
Versatile 27.5-inch wheels
Adjustable suspension for smooth rides
Stylish tan and black color scheme

Specifications

Product Overview

Product

Marin San Quentin 1 Trail/Dirt Jump Bike Tan/Black

Brand

Marin

Parent SKU

RF0JR21R

Size SKUs

SM: MAEB2335953001
MD: MAEB2335953002

Year Model

2023

Product Features

Frame Material

Alloy

Colour

Brown

Wheel Size

27.5" (650b)

Brake Type

Hydraulic Disc Brake

Gears

1 x 9

Fork Material

Alloy

Front Travel

130mm

Build

Frame

All New Series 2 6061 Aluminum, Double Butted Frame, Internal Cable Routing, 141mm Open Dropout, 73mm Threaded BB

Fork

SR Suntour XCM34 Boost 15x110mm Spacing, 130mm Travel, Coil Spring, 27.5", Bolt-On Thru-Axle

Handlebars

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5Âş Up, 9Âş Back

Headset

FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2â€ť

Grips

Marin MTN, Closed End

Stem

Marin Alloy, 45mm

Bottom Bracket

Sealed Cartridge Bearing, Square Taper

Pedals

Nylon Platform

Saddle

Marin Speed Concept

Seat Post

Marin Alloy, 30.9mm

Wheels

Wheel Size

27.5" (650b)

Rims

Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible

Hubs

FRONT: Forged Alloy, 110x15mm, Sealed Cartridge Bearing, Disc, 32H / REAR: Forged Alloy, Quad Sealed Cartridge Bearings, Alloy Axle, QR type, 141mm Width, Disc, 32H, Shimano Standard Freehub Body

Spokes

14g Black Stainless Steel

Groupset

Crankset

Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

Chain

KMC X-9

Brakes

Tektro M275 Hydraulic Disc Brake

Front Rotor

180mm Rotor

Rear Rotor

180mm Rotor

Shifters

MicroShift SL-M9195-R, 1x9 with Bearings

Rear Derailleur

MicroShift RD-M9195M, 9 Speed, With Clutch

Cassette

9 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Marin San Quentin 1 Trail/Dirt Jump Bike Tan/Black we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Marin San Quentin 1 Trail/Dirt Jump Bike Tan/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

27.5" (650b)

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
