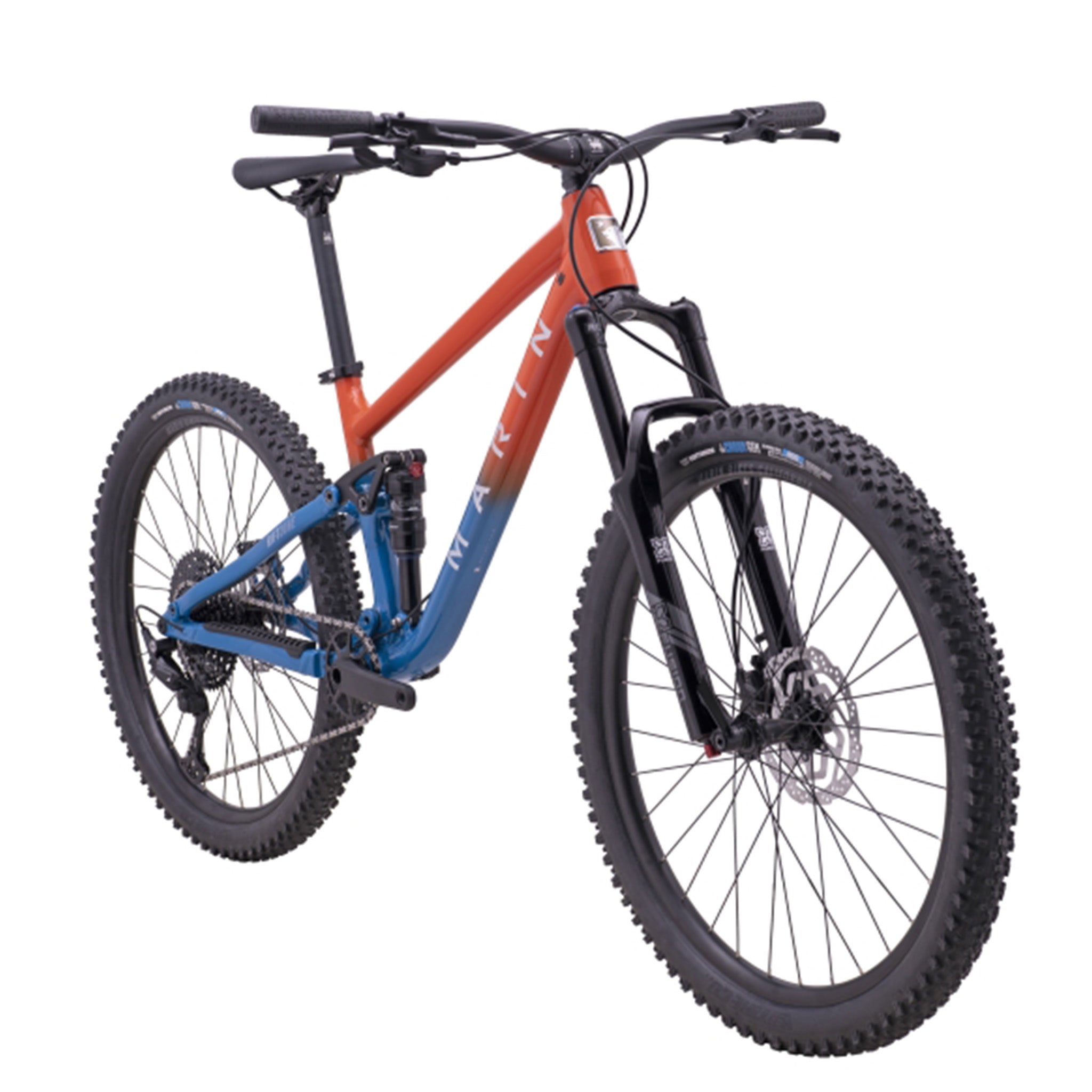

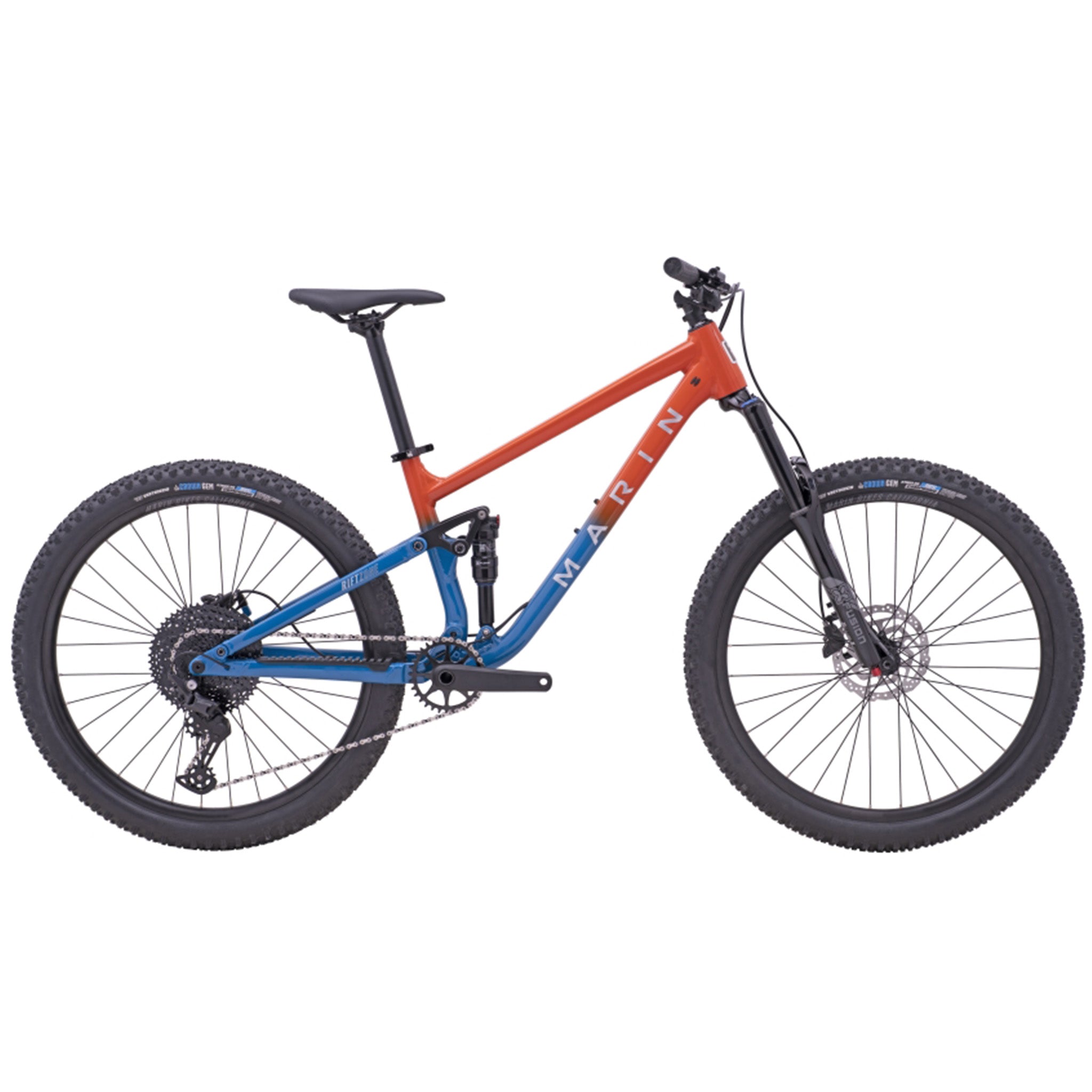

Marin Rift Zone 1 Trail Bike 27.5" Wheels Orange Black

Marin Rift Zone 1 Trail Bike 27.5" Wheels Orange Black

Brand: Marin

SKU: Select a size

Size: Select a size

XS SM MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ X-Fusion Alloy Fork

140mm Front Travel / 140mm Rear

27.5" (650b) Wheel Size

Hydraulic Disc Brake

Shimano Deore Groupset

1 x 11 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Marin’s ultimate do-it-all trail bike, the Marin Rift Zone is made to party, whatever your jam might be. Your ideal partner for everything from all-day epics to local shred laps to big mountain adventures. The Marin Rift Zone 1 is your gateway to the Rifty family, made to push the limits of your riding but not your bank balance. Built around an all-new Series 3 aluminum frame, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider a high feature upgrade-worthy platform. Marin’s acclaimed MultiTrac suspension system is fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedalling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of longer travel on large drops. Rounding off the build is a reliable X-Fusion fork and shock combo, grippy Vee Crown Gem tires, plenty of Shimano and a hand-picked selection of Marin components

Key Features

All New Series 3 6061 Aluminum Frame
Marin MultiTrac Suspension Platform
X-Fusion Sweep Boost RC 140mm Fork
X-Fusion O2 Pro R, Custom Tune 130mm Shock
Shimano Deore 1 x 11 Speed Drivetrain
Shimano MT201 Hydraulic Disc Brakes
Vee Tire Crown Gem 27.5 x 2.35" Tyres

Specifications

Product Overview

Product

Marin Rift Zone 1 Trail Bike 27.5" Wheels Orange Black

Brand

Marin

Parent SKU

NZHDNGNP

Size SKUs

XS: MADA2335949005
SM: MADA2335949001
MD: MADA2335949002
LG: MADA2335949003

Year Model

2023

Product Features

Frame Material

Alloy

Colour

Orange

Wheel Size

27.5" (650b)

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Fork Material

Alloy

Front Travel

140mm

Rear Travel

140mm

Build

Frame

All New Series 3 6061 Aluminum Frame, 27.5” Wheels, 120mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs

Fork

X-Fusion Sweep Boost RC, 27.5", 140mm Travel, Compresion and Rebound Adjustment, 110x15mm Thru Axle, 44mm Offset

Shock

X-Fusion O2 Pro R, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom

Handlebars

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Headset

FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Grips

Marin MTN, Closed End

Stem

Marin 3D Forged Alloy, 35mm

Bottom Bracket

External Sealed Cartridge Bearing

Saddle

Marin Speed Concept

Seat Post

Marin Alloy, 30.9mm

Wheels

Wheel Size

27.5" (650b)

Rims

Marin Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible

Hubs

Front: Shimano HF-MT400B, 110x15mm, Centerlock, Rear: Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body

Tyres

Vee Tire Crown Gem 27.5x2.3", Dual Control Compound, Tubeless Ready

Spokes

14g Black Stainless Steel

Groupset

Crankset

Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

Chain

KMC X-11 Silver and Black

Brakes

Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

Shifters

Shimano Deore, 11-Speed, SL-5100R

Cassette

11 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Marin Rift Zone 1 Trail Bike 27.5" Wheels Orange Black we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Marin Rift Zone 1 Trail Bike 27.5" Wheels Orange Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

27.5" (650b)

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
