$1001 Off Full Price

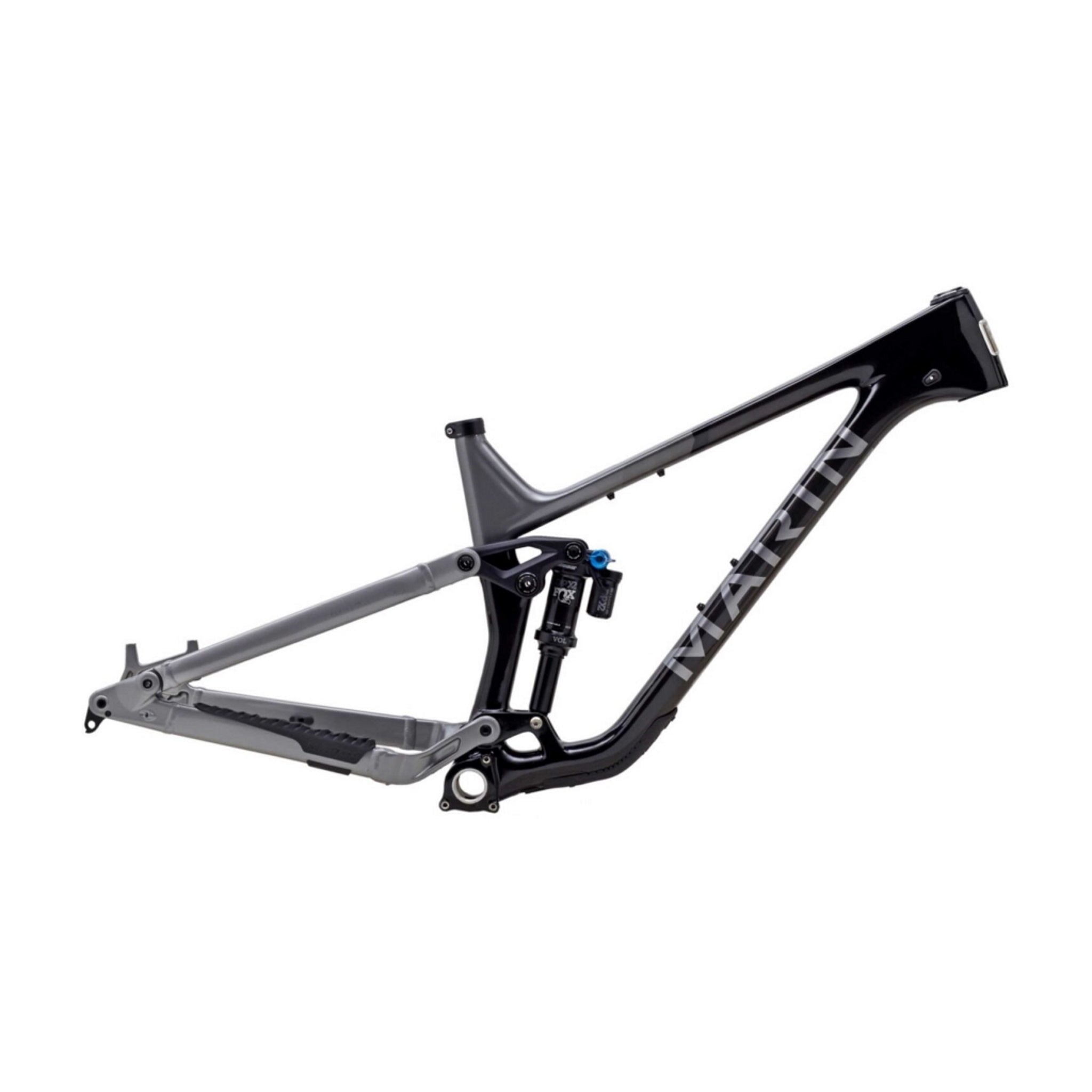

Marin Frame Kit - Alpine Trail C2 Black Silver

Brand: Marin

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Carbon/Alloy Frame

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Build your dream bike with the Alpine Trail C2 frame, designed for rowdy riding and big all-mountain days were travel and geometry matter most. The front triangle is fabricated using a high modulus carbon fiber and monocoque construction, with a Series 4 Alloy rear end and 29” wheel clearance, to deliver the lightest, sturdiest and most rigid Alpine Trail yet. The progressive Enduro geometry seamlessly integrates Marin’s MultiTrac Suspension Platform, the heart of which is a one-piece rocker link, which provides extreme durability, ensuring maximum directional stability and excellent damping. This frameset comes ready fitted with a Fox Float X, Performance, EVOL Air Spring shock with 3 position compression adjustment and rebound adjustment. This paired with a slack 63.5º head tube angle, a steep 78º seat tube angle and long reach to provide the best modern trail bike experience.

Key Features

Buit for abuse and rowdy enduro style riding and racing
Unidirectional Carbon Fiber front triangle
Series 4 Alloy rear end
Fox Float X, Performance, EVOL Air Spring Shock
29” wheel clearance

Specifications

Product Overview

Product

Marin Frame Kit - Alpine Trail C2 Black Silver

Brand

Marin

Parent SKU

1YO25SL4

Size SKUs

SM: MAFR2232662001
MD: MADA212662002
LG: MADA212662003
XL: MADA212662004

Product Features

Frame Material

Carbon/Alloy

Colour

Black

Rear Travel

150mm

Build

Frame

Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs

Shock

Fox Float X, Performance, EVOL Air Spring, 3 Position Compression Adjustment, Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount

Headset

FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Accessories

Marin MTB Seat Clamp, Bolt Type, Bolt-On Thru-Axle, Downtube Protector

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:
