Features

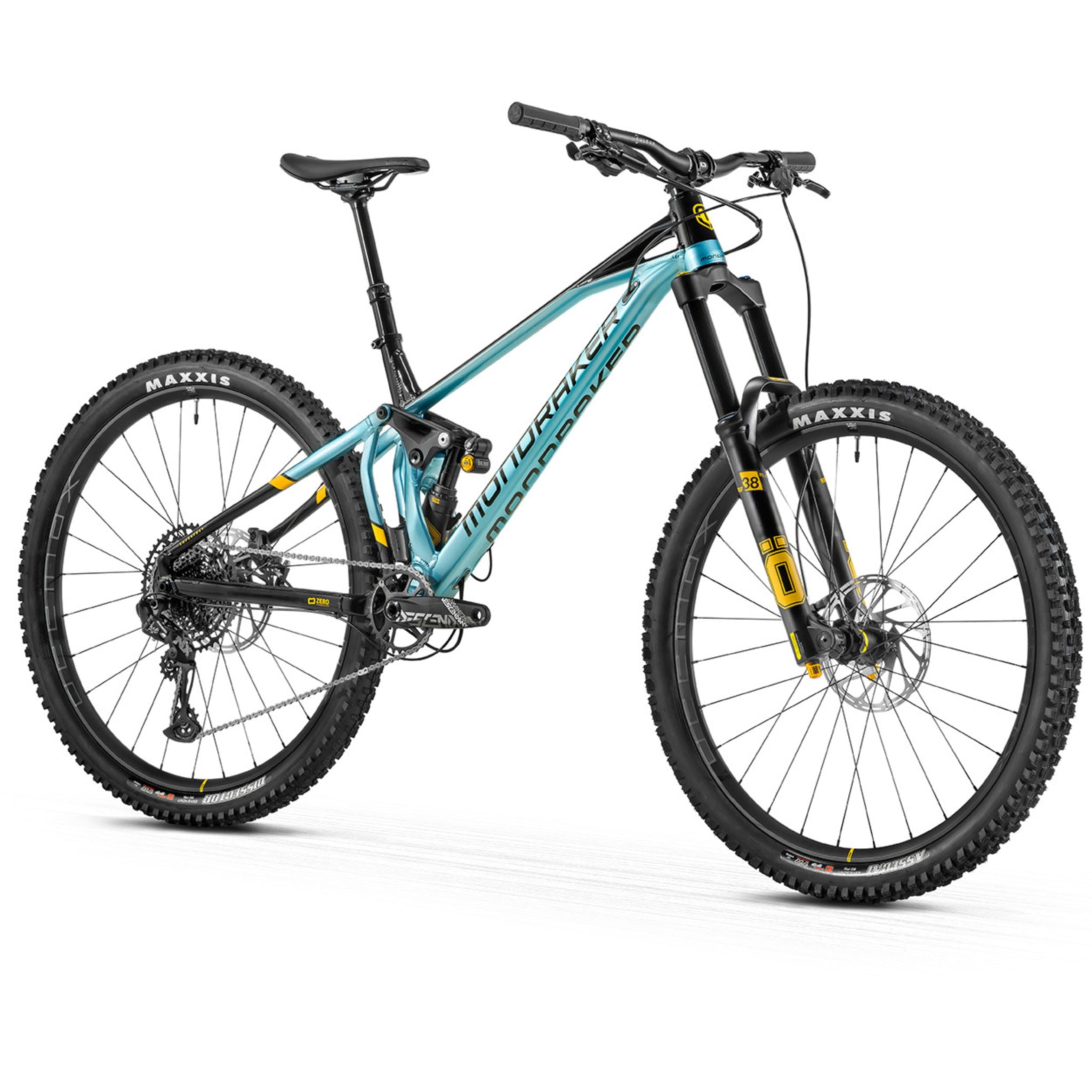

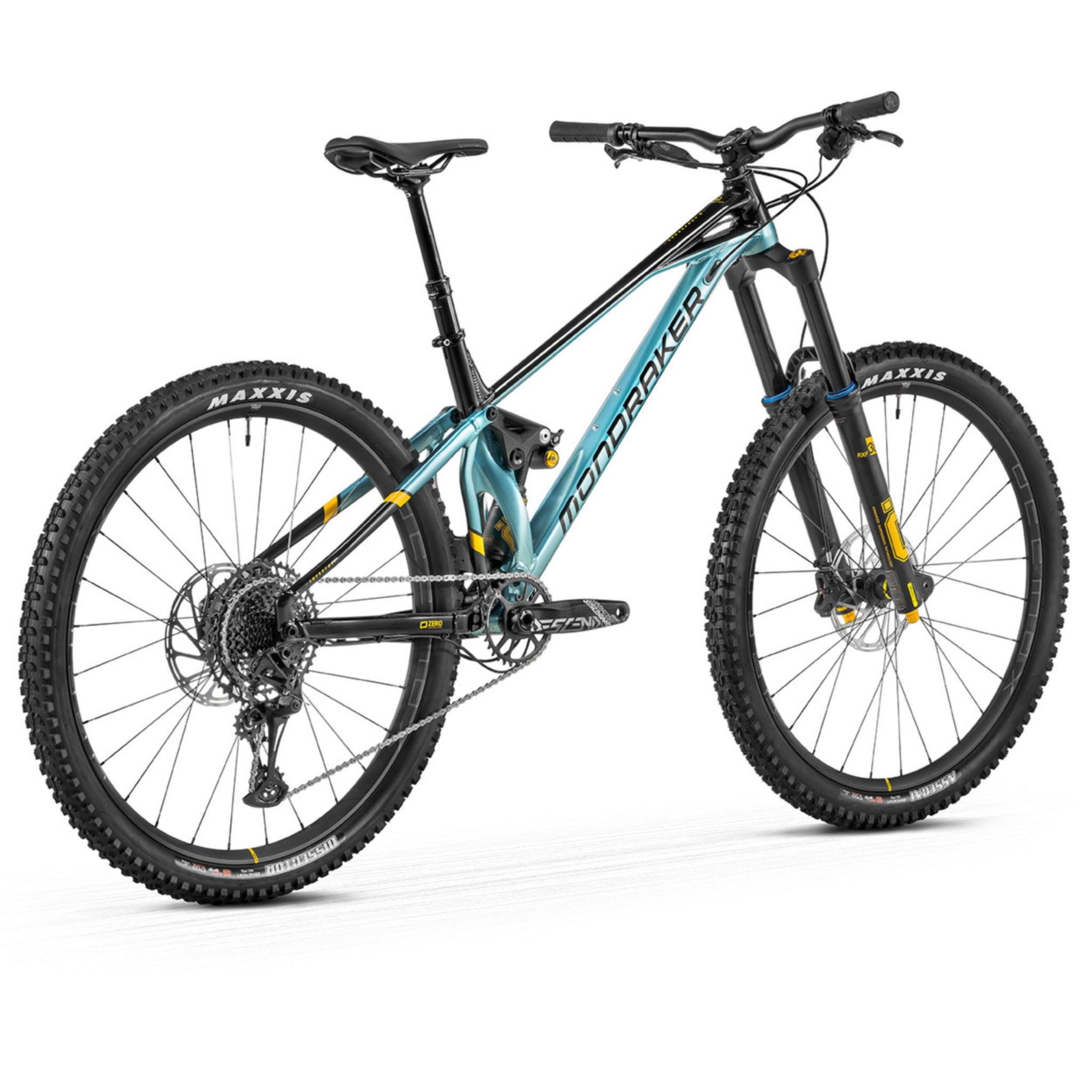

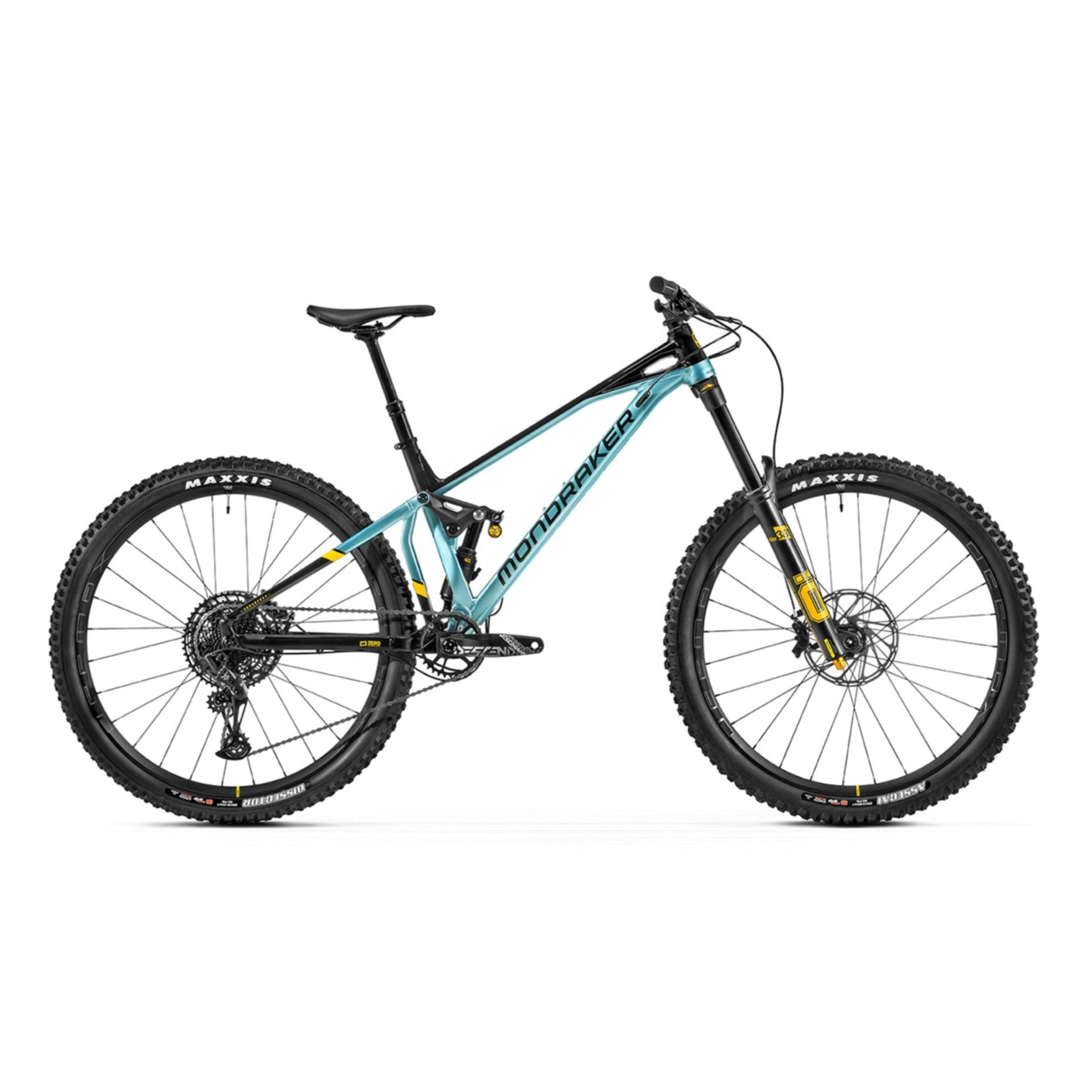

Mondraker Superfoxy R Enduro Bike Blue/Black
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- 6061 Alloy Stealth Evo frame, Hydroformed tubing, Forward Geometry
- Öhlins Fork RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge
- Öhlins Shock TTX Air 160mm high speed compression lever
- SRAM SX Eagle 12-Speed Drivetrain
- SRAM Code R 4-piston Hydraulic Disc Brakes
- Mavic Custom Deemax 29” Wheels
- Maxxis Assegai / Dissector Tubeless ready Tyres
- ONOFF Pija internally routed Dropper Seatpost
| Bottom bracket: | SRAM DUB BSA, sealed bearings, 73mm |
|---|---|
| Brakes: | SRAM Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Chain: | SRAM SX Eagle, 12s, Powerlock |
| Chainwheel: | 32T, CNC-machined alloy, X-SYNC 2 |
| Crankset: | Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm |
| Derailleur rear: | SRAM NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1, Hanger: Mondraker M068 |
| Fork: | Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
| Frame: | SuperFoxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 160mm travel, Forward Geometry, one piece Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing |
| Freewheel: | SRAM XG-1230, 11-50T, 12s Cassette |
| Grip: | ONOFF Diamond, 1lock-on, 135mm |
| Handlebar: | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Handlebar stem: | ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Headset: | ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Hubs: | FRONT: Mavic, Boost 15x110mm, IS 6 bolts / REAR: Mavic, SuperBoost 12x157mm, ID360 Ratched system, IS 6 bolts |
| Rim: | Mavic Custom Deemax 29, 28mm internal width, Maxtal welded rim, tubeless ready, 28 spokes |
| Rotor front: | Centerline 200mm IS 6 bolts one-piece rotor |
| Rotor rear: | Centerline 200mm IS 6 bolts one-piece rotor |
| Saddle: | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Season: | 2022 |
| Seat post: | ONOFF Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L size: 425x150mm, XL size: 465x170mm |
| Shock: | Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings, C20 compression, R35 rebound |
| Spokes: | Mavic J-bend duble butted |
| Tyre front: | Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
| Tyre rear: | Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
| Weight: | 16.3 kg |
| Wheel size: | 29" |
| Frame size | S / 15" | M / 16.5" | L / 18.5" | XL / 20" |
|---|---|---|---|---|
| Seattube length | 380 mm | 420 mm | 470mm | 510 mm |
| Toptube length | 605 mm | 625 mm | 650 mm | 670 mm |
| Bottom bracket drop | -20 mm | -20 mm | -20 mm | -20 mm |
| Bottom bracket height | 350 mm | 350 mm | 350 mm | 350 mm |
| Chainstay length | 445 mm | 445 mm | 445 mm | 445 mm |
| Seat tube angle | 71° | 71° | 71° | 71° |
| Effective seattube angle | 76° | 76° | 76° | 76° |
| Headtube angle | 65° | 65° | 65° | 65° |
| Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| Wheelbase | 1224 mm | 1245 mm | 1273 mm | 1293 mm |
| Headtube length | 100 mm | 110mm | 130 mm | 130 mm |
| Reach | 450 mm | 470 mm | 490 mm | 510 mm |
| Stack | 621 mm | 621 mm | 639 mm | 639 mm |
Mondraker Foxy / Super Foxy Bike Sizing Chart
Mondraker was founded in 2001 and is a brand dedicated to the design and production of high-performance mountain bikes, offering pioneering developments and advanced technologies in all categories.
Two decades of passion, of hard work, of desire. Of innovation, breakthroughs, frustration, determination, resolve and ultimately, pride. Mondraker’s relentless drive comes from an unquenchable thirst to design the best handling mountain bikes possible; to develop bikes without compromise; to make bikes that make the difference. Bikes that win.
Click & Collect Available
• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »
Courier Delivery Available
• $9.99 for orders $99 & under • Free for orders over $99 • $35 for bikes & bulky items 10kg+ More info »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
