Features

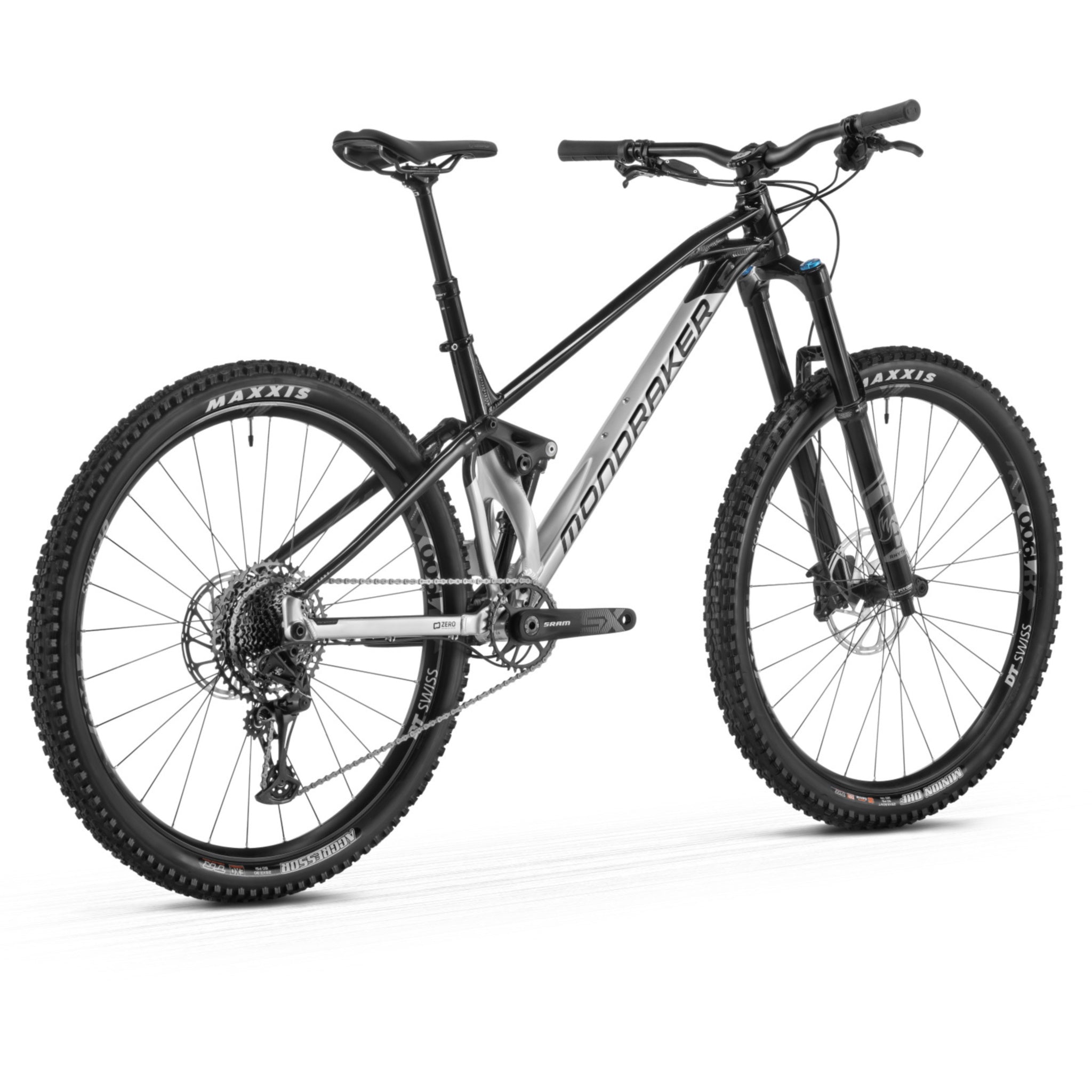

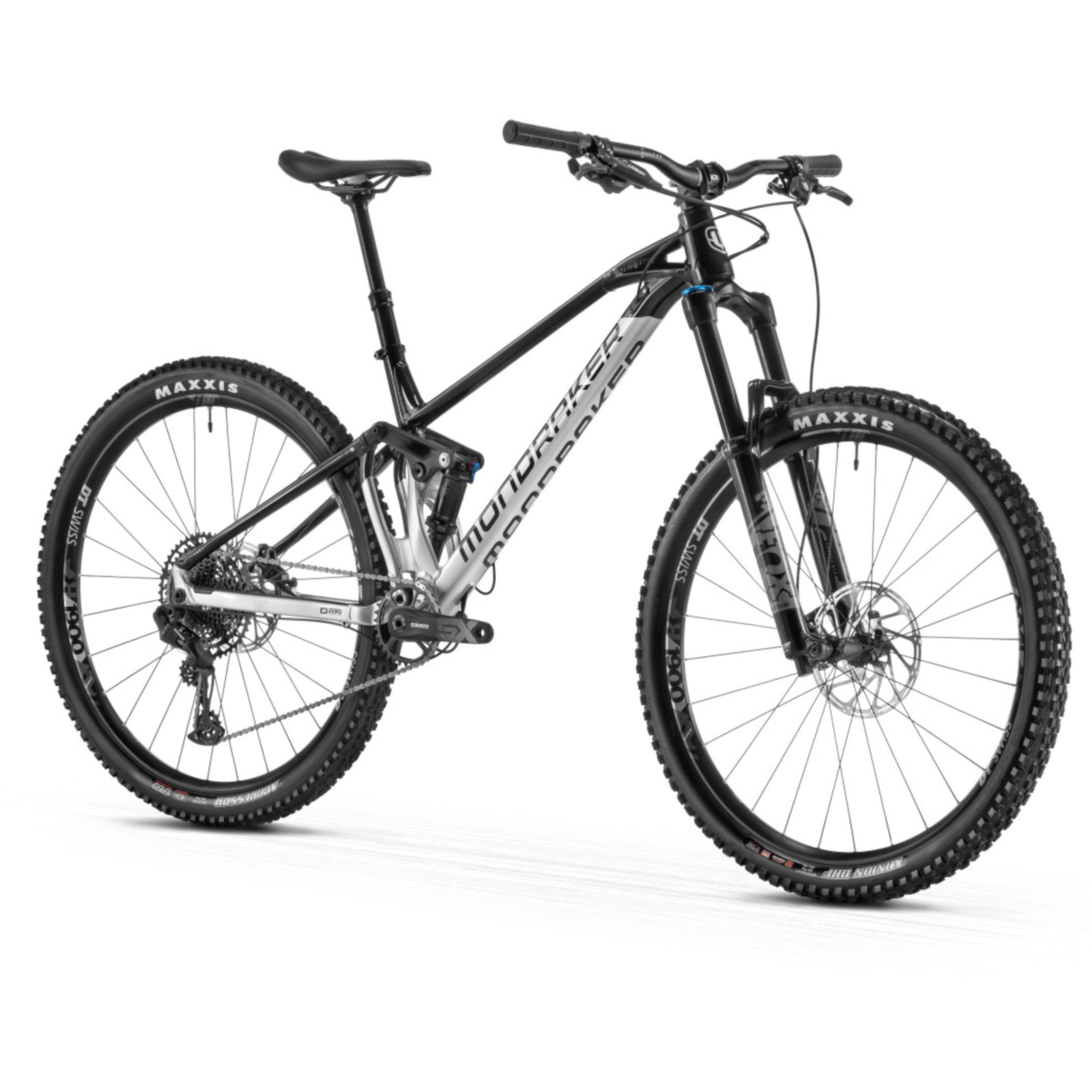

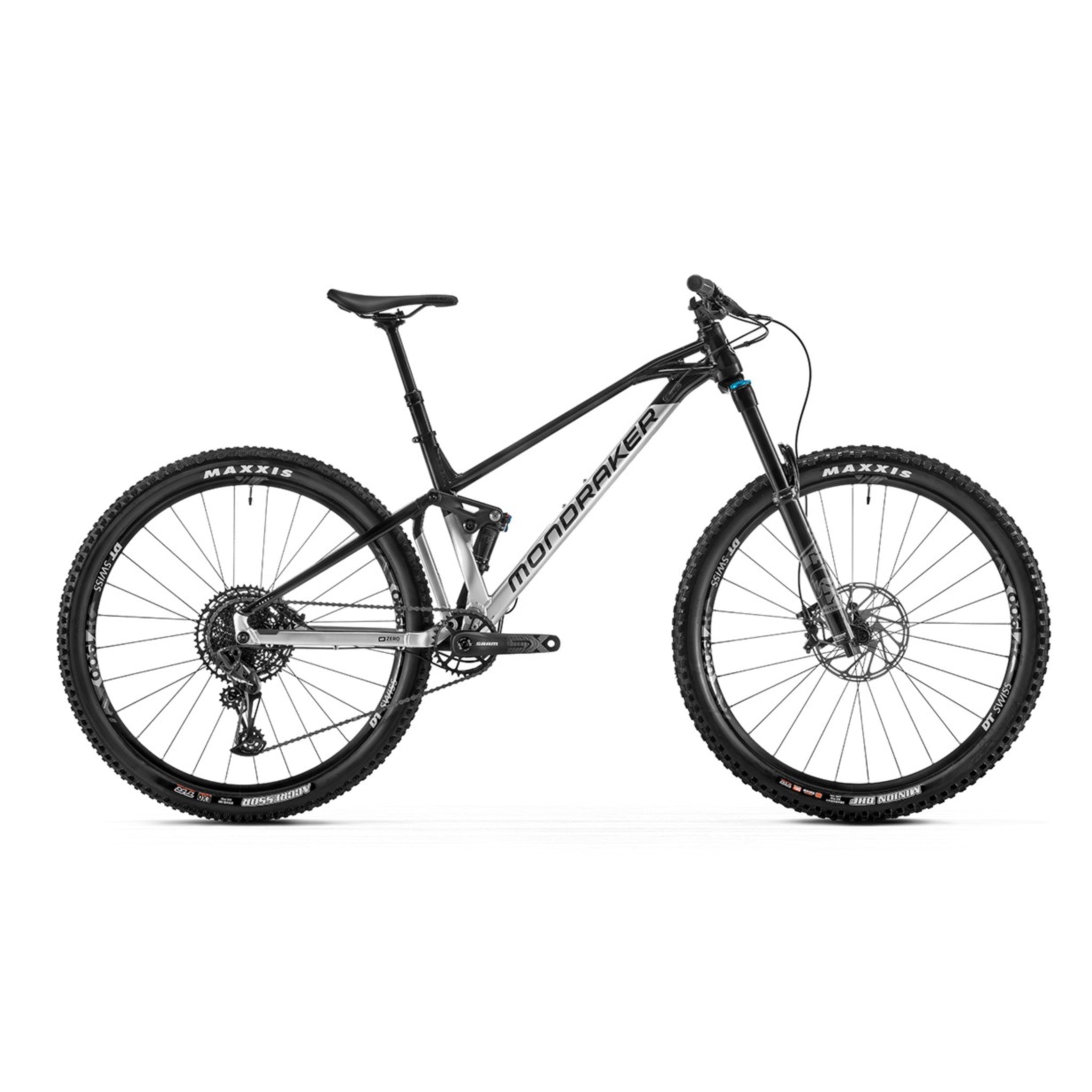

Mondraker Foxy Racing All-Mountain Bike Silver/Black
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- 6061 Alloy Stealth Evo frame, Hydroformed tubing, Forward Geometry
- Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm Fork
- Fox Float DPS LV EVOL Performance Shock
- SRAM SX Eagle 12-Speed Drivetrain
- SRAM G2 R 4-piston Hydraulic Disc Brakes
- DT Swiss E1900 Spline 29” Wheels
- Maxxis Minion DHF/Aggressor Tubeless ready Tyres
- ONOFF Pija internally routed Dropper Seatpost
| Bottom bracket: | SRAM DUB BSA, sealed bearings, 73mm |
|---|---|
| Brakes: | SRAM G2 R, 4-piston caliper, Centerline IS 6 bolts one-piece rotor, steel-backed organic pads |
| Chain: | SRAM SX Eagle, 12s, Powerlock |
| Chainwheel: | 32T, steel, X-Sync 2 |
| Crankset: | SRAM SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm |
| Derailleur rear: | SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1, Hanger: Mondraker M068 |
| Fork: | Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload |
| Frame: | Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05 |
| Freewheel: | SRAM PG-1210, 11-50T, 12s Cassette |
| Grip: | ONOFF Diamond, 1lock-on, 135mm |
| Handlebar: | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Handlebar stem: | ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Headset: | ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Hubs: | FRONT: DT 370, Boost 15x110mm, IS 6 bolts / REAR: DT 370, Boost 12x148mm, 18T ratchet LN system, IS 6 bolts |
| Rim: | DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes |
| Rotor front: | Centerline 200mm IS 6 bolts one-piece rotor |
| Rotor rear: | Centerline 180mm IS 6 bolts one-piece rotor |
| Saddle: | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Season: | 2022 |
| Seat post: | ONOFF Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L size: 425x150mm, XL size: 465x170mm |
| Shock: | Fox Float DPS LV EVOL Performance, 205x62.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 22.2x10mm bottom bushings, Light compression, extralight rebound, air volume spacer 0.6 |
| Spokes: | DT Champion, straightpull |
| Tyre front: | Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Tyre rear: | Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead |
| Weight: | 15.5 kg |
| Wheel size: | 29" |
| Frame size | S / 15" | M / 16.5" | L / 18.5" | XL / 20" |
|---|---|---|---|---|
| Seattube length | 380 mm | 420 mm | 470 mm | 510 mm |
| Toptube length | 606mm | 629mm | 654 mm | 676 mm |
| Bottom bracket drop | -21 mm | -21 mm | -21 mm | -21 mm |
| Bottom bracket height | 355 mm | 355 mm | 355 mm | 355 mm |
| Chainstay length | 435 mm | 435 mm | 435 mm | 435 mm |
| Seat tube angle | 71° | 71° | 71° | 71° |
| Effective seattube angle | 76° | 76° | 76° | 76° |
| Headtube angle | 66° | 66° | 66° | 66° |
| Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| Wheelbase | 1193 mm | 1222 mm | 1248 mm | 1274mm |
| Headtube length | 90 mm | 100 mm | 115 mm | 130 mm |
| Reach | 450 mm | 475mm | 495 mm | 515 mm |
| Stack | 606 mm | 615mm | 630 mm | 643 mm |
Mondraker Foxy / Super Foxy Bike Sizing Chart
Mondraker was founded in 2001 and is a brand dedicated to the design and production of high-performance mountain bikes, offering pioneering developments and advanced technologies in all categories.
Two decades of passion, of hard work, of desire. Of innovation, breakthroughs, frustration, determination, resolve and ultimately, pride. Mondraker’s relentless drive comes from an unquenchable thirst to design the best handling mountain bikes possible; to develop bikes without compromise; to make bikes that make the difference. Bikes that win.
Click & Collect Available
• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »
Courier Delivery Available
• $9.99 for orders $99 & under • Free for orders over $99 • $35 for bikes & bulky items 10kg+ More info »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
