- Super-light CF5 carbon triathlon frame and fork
- Shimano Ultegra 12-speed Di2 drivetrain with tri-specific shifting options
- Hydraulic Shimano Dura-Ace disc brakes with tri-specific levers
- Vision Metron TC 55 carbon wheelset
- Vision Metron S-BEND height and position adjustable tri-specific armrests
- Full cable integration and additional top tube storage bento box

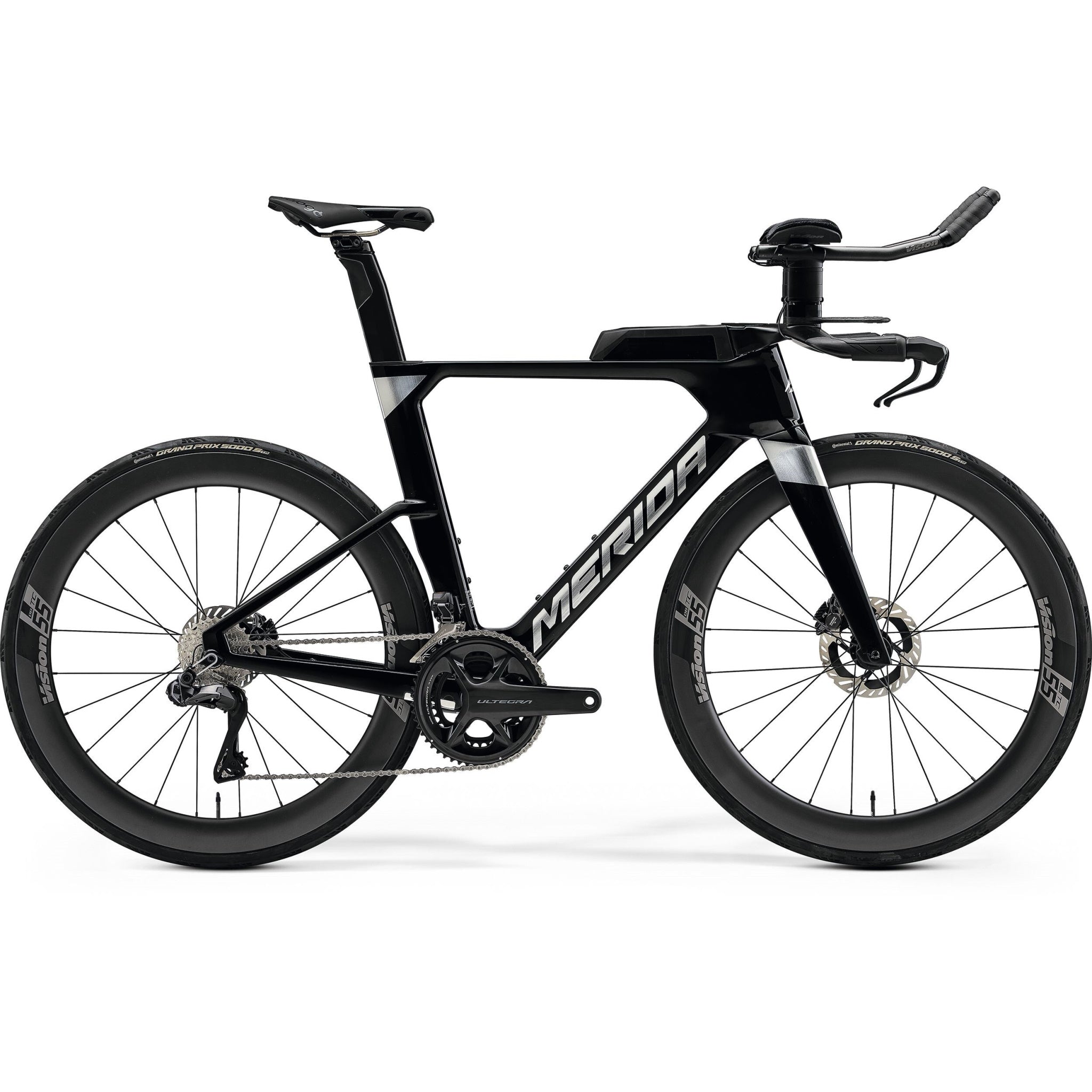

Inspired by Merida’s World Tour proved Time Warp TT time trial machine, Merida’s triathlon-specific Time Warp Tri perfectly combined aerodynamics, efficiency and comfort to give you the edge in the middle discipline of your favorite sport. Equipped with easy-to-operate and ultra-reliable disc brakes and the latest high and position adjustable armrests, the Time Warp Tri lets you find your most efficient position for a variety of courses as well as keeps you fresh and ready to attack your run. A high-end carbon frame, slip-streamed disc brake integration and perfectly incorporated additional storage capacity round up the Time Warp Tri offering and help to keep weight and aerodynamic drag super low.
Axles: | MERIDA EXPERT SL including removable lever 6/4 mm allen key |
---|---|
Bottom bracket: | Shimano SM-BB72-41B Pressfit 86.5 mm |
Brakes: | Shimano Dura Ace Hydraulic disc |
Cassette: | Shimano CS-R8100 11-30 teeth 12 speed |
Chain: | Shimano CN-M6100-12 |
Colour: | BURGUNDY RED (BLACK) |
Colour (text): | BURGUNDY RED (BLACK) |
Crankset: | Shimano Ultegra 52-36 teeth 165 mm-XS, 170 mm-S, 172.5 mm-M, 175 mm-L |
Derailleur rear: | Shimano Ultegra Di2 |
Fork: | TIME-WARP TRI CF5 IV disc material: carbon 700x30C max. wheelsize |
Frame: | TIME-WARP TRI CF5 IV material: carbon 700x30C max. wheelsize 100x12/ 142x12 mm axle standard Pressfit 86,5 |
Grip: | MERIDA ROAD Expert |
Handlebar: | MERIDA Metron TT material: carbon |
Handlebar stem: | MERIDA Metron TT material: carbon -17° stem angle * |
Headset: | MERIDA TIME WARP TT |
Rim: | Wheelset: Vision TC 55 100x12 mm width front hub 142x12 mm width rear hub 21 mm inner width 55 mm height Centerlock material: carbon Tubeless ready (tubeless tape and valves not included) |
Rotor front: | Shimano CL900 160 mm |
Rotor rear: | Shimano CL900 140 mm |
Saddle: | Prologo ZERO TRI PAS TIROX |
Season: | 2022 |
Seat clamp: | TIME WARP TT insert |
Seat post: | MERIDA TEAM TT II Aero shape Carbon |
Tyre front: | Continental Grand Prix 5000S TR 700x28C fold tubeless ready |
Tyre rear: | Continental Grand Prix 5000S TR 700x28C fold tubeless ready |
Weight: | Max Weight: 120 kg Total weight of bike, rider and luggage |
Wheel size: | 700c |
Frame Size | XS | S | M | L |
Tyre Sizes | 28" | 28" | 28" | 28" |
ST seat tube [mm] | 460 | 500 | 540 | 580 |
TT top tube [mm] | 490 | 510 | 550 | 570 |
CS chain stay length [mm] | 415 | 415 | 415 | 415 |
HTA head tube angle [°] | 71 | 72 | 72 | 72 |
STA seat tube angle [°] | 77 | 76 | 76 | 76 |
BD bottom bracked drop [mm] | 55 | 55 | 70 | 70 |
HT head tube [mm] | 110 | 130 | 130 | 173 |
FL fork length [mm] | 371 | 371 | 371 | 371 |
R reach [mm] | 376 | 381 | 417 | 427 |
S stack [mm] | 496 | 518 | 533 | 574 |
WB wheel base [mm] | 984 | 988 | 1022 | 1045 |
SH stand over height [mm] | 752 | 781 | 799 | 838 |
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
