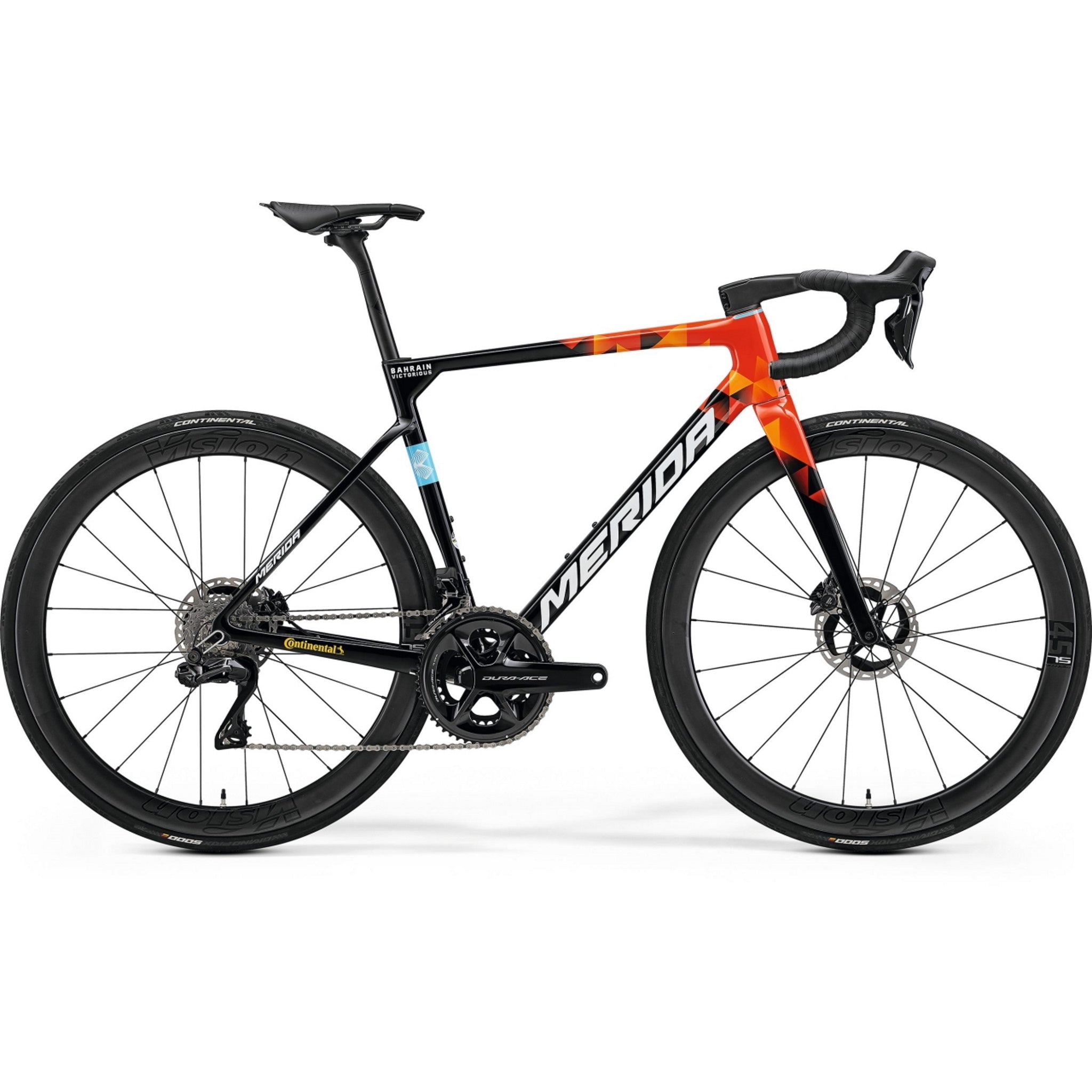

Merida Scultura Team Aero Road Race Bike Red/Black/Team


You automatically get Club Price when buying online. But there are extra benefits if you join Club 99.

Buy now, pay later
SKU: MERR2265360 Sold out

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Key Features
  • Super-light CF5 carbon frame (approx. 861 g - in size M)
  • Matching CF5 carbon fork, clearance up to 30mm tyres
  • New race-proven (identical to REACTO) geometry
  • Shimano Dura-Ace 12-speed Di2 drivetrain
  • Shimano Dura Ace, Hydraulic disc brakes
  • Vision Metron 45 SL wheelset, Continental 5000S TR 28mm tyres
  • MERIDA S-FLEX carbon seat post and DISC COOLER technology

Team level Scultura road race bike featuring a new frame concept and the same race prone geometry as the Reacto aero bike. The Team provides low weight, gunshot acceleration, air slicing frame features and class-leading frame compliance. Raced and put through its paces by Team Bahrain Victorious, Merida’s new Scultura Team is the comfort-focused alternative to the Reacto aero bike. While the new Scultura has learned a lot from the Reacto in terms of aerodynamics, Merida have put extra effort into making it the most comfortable lightweight pure road race bike in their range. The CF5 carbon frame and fork is equipped with top-end components like the Shimano Dura Ace Di2 electric drivetrain and Shimano Dura Ace, hydraulic disc brakes, rolling on durable Metron 45 SL rims with Continental Grand Prix 5000S tubeless ready tyres. The Team is the perfect bike when comfort, weight and lightning-fast acceleration are essential for your next road session.

Axles: FRONT: MERIDA EXPERT SL / REAR: MERIDA EXPERT SL, including removable lever, 6/4mm allen key
Bottom bracket: SM-BB92-41B, Pressfit 86.5
Brakes: Shimano Dura Ace, Hydraulic disc
Chain: Shimano CN-M9100-12
Crankset: Shimano Dura Ace, 52-36T, Power Meter 165 mm-XXS/XS, 170 mm-S, 172.5 mm-M, 175 mm-L/XL
Fork: SCULTURA CF5 disc, MAT Carbon, 700x30C Max Tyre Width
Frame: SCULTURA CF5 V, MAT Carbon, 700x30C Max Tyre Width, 100x12/142x12, Pressfit 86,5
Freewheel: Shimano CS-9200, 11-30T, 12-speed cassette
Grip: One-Touch
Handlebar: TEAM SL 1P INTEGRATED, MAT carbon, 400mm (XXS-XS-S), 420mm (M), 440 (L-XL)
Handlebar stem: TEAM ONE-PIECE INTEGRATED, MAT carbon 90 mm-XXS/XS, 100 mm-S, 110 mm-M, 120 mm-L/XL
Headset: MERIDA custom
Rim: METRON 45 SL Clincher TL Disc, 100x12, 142x12, 18mm Inner Width, 45mm Rim Height, Centerlock, Carbon, Tubeless ready (tubeless tape and valves included)
Rotor front: Shimano RT900, 160mm
Rotor rear: Shimano RT900, 160mm
Saddle: SCRATCH M5
Season: 2022
Seat post: MERIDA Team SL, 27.2mm, 15° Setback, Carbon, S-Flex
Tyre front: Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready
Tyre rear: Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready
Weight: Frame only: approx 861g in size M / Max Weight Limit: 120kg
Wheel size: 700c
Tyre Sizes28"28"28"28"28"28"
seat tube [mm]435458481501521550
top tube [mm]520535545560575590
chain stay length [mm]408408408408408408
head tube angle [°]70.57272.573.573.574
seat tube angle [°]74.5747473.57373
bottom bracked drop [mm]707066666666
head tube [mm]105112128140155176
fork length [mm]385385385385385385
reach [mm]377383390395400409
stack [mm]517529542557571593
wheel base [mm]98598298999010001010
stand over height [mm]721745765782800823

Merida Scultura Bike Sizing Chart

Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.

The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
