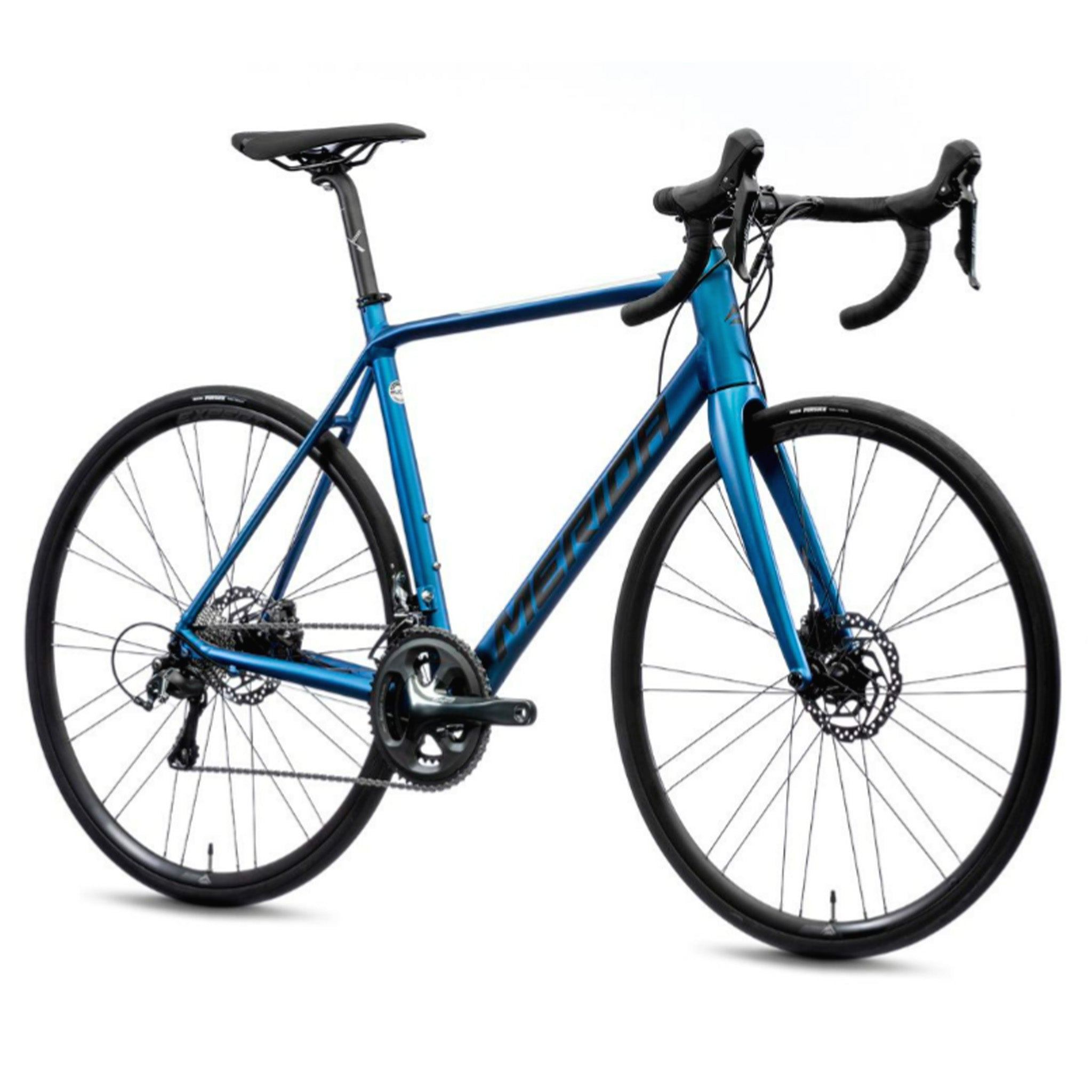

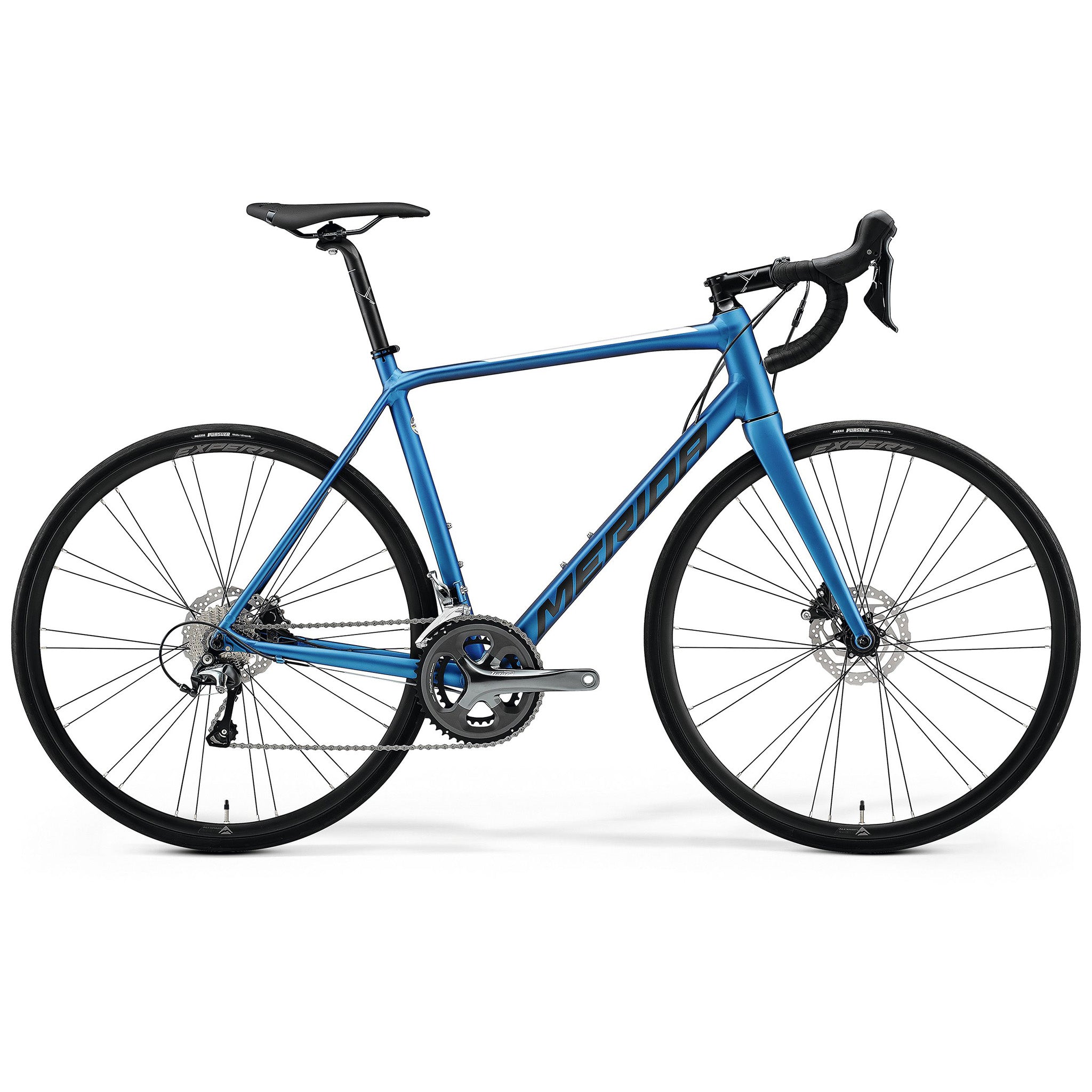

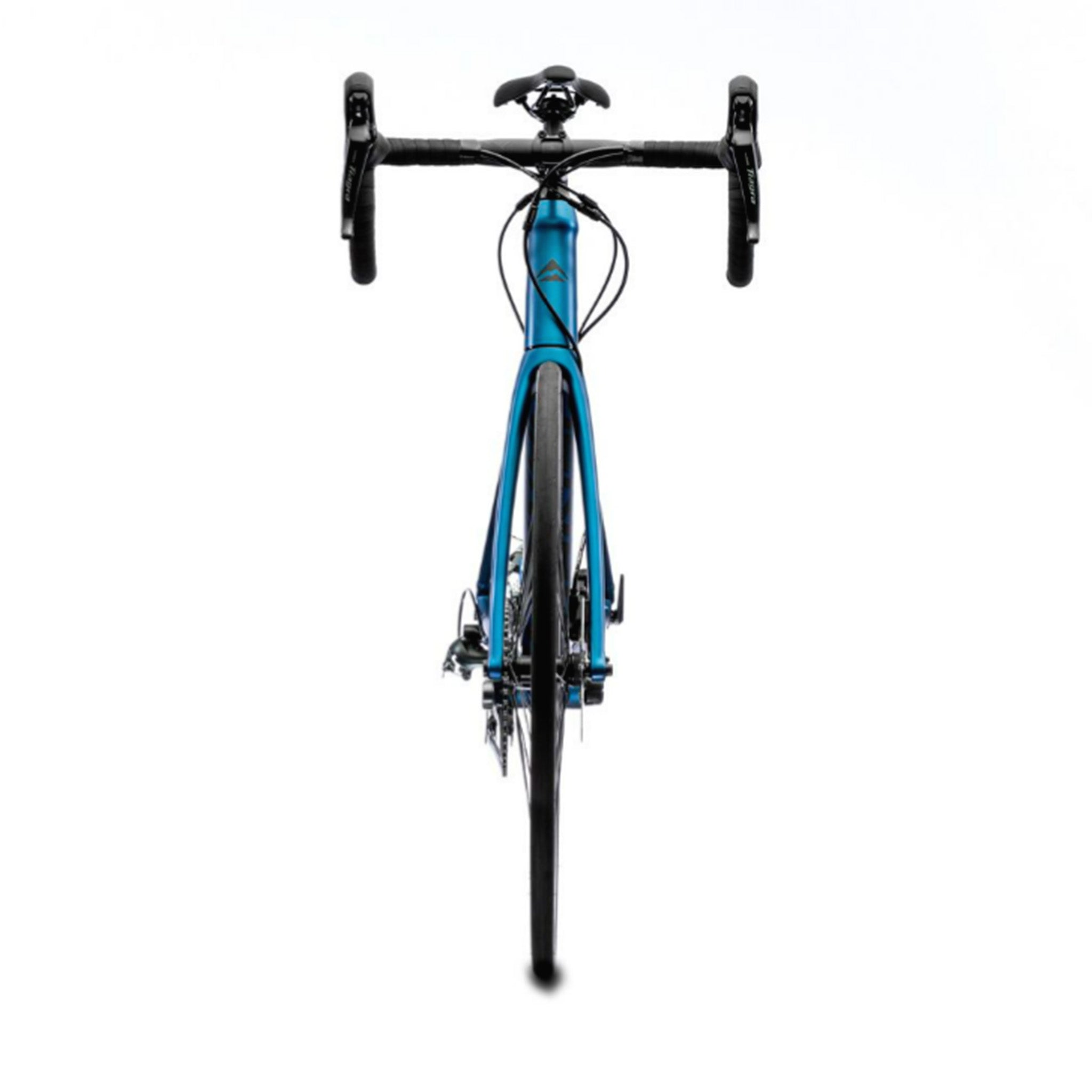

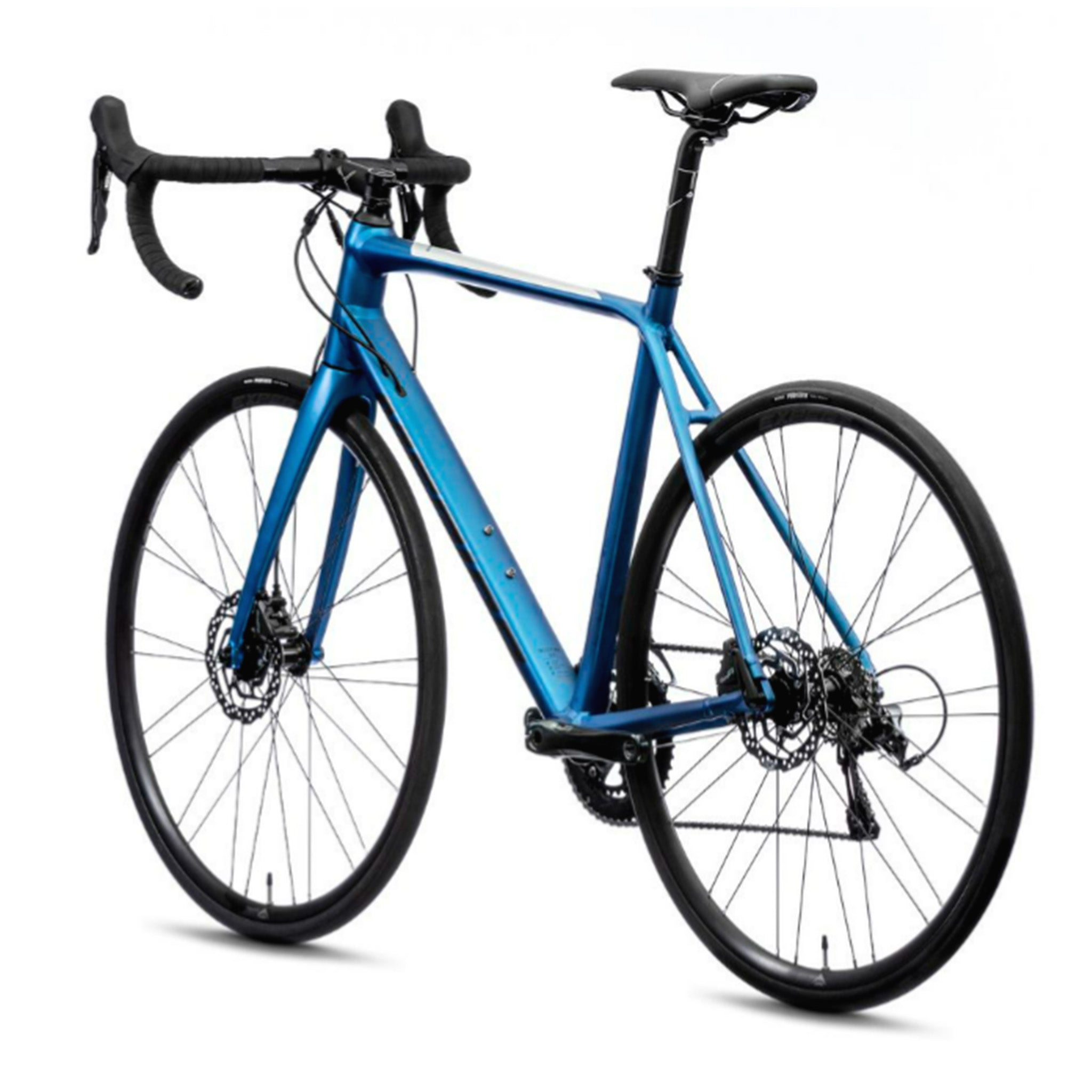

Merida Scultura 300 Road Bike Silk Matt Blue Grey


You automatically get Club Price when buying online. But there are extra benefits if you join Club 99.

Buy now, pay later
SKU: MEBI2201001 Sold out

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Key Features
  • Lightweight aluminium frame
  • Full carbon tapered fork
  • Less aggressive geometry than the SCULTURA CF5 and CF3 models
  • Shimano Tiagra 10-speed groupset
  • Hydraulic disc brakes
  • Internal Cable Routing
Beautifully crafted lightweight aluminium frame with internal cable routing, aero profiled tubing and tapered head tube for precise steering. By maintaining the proven geometry rather than following the more aggressive alternative of our new top-end SCULTURA frames, the 300 offers the perfect balance between sharp handling and acceleration on one side and a more relaxed and comfortable riding position on the other. Rather than featuring the aggressive geometry of the CF5 and CF3 models, the CF2 and aluminium SCULTURA models retain their slightly more relaxed geometry. Within this family, we offer our bikes with powerful and easy to modulate disc brakes that deliver constant braking power even in wetter conditions or the more price aggressive rim brake alternative. Due to the less aggressive geometry, our CF2 and aluminium models are ideal for riders who are getting into the sport as well as for those who prefer a slightly more upright position when hitting the lanes.
Axles: 100x12/ 142x12mm axle standard
Bottom bracket: Pressfit bottom bracket standard
Brakes: Shimano Tiagra
Chain: KMC X10
Colour (text): MATT BLUE (GREY)
Crankset: Shimano Tiagra, 50-34 teeth 165 mm-XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL
Derailleur rear: Shimano Tiagra
Freewheel: Shimano CS-HG500
Handlebar stem: MERIDA COMP CC
Headset: MERIDA M2339
Hubs: Front: VP CLK170F, 100x12mm width front hub 28 spoke holes Centerlock, Rear: VP CLK270R, 142x12mm width rear hub 28 spoke holes Centerlock
Season: 2022
Spokes: Black stainless
Tyres: Maxxis Pursuer
Wheel size: 700c

Tyre Sizes28"28"28"28"28"28"28"28"
ST seat tube [mm]410440470500520540560590
TT top tube [mm]500515520530545560575590
CS chain stay length [mm]408408408408408408408408
HTA head tube angle [°]70.571717273737373.5
STA seat tube angle [°]757574.5747473.57373
BD bottom bracked drop [mm]7066666666666666
HT head tube [mm]100120130140150170190215
FL fork length [mm]374374374374374374374374
R reach [mm]366376373375386390394401
S stack [mm]498519529542555574593619
WB wheel base [mm]97898298397998599510051014
SH stand over height [mm]668697720744762779798826

Merida Scultura Bike Sizing Chart

Merida Bikes Warranties

Lifetime warranty on all frames

Lifetime warranty on all frames for the entire ownership of the original purchaser. This covers manufacturing and material defects. No exclusions for racing. Rider and equipment weight limit: 120kg for standard bikes; 140kg for e-Bikes. Proof of purchase must be presented. (frames from model year 2015 onwards). *Conditions apply. *The lifespan of a bike is up to ten years.

Forks: Carbon and aluminium rigid forks are guaranteed for 5 years from the date of purchase

Suspension: Rear suspension components are guaranteed for 2 years from the date of purchase

All other MERIDA branded components, including paint and finish, are guaranteed for 1 year from the date of purchase.

The Merida Warranty Excludes:

Componentry which isn’t Merida branded (see below)
Normal wear and tear
Damage caused by accidents, neglect or abuse
Improper assembly
Improper follow-up maintenance; all bikes must be serviced by an authorised MERIDA dealer within 6 months of purchase. Suspension systems must be serviced annually by an authorised dealer
Modification or alteration of the frame or original components

Branded Components

Issues relating to branded original components, such as Shimano or SRAM are the responsibility of the appropriate component manufacturer’s warranty and subject to their terms and conditions.

In the case of branded components failing, please contact your local MERIDA stockist who will liaise with the relevant distributor on your behalf.

If the cause of the fault isn’t initially clear based on the information and photos your MERIDA stockists provides, the defective product may need to be returned to MERIDA Bicycles Ltd for closer inspection.

Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.

The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
