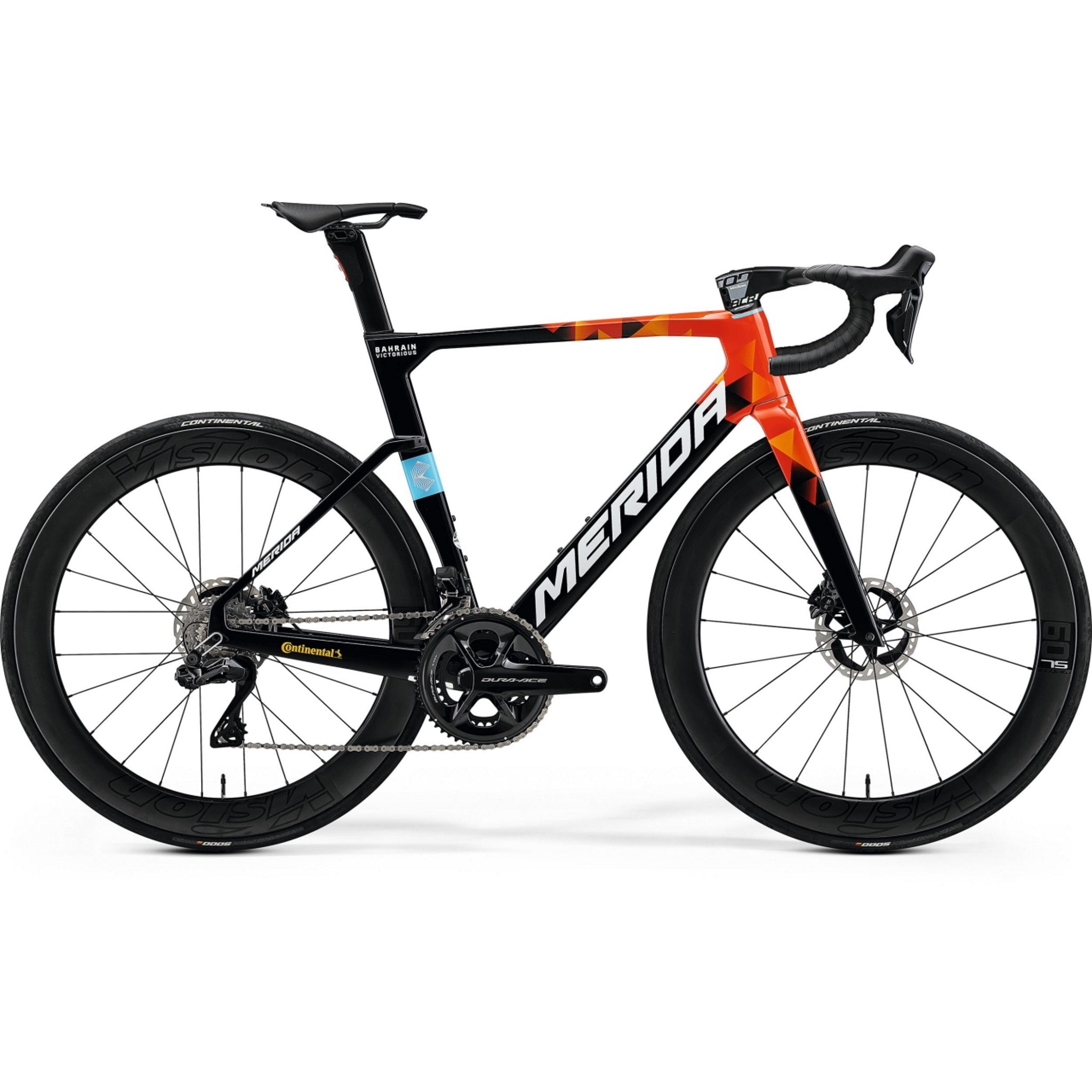

- Top-end Reacto, Team Replica Graphics
- Super-light CF5 carbon aero frame and fork
- Shimano Dura-Ace 12-speed Di2 groupset
- Shimano Dura Ace, Hydraulic disc brakes
- Vision Metron 60 SL wheelset with Continental 5000S 25mm tyres
- MERIDA S-FLEX carbon aero post and DISC COOLER technology
- FSA 5D ACR one-piece cockpit
- Power meter included
Axles: | FRONT: MERIDA EXPERT SL / REAR: MERIDA EXPERT SL, including removable lever, 6/4mm allen key |
---|---|
Bottom bracket: | SM-BB92-41B, Pressfit 86.5 |
Brakes: | Shimano Dura Ace, Hydraulic disc |
Chain: | Shimano CN-M9100-12 |
Crankset: | Shimano Dura Ace, 52-36T, Power Meter 165 mm-XXS/XS, 170 mm-S, 172.5 mm-M, 175 mm-L/XL |
Derailleur rear: | Shimano Dura Ace Di2 |
Fork: | REACTO CF5 IV DISC, MAT Carbon, 700x30C Max Tyre Width |
Frame: | REACTO CF5 IV, MAT Carbon, 700x30C Max Tyre Width, 100x12/142x12, BB86,5 Bottom Bracket |
Freewheel: | Shimano CS-9200, 11-30T, 12-speed Cassette |
Grip: | One-Touch |
Handlebar: | Vision METRON 5D ACR INTEGRATED, MAT carbon, 400mm (XXS-XS-S), 420mm (M-L-XL), |
Handlebar stem: | Vision METRON 5D ACR INTEGRATED, MAT carbon 100 mm-XXS/XS/S, 110 mm-M, 120 mm-L/XL |
Headset: | FSA ACR |
Rim: | METRON 60 SL Clincher TL Disc, 100x12, 142x12, 18mm Inner Width, 48mm Rim Height, Centerlock, Carbon, Tubeless ready (tubeless tape and valves not included) |
Rotor front: | Shimano RT900, 160mm |
Rotor rear: | Shimano RT900, 160mm |
Saddle: | SCRATCH M5 |
Season: | 2022 |
Seat clamp: | MERIDA REACTO Aero |
Seat post: | MERIDA Team CW, Aero shape, 15° Setback, Carbon |
Tyre front: | Continental Grand Prix 5000S TR, 700x25C, fold, tubeless ready |
Tyre rear: | Continental Grand Prix 5000S TR, 700x25C, fold, tubeless ready |
Weight: | Frame: approx. 950 g - in size M |
Wheel size: | 700c |
Frame Size | XXS | XS | S | M | L | XL |
Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" |
ST seat tube [mm] | 470 | 500 | 520 | 540 | 560 | 590 |
TT top tube [mm] | 520 | 536 | 545 | 560 | 575 | 590 |
CS chain stay length [mm] | 408 | 408 | 408 | 408 | 408 | 408 |
HTA head tube angle [°] | 70.5 | 72 | 72.5 | 73.5 | 73.5 | 74 |
STA seat tube angle [°] | 74.5 | 74 | 74 | 73.5 | 73 | 73 |
BD bottom bracked drop [mm] | 70 | 70 | 66 | 66 | 66 | 66 |
HT head tube [mm] | 105 | 112 | 128 | 140 | 155 | 176 |
FL fork length [mm] | 385 | 385 | 385 | 385 | 385 | 385 |
R reach [mm] | 377 | 384 | 390 | 395 | 400 | 409 |
S stack [mm] | 517 | 529 | 542 | 557 | 571 | 593 |
WB wheel base [mm] | 985 | 983 | 990 | 990 | 999 | 1010 |
SH stand over height [mm] | 746 | 771 | 792 | 810 | 826 | 853 |
Merida Reacto Bike Sizing Chart
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
