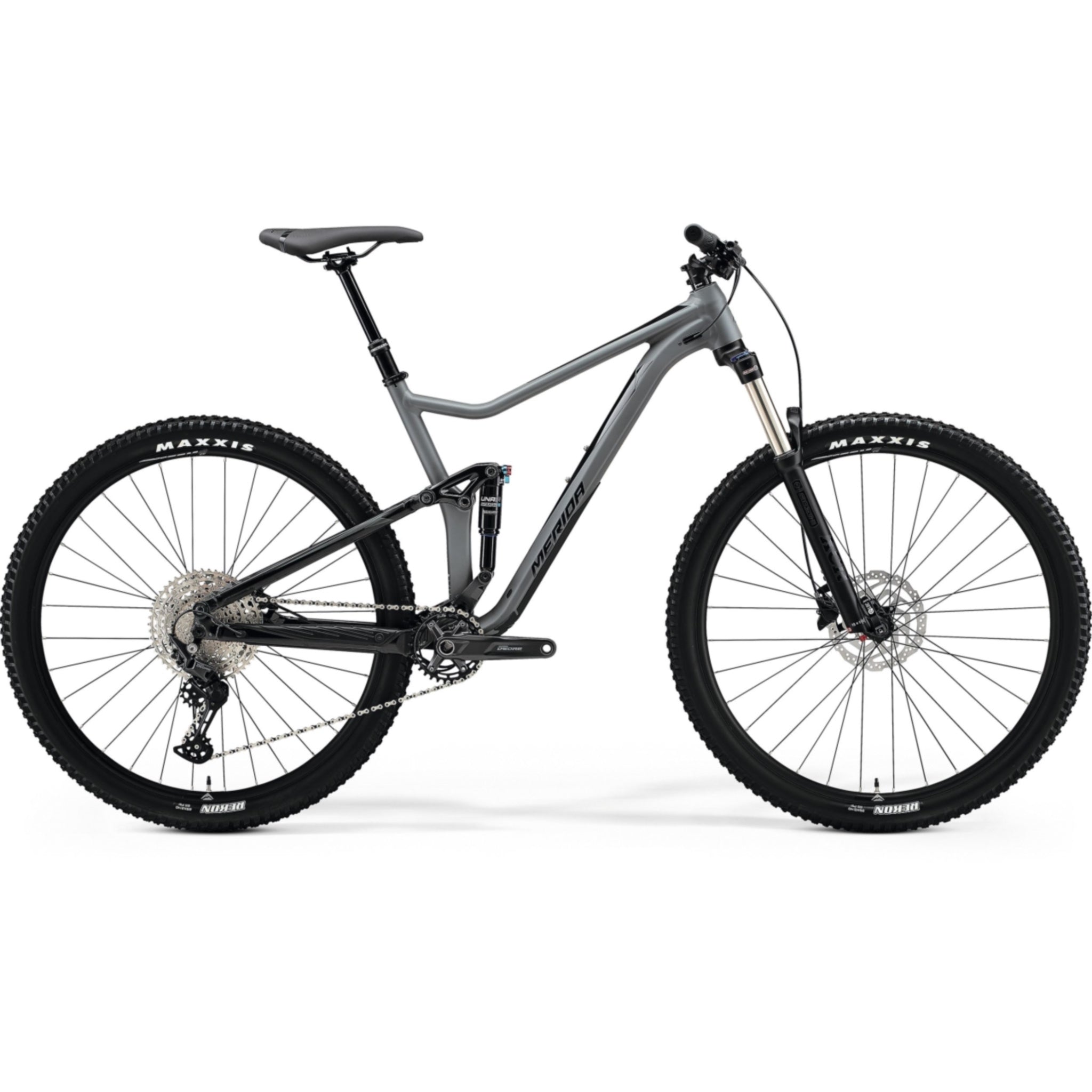

Merida One Twenty 400 Trail Bike Matt Grey/Glossy Black

$2,576
?

You automatically get Club Price when buying online. But there are extra benefits if you join Club 99.

$2,799.99
Buy now, pay later
SKU: TUXQY97D Sold out

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Key Features
  • Triple butted aluminium frame with trail geometry
  • Suntour suspension 130mm front, 120mm rear with lockout
  • 1x11 speed Shimano Deore drivetrain
  • Tektro M275 Hydraulic Disc Brakes
  • Internally routed dropper seatpost
  • Fast rolling 29er wheels with Maxxis Rekon tyres

The ideal machine for trail riders who are looking for a hugely capable frame package at a great price. The One Twenty 400 is a versatile trail bike equally at home on more demanding tracks as it is at long cross-country days in the saddle. The modern yet balanced trail bike geometry, paired with fantastic frame stiffness, created a mid-travel bike that is super capable on rough trails but also carries speed perfectly on less technically demanding tracks. The Suntour suspension setup offers 130mm of travel up front, with a 120mm float link shock at the rear, both offering lockout. Fast rolling 29er wheels will have you flying over obstacles, while Tektro hydraulic disc brakes provide responsive braking, and a 1x11 speed Shimano Deore drivetrain ensures smooth and reliable shifting performance. Already fitted with a dropper post, the One Twenty 400 will impress with its versatility and unstoppable trail munching capabilities.
Axles: REAR: MERIDA COMP TR, including removable lever, 6 allen key
Bottom bracket: Shimano MT500-PA pressfit
Brakes: Tektro M275, 2 piston
Chain: KMC X11
Crankset: Shimano Deore M5100, 32T, 170 mm-S, 175 mm-M up
Derailleur rear: Shimano Deore M5100 Shadow+
Fork: Suntour XCR34 LOR, Air, 130mm Travel, Tapered, lockout, 51mm fork offset
Frame: ONE-TWENTY LITE, 120mm, Aluminium, 29, 148x12, BB92 Bottom Bracket
Freewheel: Shimano Deore M5100, 11-51T, 11-speed Cassette
Grip: MERIDA COMP EC
Handlebar: MERIDA EXPERT CC, Aluminium, 740mm Wide, 10mm Rise,
Handlebar stem: MERIDA COMP CC, Aluminium, 31.8, 6° Rise, 60 mm all sizes
Headset: FSA NO.47/50
Hubs: FRONT: Shimano MT400-B, 110x15, 32H, Centerlock/ REAR: Shimano MT400-B, 148x12, 32H, Centerlock
Rim: MERIDA COMP CC, 20mm Inner Width, Aluminium
Rotor front: Shimano RT10, 180mm
Rotor rear: Shimano RT10, 180mm
Saddle: MERIDA COMP TR, including removable lever, 6 allen key
Season: 2022
Seat clamp: MERIDA EXPERT
Seat post: MERIDA COMP TR, 30.9mm, 0° Setback, S: 100 SPT - M: 125 SPT - L/XL: 150 SPT
Shock: Suntour Unair TR LOR8, lockout
Spokes: Black stainless
Tyre front: Maxxis Rekon, 29x2.4", wire
Tyre rear: Maxxis Rekon, 29x2.4", wire
Wheel size: 29"
Frame SizeS / 15.5"M / 17.5"L / 19"XL / 20.5"
Tyre Sizes29"29"29"29"
ST seat tube [mm]400440480520
TT top tube [mm]572592614637
CS chain stay length [mm]435435435435
HTA head tube angle [°]67.367.367.367.3
STA seat tube angle [°]75.575.575.575.5
BD bottom bracked drop [mm]40404040
HT head tube [mm]9595105115
FL fork length [mm]541541541541
R reach [mm]415435455475
S stack [mm]607607616626
WB wheel base [mm]1141116111851208
SH stand over height [mm]707730759787

Merida Dual Suspension Bike Sizing Chart

Merida Bikes Warranties

Lifetime warranty on all frames


Lifetime warranty on all frames for the entire ownership of the original purchaser. This covers manufacturing and material defects. No exclusions for racing. Rider and equipment weight limit: 120kg for standard bikes; 140kg for e-Bikes. Proof of purchase must be presented. (frames from model year 2015 onwards). *Conditions apply. *The lifespan of a bike is up to ten years.

Forks: Carbon and aluminium rigid forks are guaranteed for 5 years from the date of purchase

Suspension: Rear suspension components are guaranteed for 2 years from the date of purchase

All other MERIDA branded components, including paint and finish, are guaranteed for 1 year from the date of purchase.


The Merida Warranty Excludes:

Componentry which isn’t Merida branded (see below)
Normal wear and tear
Damage caused by accidents, neglect or abuse
Improper assembly
Improper follow-up maintenance; all bikes must be serviced by an authorised MERIDA dealer within 6 months of purchase. Suspension systems must be serviced annually by an authorised dealer
Modification or alteration of the frame or original components

Branded Components

Issues relating to branded original components, such as Shimano or SRAM are the responsibility of the appropriate component manufacturer’s warranty and subject to their terms and conditions.

In the case of branded components failing, please contact your local MERIDA stockist who will liaise with the relevant distributor on your behalf.

If the cause of the fault isn’t initially clear based on the information and photos your MERIDA stockists provides, the defective product may need to be returned to MERIDA Bicycles Ltd for closer inspection.

Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.

The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.

View Merida range

Click & Collect Available

• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »

No Courier Delivery

• This item is unavailable to be shipped with a courier More info »

For just $5, you can join Club 99 and you’ll gain access to exclusive benefits that will ensure you make the most of your bike purchase both in store and online. The ride starts with Club 99.

Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
