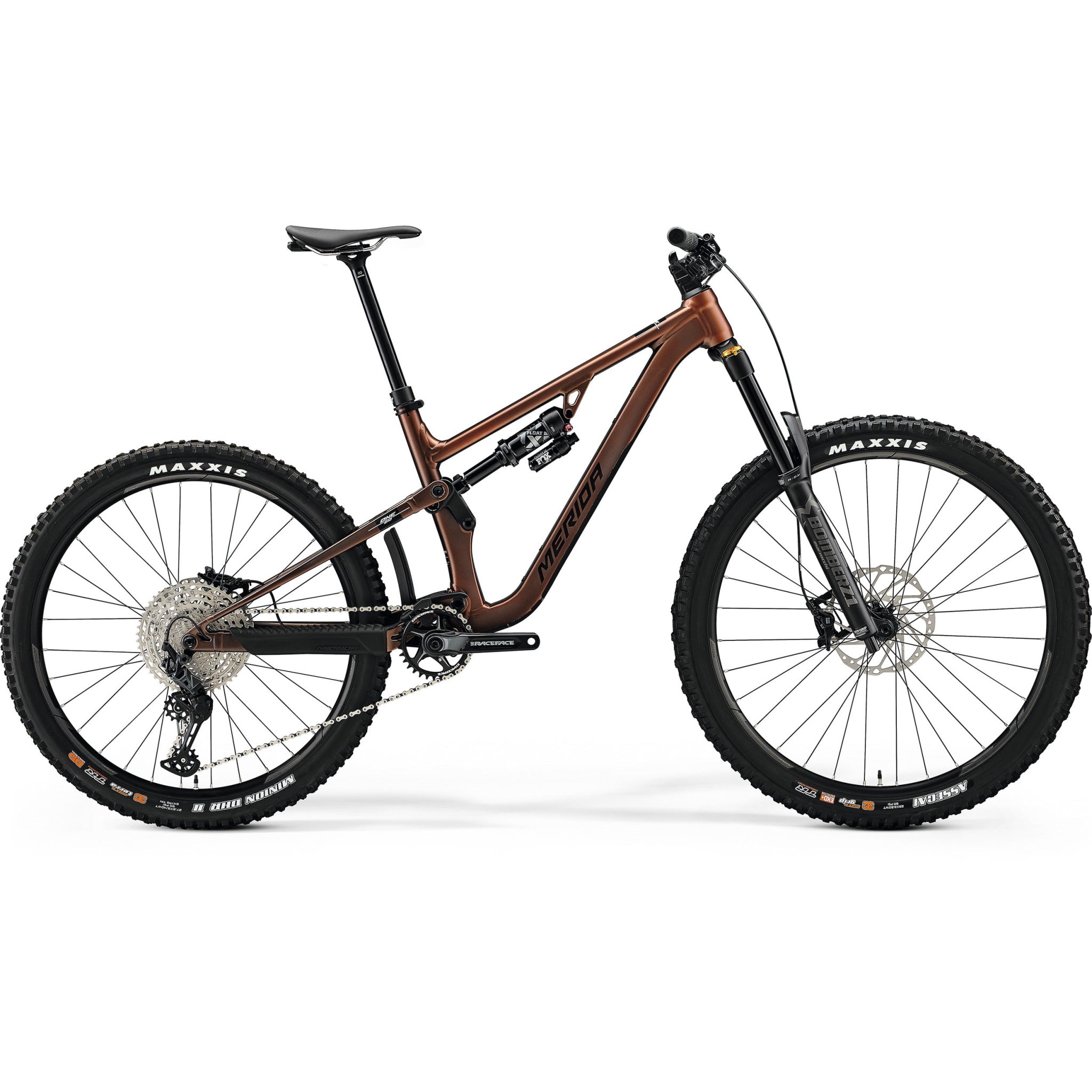

Merida One Sixty 700 Enduro Bike Silk Bronze/Black/White
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
- Full Aluminium Frame with FAST kinematic suspension
- Radical New Enduro Geometry
- Marzocchi Z1, Air, 170mm Travel Fork
- Fox Float X Performance, Platform Shock
- Powerful 4-piston Hydraulic Disc Brakes
- Mixed or full 29er wheels with AGILOMETER sizing
- 230mm Travel Internally Routed Dropper Post
Performance and value, it’s what every enduro rider wants and what this bike delivers, joining an all-aluminium frame with radical enduro geometry to a high-performance kit and Merida’s premium finishing features to deliver a stunning ride. The One Sixty 700 gets all the cutting edge enduro performance of Merida’s radical new design but with a high-value and fully featured all-aluminium frame. That means hard-hitting modern geometry with Merida’s new FAST kinematic suspension that delivers a chaos taming ride alongside quality a Marzocchi Z1, Air, 170mm travel fork and Fox Float X performance platform shock. Shimano’s proven 12-speed Deore drivetrain means reliable shifts time after time, while four-piston Shimano SLX hydraulic brakes make short work of keeping everything under control. Rounding off the build is a modern wheel setup, with sizes XS/S/M rolling on a mullet setup with a 29er up the front and 27.5” at the rear for the best of both worlds. Sizes L & XL roll on full 2
| Axles: | MERIDA EXPERT TR, including removable lever, 6/4mm allen key |
|---|---|
| Bottom bracket: | Race Face BSA 68/73 – 24mm |
| Brakes: | Shimano SLX M7120, 4 piston |
| Brake type: | Hydraulic Disc Brake |
| Cassette: | 12 Speed |
| Chain: | KMC X12 |
| Chainset: | Single |
| Crankset: | Race Face Aeffect, 32T 170 mm-S up |
| Derailleur rear: | Shimano SLX M7100 Shadow+, SGS |
| Fork: | Marzocchi Z1, Air, 170mm Travel, Tapered, 44mm fork offset, 29x2.6" Max Tyre Width |
| Fork brand: | Marzocchi |
| Fork material: | Alloy |
| Frame: | ONE-SIXTY LITE III, 171mm mullet / 162mm 29", Aluminium, 29x2.5" Max Tyre Width, 148x12, BSA Bottom Bracket |
| Frame material: | Alloy |
| Freewheel: | Shimano Deore M6100, 10-51T, 12-speed |
| Front travel: | 170mm |
| Gender: | Unisex |
| Grip: | MERIDA EXPERT EC |
| Grips: | MERIDA EXPERT EC |
| Groupset: | Shimano SLX |
| Groupset brand: | Shimano |
| Handlebar: | MERIDA TEAM TR, Aluminium, 780mm Wide, XS/S 18mm Rise, M/L/XL 30mm Rise |
| Handlebars: | MERIDA TEAM TR, Aluminium, 780mm Wide, XS/S 18mm Rise, M/L/XL 30mm Rise |
| Handlebar stem: | MERIDA EXPERT eTRII, Aluminium, 35, 0° Rise, 40 mm all sizes |
| Headset: | MERIDA-8151 1-1/8"-1.5" cartridge bearing set |
| Hubs: | FRONT: Shimano SLX, 110x15, 32H, Centerlock / REAR: Shimano SLX, 148x12, 32H, Centerlock |
| Mips rated: | false |
| Puncture resistant: | false |
| Rear travel: | 160mm |
| Rim: | MERIDA EXPERT TR, 29mm Inner Width, Aluminium, Tubeless ready (tubeless tape and valves not included), rear 27.5" up to Size M / L & XL rear 29" |
| Rims: | MERIDA EXPERT TR, 29mm Inner Width, Aluminium, Tubeless ready (tubeless tape and valves not included), rear 27.5" up to Size M / L & XL rear 29" |
| Rotor front: | Shimano RT64, 203 mm |
| Rotor rear: | Shimano RT64, 203 mm |
| Saddle: | MERIDA EXPERT SL, V-mount, incl. MERIDA minitool |
| Season: | 2022 |
| Seatpost: | MERIDA TEAM TR, 34.9mm, 0° Setback, all sizes 30-230 SPT |
| Seat clamp: | MERIDA EXPERT |
| Seat post: | MERIDA TEAM TR, 34.9mm, 0° Setback, all sizes 30-230 SPT |
| Shifters: | Shimano SL -MT500-IL |
| Shock: | Fox Float X Performance, platform |
| Speeds: | 1 x 12 |
| Stem: | MERIDA EXPERT eTRII, Aluminium, 35, 0° Rise, 40 mm all sizes |
| Tubeless ready: | false |
| Tyre front: | Maxxis Assegai, 29x2.5", fold, TR EXO+ 3C MaxxGrip |
| Tyre rear: | Maxxis DHR, 27.5x2.4" XS/S/M 29x2.4" L/XL, fold, TR DD 3C MaxxTerra |
| Use type: | Enduro |
| Weight: | 16.65kg (size M) Weight Limit: 135kg |
| Wheel size: | 29" / 27.5" (Varies by Frame Size) |
| Frame Size | XShort | Short | Mid | Long | XLong |
| Tyre Sizes | 29/27.5" | 29/27.5" | 29/27.5" | 29" | 29" |
| seat tube [mm] | 400 | 410 | 425 | 445 | 470 |
| top tube [mm] | 535 | 562 | 589 | 621 | 653 |
| chain stay length [mm] | 434 | 434 | 434 | 437.5 | 437.5 |
| head tube angle [° | 64 | 64 | 64 | 64 | 64 |
| seat tube angle [°] | 79 | 79 | 79 | 79 | 79 |
| bottom bracked drop [mm] | 7 | 7 | 7 | 27.5 | 27.5 |
| head tube [mm] | 95 | 95 | 95 | 105 | 120 |
| fork length [mm] | 581 | 581 | 581 | 581 | 581 |
| reach [mm] | 415 | 442 | 470 | 498 | 525 |
| stack [mm] | 615 | 615 | 615 | 625 | 638 |
| wheel base [mm] | 1188 | 1215 | 1242 | 1275 | 1308 |
| stand over height [mm] | 735 | 740 | 743 | 740 | 735 |
Merida Dual Suspension Bike Sizing Chart
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
