$751 Off Full Price

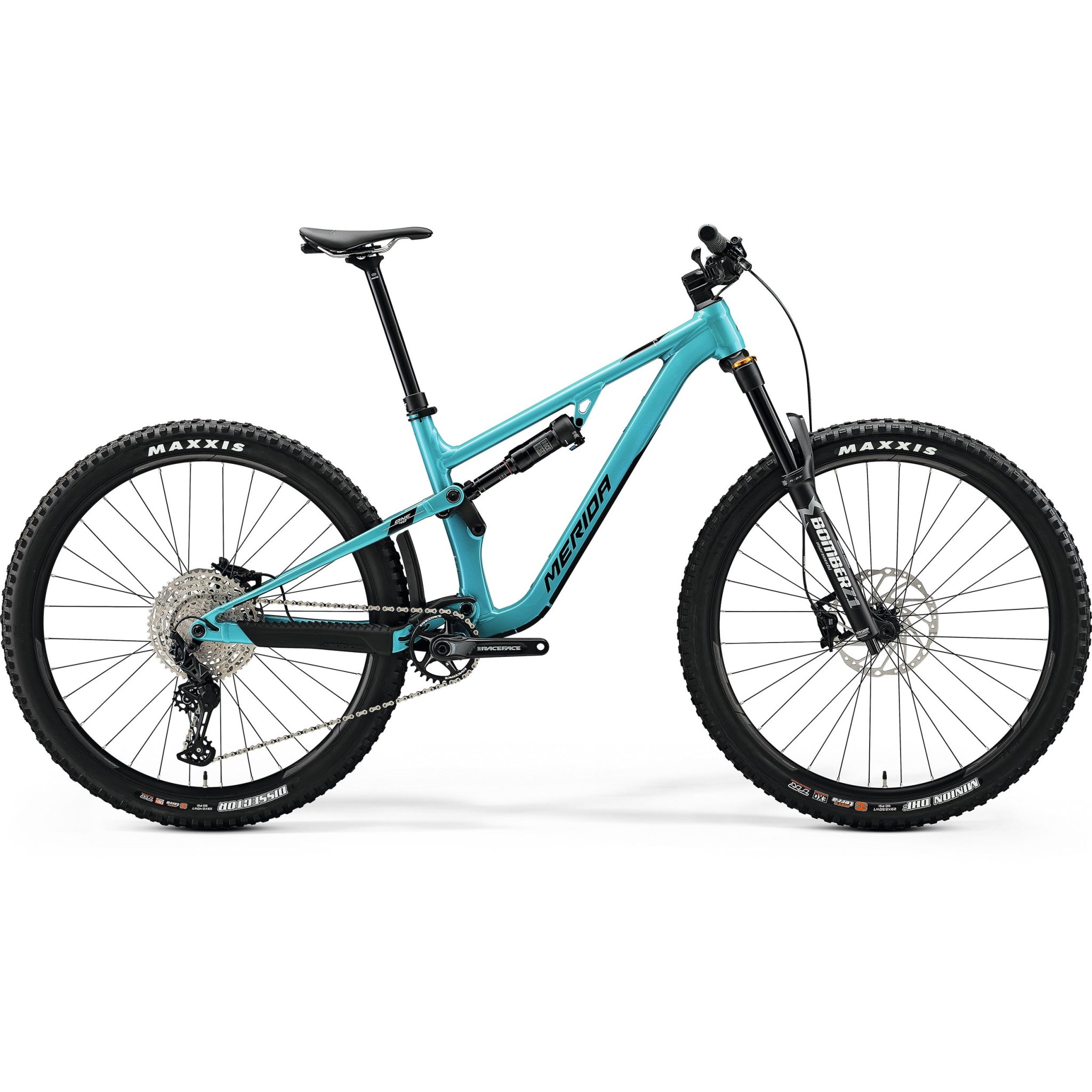

Merida One Forty 700 Enduro Bike Metallic Teal/Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Marzocchi Alloy Fork

150mm Front Travel / 140mm Rear

29" Wheel Size

Hydraulic Disc Brake

Shimano SLX Groupset

1 x 12 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Tough, dependable and ready for whatever trail adventure you can think of, the One Forty 700 marries a high-value all-aluminium frame to high-performance equipment that won't let you down. Merida’s radical new trail geometry delivers the sort of climbing ability that would make a mountain goat proud while shaming enduro bikes with descending speed. Wide range, 12-speed Shimano SLX drivetrain and four-piston brakes, high-performance Marzocchi Z1, Air, 150mm fork and Rock Shox Deluxe Select+ plus Merida’s long travel adjustable dropper post deliver unwavering performance. A super-steep 80° seat angle, low front end and bottom bracket allow it to clear the most technical climbs, while longer reach figures across all sizes and a well-balanced 65° head angle mean it’s still more than capable of ripping any descent.

Key Features

Full aluminium frame with FAST kinematic suspension and AGILOMETER sizing
Radical new trail geometry with full 29er wheels
Marzocchi Z1, Air, 150mm travel Fork
Rock Shox Deluxe Select+, lockout Shock
Wide-range Shimano SLX/Deore 12-speed drivetrain
Powerful 4-piston hydraulic disc brakes
Long travel-adjustable dropper post

Specifications

Product Overview

Product

Merida One Forty 700 Enduro Bike Metallic Teal/Black

Brand

Merida

Parent SKU

0XQU8EQ2

Size SKUs

XS: MEDA2270510
SM: MEDA2270521
MD: MEDA2270532
LG: MEDA2270543
XL: MEDA2270554

Matrix Barcodes

XS: 4710949851217
SM: 4710949851194
MD: 4710949851187
LG: 4710949851170
XL: 4710949851200

Year Model

2022

Product Features

Frame Material

Alloy

Colour

Green

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Fork Material

Alloy

Front Travel

150mm

Rear Travel

140mm

Weight

16.28kg (Size MD) Max Weight Limit: 135kg

Build

Frame

ONE-FORTY LITE III, 143mm 29", Aluminium, 29x2.5" Max Tyre Width, 148x12, BSA Bottom Bracket

Fork

Marzocchi Z1, Air, 150mm Travel, Tapered, 44mm fork offset, 29.5x2.6" Max Tyre Width

Shock

Rock Shox Deluxe Select+, lockout

Handlebars

MERIDA TEAM TR, Aluminium, 780mm Wide, XS/S 18mm Rise, M/L/XL 30mm Rise

Headset

MERIDA-8151 1-1/8"-1.5" cartridge bearing set

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTRII, Aluminium, 35, 0° Rise, 50 mm all sizes

Bottom Bracket

Race Face BSA 68/73 – 24mm

Saddle

MERIDA EXPERT SL, V-mount, incl. MERIDA minitool

Seat Post

MERIDA TEAM TR, 34.9mm, 10° Setback, all sizes 30-230 SPT

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

29"

Rims

MERIDA EXPERT TR, 29mm Inner Width, Aluminium, Tubeless ready (tubeless tape and valves not included)

Hubs

FRONT: Shimano SLX, 110x15, 32H, Centerlock / REAR: Shimano SLX, 148x12, 32H, Centerlock

Groupset

Crankset

Race Face Aeffect, 32T 170 mm-S, 175 mm-M up

Chain

KMC X12

Brakes

Shimano SLX M7120, 4 piston

Front Rotor

Shimano RT64, 203 mm

Rear Rotor

Shimano RT64, 203 mm

Shifters

Shimano SL -MT500-IL

Rear Derailleur

Shimano SLX M7100 Shadow+, SGS

Cassette

12 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida One Forty 700 Enduro Bike Metallic Teal/Black we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida One Forty 700 Enduro Bike Metallic Teal/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
