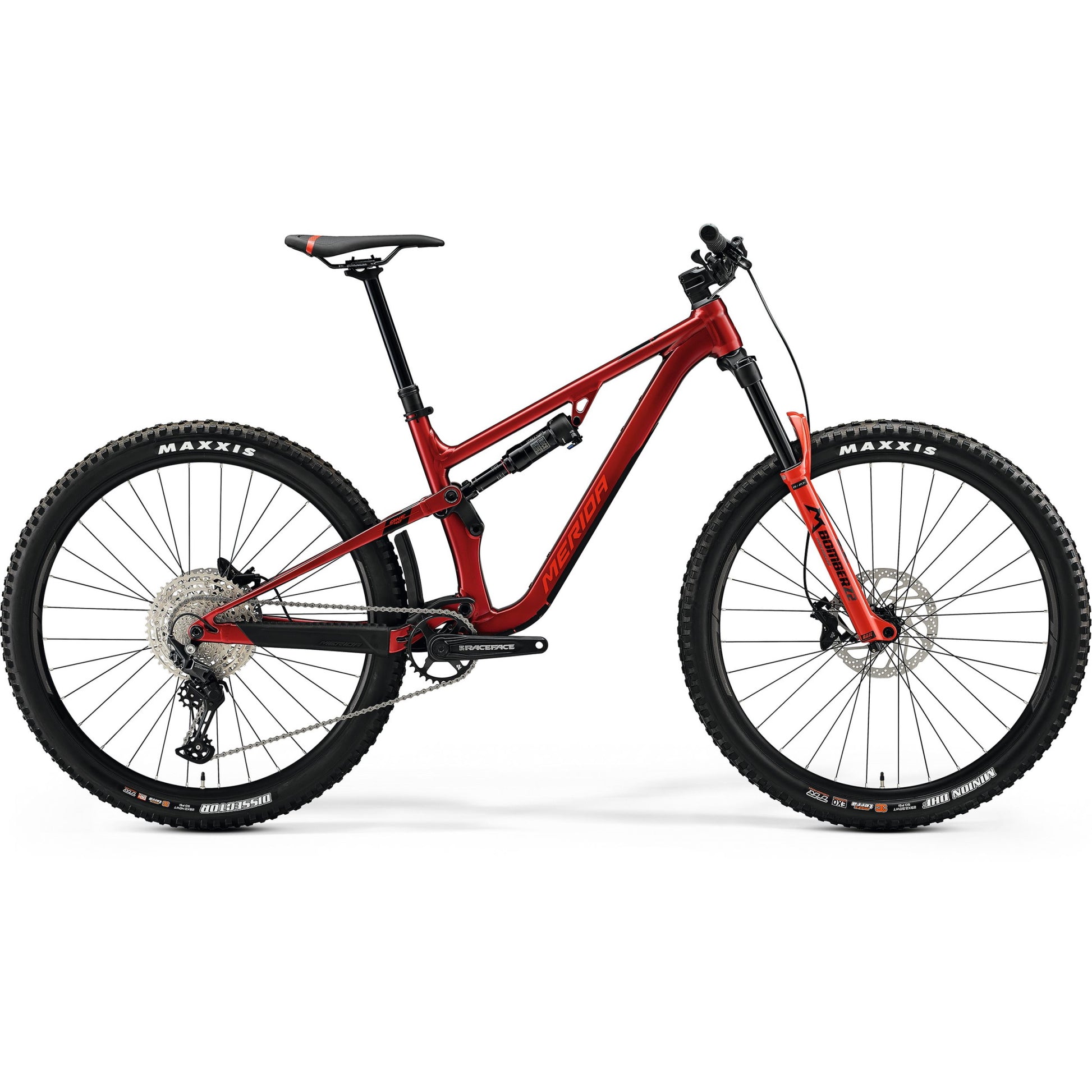

Merida One Forty 500 Enduro Bike Silk Dark Strawberry/Black

$3,599
?

You automatically get Club Price when buying online. But there are extra benefits if you join Club 99.

$4,299.99
Buy now, pay later
15% OFF FULL PRICE
SKU: MEDA2270736 In stock

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Key Features
  • Full aluminium frame with FAST kinematic suspension and AGILOMETER sizing
  • Radical new trail geometry with full 29er wheels
  • Marzocchi Z2, Air, 150mm travel fork
  • Rock Shox Deluxe Select+, lockout shock
  • Wide-range Shimano Deore M5100 11-speed drivetrain
  • Shimano Deore M6120, 4 piston hydraulic disc brakes

Trail riding is all about going further, faster than ever before. The all-new One Forty 500 positively encourages you to do that thanks to an all-aluminium frame with radical new trail geometry that's equally happy cleaning the toughest climbs as it is ripping down high-mountain trails. Made for the toughest trails in the world, the One Forty 500 is the pinnacle of modern trail riding, with a super-steep 80° seat angle, low front end and bottom bracket allow it to clear the most technical climbs, while longer reach figures across all sizes and a well-balanced 65° head angle mean it’s still more than capable of ripping any descent. Fitted with a kit that delivers solid performance, the Marzocchi Z2, Air, 150mm travel fork is paired with a Rock Shox Deluxe Select+ shock. A wide range Shimano Deore M5100 1 x 11 speed drivetrain turns your effort into go and four-piston brakes turn the lightest touch into slow. Rounding off the build is a long travel internally routed dropper post.

Axles: REAR: MERIDA COMP TR, including removable lever, 6 allen key
Bottom bracket: Race Face BSA 68/73 – 24mm
Brakes: Shimano Deore M6120, 4 piston
Chain: KMC X11
Crankset: Race Face Ride, 32T 170 mm-S, 175 mm-M up
Derailleur rear: Shimano Deore M6100 Shadwo+
Fork: Marzocchi Z2, Air, 150mm Travel, Tapered, 44mm fork offset
Frame: ONE-FORTY LITE III, 143mm 29", Aluminium, 29x2.5" Max Tyre Width, 148x12, BSA Bottom Bracket
Freewheel: Shimano Deore M5100, 11-51T, 11-speed
Grip: MERIDA EXPERT EC
Handlebar: MERIDA TEAM TR, Aluminium, 780mm Wide, XS/S 18mm Rise, M/L/XL 30mm Rise
Handlebar stem: MERIDA EXPERT eTRII, Aluminium, 35, 0° Rise, 50 mm all sizes
Headset: MERIDA-8151 1-1/8"-1.5" cartridge bearing set
Hubs: FRONT: Shimano MT400-B, 110x15, 32H, Centerlock / REAR: Shimano MT400-B, 148x12, 32H, Centerlock
Rim: MERIDA COMP TR, 29mm Inner Width, Aluminium, Tubeless ready (tubeless tape and valves not included)
Rotor front: Shimano RT30, 203 mm
Rotor rear: Shimano RT30, 203 mm
Saddle: MERIDA COMP SL, V-mount
Season: 2022
Seat clamp: MERIDA EXPERT
Seat post: MERIDA EXPERT TR II, 34.9mm, 0° Setback, XS: 125 SPT - S: 150 SPT - M/L/XL: 200 SPT
Shock: Rock Shox Deluxe Select+, lockout
Tyre front: Maxxis Minion DHF, 29x2.5", fold, TR EXO 3C MaxxTera
Tyre rear: Maxxis Dissector, 29x2.4", fold, TR EXO+ MaxxTerra
Weight: 16.49kg (size m) / Weight Limit: 135kg
Wheel size: 29"
Frame SizeXShortShortMidLongXLong
Tyre Sizes29"29"29"29"29"
seat tube [mm]400410425445470
top tube [mm]532559586618649
chain stay length [mm]437.5437.5437.5437.5437.5
head tube angle [°]6565656565
seat tube angle [°]8080808080
bottom bracked drop [mm]3535353535
head tube [mm]959595105120
fork length [mm]557557557557557
reach [mm]426453480509535
stack [mm]607607607616629
wheel base [mm]11771204123212651298
stand over height [mm]730735738735730

Merida Dual Suspension Bike Sizing Chart

Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.

The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.

View Merida range

Click & Collect Available

• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »

No Courier Delivery

• This item is unavailable to be shipped with a courier More info »

For just $5, you can join Club 99 and you’ll gain access to exclusive benefits that will ensure you make the most of your bike purchase both in store and online. The ride starts with Club 99.

Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
