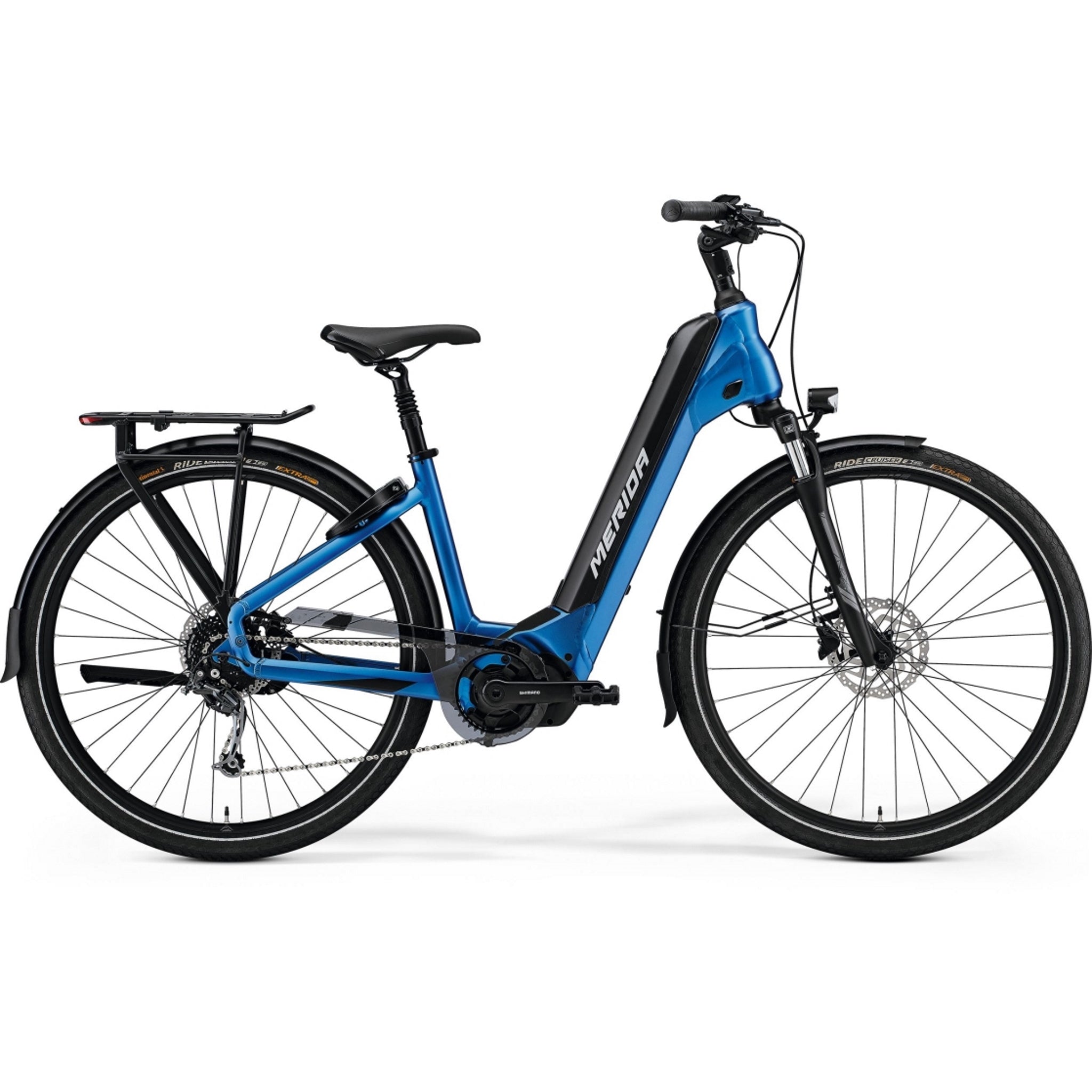

Merida Espresso City 400 EQ Electric Bike 504Wh Battery Silk Blue/Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Moderately Steep Hills / 60 Nm Torque

Up to 61 km Range

Shimano STePS E6100 Motor

Alloy Frame/ Suntour Alloy Fork

under 100mm Front Travel

504Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Life in the city can be hectic, so anything that allows you to make the best use of your time has to be a good thing. The Espresso City is all about getting you where you want to without fuss and in comfort. Featuring Merida’s latest low step-through frame paired to high-value, high-function kit. The Espresso City 400 EQ pairs an internally mounted 504 Wh battery and Shimano's trekking dedicated E6100 drive unit to deliver impressive function at an even more impressive price. With equipment that's chosen to deliver the best balance of performance and price, Shimano's workhorse 9-speed drivetrain and strong hydraulic brakes won't let you down, while the bike comes fitted with guards, rack, lights, lock and a kickstand as standard, meaning no expensive add-ons are needed to get rolling. The Espresso City 400 is the smart way to get around the city.

Key Features

Extra low step-through ENERGY CRADLE frame design
Trekking dedicated Shimano E6100 drive unit
Internally mounted 504 Wh battery
Smooth shifting Shimano 9-speed drivetrain
Fast-rolling 700c wheels and comfy 50mm tyres with reflective strip
Fully equipped with guards, lights, lock, rack and kickstand

Specifications

Product Overview

Product

Merida Espresso City 400 EQ Electric Bike 504Wh Battery Silk Blue/Black

Brand

Merida

Parent SKU

A31TVQX8

Size SKUs

XS: MEEB2200947
SM: MEEB2200948
MD: MEEB2200949
LG: MEEB2200950
XL: MEEB2200951

Year Model

2022

Product Features

Frame Material

Alloy

Colour

Blue

Wheel Size

27.5" (650b)

Brake Type

Hydraulic Disc Brake

Gears

1 x 9

Fork Material

Alloy

Front Travel

under 100mm

Weight

28.34kg / Weight Limit: 150kg

Motor and Battery System

Motor Brand

Shimano

Torque (Nm)

Motor Climbing Ability

Moderately Steep Hills

Battery Size (Watt-Hours)

504

Battery

Shimano E8035-L / Battery Lock: Abus Key / Frame Lock: Abus 4650 XL

Max. Range (KMs)

Display

Shimano SC-E5000

Build

Frame

eSPRESSO CITY LITE II material: aluminium 700x50C (with fender) max. wheelsize 135x9mm axle standard internal

Fork

Suntour NEX E25 Coil 63mm suspension travel 700x52C max wheelsize

Handlebars

MERIDA EXPERT TK material: aluminium 640mm width 35mm rise

Headset

MERIDA CAP w/ wire gateway

Grips

MERIDA EXPERT TK

Stem

MERIDA EXPERT TK material: aluminium 31.8mm diameter adjustable 65 mm-XS/S/M, 90 mm-L/XL

Pedals

VP VPE-891

Saddle

MERIDA EXPERT TK V-mount

Seat Post

MERIDA EXPERT TK 30.9mm diameter 15mm setback 40mm seatpost suspension travel

Seat Clamp

MERIDA EXPERT

Accessories

Included: Chainguide: Sunnywheel SW-CG-173A / Lights: Front: Herrmans H-Black MR4 E / rear: Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier / Carrier: MERIDA MIK HD Carrier with Spring clip & Spanninga rear light / Fender: Sunnywheel SW-FA311-60E1 (MSB) / Kickstand: Atranvelo 1219-PC-

Wheels

Wheel Size

27.5" (650b)

Rims

MERIDA COMP TK 20mm inner width material: aluminium

Hubs

Shimano TX505 100x9mm width front hub 32 spoke holes Centerlock 135x9mm width rear hub 36 spoke holes Centerlock

Spokes

Black stainless

Groupset

Crankset

Shimano FC-EM600 165 mm

Chain

KMC e9S

Brakes

Shimano MT-200 2 piston

Front Rotor

Shimano RT10 180mm

Rear Rotor

Shimano RTEM300 180mm

Shifters

Shimano Alivio M3100

Rear Derailleur

Shimano ALIVIO M3100 SGS

Cassette

9 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.
