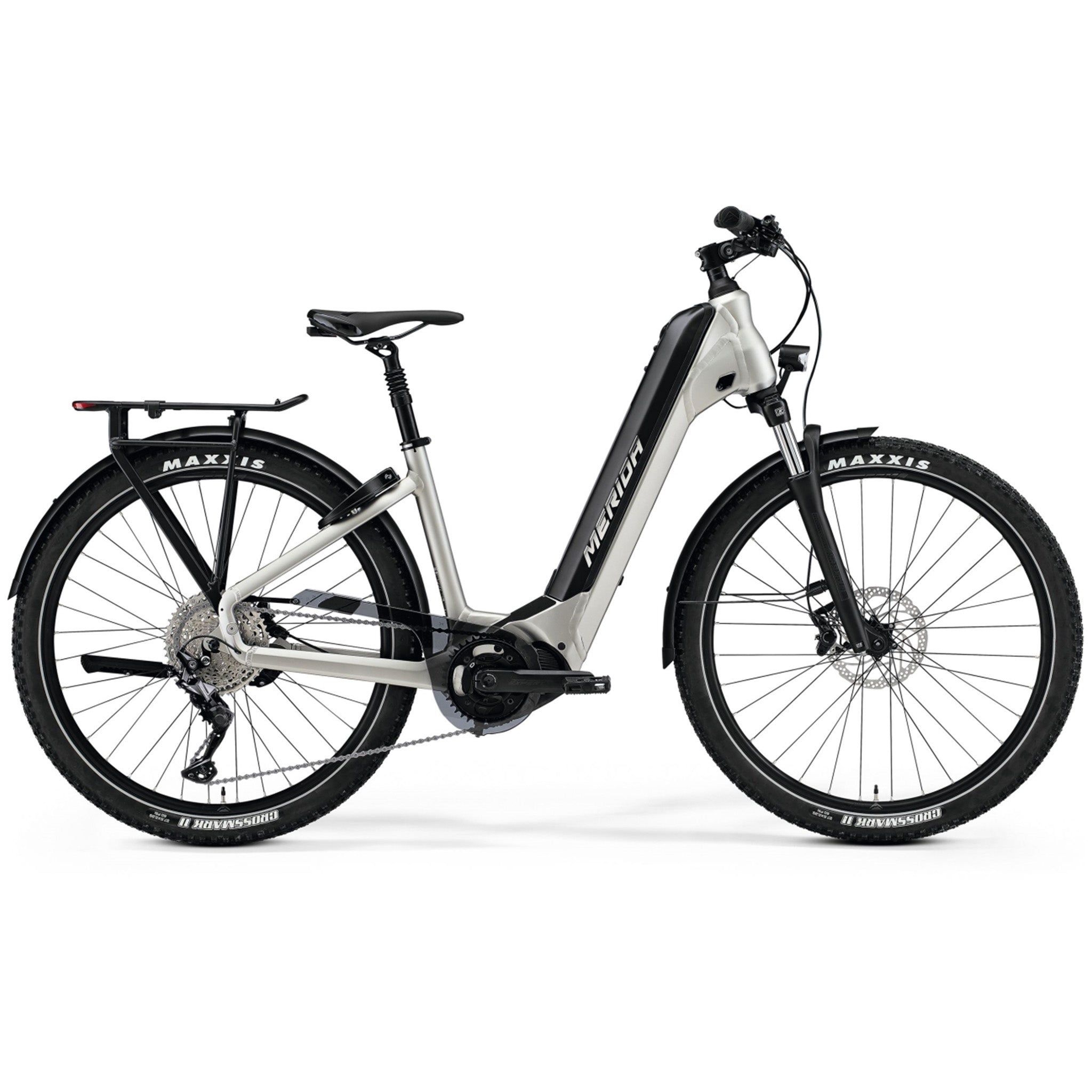

Merida Espresso CC 400 EQ Electric Bike 630Wh Battery Silk Titan/Black


You automatically get Club Price when buying online. But there are extra benefits if you join Club 99.

Buy now, pay later
SKU: MEEB2227711 Low stock

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Key Features
  • Super low step-through ENERGY CRADLE frame design
  • Suntour NVX30 80mm fork
  • Trekking dedicated Shimano E6100 drive unit, 60Nm torque
  •  Internally mounted 630Wh battery
  • Assist speeds up to 32 km/h
  • Approx range 95 - 255km
  • Smooth Shimano 10-speed drivetrain
  • Shimano hydraulic disc brakes
  • Agile 650b wheels with grippy high-volume tyres
  • Fully equipped with guards, lights, lock, rack and kickstand
Whether your commute takes in forest trails and gravel tracks or you just want the freedom to explore at weekends, the eSPRESSO CC 400 EQ delivers all the convenience of a city e-bike with added off-road ability. That's because our low step-through ENERGY CRADLE frame is stiff enough to cope with dirt tracks while also housing an internal 630 Wh battery and the trekking dedicated Shimano E6100 drive unit. While the suspension fork and seat post help keep you comfortable when it gets bumpy, we've fitted it with a host of kit to make city life easier and safer, with mudguards, rack, lights, lock and a kickstand as standard. A smooth-shifting Shimano 10-speed drivetrain and strong, low-maintenance hydraulic disc brakes add fuss-free control.
Accessories: EQ models include mudguards, lights & carrier
Battery: Shimano E8036
Brakes: Shimano MT-200, 2 piston
Cassette: Shimano M4100, 11-46 ATC, 10 GER
Chain: KMC e10S
Chainwheel: Shimano CRE61
Crankset: Crank: Shimano CRE61, 38 ATC, Crank Length: Shimano FC-E8000, 165 mm
Derailleur rear: Shimano Deore M5120
Display: Shimano SC-E5000A
Fender: Sunnywheel SW-FA-311-65A(MSB)
Fork: Suntour NVX30-DS-27.5, Travel: 80
Frame: eSPRESSO CITY LITE II, MAT aluminium, 700C WHS, 135x9 AST, internal, max. 630 Wh
Freewheel: Shimano M4100
Handlebar: MERIDA EXPERT TK, MAT aluminium, 660 WHB, 15 RHB
Handlebar stem: MERIDA EXPERT CT, MAT aluminium, 31.8 DSH, adjustable
Headset: MERIDA-8252 (for the steerer 1-1/8"), No. 6: 30D
Hubs: Front: Shimano TX505, 100x9 WHF, 32 SPH, Centerlock, Rear: Shimano TX505, 135x9 WHR, 36 SPH, Centerlock
Light(s): Front: Herrmans H-Black MR4 E, Rear: Spanninga Commuter Glow XE
Motor drive unit: Shimano E6100
Pedals: VP, VPE-891
Rim: MERIDA COMP TK, 20 IWR, MAT aluminium
Rotor front: Shimano RT10, 180 mm
Rotor rear: Shimano RTEM300, 180 mm
Saddle: MERIDA EXPERT TK, V-mount
Season: 2022
Seat post: MERIDA EXPERT TK, 30.9 DSP, 15 SSB, 40 SST
Spokes: Black stainless
Tyres: Maxxis Crossmark II, 27.5x2.25", wire, reflecting line
Wheel size: 27.5" (650b)

Tyre Sizes27.5"27.5"27.5"27.5"27.5"
ST seat tube [mm]380430480530580
TT top tube [mm]580595615635655
CS chain stay length [mm]470470470470470
HTA head tube angle [°]7070707070
STA seat tube angle [°]73.573.573.573.573.5
BD bottom bracked drop [mm]6565656565
HT head tube [mm]170175180190200
FL fork length [mm]476476476476476
R reach [mm]385399417435452
S stack [mm]656661666675685
WB wheel base [mm]11131129114911701190
SH stand over height [mm]403403402402401

Merida Electric Trekking Bike Sizing Chart

99 Bikes Merida Electric Trekking Bike Sizing Chart

Merida Bikes Warranties

Lifetime warranty on all frames

Lifetime warranty on all frames for the entire ownership of the original purchaser. This covers manufacturing and material defects. No exclusions for racing. Rider and equipment weight limit: 120kg for standard bikes; 140kg for e-Bikes. Proof of purchase must be presented. (frames from model year 2015 onwards). *Conditions apply. *The lifespan of a bike is up to ten years.

Forks: Carbon and aluminium rigid forks are guaranteed for 5 years from the date of purchase

Suspension: Rear suspension components are guaranteed for 2 years from the date of purchase

All other MERIDA branded components, including paint and finish, are guaranteed for 1 year from the date of purchase.

The Merida Warranty Excludes:

Componentry which isn’t Merida branded (see below)
Normal wear and tear
Damage caused by accidents, neglect or abuse
Improper assembly
Improper follow-up maintenance; all bikes must be serviced by an authorised MERIDA dealer within 6 months of purchase. Suspension systems must be serviced annually by an authorised dealer
Modification or alteration of the frame or original components

Branded Components

Issues relating to branded original components, such as Shimano or SRAM are the responsibility of the appropriate component manufacturer’s warranty and subject to their terms and conditions.

In the case of branded components failing, please contact your local MERIDA stockist who will liaise with the relevant distributor on your behalf.

If the cause of the fault isn’t initially clear based on the information and photos your MERIDA stockists provides, the defective product may need to be returned to MERIDA Bicycles Ltd for closer inspection.

Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.

The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
