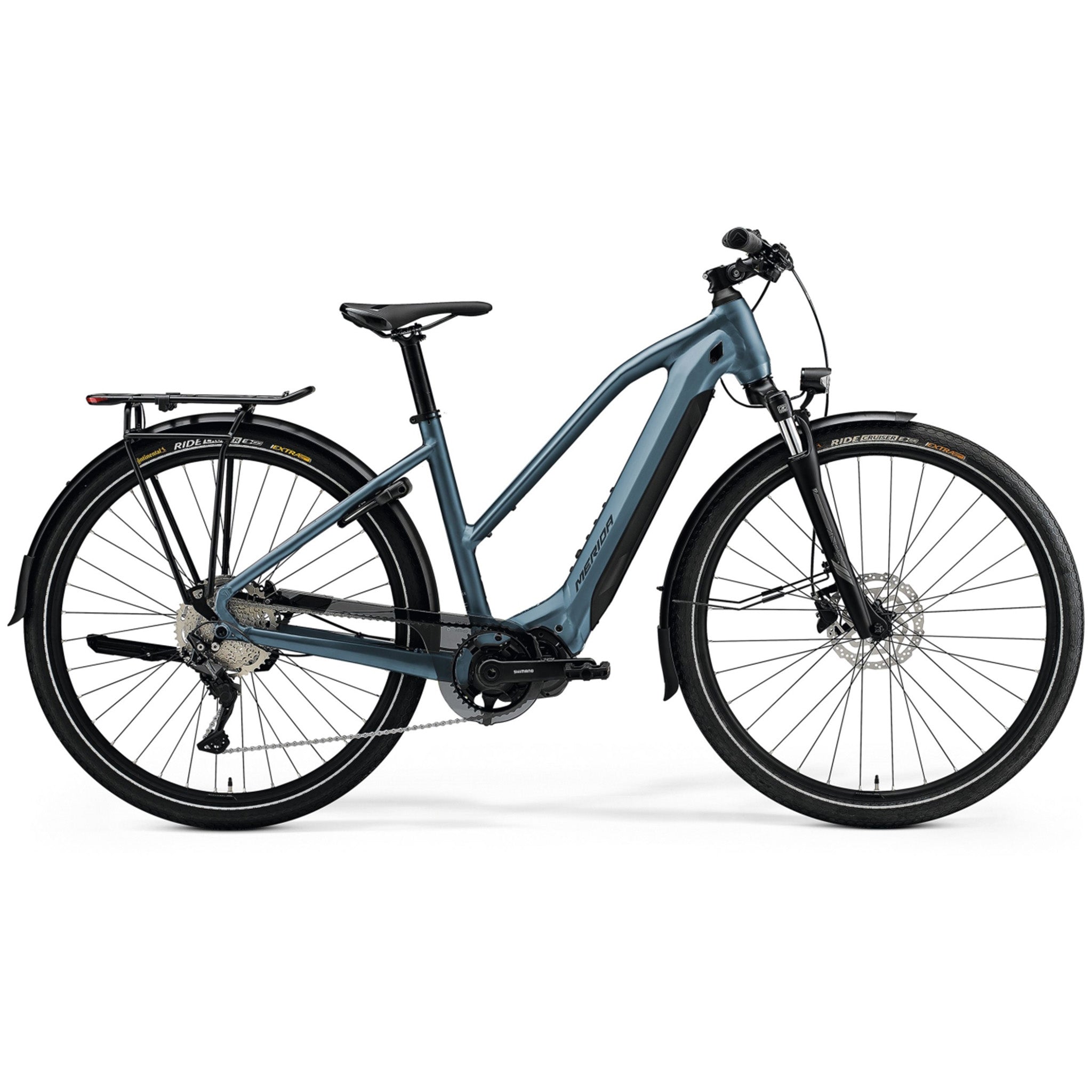

Merida Espresso 500 EQ Low-Step Electric Bike 630Wh Battery Silk Steel Blue/Grey

$3,799
?

You automatically get Club Price when buying online. But there are extra benefits if you join Club 99.

$5,499.99
Buy now, pay later
SKU: D67A6ZQQ In stock

Other options

Merida Espresso 500 EQ Low-Step Electric Bike 630Wh Battery Silk Steel Blue/Grey

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Key Features
  • Lightweight frame with lower top tube for easy mounting
  • SR Suntour NEX E25 suspension fork
  • Smooth, refined Shimano E6100 drive unit, 60Nm torque
  • Internally mounted 630Wh battery
  • Assist speeds up to 32 km/h
  • Approx range 95 - 255km
  • Wide range Shimano 10-speed drivetrain
  • Shimano hydraulic disc brakes
  • Fast-rolling 700c wheels and comfortable, grippy 50 mm tyres
  • Fully equipped with guards, lights, lock, rack and kickstand
Life can feel awfully busy at times, which is why the eSPRESSO 500 EQ is designed to get you where you need to go with a minimum of fuss. The refined Shimano E6100 drive unit is paired with a long-lasting 630 Wh battery to give smooth, time-saving pedal-assistance. Whether it's getting across town to see friends, commuting to work or carrying the shopping home, it's equipped to keep you safe and secure thanks to a long list of standard fit accessories, while a suspension fork delivers extra comfort and control. The smooth Shimano 10-speed drivetrain gives a wide range of gears for all kinds of terrain, while powerful hydraulic disc brakes are low maintenance too.
Accessories: Carrier: MERIDA MIK HD, Kickstand: Massload CL-KA9, Frame Lock: Abus 5650 LH-3 lock8
Axles: MERIDA COMP TR
Battery: Shimano E8036
Brakes: Shimano MT200
Chain: KMC e10S EPT
Chainwheel: Shimano CRE61
Colour (text): SILK STEEL BLUE (GUNMETAL GREY)
Crankset: Shimano FC-EM600
Derailleur rear: Shimano Deore M5120
Display: Shimano SC-E5000A
Fender: Sunnywheel SW-FA311-60E1 (MSB)
Fork: SR Suntour NEX E25
Frame: eSPRESSO LITE III
Freewheel: Shimano M4100
Grip: MERIDA EXPERT TK
Handlebar: MERIDA EXPERT TK
Handlebar stem: MERIDA EXPERT CT
Headset: MERIDA 8156
Hubs: Shimano TX505 / Shimano MT400
Light(s): Front: Herrmans H-Black MR4 E, Rear: Spanninga Commuter Glow XE
Motor drive unit: Shimano E6100
Pedals: VP VPE-891
Rim: MERIDA COMP TK
Rotor front: Shimano RT10
Rotor rear: Shimano RT10
Saddle: MERIDA EXPERT TK
Season: 2022
Seat clamp: MERIDA EXPERT
Seat post: MERIDA EXPERT CC
Spokes: Black stainless
Tyres: Continental Ride Cruiser
Wheel size: 700c

Frame SizeXSSMLXL
Tyre Sizes28"28"28"28"28"
ST seat tube [mm]430470510550590
TT top tube [mm]580590600620640
CS chain stay length [mm]478478478478478
HTA head tube angle [°]6969.569.57070
STA seat tube angle [°]7574.574.57474
BD bottom bracked drop [mm]7575757575
HT head tube [mm]133140155175205
FL fork length [mm]489489489489489
R reach [mm]409410416424436
S stack [mm]640649663684712
WB wheel base [mm]11451144115511641187
SH stand over height [mm]733768802836873


Merida Electric Trekking Bike Sizing Chart

99 Bikes Merida Electric Trekking Bike Sizing Chart

Merida Bikes Warranties

Lifetime warranty on all frames


Lifetime warranty on all frames for the entire ownership of the original purchaser. This covers manufacturing and material defects. No exclusions for racing. Rider and equipment weight limit: 120kg for standard bikes; 140kg for e-Bikes. Proof of purchase must be presented. (frames from model year 2015 onwards). *Conditions apply. *The lifespan of a bike is up to ten years.

Forks: Carbon and aluminium rigid forks are guaranteed for 5 years from the date of purchase

Suspension: Rear suspension components are guaranteed for 2 years from the date of purchase

All other MERIDA branded components, including paint and finish, are guaranteed for 1 year from the date of purchase.


The Merida Warranty Excludes:

Componentry which isn’t Merida branded (see below)
Normal wear and tear
Damage caused by accidents, neglect or abuse
Improper assembly
Improper follow-up maintenance; all bikes must be serviced by an authorised MERIDA dealer within 6 months of purchase. Suspension systems must be serviced annually by an authorised dealer
Modification or alteration of the frame or original components

Branded Components

Issues relating to branded original components, such as Shimano or SRAM are the responsibility of the appropriate component manufacturer’s warranty and subject to their terms and conditions.

In the case of branded components failing, please contact your local MERIDA stockist who will liaise with the relevant distributor on your behalf.

If the cause of the fault isn’t initially clear based on the information and photos your MERIDA stockists provides, the defective product may need to be returned to MERIDA Bicycles Ltd for closer inspection.

Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.

The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
