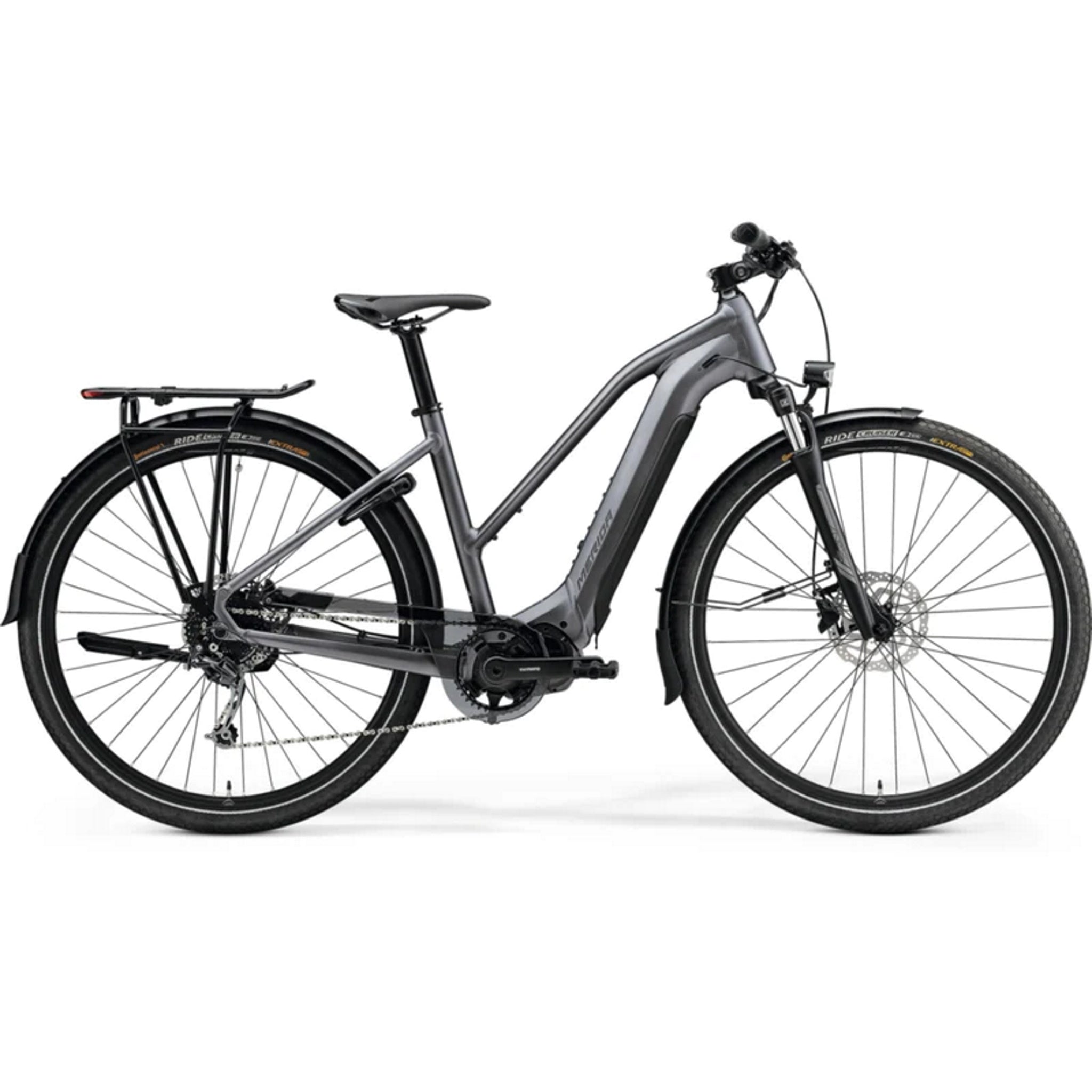

Merida Espresso 400 S EQ L Electric Bike 500Wh Battery / EP600 Motor Matt Dark Silver

Brand: Merida

SKU: TR3UEXTX

Size: XS

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Steep Hills & Heavy Loads / 85 Nm Torque

Up to 59 km Range

Shimano STePS EP6 Motor

Alloy Frame/ Suntour Alloy Fork

under 100mm Front Travel

504Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

This city e-bike is all about getting you where you're going with a minimum of fuss, thanks to a high-spec frame with reliable equipment and smooth pedal-assistance from Shimano.

Life can feel awfully busy at times, which is why the eSPRESSO L 400 EQ is designed to get you where you need to go with a minimum of fuss. Shimano’s sporty trekking focused EP600 drive unit offers a whopping 85Nm of torque and is paired with a 504Wh internally mounted battery. Equipped with gear to provide reliability and minimum maintenance without the big price tag such as the 9 speed Shimano mixed drivetrain, powerful Shimano hydraulic disc brakes, Suntour front suspension fork and fast rolling Merida 700c wheels. Whether it's getting across town to see friends, commuting to work or carrying the shopping home, it's equipped to keep you safe and secure thanks to a long list of accessories already included, from the fenders to keep clothing clean, to the rear carrier rack, kickstand and integrated front and rear lights.

Key Features

Powerful EP600 motor for smooth rides
500Wh battery for extended range
Stylish Matt Dark Silver finish
Integrated lights for safety and visibility
Comfortable geometry for urban commuting

Specifications

Product Overview

Product

Merida Espresso 400 S EQ L Electric Bike 500Wh Battery / EP600 Motor Matt Dark Silver

Brand

Merida

Parent SKU

CB882TMZ

Year Model

2022

Product Features

Frame Material

Alloy

Colour

Silver

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

1 x 9

Fork Material

Alloy

Front Travel

under 100mm

Weight

24.9 kg weighed with 700C wheels and at frame size S

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Torque (Nm)

Motor Climbing Ability

Steep Hills & Heavy Loads

Battery Size (Watt-Hours)

504

Battery

Shimano E8035 500Wh

Max. Range (KMs)

Display

Shimano SC-E5000

Build

Frame

eSPRESSO L LITE II material: aluminium 700x50C (with fender) max. wheelsize 142x12mm axle standard intube max. 504 Wh

Fork

Suntour NEX E25 Coil 63mm suspension travel 700x52C max wheelsize

Handlebars

MERIDA EXPERT TK material: aluminium 660mm width 15mm rise

Headset

MERIDA 2346 Neck

Grips

MERIDA EXPERT TK

Stem

MERIDA EXPERT CT material: aluminium 31.8mm diameter adjustable 90 mm-XS/S/M, 110 mm-L/XL

Pedals

VP VPE-891

Saddle

MERIDA EXPERT TK V-mount

Seat Post

MERIDA EXPERT CC material: aluminium 34.9mm diameter 0mm setback

Seat Clamp

MERIDA EXPERT

Accessories

CHAINGUARD: Sunnywheel SW-CG-173A / CARRIER: MERIDA MIK HD Carrier with Spring clip & Spanninga rear light / KICKSTAND: Massload CL-KA98

Wheels

Wheel Size

700c

Rims

MERIDA COMP TK 20mm inner width material: aluminium

Hubs

FRONT: Shimano TX505 100x9mm width front hub 32 spoke holes Centerlock / REAR: Shimano MT400 142x12mm width rear hub 36 spoke holes Centerlock

Spokes

Black stainless

Groupset

Crankset

Shimano FC-E6100 170 mm

Chain

KMC e9S

Brakes

Shimano MT-200 2 piston

Front Rotor

Shimano RT10 180 mm

Rear Rotor

Shimano RT10 180 mm

Shifters

Shimano Alivio M3100

Rear Derailleur

Shimano Deore M592 SGS

Cassette

9 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.
