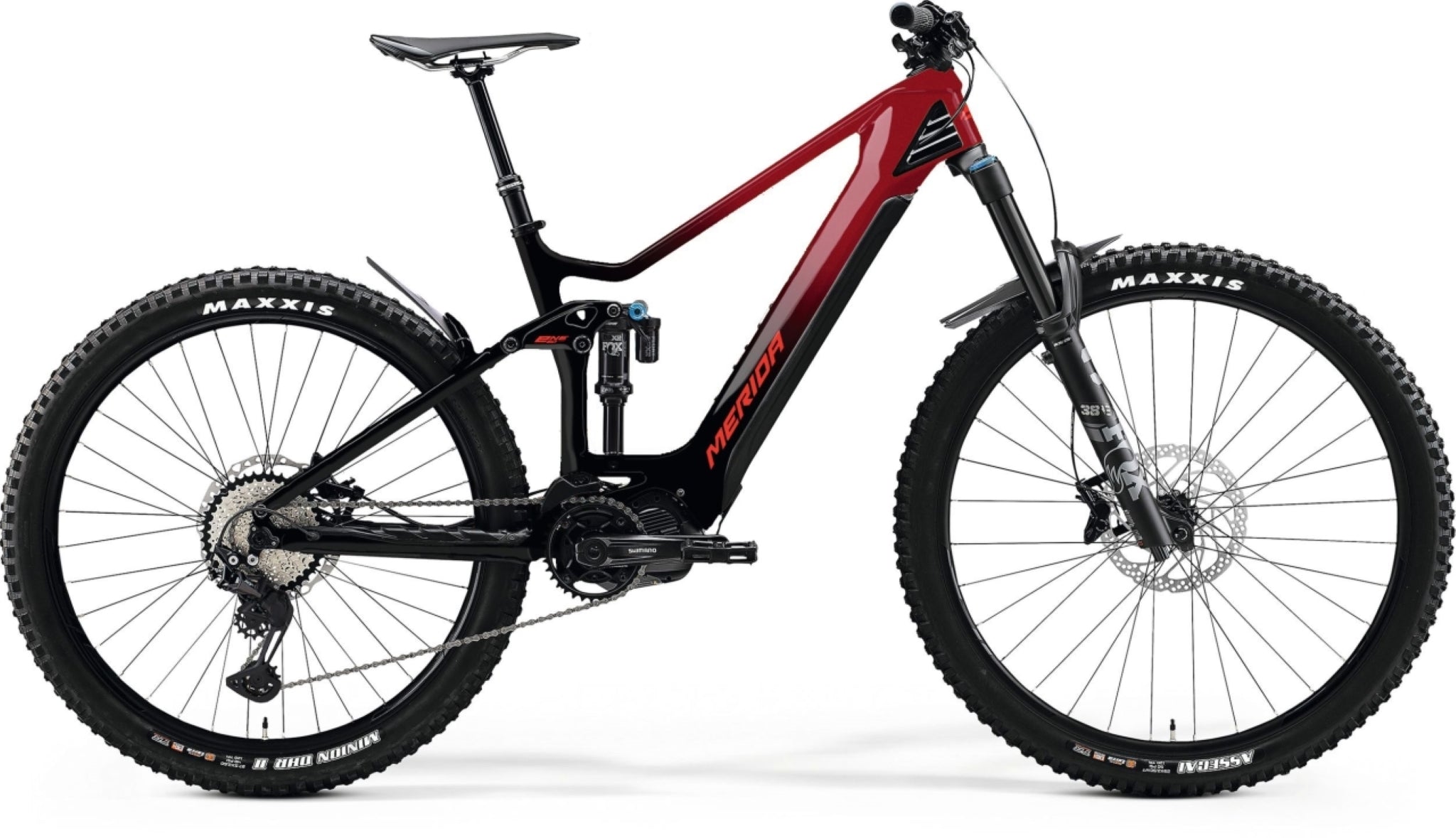

Merida eOne Sixty 9000 Electric Enduro Bike 630Wh Battery Dark Strawberry Black Fade

$13,520
?

You automatically get Club Price when buying online. But there are extra benefits if you join Club 99.

$13,799.99
Buy now, pay later
SKU: K6NHP8NE Low stock

Other colours

Merida eOne Sixty 9000 Electric Enduro Bike 630Wh Battery Dark Strawberry Black Fade

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Key Features
  • Lightweight carbon frame with aluminium rear triangle
  • FOX 38 Elite eMTB+ Air 160mm fork
  • Shimano EP8 motor, 85Nm torque
  • Internally mounted 630Wh battery
  • Assist speeds up to 32 km/h
  • Approx range 30 - 80km on singletrack, 100 - 270km on flat
  • FOX Float DPX2 Elite platform 150mm shock
  • Shimano XT 4 piston hydraulic disc brakes
  • Mullet wheel setup, 29" front 27.5" rear
  • THERMO GATE and WIRE PORT eBike tech
They say it’s the quiet ones you need to watch. That’s definitely the case with the Merida eOne Sixty 9000 Electric Enduro Bike. It doesn’t need to shout to prove it can walk the walk, with kit that serves up the perfect blend of top-level performance tempered with value. Fox’s Performance suspension with a 160mm 38 fork and DPX2 shock make light work of anything the trail can throw at you. The new Shimano LinkGlide drivetrain is a durability benchmark. Add in the powerful Shimano EP8 motor and high-capacity 630 Wh battery and you’ll be ready to shred over and over - and over - again. The eONE-SIXTY has become the most decorated, tested, and awarded bike in Merida'shistory. E-Mountainbike gave it the 'BEST IN TEST' approval in their 'Best of 2021' eMTB group test, World of MTB also gave it their 'Best of 2021' award and FREERIDE gave the 9000 the almost perfect score of 9.5 out of ten, just to mention a few. Equipped with the proven EP8 motor from Shimano as well as with the range extending 630 Wh internal battery. A perfectly tuned MTB geometry, paired with a stiff and lightweight carbon front triangle and tough aluminium rear, seamlessly integrated battery, and a mixed wheel size combo that delivers poise and confidence on the toughest trails, the Merida eOne Sixty 9000 Electric Enduro Bike certainly looks great on paper, but isn't it about time you give it a spin yourself and find out why the pros, criticism, and everyday riders love it so much?
Accessories: Shimano EC-E8004
Axles: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Battery: Shimano E8036 630Wh / Shimano E8035 504Wh for XS only
Brakes: Shimano XT 4-piston
Cassette: Shimano LG600
Chain: CNLG500
Chainwheel: Shimano CRE80-B 34 teeth
Colour (text): Red
Crankset: Shimano FCEM900 165 mm hollow
Derailleur rear: Shimano XT RDM8130 Shadow+ 11
Display: Shimano SC-EM800
Fender: F: C093-02F | R: C093-02R
Fork: FOX 38 Elite eMTB+ Air 160mm suspension travel Tapered 51mm fork offset 29x2.6" max wheelsize
Frame: eOne-Sixty CFA II material: carbon 150mm suspension travel 27.5x2.8" max. wheelsize 148x12mm axle standard intube max. 630 Wh
Grip: MERIDA EXPERT EC
Handlebar: MERIDA EXPERT eTR 780mm width 20mm rise
Handlebar stem: MERIDA EXPERT eTR II material: aluminium 35mm diameter 0° stem angle Supernova mount 40 mm
Headset: MERIDA 8152
Light(s): F: LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount | R: LEZYNE LED FEMTO USB REAR STVZO
Motor drive unit: Shimano EP8
Pedals: VP VPE-527
Rim: DT Swiss Spline HX1501 ONE 30 boost
Rotor front: Shimano RT-MT900 203mm
Rotor rear: Shimano RT-EM910 203mm
Saddle: Merida Expert CC V-mount
Season: 2022
Seat clamp: MERIDA EXPERT
Seat post: Merida Expert TR 30.9mm diameter 0mm setback XS 100mm travel seatpost - S 125mm travel seatpost - M 150mm travel seatpost - L/XL 170mm travel seatpost
Shock: FOX Float DPX2 Elite platform
Tyre front: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip
Tyre rear: Maxxis DHR II; 27.5x2.6 "; fold; 3C EXO+ TR
Wheel size: 29" / 27.5" (Mullet Bike)
Bike Frame Geometry Image

Frame SizeXSSMLXL
Tyre Sizes29/27.5"29/27.5"29/27.5"29/27.5"29/27.5"
ST seat tube [mm]405420440470500
TT top tube [mm]563584605629652
CS chain stay length [mm]439.5439.5439.5439.5439.5
HTA head tube angle [°]65.565.565.565.565.5
STA seat tube angle [°]75.575.575.575.575.5
BD bottom bracked drop [mm]17.517.517.517.517.5
HT head tube [mm]110115120135150
FL fork length [mm]571571571571571
R reach [mm]400420440460480
S stack [mm]628.5633637.5651.5665
WB wheel base [mm]1168119012121238.51265
SH stand over height [mm]742737733740
754

Merida Electric Mountain Bike Sizing Chart

99 Bikes Merida Electric Mountain Bike Sizing Chart

Merida Bikes Warranties

Lifetime warranty on all frames


Lifetime warranty on all frames for the entire ownership of the original purchaser. This covers manufacturing and material defects. No exclusions for racing. Rider and equipment weight limit: 120kg for standard bikes; 140kg for e-Bikes. Proof of purchase must be presented. (frames from model year 2015 onwards). *Conditions apply. *The lifespan of a bike is up to ten years.

Forks: Carbon and aluminium rigid forks are guaranteed for 5 years from the date of purchase

Suspension: Rear suspension components are guaranteed for 2 years from the date of purchase

All other MERIDA branded components, including paint and finish, are guaranteed for 1 year from the date of purchase.


The Merida Warranty Excludes:

Componentry which isn’t Merida branded (see below)
Normal wear and tear
Damage caused by accidents, neglect or abuse
Improper assembly
Improper follow-up maintenance; all bikes must be serviced by an authorised MERIDA dealer within 6 months of purchase. Suspension systems must be serviced annually by an authorised dealer
Modification or alteration of the frame or original components

Branded Components

Issues relating to branded original components, such as Shimano or SRAM are the responsibility of the appropriate component manufacturer’s warranty and subject to their terms and conditions.

In the case of branded components failing, please contact your local MERIDA stockist who will liaise with the relevant distributor on your behalf.

If the cause of the fault isn’t initially clear based on the information and photos your MERIDA stockists provides, the defective product may need to be returned to MERIDA Bicycles Ltd for closer inspection.

Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.

The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
