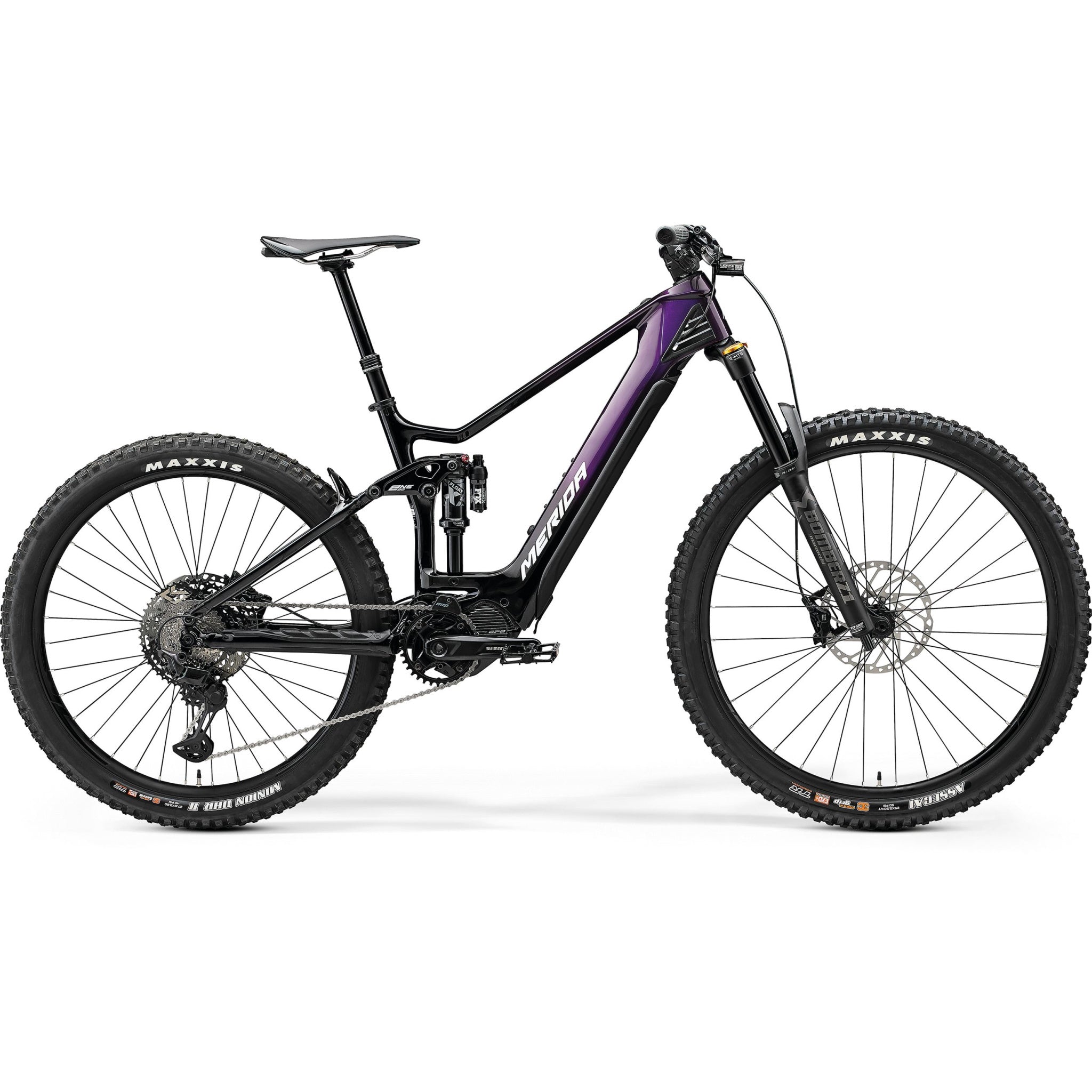

Merida eOne Sixty 8000 Electric Enduro Bike 630Wh Battery (XS/504Wh) Dark Purple/Black

$10,580
?

You automatically get Club Price when buying online. But there are extra benefits if you join Club 99.

$10,799.99
Buy now, pay later
SKU: QH9LKEK6 Low stock

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Key Features
  • Lightweight carbon front/aluminium rear frame
  • Marzocchi Z1 Ebike+ Air 160mm fork
  • Shimano EP8 motor, 85Nm Torque
  • Internally mounted 630Wh battery, 504Wh on size XS
  • Assist speeds up to 32 km/h
  • Approx range 30 - 80km on singletrack, 100 - 270km on flat, 25 - 230km on size XS
  • FOX Float DPX2 Performance shock
  • Shimano XT/SLX 1 x 11 speed drivetrain
  • Shimano SLX hydraulic disc brakes
  • Mullet wheel setup, 29" front 27.5" rear

Merida’s award-winning, lightweight carbon/aluminium frame married to the best high-value kit out there. Seriously shocking eMTB capability without the seriously shocking price tag. By taking the very same, multiple test and award-winning carbon/aluminium frame found on the top-end bikes and marrying it to high-value components, the eONE-SIXTY 8000 proves you don’t need to break the bank to deliver impeccable trail performance. The Marzocchi fork and Fox rear shock keep their cool no matter how rugged the trail gets, while the tough Shimano LinkGlide drivetrain and refined EP8 motor will keep you powering up hills thanks to the high-capacity 630 Wh battery.

Accessories: MERIDA Multitool with saddlebox
Axles: Rear: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Battery: Shimano E8036 630Wh / Shimano E8035 504Wh for XS only, Charger: Shimano EC-E8004
Brakes: Shimano SLX
Cassette: Shimano LG600 11-50 teeth 11 speed
Chain: CNLG500
Chainwheel: Shimano CRE80-B 34 teeth
Crankset: Shimano FCEM600 165 mm
Derailleur rear: Shimano XT RDM8130 Shadow+ 11
Display: Shimano SC-E7000
Fork: Marzocchi Z1 Ebike+; Air; 160 STR; Tapered; 51mm fork offset; 29x2.6" max WHS
Frame: eONE-SIXTY CFA II; MAT carbon; 150 STR; 27.5x2.8" max. WHS; 148x12 AST; intube; max. 630 Wh
Handlebar: MERIDA EXPERT eTR 780mm width 20mm rise
Handlebar stem: MERIDA EXPERT eTR II material: aluminium 35mm diameter 0° stem angle Supernova mount 40 mm
Hubs: Shimano XT 110x15mm width front hub 32 spoke holes Centerlock 148x12mm width rear hub 36 spoke holes Centerlock
Light(s): Front: LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount / Rear: USB REAR Light CG-214RG
Motor drive unit: Shimano EP8
Pedals: VP VPE-527
Rim: MERIDA EXPERT TR 29mm inner width material: aluminium Tubeless ready (tubeless tape and valves not included)
Rotor front: Shimano RT64
Rotor rear: Shimano RTEM600
Saddle: MERIDA EXPERT CC V-mount
Season: 2022
Seat post: MERIDA EXPERT TR / 30.9mm diameter 0mm setback XS 100mm travel seatpost - S 125mm travel seatpost - M 150mm travel seatpost - L/XL 170mm travel seatpost / Lever: Shimano SL -MT500-IL
Shock: FOX Float DPX2 Performance
Tyre front: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip
Tyre rear: Maxxis DHR II; 27.5x2.6 "; fold; 3C EXO+ TR
Weight: Max Rider Weight: 140kg
Wheel size: 29" / 27.5" (Mullet Bike)
Frame SizeXSSMLXL
Tyre Sizes29/27.5"29/27.5"29/27.5"29/27.5"29/27.5"
ST seat tube [mm]405420440470500
TT top tube [mm]563584605629652
CS chain stay length [mm]439.5439.5439.5439.5439.5
HTA head tube angle [°]65.565.565.565.565.5
STA seat tube angle [°]75.575.575.575.575.5
BD bottom bracked drop [mm]17.517.517.517.517.5
HT head tube [mm]110115120135150
FL fork length [mm]571571571571571
R reach [mm]400420440460480
S stack [mm]628.5633637.5651.5665
WB wheel base [mm]1168119012121238.51265
SH stand over height [mm]742737733740754

Merida Dual Suspension Bike Sizing Chart

Merida Bikes Warranties

Lifetime warranty on all frames


Lifetime warranty on all frames for the entire ownership of the original purchaser. This covers manufacturing and material defects. No exclusions for racing. Rider and equipment weight limit: 120kg for standard bikes; 140kg for e-Bikes. Proof of purchase must be presented. (frames from model year 2015 onwards). *Conditions apply. *The lifespan of a bike is up to ten years.

Forks: Carbon and aluminium rigid forks are guaranteed for 5 years from the date of purchase

Suspension: Rear suspension components are guaranteed for 2 years from the date of purchase

All other MERIDA branded components, including paint and finish, are guaranteed for 1 year from the date of purchase.


The Merida Warranty Excludes:

Componentry which isn’t Merida branded (see below)
Normal wear and tear
Damage caused by accidents, neglect or abuse
Improper assembly
Improper follow-up maintenance; all bikes must be serviced by an authorised MERIDA dealer within 6 months of purchase. Suspension systems must be serviced annually by an authorised dealer
Modification or alteration of the frame or original components

Branded Components

Issues relating to branded original components, such as Shimano or SRAM are the responsibility of the appropriate component manufacturer’s warranty and subject to their terms and conditions.

In the case of branded components failing, please contact your local MERIDA stockist who will liaise with the relevant distributor on your behalf.

If the cause of the fault isn’t initially clear based on the information and photos your MERIDA stockists provides, the defective product may need to be returned to MERIDA Bicycles Ltd for closer inspection.

Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.

The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.

View Merida range

Click & Collect Available

• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »

No Courier Delivery

• This item is unavailable to be shipped with a courier More info »

For just $5, you can join Club 99 and you’ll gain access to exclusive benefits that will ensure you make the most of your bike purchase both in store and online. The ride starts with Club 99.

Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
