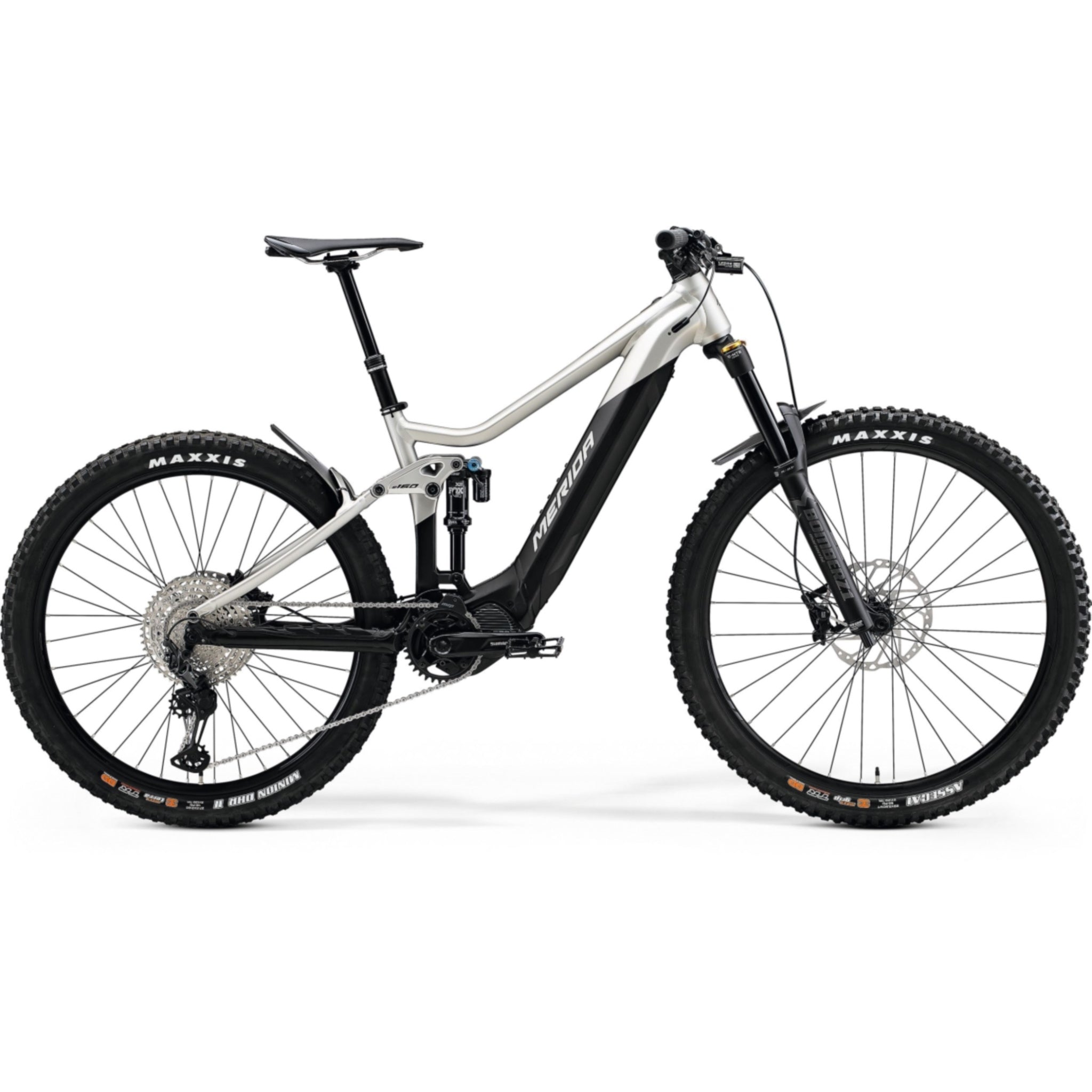

Merida eOne Sixty 700 Electric All-Mountain Bike 630wh Battery (XS/504wh) Matt Titan/Black

$7,299
?

You automatically get Club Price when buying online. But there are extra benefits if you join Club 99.

$9,399.99
Buy now, pay later
20% OFF FULL PRICE
SKU: MEEB2238558 Low stock

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Key Features
  • Multiple award and test winning frame geometry
  • Tough Racelite 61 aluminium chassis
  • Marzocchi Z1 Ebike+ 160mm travel fork
  • Powerful Shimano EP8 drive unit, 85Nn torque
  • Integrated 603Wh battery, 504wh on size XS
  • Assist speeds up to 32 km/h
  • Approx range 30 - 80km on singletrack, 100 - 270km on flat, 25 - 230km on size XS
  • FOX Float DPX2 Performance platform shock
  • Shimano XT/SLX 1x12 speed drivetrain
  • Shimano SLX hydraulic disc brakes
  • Mullet wheel setup, 29er front 27.5” rear
The eOne Sixty has become the most decorated, tested and awarded bike in Merida’s history. This highly anticipated bike managed to collect a vast amount of amazing test results and wins, as well as a few more industry awards to its tally. Riding further and pushing harder is what the eOne Sixty 700 is all about, with a high-value, high-performance all-aluminium frame that houses the refined yet powerful EP8 drive unit and integrated 630Wh battery (504wh on size XS). Add in Merida’s proven geometry and tried and tested suspension and you’ve got a machine that’ll iron out the roughest trails, uphill or down. The eOne Sixty 700 offers up a Marzocchi Z1 Ebike+ 160mm travel fork, paired with a FOX Float DPX2 Performance shock and a mixed Shimano XT/SLX 1x12 speed drivetrain bringing the durability and performance you need. The Shimano SLX hydro disc brakes are fitted with burly 203mm rotors for ultimate stopping power. A 29er/27.5" wheel combo delivers confidence on the toughest trails.
Accessories: MERIDA Multitool with saddlebox
Axles: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Battery: Shimano E8036 630Wh / Shimano E8035 504Wh for XS only / Charger: Shimano EC-E8004
Brakes: Shimano SLX
Chain: KMC e12T EPT
Chainwheel: Shimano CRE80-12-B
Crankset: Shimano FCEM600
Derailleur rear: Shimano XT RDM8100 Shadow+ 12
Display: Shimano SC-E7000
Fork: Marzocchi Z1 Ebike+; Air; 160 STR; Tapered; 51mm fork offset; 29x2.6" max WHS
Frame: eONE-SIXTY LITE III; MAT aluminium; 150 STR; 27.5x2.8" max. WHS; 148x12 AST; intube
Freewheel: Shimano M6100 Cassette
Handlebar: MERIDA EXPERT eTR
Handlebar stem: MERIDA EXPERT eTR II 40 mm all sizes
Hubs: FRONT: Shimano SLX / REAR: Shimano SLX; 148x12 WHR, 36 SPH; Centerlock
Light(s): FRONT: LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount / REAR: USB REAR Light CG-214RG
Motor drive unit: Shimano EP8
Pedals: VP VPE-527
Rim: MERIDA EXPERT TR
Rotor front: Shimano RT64, 203mm
Rotor rear: Shimano RTEM600, 203mm
Saddle: MERIDA EXPERT CC
Season: 2022
Seat post: MERIDA EXPERT TR, Lever: Shimano SL -MT500-IL Dropper
Shock: FOX Float DPX2 Performance
Tyre front: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip
Tyre rear: Maxxis DHR II; 27.5x2.6 "; fold; 3C EXO+ TR
Weight: Max Rider Weight: 140kg
Wheel size: 29" / 27.5" (Mullet Bike)


Frame SizeXSSMLXL
Tyre Sizes29/27.5"29/27.5"29/27.5"29/27.5"29/27.5"
ST seat tube [mm]405415430450470
TT top tube [mm]563584605626647
CS chain stay length [mm]439.5439.5439.5439.5439.5
HTA head tube angle [°]65.565.565.565.565.5
STA seat tube angle [°]75.575.575.575.575.5
BD bottom bracked drop [mm]17.517.517.517.517.5
HT head tube [mm]110115120125130
FL fork length [mm]571571571571571
R reach [mm]400420440460480
S stack [mm]633633638642647
WB wheel base [mm]11701190121212341256
SH stand over height [mm]737736733739753

Merida Electric Mountain Bike Sizing Chart

99 Bikes Merida Electric Mountain Bike Sizing Chart

Merida Bikes Warranties

Lifetime warranty on all frames


Lifetime warranty on all frames for the entire ownership of the original purchaser. This covers manufacturing and material defects. No exclusions for racing. Rider and equipment weight limit: 120kg for standard bikes; 140kg for e-Bikes. Proof of purchase must be presented. (frames from model year 2015 onwards). *Conditions apply. *The lifespan of a bike is up to ten years.

Forks: Carbon and aluminium rigid forks are guaranteed for 5 years from the date of purchase

Suspension: Rear suspension components are guaranteed for 2 years from the date of purchase

All other MERIDA branded components, including paint and finish, are guaranteed for 1 year from the date of purchase.


The Merida Warranty Excludes:

Componentry which isn’t Merida branded (see below)
Normal wear and tear
Damage caused by accidents, neglect or abuse
Improper assembly
Improper follow-up maintenance; all bikes must be serviced by an authorised MERIDA dealer within 6 months of purchase. Suspension systems must be serviced annually by an authorised dealer
Modification or alteration of the frame or original components

Branded Components

Issues relating to branded original components, such as Shimano or SRAM are the responsibility of the appropriate component manufacturer’s warranty and subject to their terms and conditions.

In the case of branded components failing, please contact your local MERIDA stockist who will liaise with the relevant distributor on your behalf.

If the cause of the fault isn’t initially clear based on the information and photos your MERIDA stockists provides, the defective product may need to be returned to MERIDA Bicycles Ltd for closer inspection.

Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.

The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
