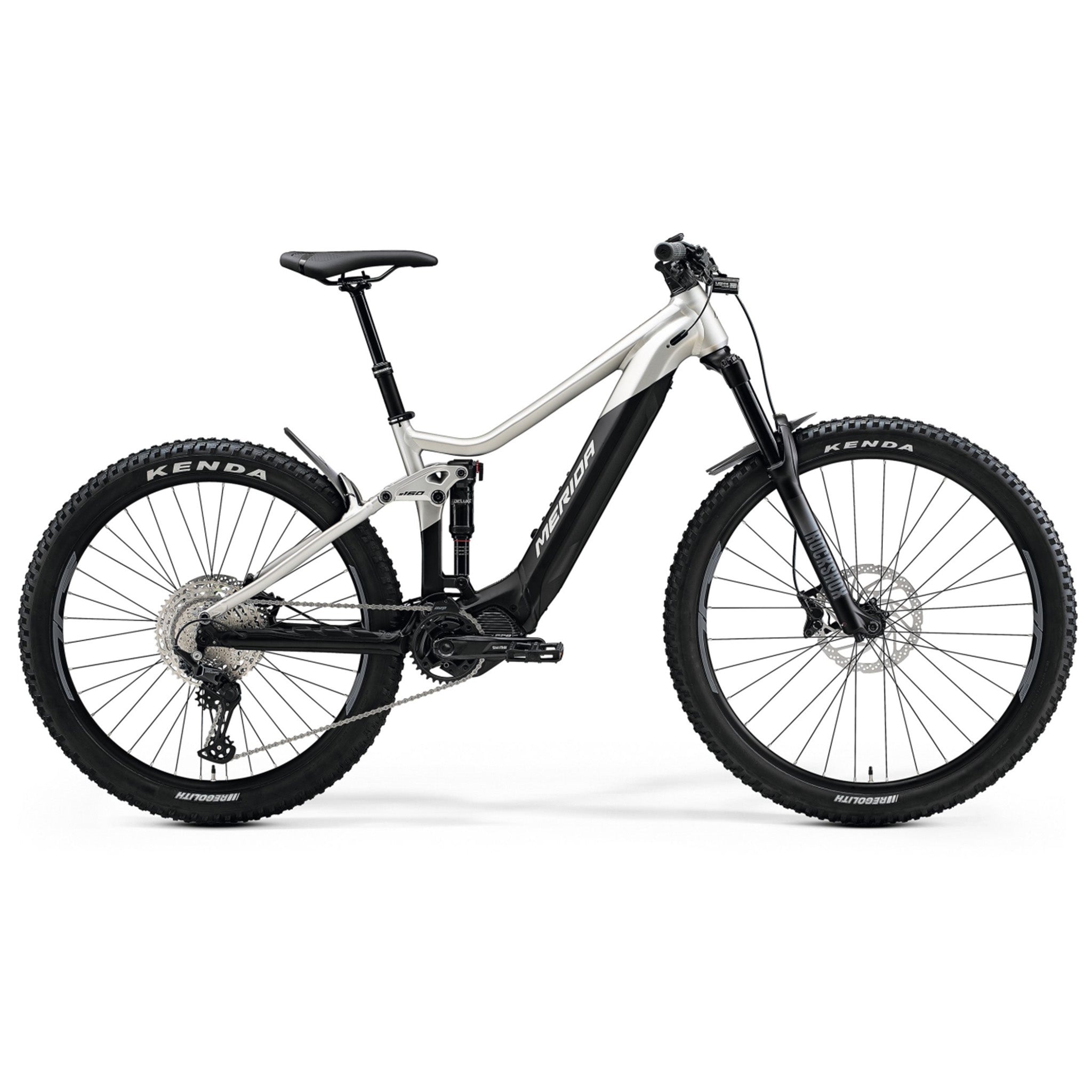

Merida eOne Sixty 500 Electric Enduro Bike 630wh Battery (XS/504wh) Matt Titan/Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Steep Hills & Heavy Loads / 85 Nm Torque

Up to 73 km Range

Shimano STePS EP8 Motor

Alloy Frame/ RockShox Alloy Fork

160mm Front Travel / 150mm Rear

630Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Every ounce of our eMTB know-how goes into the eONE-SIXTY 500, with award-winning handling paired to a sleek, all-aluminium frame that houses a high-capacity 630 Wh battery and powerful Shimano EP8 drive unit. Add in the confidence of long-travel RockShox suspension and the control of powerful Shimano brakes and refined drivetrain and no trail is out of reach. The eONE-SIXTY has become one of the most decorated, tested and awarded bike in MERIDA's history. This highly anticipated bike collected a vast amount of amazing test results and wins, as well as a few more industry awards. E-Mountainbike and World of MTB gave it the 'BEST IN TEST' approval in their 'Best of 2021' eMTB group test and FREERIDE gave it a 9.5 out of ten. A perfectly tuned MTB geometry, paired with a tough all-aluminium frame, seamlessly integrated battery and a 29er/27.5" wheel combo that delivers poise and confidence on the toughest trails, the eONE-SIXTY is ready for anything you can throw at it.

Key Features

High-capacity 630 Wh battery
Powerful Shimano EP8 drive unit
Long-travel RockShox suspension
Award-winning handling and geometry
Durable all-aluminium frame

Specifications

Product Overview

Product

Merida eOne Sixty 500 Electric Enduro Bike 630wh Battery (XS/504wh) Matt Titan/Black

Brand

Merida

Parent SKU

HPOCYL01

Size SKUs

XS: MEEB2238451
SM: MEEB2238462
MD: MEEB2238473
LG: MEEB2238484
XL: MEEB2238495

Matrix Barcodes

XS: 4710949836559
SM: 4710949836535
MD: 4710949836528
LG: 4710949836511
XL: 4710949836542

Year Model

2022

Product Features

Frame Material

Alloy

Colour

Grey

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Fork Material

Alloy

Front Travel

160mm

Rear Travel

150mm

Charge Time

Weight Limit

140kg

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Torque (Nm)

Motor Climbing Ability

Steep Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Battery

Shimano E8036 630Wh / Shimano E8035 504Wh for XS only

Max. Range (KMs)

Charge Time (Hours)

Display

Shimano SC-E5003A

Build

Frame

eONE-SIXTY LITE III; MAT aluminium; 150 STR; 27.5x2.8" max. WHS; 148x12 AST; intube;

Fork

Rock Shox 35 Gold RL; Air; 160 STR; Tapered; 51mm fork offset; 29x2.8" max WHS

Shock

Rock Shox Deluxe Select+

Handlebars

MERIDA EXPERT eTR

Headset

MERIDA-8152

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTR II

Pedals

VP VPE-537

Saddle

MERIDA COMP SL

Seat Post

MERIDA COMP TR

Seat Clamp

MERIDA EXPERT clamp

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

MERIDA COMP TR

Hubs

Shimano MT400-B

Tyres

Kenda Regolith

Spokes

Black stainless

Groupset

Crankset

Shimano FCEM600

Chain

KMC e11S EPT

Brakes

Shimano M4204

Front Rotor

Shimano RT30

Rear Rotor

Shimano RTEM300

Shifters

Shimano Deore M5100 11

Rear Derailleur

Shimano Deore RDM5100 11

Cassette

11 Speed
