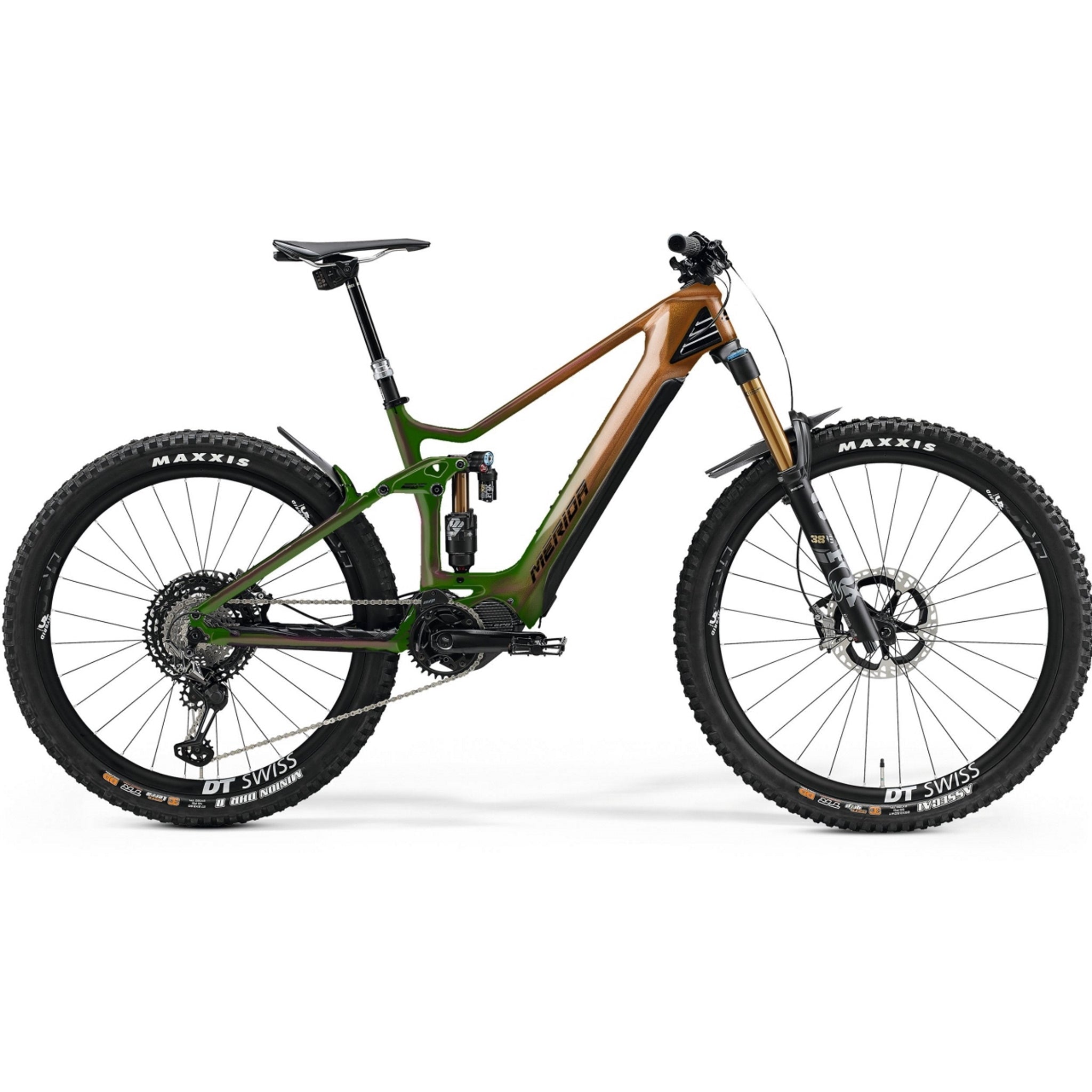

Merida eOne Sixty 10K Electric Enduro Bike 630Wh battery Metallic Brown/Chameleon


You automatically get Club Price when buying online. But there are extra benefits if you join Club 99.

Buy now, pay later
SKU: 08NDMSUX Low stock

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Key Features
  • Top of the range model of award winning eOne Sixty
  • Lightweight carbon front/aluminium rear frame
  • Shimano EP8 motor, 85Nm torque
  • Internally mounted 630Wh battery
  • Assist speeds up to 32 km/h
  • Approx range 30 - 80km on singletrack, 100 - 270km on flat
  • Fox Factory level suspension 160/150mm travel split
  • Shimano XTR 12 speed drivetrain
  • Shimano XTR 4-piston hydraulic disc brakes
  • Maxxis Tyres, Mullet setup 29" front 27.5" rear
Best eMTB in the world? That’s what people keep saying. This highly anticipated bike managed to collect a vast amount of amazing test results and wins, as well as a few more industry awards to its tally. The most inspiring and fun-packed eOne Sixty yet, the 10K is the test and award-winning flagship of Merida’s eOne Sixty range, delivering sublime performance thanks to a mix of the finest components and proven design. Loaded with top drawer components including XTR drivetrain and matching 4-piston disc brakes, Fox Factory level suspension, carbon DT Swiss wheelset and powerful Shimano EP8 motor, the carbon/aluminium frame offers up a stiff and lightweight carbon front triangle and tough aluminium rear with a seamlessly integrated high-capacity 630Wh battery and features modern yet balanced e-enduro geometry. Best e-bike in the world? You don't have to take our word for it - just look at the tally of test wins.
Accessories: Included: MERIDA Multitool with saddlebox
Axles: REAR: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Battery: Shimano E8036 630Wh / Charger: Shimano EC-E8004
Brakes: Shimano XTR
Chain: KMC e12T EPT
Chainwheel: Shimano CRE80-12-B
Crankset: Shimano FCEM900
Derailleur rear: Shimano XTR Shadow+
Display: Shimano SC-EM800 / Mode Switch: Shimano SW-EM800-L
Fork: FOX 38 Factory eMTB+; Air; 160 STR; Tapered; 51mm fork offset; 29x2.6" max WHS
Frame: eONE-SIXTY CFA II; MAT carbon; 150 STR; 27.5x2.8" max. WHS; 148x12 AST; intube; max. 630 Wh
Freewheel: Shimano M9100 Cassette
Handlebar stem: MERIDA EXPERT eTR II 40 mm all sizes
Motor drive unit: Shimano EP8
Pedals: VP VPE-527
Rim: DT Swiss Spline HXC1501 spline 30 boost
Rotor front: Shimano RT-MT900
Rotor rear: Shimano RT-EM910
Season: 2022
Shock: FOX Factory Float X2
Tyre front: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip
Tyre rear: Maxxis DHR II; 27.5x2.6 "; fold; 3C EXO+ TR
Weight: Max Rider Weight: 140kg
Wheel size: 29" / 27.5" (Mullet Bike)
Frame Size
Tyre Sizes29/27.5"29/27.5"29/27.5"29/27.5"29/27.5"
ST seat tube [mm]405420440470500
TT top tube [mm]563584605629652
CS chain stay length [mm]439.5439.5439.5439.5439.5
HTA head tube angle [°]65.565.565.565.565.5
STA seat tube angle [°]75.575.575.575.575.5
BD bottom bracked drop [mm]17.517.517.517.517.5
HT head tube [mm]110115120135150
FL fork length [mm]571571571571571
R reach [mm]400420440460480
S stack [mm]628.5633637.5651.5665
WB wheel base [mm]1168119012121238.51265
SH stand over height [mm]742737733740754

Merida Electric Mountain Bike Sizing Chart

99 Bikes Merida Electric Mountain Bike Sizing Chart

Merida Bikes Warranties

Lifetime warranty on all frames

Lifetime warranty on all frames for the entire ownership of the original purchaser. This covers manufacturing and material defects. No exclusions for racing. Rider and equipment weight limit: 120kg for standard bikes; 140kg for e-Bikes. Proof of purchase must be presented. (frames from model year 2015 onwards). *Conditions apply. *The lifespan of a bike is up to ten years.

Forks: Carbon and aluminium rigid forks are guaranteed for 5 years from the date of purchase

Suspension: Rear suspension components are guaranteed for 2 years from the date of purchase

All other MERIDA branded components, including paint and finish, are guaranteed for 1 year from the date of purchase.

The Merida Warranty Excludes:

Componentry which isn’t Merida branded (see below)
Normal wear and tear
Damage caused by accidents, neglect or abuse
Improper assembly
Improper follow-up maintenance; all bikes must be serviced by an authorised MERIDA dealer within 6 months of purchase. Suspension systems must be serviced annually by an authorised dealer
Modification or alteration of the frame or original components

Branded Components

Issues relating to branded original components, such as Shimano or SRAM are the responsibility of the appropriate component manufacturer’s warranty and subject to their terms and conditions.

In the case of branded components failing, please contact your local MERIDA stockist who will liaise with the relevant distributor on your behalf.

If the cause of the fault isn’t initially clear based on the information and photos your MERIDA stockists provides, the defective product may need to be returned to MERIDA Bicycles Ltd for closer inspection.

Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.

The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
