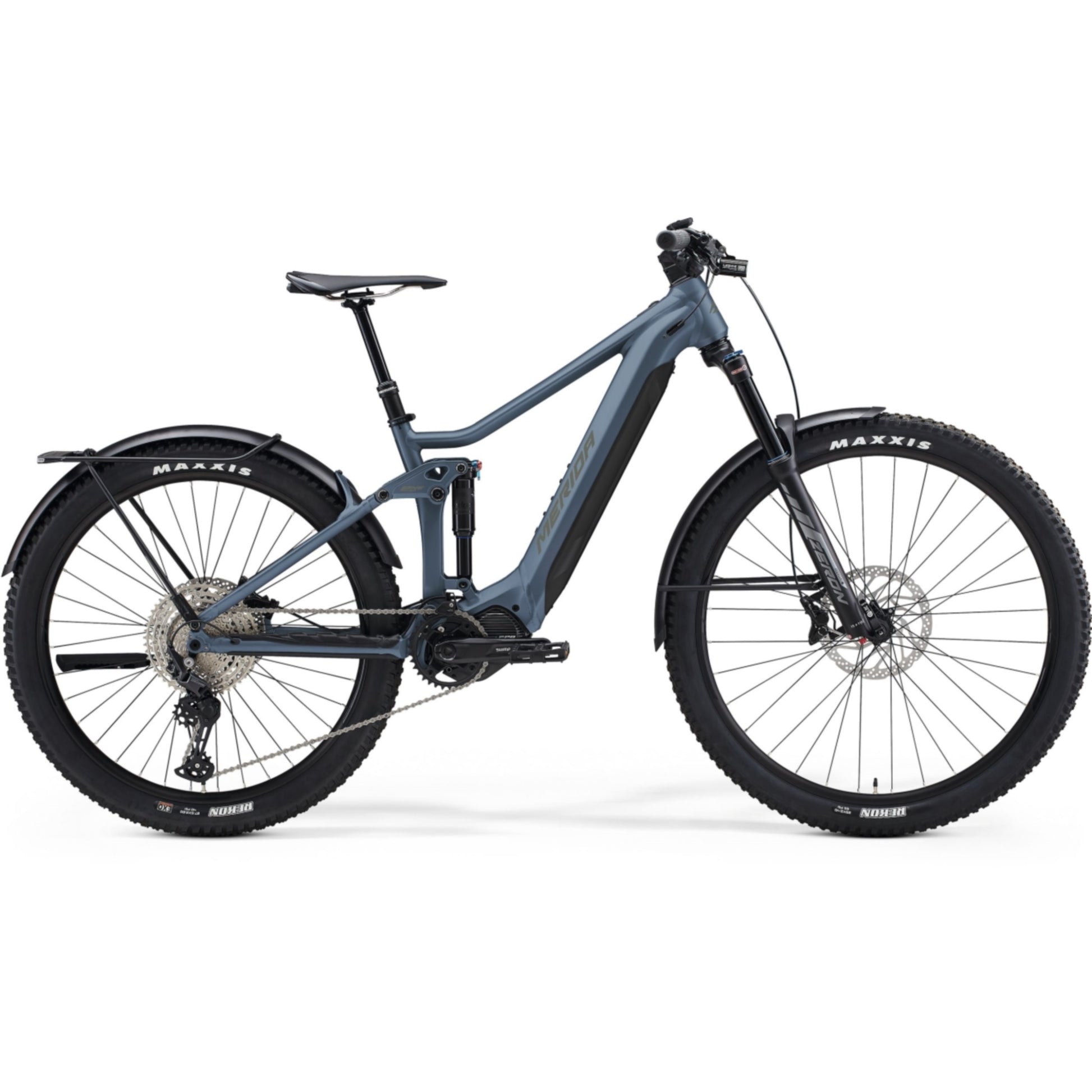

Merida eOne Forty EQ Electric Mountain Bike 630Wh Battery (SM/504Wh) Silk Steel Blue/Grey

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$5,499.00 Full price

$5,499.00

Club price

$8,499.99 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

92 km Range

Shimano STePS EP8 Motor

Alloy Frame/ Suntour Alloy Fork

140mm Front Travel / 130mm Rear

630Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The ultimate crossover. The eOne Forty EQ thrives in rugged terrain, whether it's potholed city streets or weekend rides in the dirt. The powerful Shimano EP8 drive unit is paired to a sleekly integrated high-capacity 630Wh battery (504Wh size small) in a tough all-aluminum frame. When it comes to providing agile trail handling with superb flow and fun, the eOne Forty EQ plays second fiddle to no-one. The trail-specific, balanced geometry is paired to a mixed 29er/27.5” wheels that delivers flow and fun for riders of all abilities, while a steeper seat angle boosts climbing capability, something ideal for an all-day e-bike mission. The low bottom bracket and lower standover height mean extra confidence while the 140mm of front wheel and 133mm of rear wheel travel offer up control, comfort and real rough terrain capability. The eOne Forty’s versatility is boosted even further by the EQ fit out, meaning it comes fully equipped with mudguards, rack, lights and kickstand.

Key Features

Tough all-aluminium chassis with internally routed cables
Powerful Shimano EP8 drive unit
integrated 630Wh battery (503Wh Small size)
Mixed 29/27.5” wheel size setup with 140/130 mm travel split
Quality SR Suntour suspension
Smooth 11-speed Shimano drivetrain
Powerful four-piston hydraulic disc brakes
Fully equipped with mudguards, rack, lights and kickstand

Specifications

Product Overview

Product

Merida eOne Forty EQ Electric Mountain Bike 630Wh Battery (SM/504Wh) Silk Steel Blue/Grey

Brand

Merida

Parent SKU

RX4Z9MPV

Size SKUs

SM: MEEB2243827
MD: MEEB2243838
LG: MEEB2243849
XL: MEEB2243850

Matrix Barcodes

SM: 4710949836382
MD: 4710949836375
LG: 4710949836368
XL: 4710949836399

Year Model

2022

Product Features

Frame Material

Alloy

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Fork Material

Alloy

Front Travel

140mm

Rear Travel

130mm

Weight

24.88 kg weighed with 29" wheels and at frame size M, without pedals, incl. lights

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Battery

Shimano E8036 630Wh / E8035 504Wh S

Max. Range (KMs)

Display

Shimano SC-E5003

Build

Frame

eONE-FORTY LITE III material: aluminium 133mm suspension travel 27.5x2.8" max. wheelsize 148x12mm axle standard intube max. 630 Wh

Fork

Suntour ZERON 35-Boost LOR Air 140mm suspension travel Tapered 51mm fork offset 29x2.4" max wheelsize

Shock

SUNTOUR RS-EDGE-TR-LO-R8-M6 lockout

Headset

MERIDA-8152

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTRII material: aluminium 35mm diameter 0° stem angle GoPro & Supernova mount 50 mm all sizes

Pedals

VP VPE-537

Saddle

MERIDA EXPERT CC V-mount

Seat Post

MERIDA COMP TR 30.9mm diameter 0mm setback S 100mm travel seatpost - M/L 125mm travel seatpost - XL 150mm travel seatpost

Seat Clamp

MERIDA EXPERT clamp

Accessories

Rear Carrier Included: MERIDA MA006 / Kickstand included: Atranvelo ED-100-PC

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

MERIDA COMP TR 29mm inner width material: aluminium Tubeless ready (tubeless tape and valves not included)

Hubs

FRONT: Shimano MT400-B 110x15mm width front hub 32 spoke holes Centerlock / REAR: Shimano MT400-B 148x12mm width rear hub 36 spoke holes Centerlock

Spokes

Black stainless

Groupset

Chain

HG601-11

Brakes

Shimano M4100 4 piston

Front Rotor

Shimano RT30 203 mm

Rear Rotor

Shimano RTEM300 203 mm

Cassette

11 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne Forty EQ Electric Mountain Bike 630Wh Battery (SM/504Wh) Silk Steel Blue/Grey we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

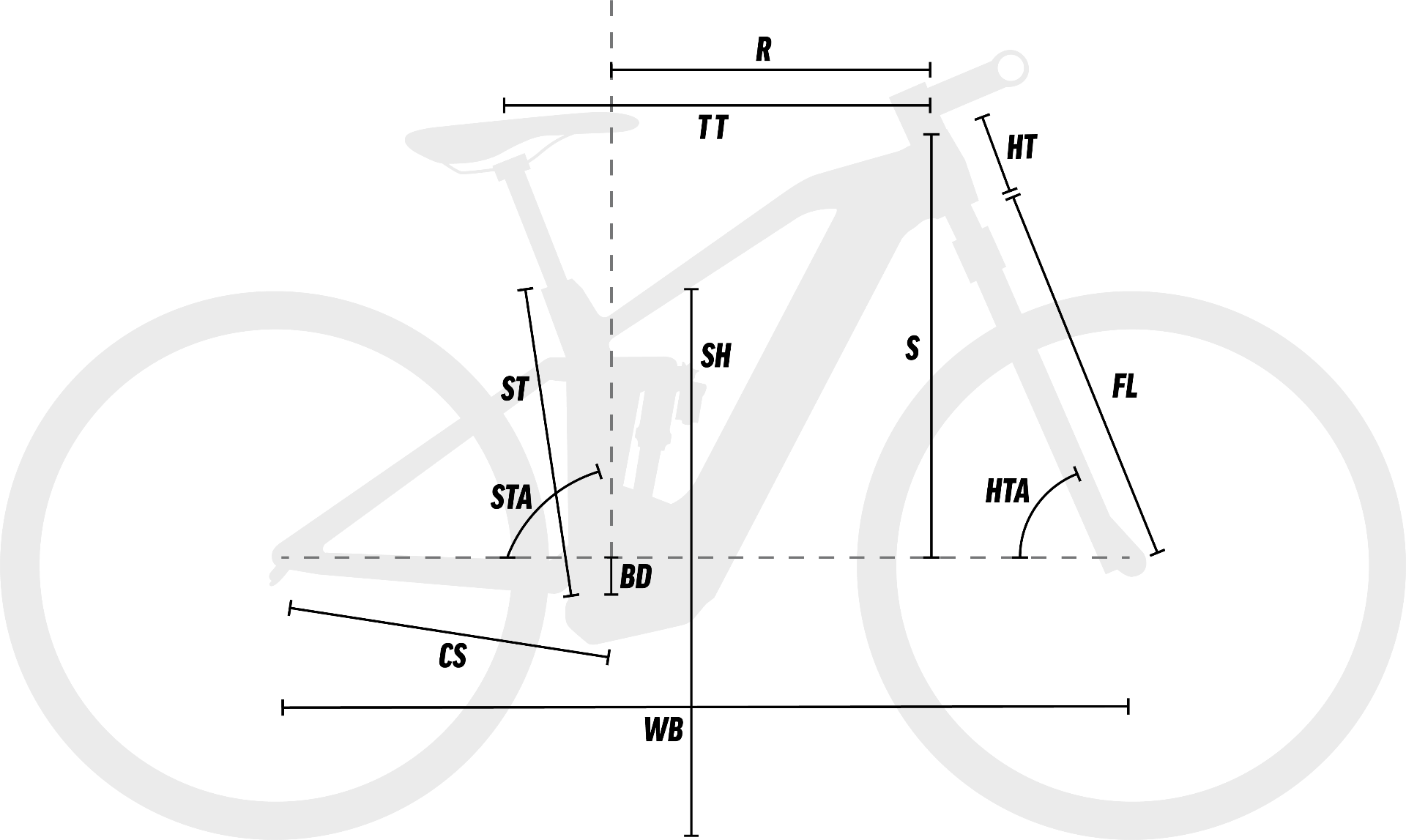

Merida eOne Forty EQ Electric Mountain Bike 630Wh Battery (SM/504Wh) Silk Steel Blue/Grey geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Mullet Bike)

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
