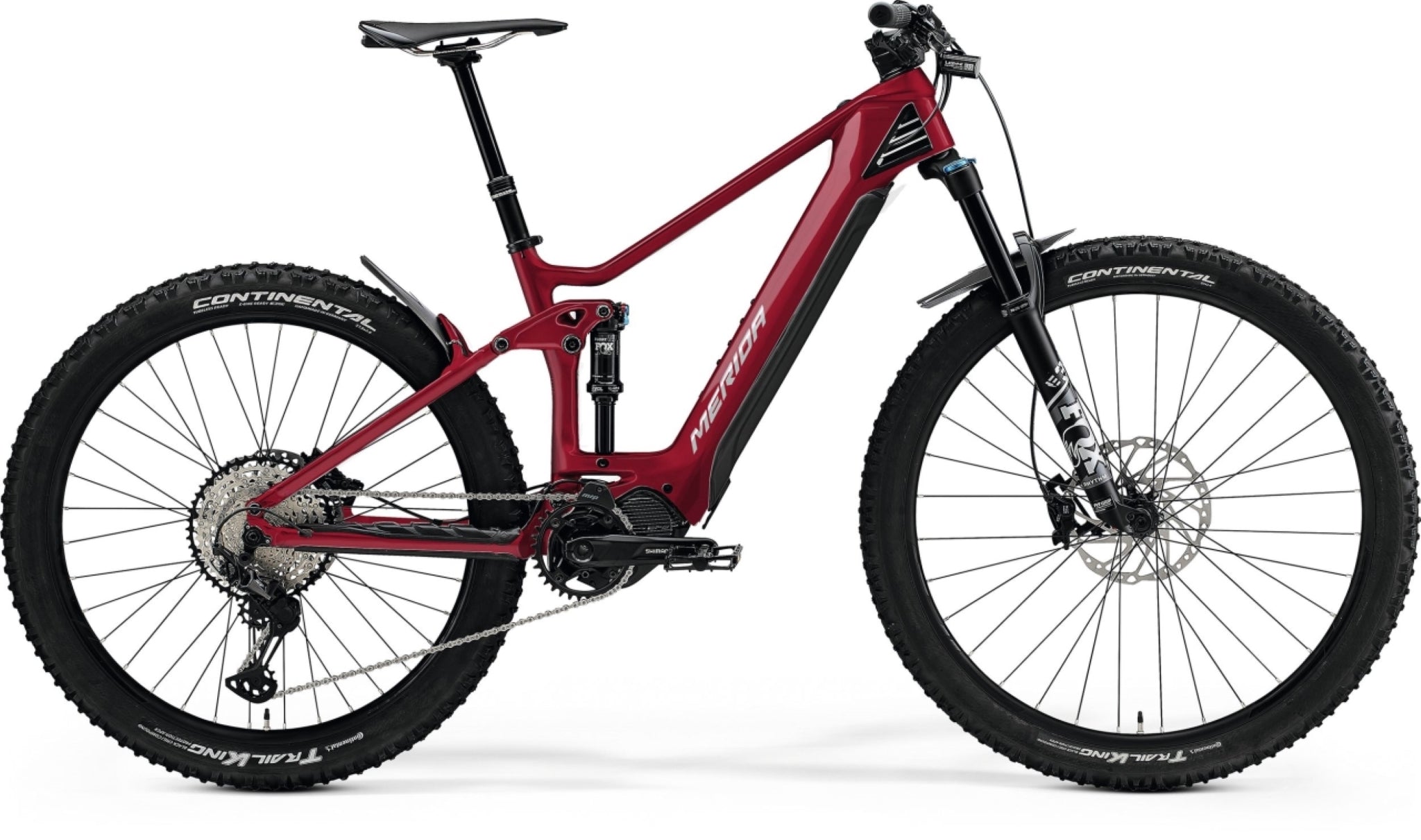

Merida eOne Forty 8000 Electric Trail Bike 630Wh Battery Dark Strawberry/Ti Flash


You automatically get Club Price when buying online. But there are extra benefits if you join Club 99.

Buy now, pay later
SKU: YFTF1EKG Low stock

Other colours

Merida eOne Forty 8000 Electric Trail Bike 630Wh Battery Dark Strawberry/Ti Flash

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Key Features
  • Lightweight carbon front/aluminium rear frame
  • FOX Rhythm 34 Float eMTB+ Air, 140mm fork
  • Shimano EP8 motor, 85Nm torque
  • Internally mounted 630Wh battery
  • Assist speeds up to 32 km/h
  • Approx range 30 - 80km on singletrack, 100 - 270km on flat
  • FOX Performance Float DPS with lockout
  • Shimano XT 1 x 11 speed drivetrain
  • Shimano SLX 4-Piston hydraulic disc brakes
  • Mullet wheel setup, 29" front 27.5" rear
  • THERMO GATE and WIRE PORT Ebike tech

Climb the toughest trails, send them downhill - then repeat, all thanks to a mix of a  lightweight carbon frame triangle, with an integrated 630 Wh battery and powerful Shimano EP8 motor, plus top-end componentry. The range-topping Merida eOne Forty 8000 Electric Trail Bike features agile yet confidence-inspiring trail geometry that’s ready for all-day off-road adventures. High-performance Fox suspension means it’s ready to clean any climb you point it at while still delivering complete control on the descents. The tough Shimano LinkGlide drivetrain offers up smooth shifting, all day long. The trail-specific, balanced geometry is paired to a mixed 29er/27.5” wheel size setup. while a steeper seat angle boosts climbing capability, something ideal for an all-day e-bike mission. The low bottom bracket and lower standover height mean extra confidence while the 140 mm of front wheel and 133 mm of rear wheel travel offer up control, comfort, and real rough terrain capability. The eONE-FORTY’s versatility is boosted even further by the inclusion of integrated lights, so you can stay out on the trail even longer! The combination of all of these features makes the Merida eOne Forty 8000 Electric Trail Bike one of the most balanced, great-all-round eMTBs on the market. If you're after supreme trail handling with superb flow and fun, this is the ebike for you.

Accessories: Shimano Charger
Battery: Shimano STePSE8036 630Wh / Shimano E8035 504Wh for S only
Brakes: Shimano SLX 4-Piston
Chain: CNLG500
Chainwheel: Shimano CRE80-B
Colour (text): Red
Crankset: Shimano FCEM600 165mm
Derailleur rear: Shimano XT RDM8130 Shadow+ 11
Display: Shimano SC-E7000
Fender: F: C093-02F | R: C093-02R
Fork: FOX Rhythm 34 Float eMTB+ Air, 140mm travel, tapered, 51mm offset, 29x2.5" max wheelsize
Frame: eONE-FORTY CFA II Carbon with Alloy rear triangle, 133mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard intube, max. 630wh
Freewheel: Shimano LG600 11-50 teeth, 11-speed
Handlebar: Merida Expert eTR 780mm width, 20mm rise
Handlebar stem: Merida Expert eTRII material: aluminium 35mm diameter 0° stem angle Supernova mount 50 mm
Headset: MERIDA 8152
Hubs: Shimano XT 110x15mm width front hub 32 spoke holes Centerlock 148x12mm width rear hub 36 spoke holes Centerlock
Light(s): F: Lezyne E-Bike Power E115 | R: Dlight CG-214RG
Motor drive unit: Shimano EP8 85Nm
Pedals: VP VPE-527
Rotor front: Shimano RT64
Rotor rear: Shimano RTEM600
Season: 2022
Seat post: Merida Expert TR 30.9mm diameter 0mm setback S 100mm travel seatpost - S/M 125mm travel seatpost - L 150mm travel seatpost - XL/XXL 170mm travel seatpost
Shock: FOX Performance Float DPS with lockout
Spokes: Black stainless
Tyre front: Continental Trail King 29x2.4 " fold BlackChili ProTection Apex TR
Tyre rear: Continental Trail King B+ 27.5x2.6 " fold BlackChili ProTection Apex TR
Wheel size: 29" / 27.5" (Mullet Bike)
Bike Frame Geometry Image

Tyre Sizes29/27.5"29/27.5"29/27.5"29/27.5"29/27.5"
ST seat tube [mm]405420440470500
TT top tube [mm]561582603626650
CS chain stay length [mm]439.5439.5439.5439.5439.5
HTA head tube angle [°]66.566.566.566.566.5
STA seat tube angle [°]76.576.576.576.576.5
BD bottom bracked drop [mm]2424242424
HT head tube [mm]110115120135150
FL fork length [mm]551551551551551
R reach [mm]410429.5449.5469.5489.5
S stack [mm]622626.5631644.5658
WB wheel base [mm]1160118212041230.51256.5
SH stand over height [mm]736731727734

Merida Electric Mountain Bike Sizing Chart

99 Bikes Merida Electric Mountain Bike Sizing Chart

Merida Bikes Warranties

Lifetime warranty on all frames

Lifetime warranty on all frames for the entire ownership of the original purchaser. This covers manufacturing and material defects. No exclusions for racing. Rider and equipment weight limit: 120kg for standard bikes; 140kg for e-Bikes. Proof of purchase must be presented. (frames from model year 2015 onwards). *Conditions apply. *The lifespan of a bike is up to ten years.

Forks: Carbon and aluminium rigid forks are guaranteed for 5 years from the date of purchase

Suspension: Rear suspension components are guaranteed for 2 years from the date of purchase

All other MERIDA branded components, including paint and finish, are guaranteed for 1 year from the date of purchase.

The Merida Warranty Excludes:

Componentry which isn’t Merida branded (see below)
Normal wear and tear
Damage caused by accidents, neglect or abuse
Improper assembly
Improper follow-up maintenance; all bikes must be serviced by an authorised MERIDA dealer within 6 months of purchase. Suspension systems must be serviced annually by an authorised dealer
Modification or alteration of the frame or original components

Branded Components

Issues relating to branded original components, such as Shimano or SRAM are the responsibility of the appropriate component manufacturer’s warranty and subject to their terms and conditions.

In the case of branded components failing, please contact your local MERIDA stockist who will liaise with the relevant distributor on your behalf.

If the cause of the fault isn’t initially clear based on the information and photos your MERIDA stockists provides, the defective product may need to be returned to MERIDA Bicycles Ltd for closer inspection.

Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.

The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.

View Merida range

Click & Collect Available

• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »

No Courier Delivery

• This item is unavailable to be shipped with a courier More info »

For just $5, you can join Club 99 and you’ll gain access to exclusive benefits that will ensure you make the most of your bike purchase both in store and online. The ride starts with Club 99.

Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
