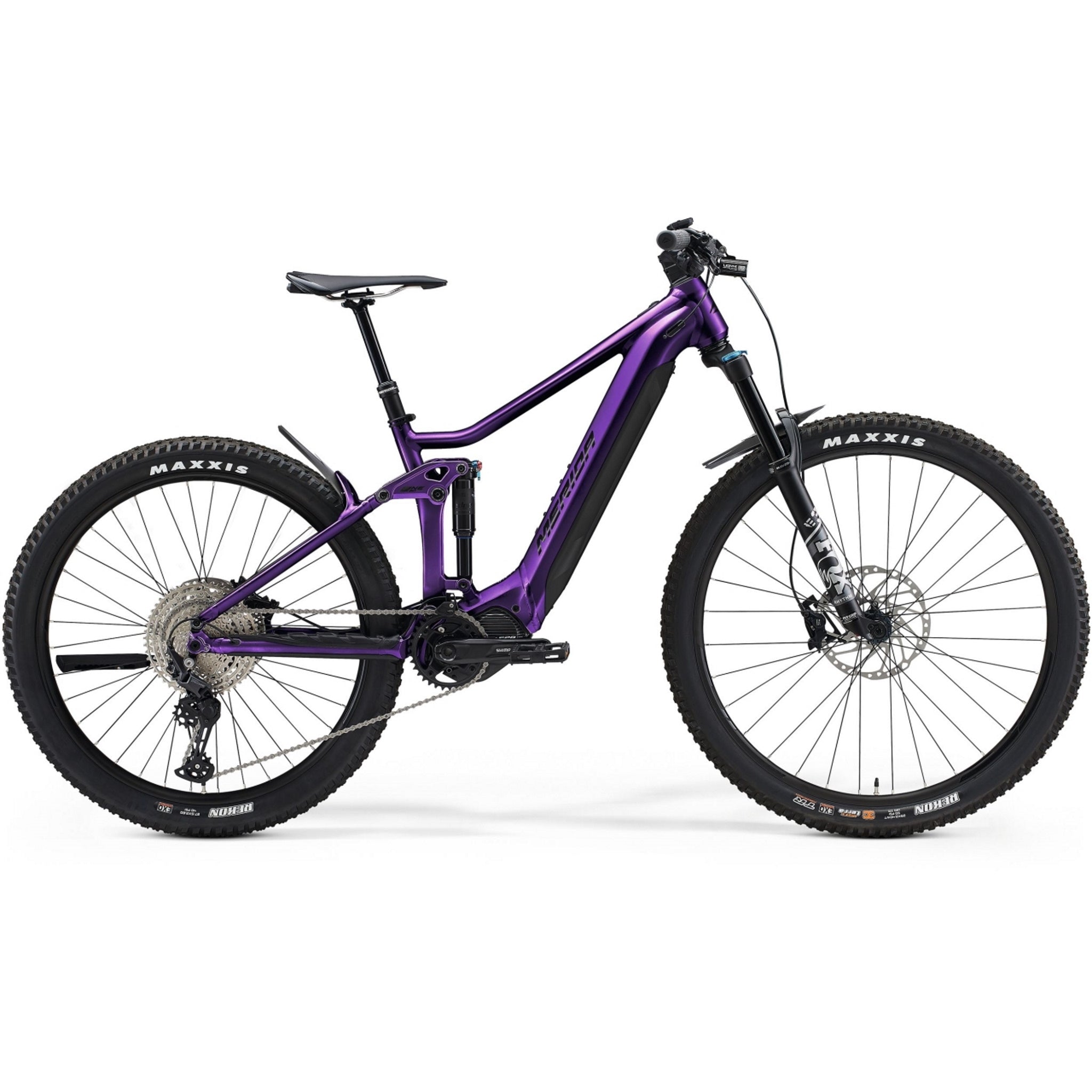

Merida eOne Forty 700 All-Mountain Electric Bike 640Wh Battery Dark Purple/Black

$9,024
?

You automatically get Club Price when buying online. But there are extra benefits if you join Club 99.

$9,599.99
Buy now, pay later
SKU: 6UYS1O9I In stock

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Key Features
  • Tough all-aluminium chassis with balanced trail geometry
  • FOX Rhythm 34 Float eMTB+ Air 140mm fork
  • Powerful Shimano EP8 drive unit, 85Nm torque
  • Integrated 630Wh battery, 504Wh on size small
  • Assist speeds up to 32 km/h
  • Approx range 30 - 80km on singletrack, 100 - 270km on flat, 25 - 230km on size small
  • Rock Shox Deluxe Select+ shock
  • Smooth 12-speed Shimano SLX/XT drivetrain
  • Powerful four-piston Shimano SLX hydraulic disk brakes
  • Mullet wheel setup, 29" front 27.5" rear

The eOne Forty might be the little sibling to Merida’s multiple award and test winning eOne Sixty, but when it comes to providing agile trail handling with superb flow and fun, it plays second fiddle to no-one. Equipped with Shimano’s powerful yet refined EP8 drive unit and with the 630Wh (504Wh on size small) battery integrated seamlessly into the frame, it’s the perfect partner for all kinds of adventures. The trail-specific, balanced geometry is paired to a mixed 29er/27.5” wheel size setup that delivers flow and fun for riders of all abilities, while a steeper seat angle boosts climbing capability, something ideal for an all-day mission. The low bottom bracket and lower standover height mean extra confidence while the FOX Rhythm 34 Float eMTB+ 14mm fork and Rock Shox Deluxe Select+ shock offer up real rough terrain capability. The high-quality kit doesn’t stop there, with a Shimano SLX/XT 12 speed drivetrain and powerful Shimano SLX 4 piston hydraulic disk brakes.

Accessories: Included: MERIDA Multitool with saddlebox
Axles: REAR: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Battery: Shimano E8036 630Wh / Shimano E8035 504Wh for S only / Charger: Shimano EC-E8004
Brakes: Shimano SLX
Chain: KMC e12T EPT
Chainwheel: Shimano CRE80-12-B
Crankset: Shimano FCEM600
Derailleur rear: Shimano XT RDM8100 Shadow+ 12
Display: Shimano SC-E7000
Fork: FOX Rhythm 34 Float eMTB+; Air; 140 STR; Tapered; 51mm fork offset; 29x2.5" max WHS
Frame: eONE-FORTY LITE III; MAT aluminium; 133 STR; 27.5x2.8" max. WHS; 148x12 AST; intube
Freewheel: Shimano M6100 Cassette
Handlebar: MERIDA EXPERT eTR
Handlebar stem: MERIDA EXPERT eTR II 50 mm all sizes
Hubs: FRONT: Shimano SLX / REAR: Shimano SLX; 148x12 WHR, 36 SPH; Centerlock
Light(s): FRONT: LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount / REAR: USB REAR Light CG-214RG
Motor drive unit: Shimano EP8
Pedals: VP VPE-527
Rim: MERIDA EXPERT TR
Rotor front: Shimano RT64
Rotor rear: Shimano RTEM600
Saddle: MERIDA EXPERT CC
Season: 2022
Seat post: MERIDA EXPERT TR / Lever: Shimano SL -MT500-IL
Shock: Rock Shox Deluxe Select+
Tyre front: MAXXIS REKON; 29x2.4"; fold; 3C EXO MaxxTerra
Tyre rear: MAXXIS REKON; 27.5x2.6"; fold; TR 3C EXO MaxxTerra
Weight: Max Rider Weight: 140kg
Wheel size: 29" / 27.5" (Mullet Bike)
Frame SizeSMLXLXXL
Tyre Sizes29/27.5"29/27.5"29/27.5"29/27.5"29/27.5"
seat tube [mm]405415430450470
top tube [mm]561581603624645
chain stay length [mm]439.5439.5439.5439.5439.5
head tube angle [°]66.566.566.566.566.5
seat tube angle [°]76.576.576.576.576.5
bottom bracked drop [mm]2525252525
head tube [mm]110115120125130
fork length [mm]551551551551551
reach [mm]410430450469489
stack [mm]622627631635640
wheel base [mm]11601182120412261248
stand over height [mm]729730727733747

Merida Electric Mountain Bike Sizing Chart

99 Bikes Merida Electric Mountain Bike Sizing Chart

Merida Bikes Warranties

Lifetime warranty on all frames


Lifetime warranty on all frames for the entire ownership of the original purchaser. This covers manufacturing and material defects. No exclusions for racing. Rider and equipment weight limit: 120kg for standard bikes; 140kg for e-Bikes. Proof of purchase must be presented. (frames from model year 2015 onwards). *Conditions apply. *The lifespan of a bike is up to ten years.

Forks: Carbon and aluminium rigid forks are guaranteed for 5 years from the date of purchase

Suspension: Rear suspension components are guaranteed for 2 years from the date of purchase

All other MERIDA branded components, including paint and finish, are guaranteed for 1 year from the date of purchase.


The Merida Warranty Excludes:

Componentry which isn’t Merida branded (see below)
Normal wear and tear
Damage caused by accidents, neglect or abuse
Improper assembly
Improper follow-up maintenance; all bikes must be serviced by an authorised MERIDA dealer within 6 months of purchase. Suspension systems must be serviced annually by an authorised dealer
Modification or alteration of the frame or original components

Branded Components

Issues relating to branded original components, such as Shimano or SRAM are the responsibility of the appropriate component manufacturer’s warranty and subject to their terms and conditions.

In the case of branded components failing, please contact your local MERIDA stockist who will liaise with the relevant distributor on your behalf.

If the cause of the fault isn’t initially clear based on the information and photos your MERIDA stockists provides, the defective product may need to be returned to MERIDA Bicycles Ltd for closer inspection.

Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.

The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
