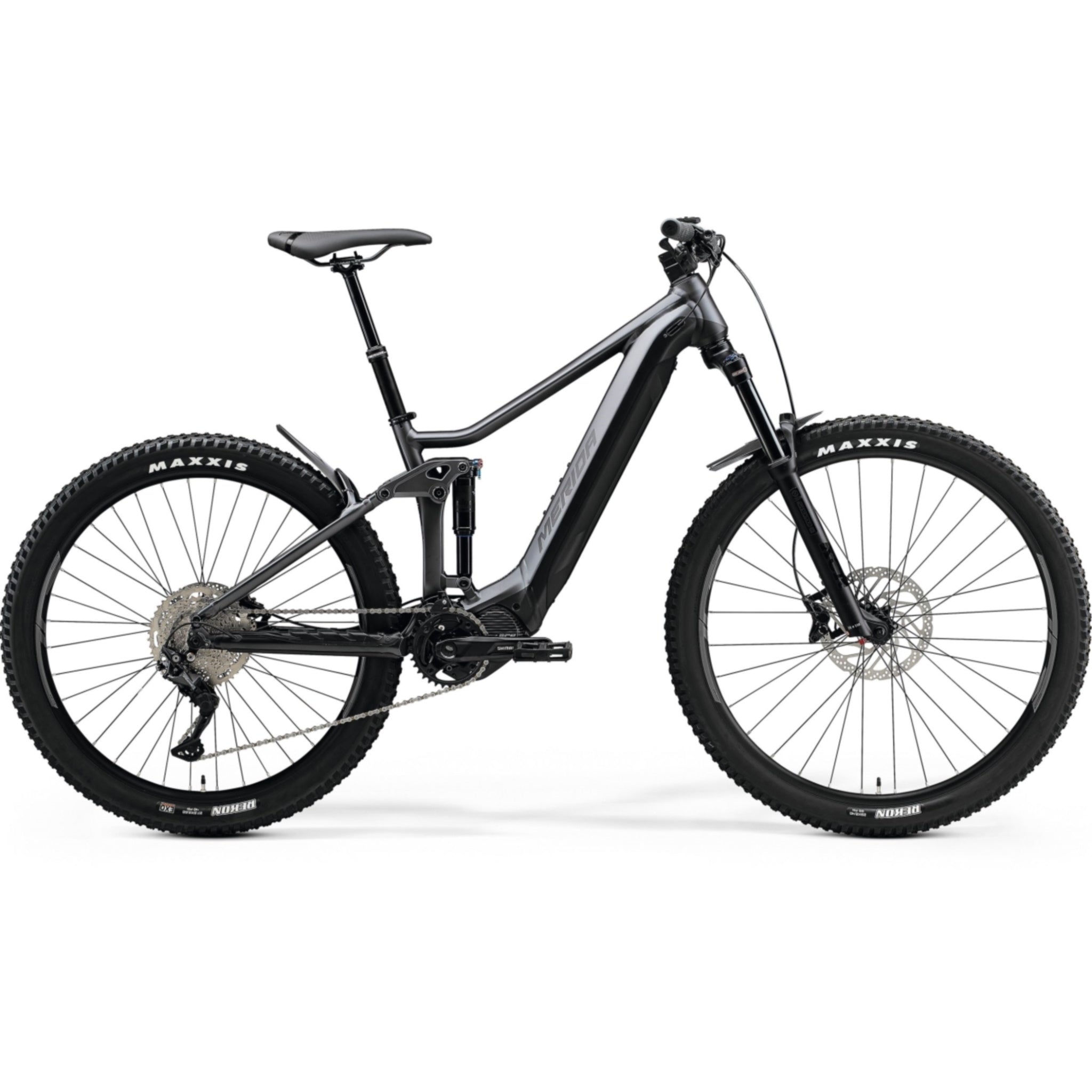

Merida eOne Forty 400 Enduro Electric Bike 630Wh Battery (SM/504Wh) Dark Silver/Black


You automatically get Club Price when buying online. But there are extra benefits if you join Club 99.

Buy now, pay later
SKU: MEEB2238730 Low stock

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Key Features
  • Tough 6061 Aluminium frame with balanced trail geometry
  • Suntour SR 140mm Fork and 130mm Shock with Lockout
  • Shimano’s most powerful EP8 motor, 85Nm torque
  • Integrated 630Wh battery, 504Wh for size small
  • Assist speeds up to 32 km/h
  • Approx range 30 - 80km on singletrack, 100 - 270km on flat, 25 - 230km on size small
  • Shimano Deore ebike specific 1x10 speed drivetrain
  • Shimano 2/4 piston hydraulic disc brakes
  • Mixed wheel size 29er front / 27.5” rear

When it comes to providing agile trail handling with superb flow and fun, Merida’s eOne Forty plays second fiddle to no-one. Equipped with Shimano’s powerful yet refined EP8 drive unit and with the 630Wh battery (504Wh for S) integrated seamlessly into the frame, it’s the perfect partner for all kinds of adventures. The trail-specific, balanced geometry is paired to a mixed 29er/27.5” wheel size setup that delivers flow and fun for riders of all abilities, while a steeper seat angle boosts climbing capability, something ideal for an all-day e-bike mission. The low bottom bracket and lower standover height mean extra confidence while the Suntour suspension delivers 140 mm of front wheel and 133 mm of rear wheel travel offering up control, comfort and real rough terrain capability. Quality components such as the wide range Shimano Deore/ebike specific 10 speed drivetrain and powerful hydraulic brakes with burly rotors mean you'll always be in control.
Accessories: FENDER INCLUDED: C093-02F + C093-02R
Axles: REAR: MERIDA EXPERT TR including removeable lever, 6/4mm allen key
Battery: Shimano E8036 630Wh / Shimano E8035 504Wh for S only
Brakes: Shimano M4100 / FRONT: 4 piston / REAR: 2 piston
Chain: KMC e10s
Chainwheel: Shimano CRE70-B 34 teeth
Crankset: Shimano FCEM600 165 mm
Derailleur rear: Shimano Deore RDM5120 10
Display: Shimano SC-E5003A
Fork: SR Suntour XCR34 LOR DS Air Boost 140mm Tapered 51mm fork offset 29x2.4" max wheelsize
Frame: eONE-FORTY LITE III material: aluminium 133mm suspension travel 27.5x2.8" max. wheelsize 148x12mm axle standard intube
Freewheel: Shimano M4100 11-46 teeth 10 speed Cassette
Handlebar: MERIDA EXPERT eTR 780mm width 20mm rise
Handlebar stem: MERIDA EXPERT eTRII material: aluminium 35mm diameter 0° stem angle GoPro & Supernova mount 50 mm
Headset: MERIDA 8152
Hubs: FRONT: Shimano MT400-B 110x15mm width front hub 32 spoke holes Centerlock / REAR: Shimano MT400-B 148x12mm width rear hub 36 spoke holes Centerlock
Light(s): FRONT: Dlight CG-119PG STZVO / REAR: Dlight CG-404RG STVZO
Motor drive unit: Shimano EP8 85Nm
Pedals: VP VPE-537
Rim: MERIDA COMP TR 29mm inner width material: aluminium Tubeless ready (tubeless tape and valves not included)
Rotor front: Shimano RT30 203 mm
Rotor rear: Shimano RTEM300 180 mm
Saddle: MERIDA COMP SL V-mount
Season: 2022
Seat post: MERIDA COMP TR 30.9mm diameter 0mm setback S/M 100mm travel seatpost - L/XL 125mm travel seatpost - XXL 150mm travel seatpost
Shock: SR Suntour EDGE lockout
Spokes: Black stainless
Tyre front: Maxxis Rekon 29x2.4" wire DUAL
Tyre rear: Maxxis Rekon 27.5x2.6" wire EXO
Wheel size: 29" / 27.5" (Mullet Bike)
Frame SizeS / 16"M / 16.5"L / 17"XL / 18"XXL / 18.5"
Tyre Sizes29/27.5"29/27.5"29/27.5"29/27.5"29/27.5"
ST seat tube [mm]405415430450470
TT top tube [mm]561581603624645
CS chain stay length [mm]439.5439.5439.5439.5439.5
HTA head tube angle [°]66.566.566.566.566.5
STA seat tube angle [°]76.576.576.576.576.5
BD bottom bracked drop [mm]2525252525
HT head tube [mm]110115120125130
FL fork length [mm]551551551551551
R reach [mm]410430450469489
S stack [mm]622627631635640
WB wheel base [mm]11601182120412261248
SH stand over height [mm]729730727733747

Merida Electric Mountain Bike Sizing Chart

99 Bikes Merida Electric Mountain Bike Sizing Chart

Merida Bikes Warranties

Lifetime warranty on all frames

Lifetime warranty on all frames for the entire ownership of the original purchaser. This covers manufacturing and material defects. No exclusions for racing. Rider and equipment weight limit: 120kg for standard bikes; 140kg for e-Bikes. Proof of purchase must be presented. (frames from model year 2015 onwards). *Conditions apply. *The lifespan of a bike is up to ten years.

Forks: Carbon and aluminium rigid forks are guaranteed for 5 years from the date of purchase

Suspension: Rear suspension components are guaranteed for 2 years from the date of purchase

All other MERIDA branded components, including paint and finish, are guaranteed for 1 year from the date of purchase.

The Merida Warranty Excludes:

Componentry which isn’t Merida branded (see below)
Normal wear and tear
Damage caused by accidents, neglect or abuse
Improper assembly
Improper follow-up maintenance; all bikes must be serviced by an authorised MERIDA dealer within 6 months of purchase. Suspension systems must be serviced annually by an authorised dealer
Modification or alteration of the frame or original components

Branded Components

Issues relating to branded original components, such as Shimano or SRAM are the responsibility of the appropriate component manufacturer’s warranty and subject to their terms and conditions.

In the case of branded components failing, please contact your local MERIDA stockist who will liaise with the relevant distributor on your behalf.

If the cause of the fault isn’t initially clear based on the information and photos your MERIDA stockists provides, the defective product may need to be returned to MERIDA Bicycles Ltd for closer inspection.

Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.

The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
