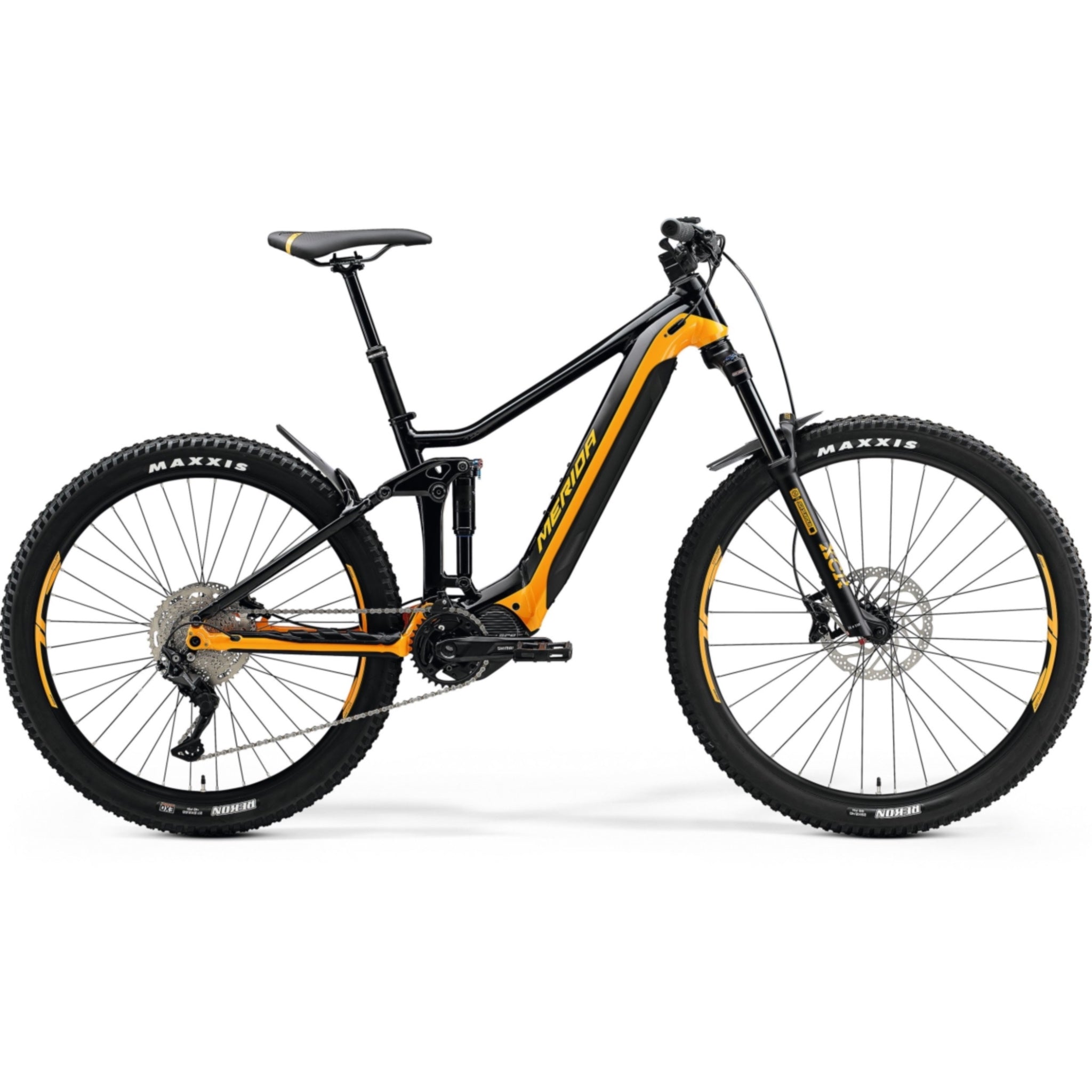

Merida eOne Forty 400 Enduro Electric 630Wh Battery (SM/504Wh) Bike Black/Orange

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL XXL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Steep Hills & Heavy Loads / 85 Nm Torque

Up to 73 km Range

Shimano STePS EP8 Motor

Alloy Frame/ Suntour Alloy Fork

140mm Front Travel / 130mm Rear

630Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

When it comes to providing agile trail handling with superb flow and fun, Merida’s eOne Forty plays second fiddle to no-one. Equipped with Shimano’s powerful yet refined EP8 drive unit and with the 630Wh battery (504Wh for S) integrated seamlessly into the frame, it’s the perfect partner for all kinds of adventures. The trail-specific, balanced geometry is paired to a mixed 29er/27.5” wheel size setup that delivers flow and fun for riders of all abilities, while a steeper seat angle boosts climbing capability, something ideal for an all-day e-bike mission. The low bottom bracket and lower standover height mean extra confidence while the Suntour suspension delivers 140 mm of front wheel and 133 mm of rear wheel travel offering up control, comfort and real rough terrain capability. Quality components such as the wide range Shimano Deore/ebike specific 10 speed drivetrain and powerful hydraulic brakes with burly rotors mean you'll always be in control.

Key Features

Tough 6061 Aluminium frame with balanced trail geometry
Shimano’s most powerful EP8 motor, 85Nm torque
Integrated 630Wh battery (504Wh for size S)
Suntour SR 140mm Fork and 130mm Shock with Lockout
Shimano Deore/ebike specific 1x10 speed drivetrain
Mixed wheel size 29er front / 27.5” rear

Specifications

Product Overview

Product

Merida eOne Forty 400 Enduro Electric 630Wh Battery (SM/504Wh) Bike Black/Orange

Brand

Merida

Parent SKU

NWL0J4S6

Size SKUs

SM: MEEB2228444
MD: MEEB2228455
LG: MEEB2228466
XL: MEEB2228477
XXL: MEEB2228488

Matrix Barcodes

SM: 4710949835606
MD: 4710949835590
LG: 4710949835583
XL: 4710949835613
XXL: 4710949835620

Year Model

2022

Product Features

Frame Material

Alloy

Colour

Black

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Fork Material

Alloy

Front Travel

140mm

Rear Travel

130mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Torque (Nm)

Motor Climbing Ability

Steep Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Battery

Shimano E8036 630Wh / Shimano E8035 504Wh for S only

Max. Range (KMs)

Display

Shimano SC-E5003A

Build

Frame

eONE-FORTY LITE III material: aluminium 133mm suspension travel 27.5x2.8" max. wheelsize 148x12mm axle standard intube

Fork

SR Suntour XCR34 LOR DS Air Boost 140mm Tapered 51mm fork offset 29x2.4" max wheelsize

Shock

SR Suntour EDGE lockout

Handlebars

MERIDA EXPERT eTR 780mm width 20mm rise

Headset

MERIDA 8152

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTRII material: aluminium 35mm diameter 0° stem angle GoPro & Supernova mount 50 mm

Pedals

VP VPE-537

Saddle

MERIDA COMP SL V-mount

Seat Post

MERIDA COMP TR 30.9mm diameter 0mm setback S/M 100mm travel seatpost - L/XL 125mm travel seatpost - XXL 150mm travel seatpost

Seat Clamp

MERIDA EXPERT

Accessories

FENDER INCLUDED: C093-02F + C093-02R

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

MERIDA COMP TR 29mm inner width material: aluminium Tubeless ready (tubeless tape and valves not included)

Hubs

FRONT: Shimano MT400-B 110x15mm width front hub 32 spoke holes Centerlock / REAR: Shimano MT400-B 148x12mm width rear hub 36 spoke holes Centerlock

Spokes

Black stainless

Groupset

Crankset

Shimano FCEM600 165 mm

Chain

KMC e10s

Brakes

Shimano M4100 / Front: 4 piston / Rear: 2 piston

Front Rotor

Shimano RT30 203 mm

Rear Rotor

Shimano RTEM300 180 mm

Shifters

Rear: Shimano Deore M4100 RC1 clamp band

Rear Derailleur

Shimano Deore RDM5120 10

Cassette

10 Speed
