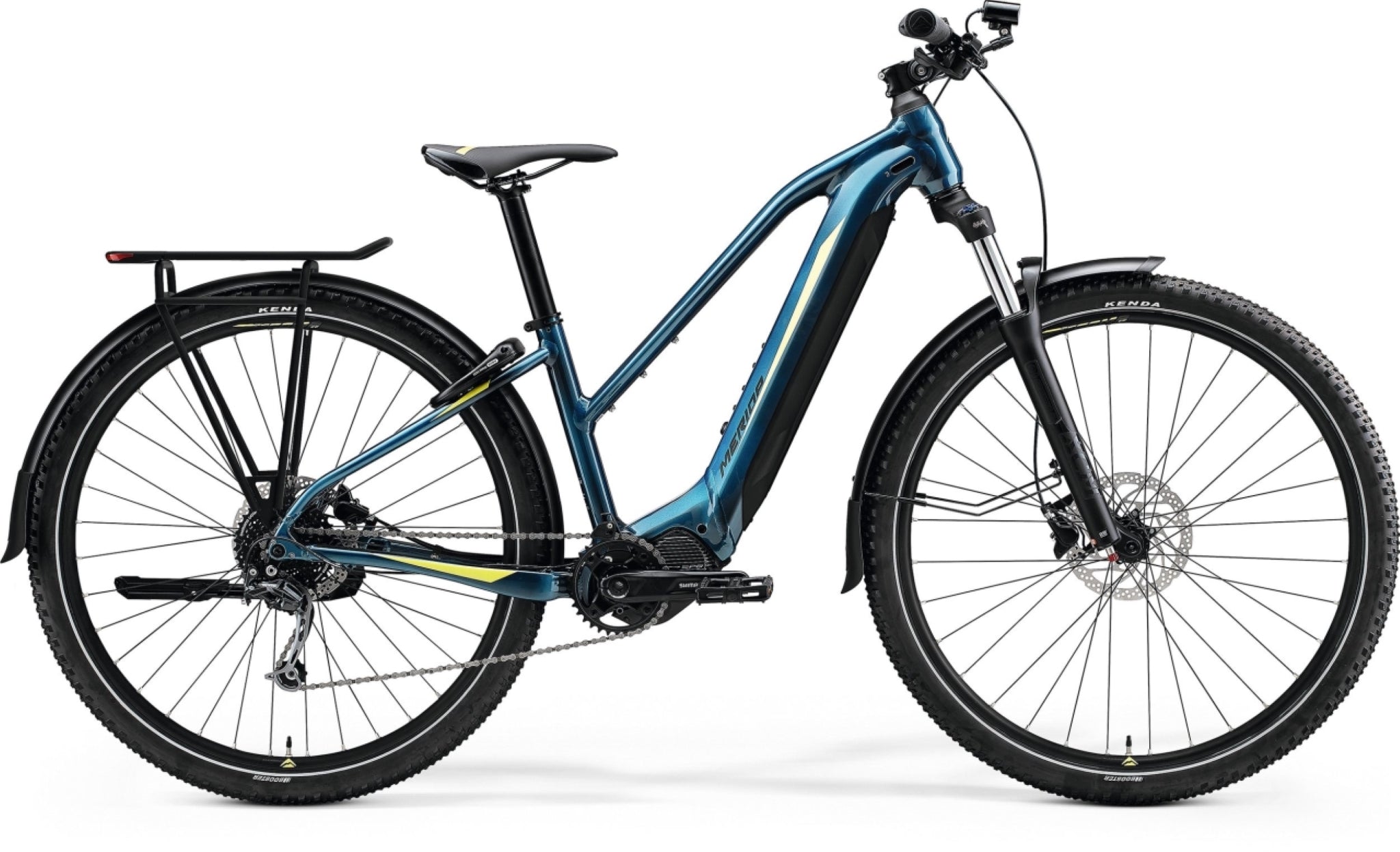

Merida eBig Tour 400 EQ Electric Mountain Bike 630Wh Battery Teal Blue/Lime

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Steep Hills & Heavy Loads / 85 Nm Torque

Up to 73 km Range

Shimano STePS EP8 Motor

Alloy Frame/ Suntour Alloy Fork

100mm Front Travel

630Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The eBig Tour is a reliable day-to-day companion for riding to work that’s equally happy taking you on big adventures off the beaten track, ensuring you’ve got the best of both worlds. Joining together urban practicality with the ability to explore is no easy feat, but the eBig Tour 400 EQ does just that by using Shimano’s powerful EP8 drive unit paired with a large capacity 630Wh battery to provide you with a long-range and smooth yet powerful assistance whenever you need it. Fast-rolling 29” wheels with high volume tyres easily handle city and countryside terrain, a Suntour suspension fork adds comfort and control. Mountain bike-inspired geometry delivers capable and confident handling whenever you want an adventure, while the low-step-through frame design ensures easy mounting and safe stops in traffic. Generously kitted out with equipment including mudguards, lights, rack, wheel lock, and kickstand cover your everyday commuting needs, so there’s no need to compromise.

Key Features

Powerful 630Wh battery for extended rides
Durable frame designed for rugged terrain
Integrated lights for enhanced visibility
Comfortable geometry for all-day riding
High-quality components for smooth performance

Specifications

Product Overview

Product

Merida eBig Tour 400 EQ Electric Mountain Bike 630Wh Battery Teal Blue/Lime

Brand

Merida

Parent SKU

CBKERLK8

Size SKUs

SM: MEEB2240415
MD: MEEB2240426
LG: MEEB2240437
XL: MEEB2240448

Matrix Barcodes

SM: 4710949838225
MD: 4710949838218
LG: 4710949838201
XL: 4710949838232

Year Model

2022

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Blue

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Fork Material

Alloy

Front Travel

100mm

Weight Limit

150kg (includes bike)

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Torque (Nm)

Motor Climbing Ability

Steep Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Battery

Shimano E8036; 630Wh

Max. Range (KMs)

Display

Shimano SC-E5003A

Build

Frame

eBIG.TOUR LITE III; MAT aluminium; 29x2.35" without fender max./ 29"x2.25" with fender max. WHS; 148x12 AST; intube

Fork

Suntour XCM34-Boost LOR DS; 100mm; Tapered; 51mm fork offset; 29x2.4" max WHS

Handlebars

MERIDA EXPERT CC; MAT aluminium; 720 WHB; 10 RHB

Headset

MERIDA 8155

Stem

MERIDA EXPERT CT; MAT aluminium; 31.8 DSH; adjustable

Bottom Bracket

BSA, Threaded

Pedals

VP VPE-537

Saddle

MERIDA EXPERT TK; V-mount

Seat Post

MERIDA EXPERT CC; MAT aluminium; 34.9 DSP; 0 SSB

Accessories

KICKSTAND Massload CL-KA98, Shimano Charger, Merida MA008-1 Carrier

Wheels

Wheel Size

29"

Rims

MERIDA COMP CC; 20 IWR; MAT aluminium

Hubs

F: Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock | R: Shimano MT400-B, 148x12mm width rear hub, 36 spoke holes, Centerlock

Tyres

KENDA Booster; 29x2.2"; wire

Groupset

Crankset

Shimano CRE70-B; 34 ATC

Chain

KMC e10s

Brakes

Shimano MT200, 2 piston

Front Rotor

Shimano RT30 / Shimano RTEM300, 180 mm

Rear Rotor

Shimano RT30 / Shimano RTEM300, 180 mm

Shifters

Shimano Deore M4100

Rear Derailleur

Shimano Deore M5120; SGS

Cassette

10 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.
