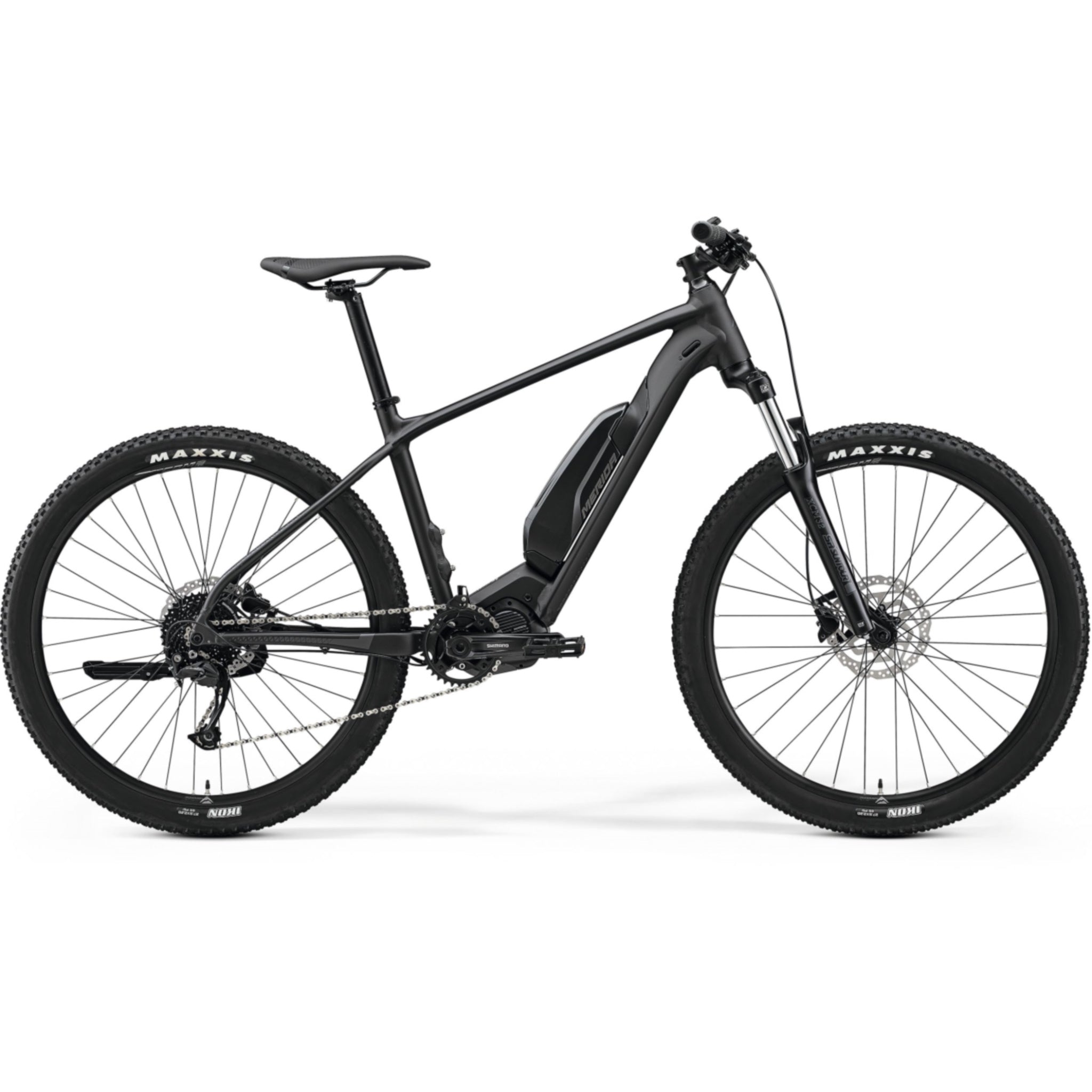

Merida eBig Seven 300 SE Electric Mountain Bike 504wh Battery Matt Black/Silver

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Moderately Steep Hills / 60 Nm Torque

Up to 61 km Range

Shimano STePS E7000 Motor

Alloy Frame/ Suntour Alloy Fork

100mm Front Travel

504Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Merida eBig Nine/Seven models are Ideal for anyone looking for the perfect balance of day-to-day usability and sporty leisure activity, enabling you to combine the daily commute with a sporty trail detour on the way home. The eBig Seven 300 SE is built around a lightweight HFS-hydroforming Prolite 66 triple butted aluminium 27.5" hardtail frame with powerful Shimano E7000 motor and E8010 battery. Smooth, reliable shifting with 9 Speed Shimano transmission, paired with powerful Tektro Hydraulic disc brakes to provide precise braking performance in all weather conditions. The casting motor bracket creates an integrated appearance of the motor into the frame as well as provides an extremely strong connection between frame and motor. Smart Entry cable routing offers a clean aesthetic and rattle free running. A Kickstand is already included, while integrated mounts are ready for Fenders and Rear Racks, making these versatile bikes completely customizable.

Key Features

Lightweight Prolite 66 triple butted Alloy Frame
Shimano 1x9 speed Alivio/Altus Drivetrain
Tektro Hydraulic Disc Brakes
Suntour XCM32 100mm travel Fork
Shimano E7000 e-MTB motor, 60Nm Torque
Shimano E8010 Battery, 504Wh
Mounting points for fenders, rack and kickstand

Specifications

Product Overview

Product

Merida eBig Seven 300 SE Electric Mountain Bike 504wh Battery Matt Black/Silver

Brand

Merida

Parent SKU

W5U36WO6

Size SKUs

XS: MEEB2243054
SM: MEEB2243065
MD: MEEB2243076

Matrix Barcodes

XS: 4710949837099
SM: 4710949837082
MD: 4710949837075

Year Model

2022

Product Features

Frame Material

Alloy

Colour

Black

Wheel Size

27.5" (650b)

Brake Type

Hydraulic Disc Brake

Gears

1 x 9

Fork Material

Alloy

Front Travel

100mm

Weight

22.5kg (weighed with 27.5" wheels in medium frame size)

Motor and Battery System

Motor Brand

Shimano

Torque (Nm)

Motor Climbing Ability

Moderately Steep Hills

Battery Size (Watt-Hours)

504

Battery

Shimano E8010 504Wh

Max. Range (KMs)

Display

Shimano SC-E5000A

Build

Frame

eBIG.SEVEN LITE, Aluminium,Max 27.5x2.20" without fender Max/ 27.5"x2.00" with fender Max Tyre Width, 148x12, External Battery

Fork

Suntour XCM32 DS, Coil, 100mm, Tapered, 47mm fork offset, 29x2.4" Max Tyre Width

Handlebars

MERIDA EXPERT CC Aluminium 720mm Wide 10mm Rise

Headset

Merida 2341 Neck

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT CC Aluminium 31.8mm

Pedals

VP VPE-537

Saddle

MERIDA COMP SL V-mount

Seat Post

MERIDA EXPERT MAT aluminium 30.9mm 15Â° Setback

Seat Clamp

MERIDA EXPERT clamp

Wheels

Wheel Size

27.5" (650b)

Rims

MERIDA COMP CC 20mm Inner Width Aluminium

Hubs

FRONT: Shimano MT400 110x15 32H, Centerlock / REAR: Shimano MT400-B 148x12 36H, Centerlock

Groupset

Crankset

Shimano CRE70-B 34T / Length: Shimano FC-E8000 165 mm for all sizes

Chain

KMC e9S

Brakes

Tektro M275 2 piston

Front Rotor

Shimano RT10 180 mm

Rear Rotor

Shimano RT10 180 mm

Shifters

Shimano Alivio M3100 9

Rear Derailleur

Shimano Alivio M3100 SGS

Cassette

9 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.
