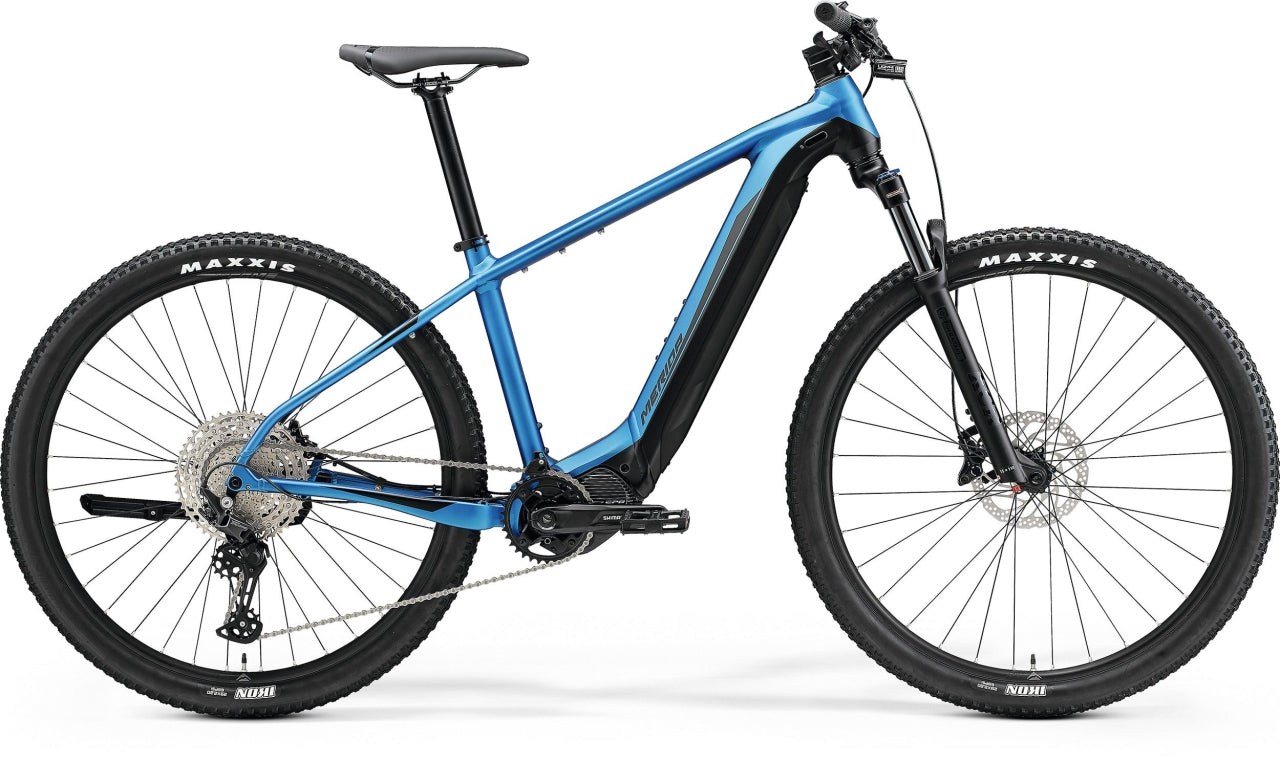

Merida eBig Nine 600 Electric Hardtail Mountain Bike 630Wh Battery Silk Blue/Black

Brand: Merida

SKU: XZ3XQODV

Size: SM

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Steep Hills & Heavy Loads / 85 Nm Torque

Up to 73 km Range

Shimano STePS EP8 Motor

Alloy Frame/ Suntour Fork

100mm Front Travel

630Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Who says you can’t have it all? With a versatile, high-quality aluminium frame that integrates the latest in Shimano drive unit technology, with either a EP8 or EP6 motor, both offering a whopping 85Nn of torque and a continuous rated power of 250 watts. Pairing this with a whopping 630 Wh battery, results in a bike with the ability to handle off-road riding just as well as the daily commute, theMerida eBig Nine 600 Electric Hardtail Mountain Bike delivers the holy grail for riders that don’t want their bike to pigeonhole their riding. Add in a smooth SR Suntour fork to tame the bumps and a quality Shimano drivetrain that can handle everything from steep mountain climbs to fast, flat sections and you’ll be wondering if you need anything more. The Merida eBig Nine 600 Electric Hardtail Mountain Bikebike can handle serious off-road riding but can also handle the commute to work with ease - especially if you want to have some fun on the way! Versatility is its middle name.

Key Features

High-quality aluminium frame
Powerful Shimano EP8 or EP6 motor
630Wh battery for extended range
Smooth SR Suntour fork for comfort
Versatile for off-road and commuting

Specifications

Product Overview

Product

Merida eBig Nine 600 Electric Hardtail Mountain Bike 630Wh Battery Silk Blue/Black

Brand

Merida

Parent SKU

RL387ZL9

Size SKUs

SM: MEEB2226055
MD: MEEB2226066
LG: MEEB2226077
XL: MEEB2226088

Matrix Barcodes

SM: 4710949837631
MD: 4710949837624
LG: 4710949837617
XL: 4710949837648

Year Model

2022

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Blue

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Front Travel

100mm

Weight Limit

140 kg

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Torque (Nm)

Motor Climbing Ability

Steep Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Battery

Shimano STePS E8036

Max. Range (KMs)

Display

Shimano SC-E5003A

Build

Frame

eBig Nine LITE III material: aluminium 29x2.35" without fender max./ 29"x2.25" with fender max. wheelsize 148x12mm axle standard intube

Fork

SR Suntour XCR34 LOR DS Air Boost 100mm Tapered 51mm fork offset 29x2.4" max wheelsize

Handlebars

Merida Expert eTR 760mm width 20mm rise

Headset

MERIDA 8157

Grips

MERIDA EXPERT EC

Stem

Merida Expert eTRII material: aluminium 35mm diameter 0° stem angle GoPro & Supernova mount 50 mm

Pedals

VP VPE-537

Saddle

Merida Comp SL V-mount

Seat Post

MERIDA EXPERT CC material: aluminium 34.9mm diameter 0mm setback

Seat Clamp

MERIDA EXPERT

Accessories

Massload CL-KA98 Kickstand, Shimano Charger

Wheels

Wheel Size

29"

Rims

MERIDA COMP CC

Hubs

F: Shimano MT400-B

Tyres

Maxxis Ikon 29x2.2" kevlar bead |

Spokes

Black stainless

Groupset

Crankset

Shimano FCEM600 165 mm

Chain

KMC e11S EPT

Brakes

Shimano M4100

Front Rotor

Shimano M4100

Rear Rotor

Shimano M4100

Shifters

Shimano Deore M5100

Rear Derailleur

Shimano Deore RDM5100 11

Cassette

11 Speed
